• Model NO.：D06
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Overall Size：985*610*935mm
• Fold Size：610*290*810 mm
• Speed：0-6 Km,H
• Driving Range：20 Km
• Loading Capacity：120 Kg
• Weight：23.7 Kg,26.7 Kg
• Motor：24V 180W*2
• Battery：24V 6ah * 2
• Frame Material：Aluminum Alloy
• Foot Pedal：Optional
• Seat Depth：400mm
• Seat Width：470mm
• Seat Height：540mm
• Charger：24V 2A
• Gradient：0-8 Degree
• Transport Package：Carton
• Specification：700*400*880 mm
• Trademark：JBH
• Origin：China
• HS Code：8713900000
• Production Capacity：3000 Sets,Month

Basic Info.

Model NO. D06 Material Aluminium Alloy Type Electric Wheelchair Overall Size 985*610*935mm Fold Size 610*290*810 mm Speed 0-6 Km/H Driving Range 20 Km Loading Capacity 120 Kg Weight 23.7 Kg/26.7 Kg Motor 24V 180W*2 Battery 24V 6ah * 2 Frame Material Aluminum Alloy Foot Pedal Optional Seat Depth 400mm Seat Width 470mm Seat Height 540mm Charger 24V 2A Gradient 0-8 Degree Transport Package Carton Specification 700*400*880 mm Trademark JBH Origin China HS Code 8713900000 Production Capacity 3000 Sets/Month

Product Description

Upgraded lithium battery powered adult foldable elec wheelchair CE

WHO WE ARE:We are enterprise with integration of R&D, manufacturing and sales, specialized in power wheelchair, electric scooter, knee walker, manual wheelchair and electric standing wheelchair.
Approved by ISO9001, ISO14001, IS013485 international quality systems. Products have acquired FDA, CE, marketing over 40 countries in the world.
"JBH" as the registered trademark renowned for "Safe, Light and Portable" on the market.
We gained wide range recognition and trust from our customers. We will continue providing high quality products and service to contribute elders and handicapped an easier and better life!Welcome for inquiring/visiting! We are right here for you!
 Advantages of D06 Folding Electric Power Wheelchair :

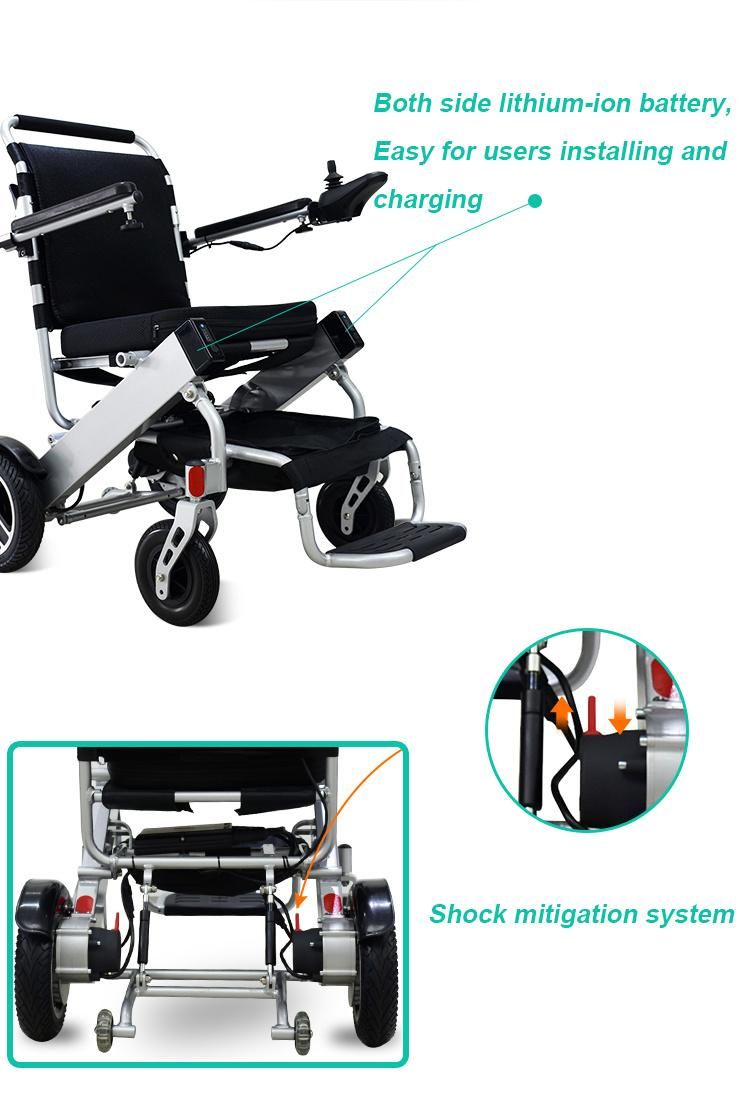

1. Double touch point lithium batteries, more safe, more convenient.
2. Brushless 10 inch PU solid tires.
3. 360°turned armrest, firm and foldable support.
4. Leg extensions is optional, fortable, stretch and adjustable, one-second remove.

Parameters of D06 Upgraded lithium battery powered adult foldable elec wheelchair CE:


Model	D06
Unfold size	980x610x935mm

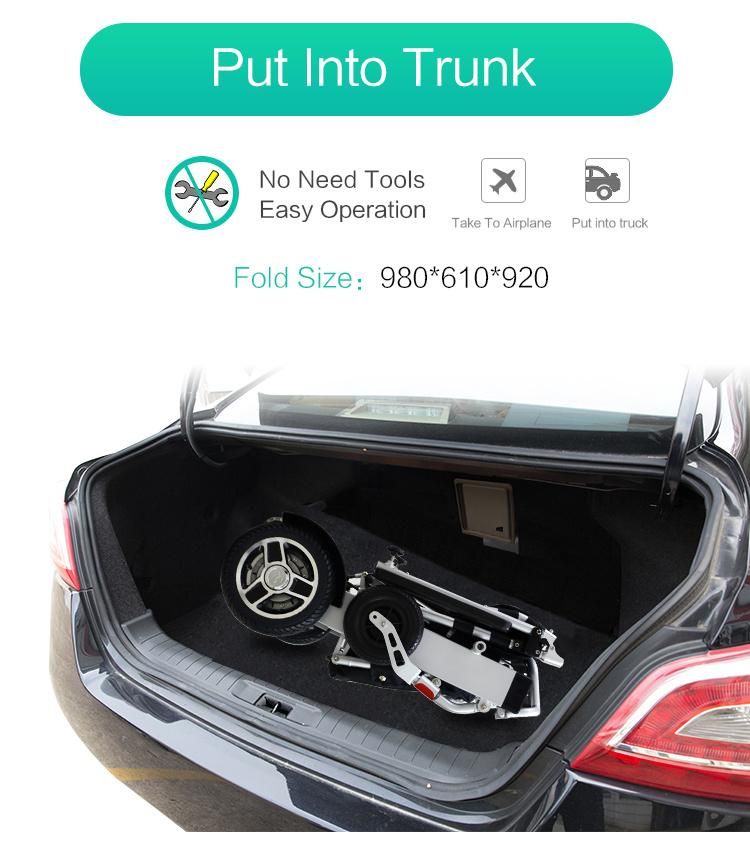

Fold size	610x290x810mm
Front wheels	7"*2pcs PU solid
Rear wheels	10"*2pcs PU solid
Lithium battery	24v/6AH*2PCS
Charge time	5 hours
Max speed	6KM/H
Motor	180W*2PCS brushless motor
Driving distance	20 km
Height from ground	80mm anti-tips from ground

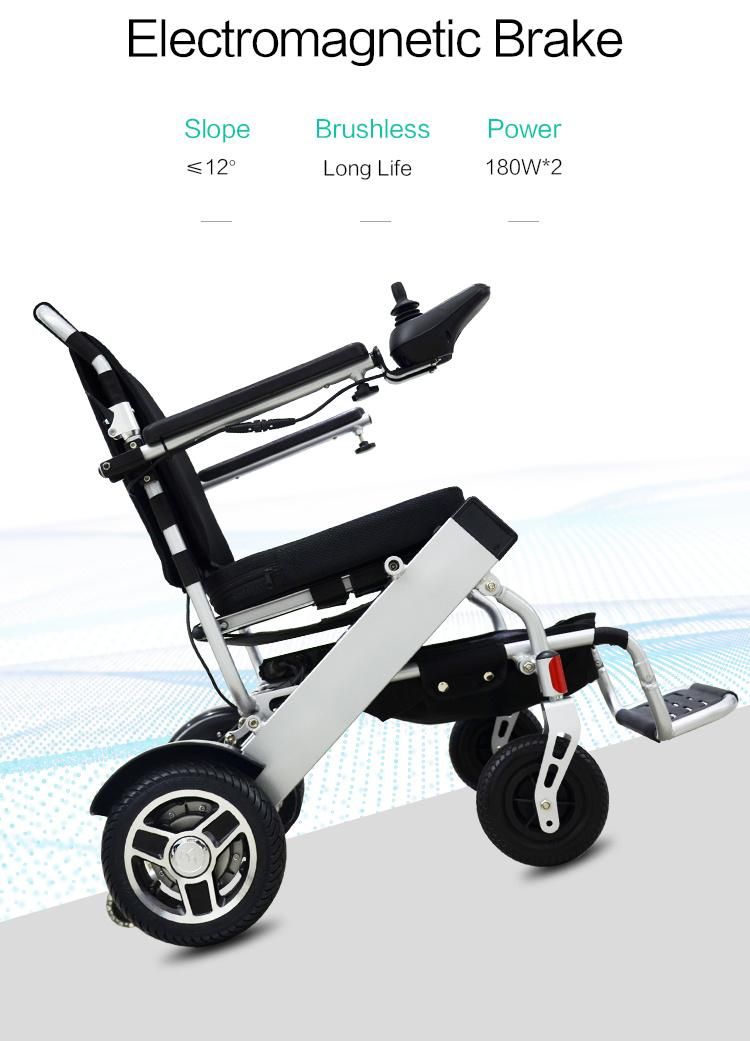

Brake system	Electronic brake system
Climbing slope	8°
Load capacity	120kg
Frame material	aluminium alloy

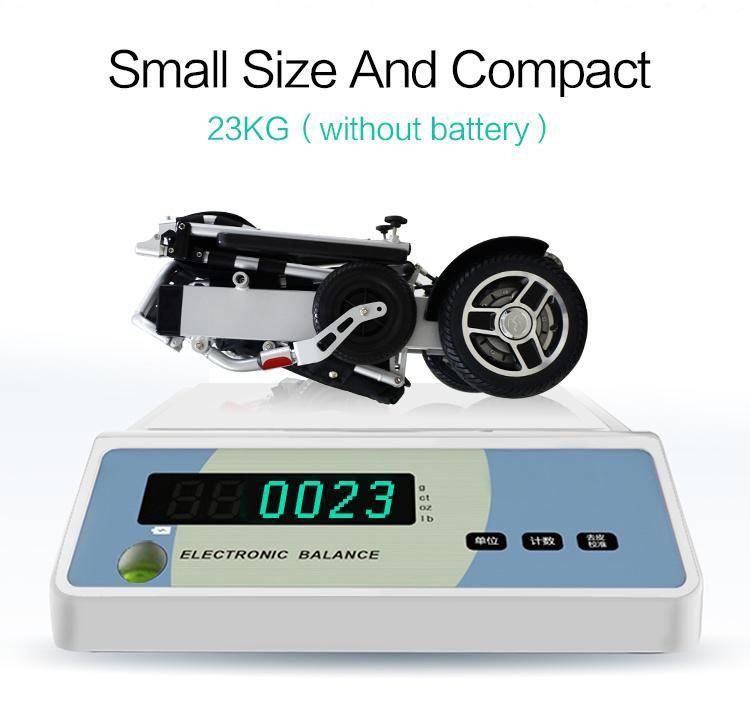

Weight	23.7kg (without battery); 26.7kg (with two battery)
Driving distance	20km
Seat depth	400mm
Seat width	400mm
Seat height	Front:520mm; back:490mm
Option parts:	Foot pedal
Package carton size	700*400*880mm

F.A.Q:
Q1: Can I Take The Plane? What Documentation Is Required?
        Yes, our products can be allowed to be carried on the plane, different airlines will have different regulations, you can consult the airline staff of your flight.

Q2: To Avoid Overcharging, Should I Need Protective Measures When Charging?
        No, the charger has a power-off protection function. When the battery is fully charged, the charging power supply will cut off by itself.

Q3: Can I Use It In Different Countries?
        Yes, our products have an input voltage of 100-240V, which is suitable for most countries in the world. We can provide you with the right charger according to the type of plug used in your country.

Q4: Should I Need To Assemble After Unpacking?
        After unpacking, only the controller joystick needs to be installed, the wheelchair lock is fixed, and the power can be used.

Q5: Is It Possible To Switch Manually By Electric Mode?
        Yes, you can adjust the red handle on the motor position to switch the manual electric mode.

Q6: Can The Controller Lever Switch Between Left And Right?
        Yes, the joystick can be switched left and right.

Q7: What Is The Production Process Of The Wheelchair?

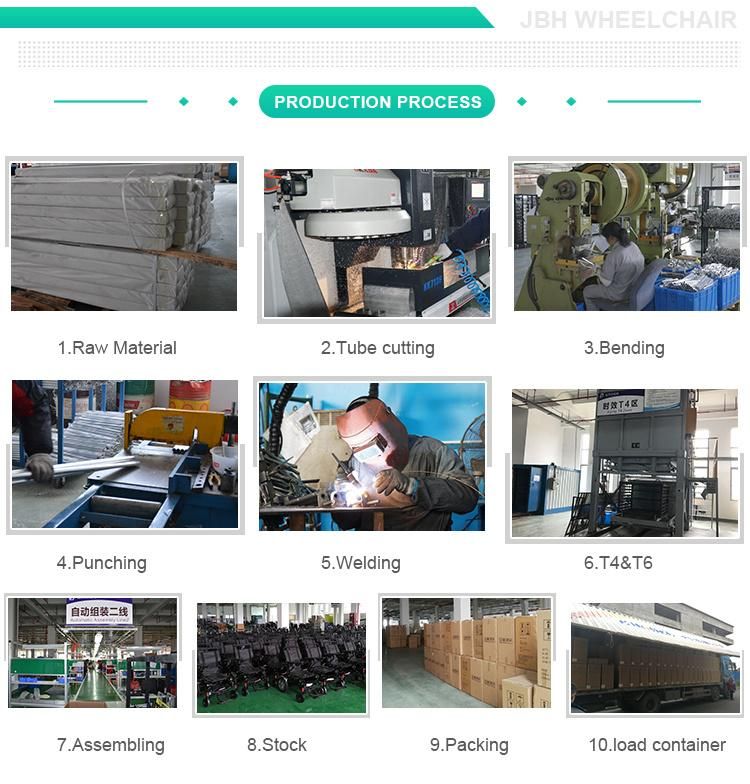

        Raw material cutting - processing forming - welding - heat treatment (increasing hardness) - baking paint - inspection - assembly - finished product - the packaging.

Q8: What Are The Optional Parts & Accessories?
        Battery, motor, tire, cup holder, controller, travel bag, rear control bracket, flashlight bracket, mobile phone  holder, headrest etc.

Q9: Can Product Quality Issues Be Returned?
        At present, my products do not support return, but if there are quality problems, we will send spare parts for customers to replace them during the warranty period. We also have a professional after-sales team to guide the installation.

Q10: Are You Directly OEM And ODM?
         OEM can, we can customize your LOGO in a wheelchair. ODM is also acceptable, but the cost of opening the mold is relatively expensive, requires the customer to pay for it, and the cycle is longer. If the customer can accept it, our factory is no problem.
