• Model NO.：D10
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Overall Size：950*645*1040 mm
• Fold Size：645*360*810 mm
• Speed：0-6 Km,H
• Driving Range：25km
• Load Capacity：150kg
• Weight：25.6 Kg , 28.4 Kg
• Gradient：0-8 Degree
• Motor：24V 250W *2 PCS
• Battery：24V 7ah * 2 PCS + Extra 28ah
• Charging Time：6 H
• Seat Depth：400mm
• Seat Width：510mm
• Seat Height：510mm
• Front Wheel：8"
• Rear Wheel：12.5"
• Transport Package：Carton
• Specification：750*450*880mm
• Trademark：JBH
• Origin：China
• HS Code：8713900000
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. D10 Material Aluminium Alloy Type Electric Wheelchair Overall Size 950*645*1040 mm Fold Size 645*360*810 mm Speed 0-6 Km/H Driving Range 25km Load Capacity 150kg Weight 25.6 Kg / 28.4 Kg Gradient 0-8 Degree Motor 24V 250W *2 PCS Battery 24V 7ah * 2 PCS + Extra 28ah Charging Time 6 H Seat Depth 400mm Seat Width 510mm Seat Height 510mm Front Wheel 8" Rear Wheel 12.5" Transport Package Carton Specification 750*450*880mm Trademark JBH Origin China HS Code 8713900000 Production Capacity 1000 Sets/Month

Product Description

Latest Design Ultra Ergonomic Electric Folding Wheelchair Distributor
 WHO WE ARE:We are enterprise with integration of R&D, manufacturing and sales, specialized in power wheelchair, electric scooter, knee walker, manual wheelchair and electric standing wheelchair.
Approved by ISO9001, ISO14001, IS013485 international quality systems. Products have acquired FDA, CE, marketing over 40 countries in the world.
"JBH" as the registered trademark renowned for "Safe, Light and Portable" on the market.
We gained wide range recognition and trust from our customers. We will continue providing high quality products and service to contribute elders and handicapped an easier and better life!Welcome for inquiring/visiting! We are right here for you!
 D10 folding power electric wheelchair Key Features:

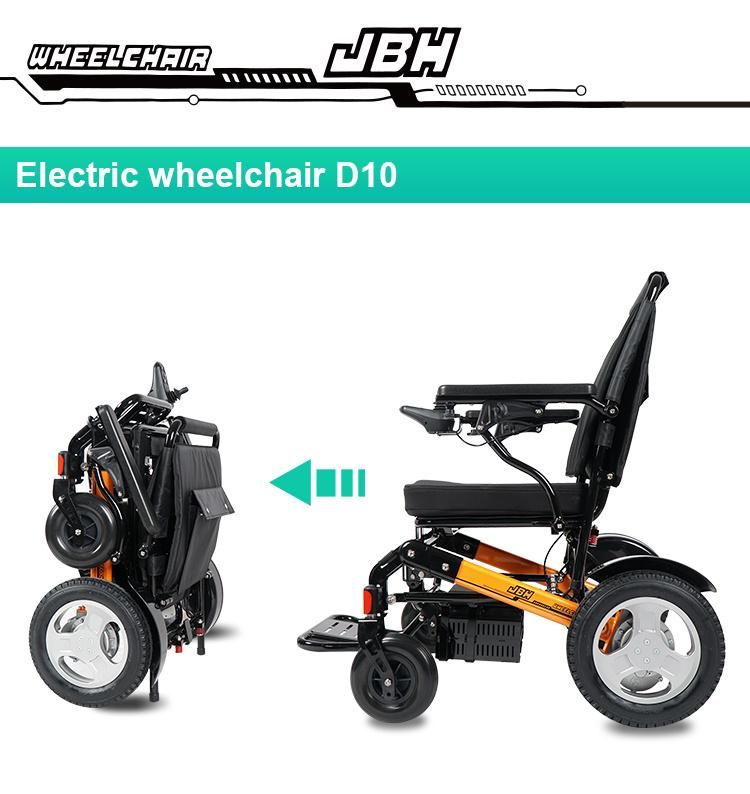

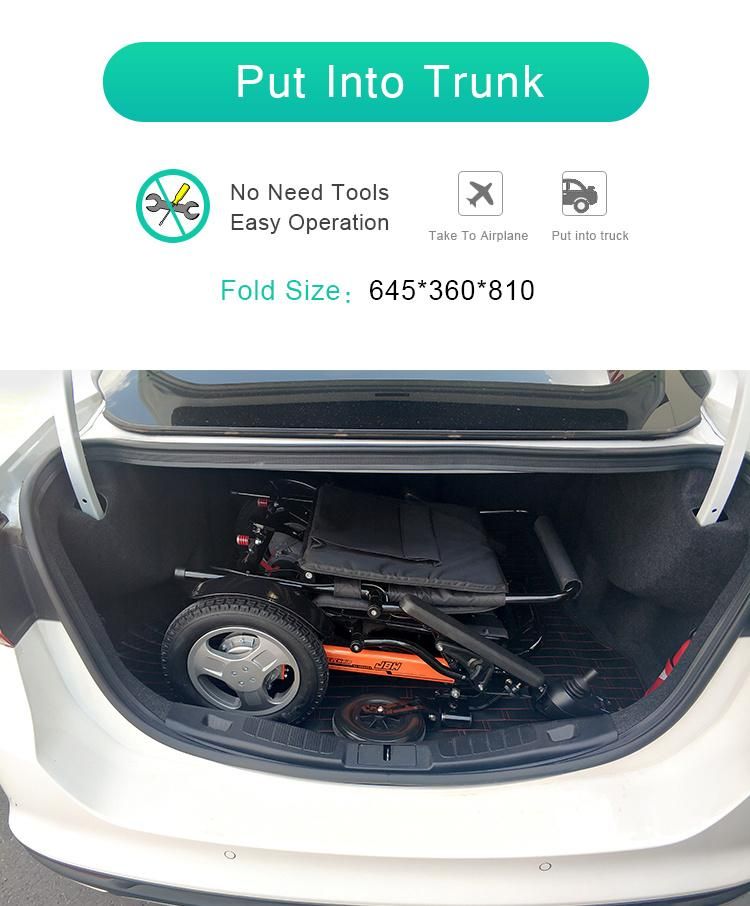

1. 5-seconds folding or unfolding, easy to carry as a luggage on plane or on train.
2. Very light weight, only 27.2kg.
3.Small volume after folding.
4. Frame material: magnesium alloy.
5. Certificates: CE;FDA;ISO9001; ISO13485.
6. High efficiency brushless hub motor
7.The warranty period of frame is 3 years; Motors, controller are 1 years. Battery is 6 months.

D10 large capacity folding electric power wheelchair parameters:

Model	Latest Design Ultra Ergonomic Electric Folding Wheelchair Distributor
Material	Aluminum alloy
unfold size	940*650*975mm
fold size	650*350*775mm
loading capacity	150kg
Motor	250W*2pcs brushless motors

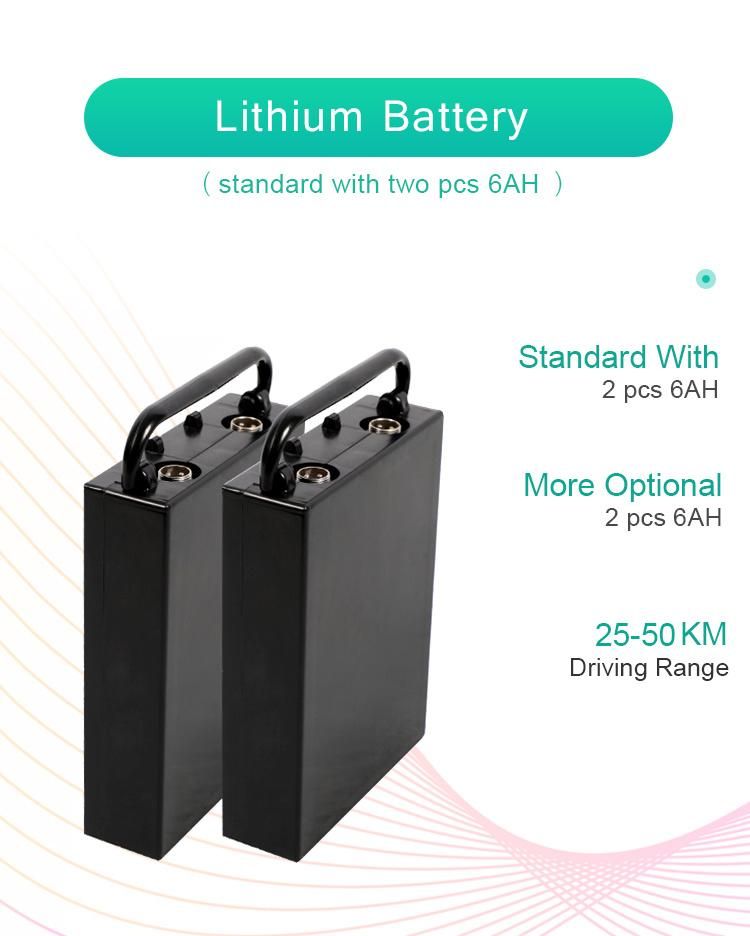

Battery	24V 7AH*2 pcs lithium battery   (battery opption, max can 24v 7AH*4 pcs)
max speed	6km/hour
Driving range	22KM
front tires	8"*1.25" PU solid tires
rear tires	12.5"*2.125" PU solid tires
climbing slope	max 8°
charging time	6-8 hours
width of armrest	510mm
seat width	435 mm
seat depth	430 mm
seat height	front 490mm/ back 470mm
turning radius	850mm

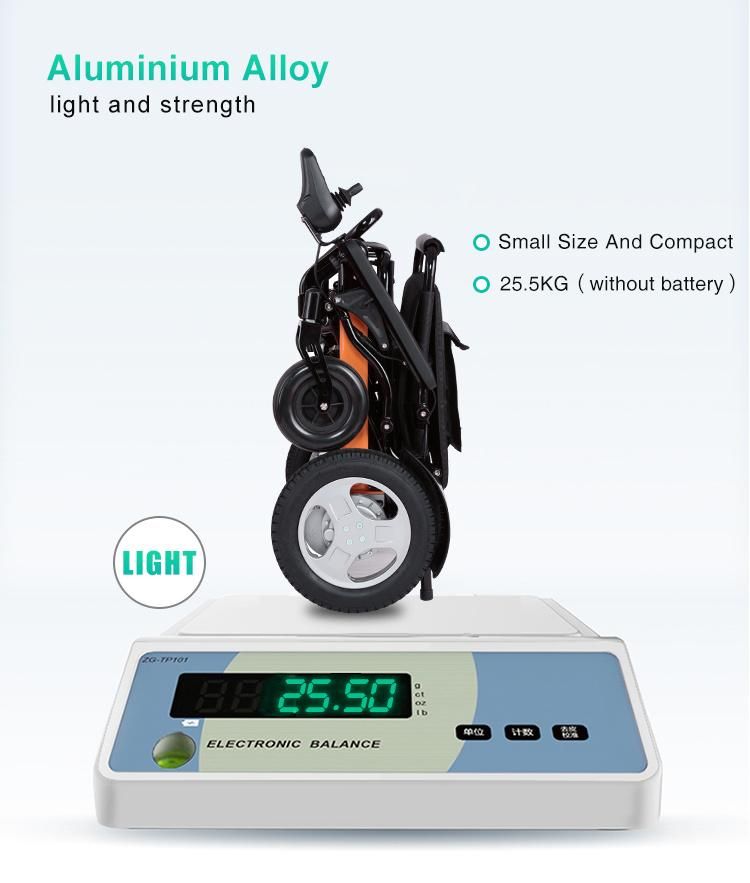

net weight without battery	25.2kg
net weight with two batteries	27.8kg
Drive model	rear drive

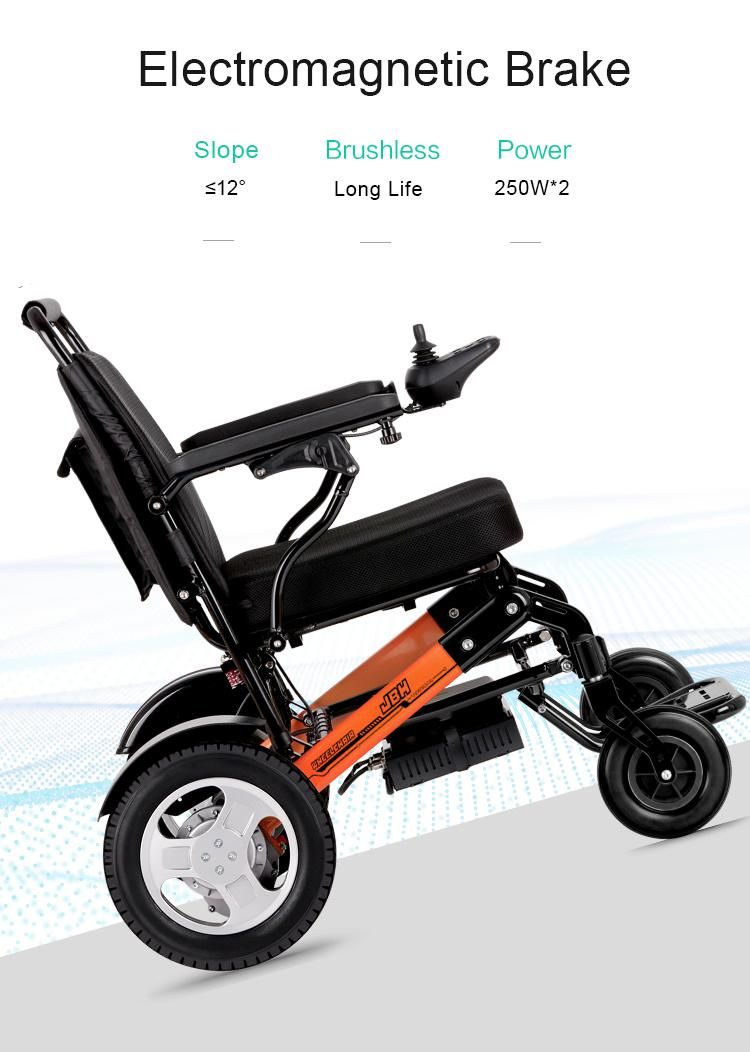

braking system	electromanetic brake
Factory Colour	yellow/orange/red
Package carton size	730*440*880mm














F.A.Q:
Q1: Can I Take The Plane? What Documentation Is Required?
        Yes, our products can be allowed to be carried on the plane, different airlines will have different regulations, you can consult the airline staff of your flight.

Q2: To Avoid Overcharging, Should I Need Protective Measures When Charging?
        No, the charger has a power-off protection function. When the battery is fully charged, the charging power supply will cut off by itself.

Q3: Can I Use It In Different Countries?
        Yes, our products have an input voltage of 100-240V, which is suitable for most countries in the world. We can provide you with the right charger according to the type of plug used in your country.

Q4: Should I Need To Assemble After Unpacking?
        After unpacking, only the controller joystick needs to be installed, the wheelchair lock is fixed, and the power can be used.

Q5: Is It Possible To Switch Manually By Electric Mode?
        Yes, you can adjust the red handle on the motor position to switch the manual electric mode.

Q6: Can The Controller Lever Switch Between Left And Right?
        Yes, the joystick can be switched left and right.

Q7: What Is The Production Process Of The Wheelchair?

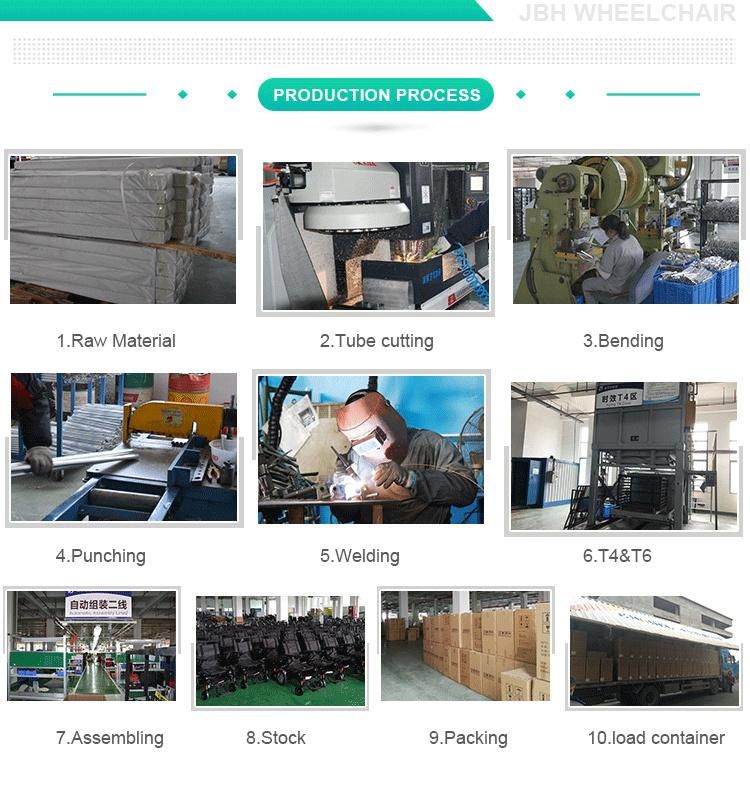

        Raw material cutting - processing forming - welding - heat treatment (increasing hardness) - baking paint - inspection - assembly - finished product - the packaging.

Q8: What Are The Optional Parts & Accessories?
        Battery, motor, tire, cup holder, controller, travel bag, rear control bracket, flashlight bracket, mobile phone  holder, headrest etc.

Q9: Can Product Quality Issues Be Returned?
        At present, my products do not support return, but if there are quality problems, we will send spare parts for customers to replace them during the warranty period. We also have a professional after-sales team to guide the installation.

Q10: Are You Directly OEM And ODM?
         OEM can, we can customize your LOGO in a wheelchair. ODM is also acceptable, but the cost of opening the mold is relatively expensive, requires the customer to pay for it, and the cycle is longer. If the customer can accept it, our factory is no problem.
