• Model NO.：ANGEL-5AB
• Using Site：Abdomen
• Power Supply：Electric-Powered
• Color：Gray
• Material：Plastic
• Transport Package：Pallets
• Specification：50x37x71cm
• Trademark：AngelBiss
• Origin：China
• HS Code：9019200000
• Production Capacity：6000PCS,Year

System MapFunctionsBattery Operated Oxygen Driving SystemOxygen Flow0.5~5L/min Oxygen Concentration93% ± 3% Oxygen Output Pressure0.04-0.07Mpa Oxygen Number DisplayYES Electrical SystemRechargeable Battery PositionAt back, separatable, replaceable Power ConsumptionDC24V, 350 W Adapter PowerAC 220V Input, DC 24V Output Lithium Batteries (If new)1 set, DC 24V
Full charge time about 1.5 hour
Support use time 3 hours Noise Level<43dB(A) Screen Display SystemDisplay MaterialAll by LED lights What Can Be Displayed ?"Oxygen" light on "Nebulize" light on(If any) "Purity Percentage" light on "Each Running Time" light on "Accumulated Time" light on "Timer Setting Minutes" Operating SystemOperating PanelE- Touch OXYGENStart to produce Oxygen NEBULIZEStart to run Nebulizer(If any) TIMER "+" and "-"Setting from 0 to 3 hours
(15mins increase or decrease) 6 Safety SystemLow Oxygen AlarmYES Oxygen Pressure Protection AlarmYES  Pressure Faulty AlarmYES Power off AlarmYES Compressor Faulty AlarmYES Overheated ProtectionYES Packaging DetailsMachine Body Size380x270x580mm Import Carton Size460x350x680mm Net Weight per Unit17.5kg Import Gross Weight per Carton20kg Operating ConditionOperating Temperature41ºF to 113ºF (5ºC to 45ºC)  Operating Humidity30% to 80% RH Operating Atmospheric Pressure613-1060hpa Storage ConditionStorage Temperature14ºF to 122ºF(-10ºC to 50ºC) Storage Humidity20 to 90% RH  Company introduction

AngelBiss Medical Technology Co.,Ltd is a Chinese manufacturer specializing in 5L Oxygen Concentrator and Portable Suction Machine.

AngelBiss is a technology holder supplier from United States, establish her first production facility in Jiangsu, mainly engage in development, exportation and manufacturing quality products on the field of Oxygen Therapy, Surgery Therapy, Asthma Therapy and Diagnostic Therapy. AngelBiss has provided many quality-pricing medical products to world customers.

AngelBiss is the brand can be sourced from end of last century.The critical technologies are brought in USA and Germany. And now having complete services networks on Malaysia,China, Nepal, Bangladesh, Ukraine, Italy, UK,and Iran. AngelBiss having the most professional talent engineering managements, experienced workers and sales managements team, which make her customers to believe AngelBiss can always be holding the progressive critical manufacturing equipments and better off quality control system that will continuously creat more values for her customers.

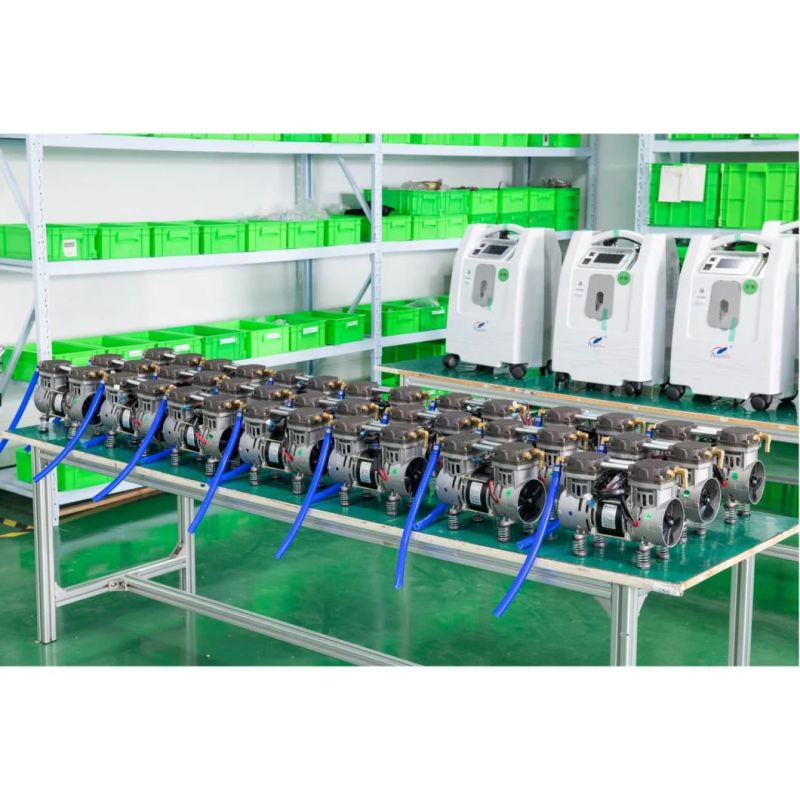

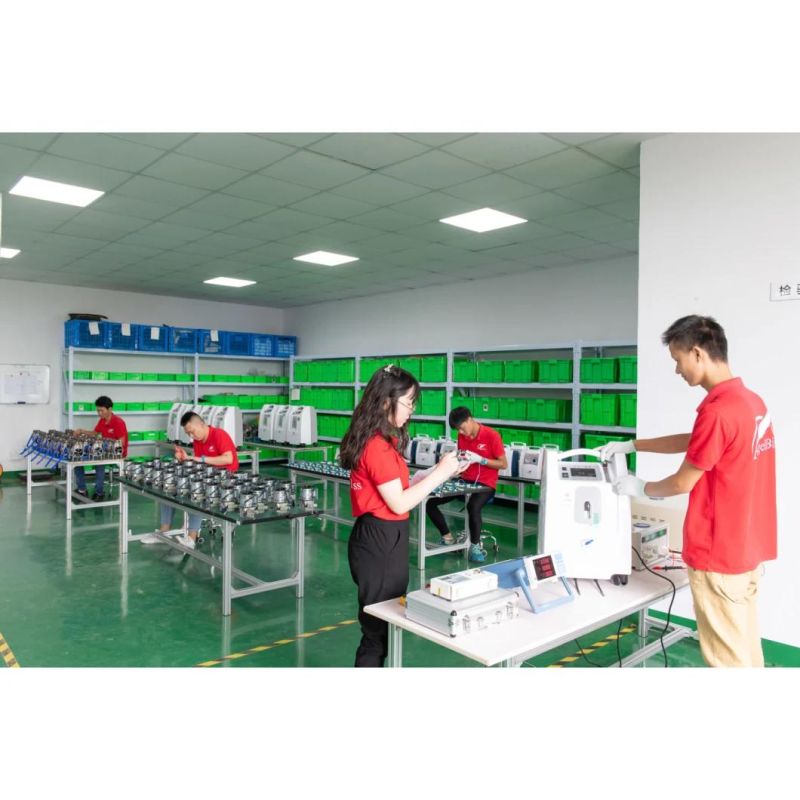

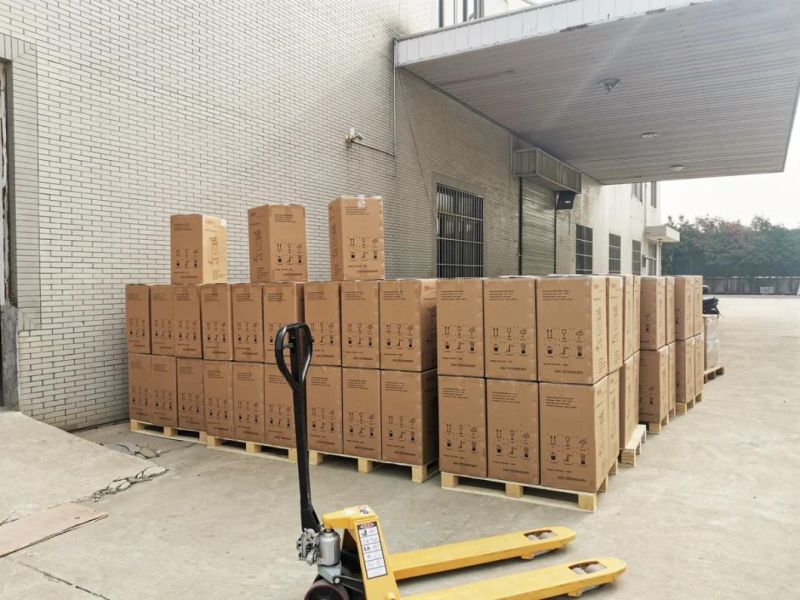

Production, product inspection and packaging

AngelBiss Medical Technology Co.,Ltd implements strict quality control and product testing, and adheres to the principle of quality first.

Quality policy: Continuously improve professionalism, Continuously optimize the workflow, Ensure the safety and effectiveness of the product.

Quality goal: The pass rate of raw materials inspection exceeded 95%, Product assembly qualification rate exceeds 98%, The factory pass rate is 100%.

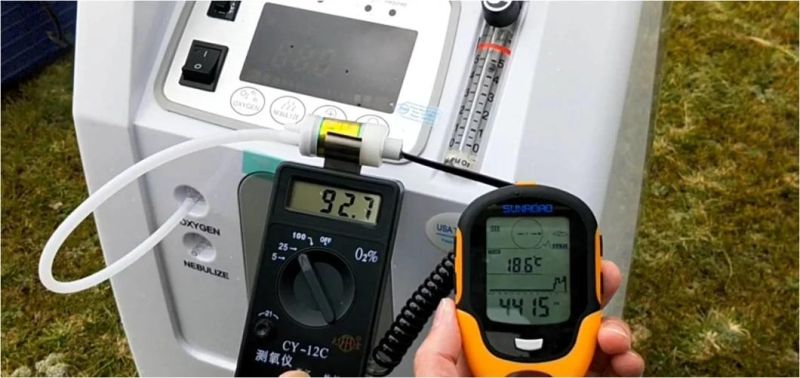

High altitude test

 ANGELBISS, the only one can control the oxygen output purity fluctuation rate within 0.1%, the only one to test 5L oxygen flow attain 93% on 15000 ft Tibet mountain.

In Sep 2019, our team conducted a three-day machine running test in Tibet mountain. At this altitude of 15,000 ft mountain, our 5L oxygen concentrator still maintains 93% oxygen purity. Tests over and over again proved that the AngelBiss oxygen concentrator was able to operate normally on high altitude countries and areas.



After sales service

We offer a three-year warranty to our global distributors and customers.

   Choose AngelBiss, Now level up faithfullness of our health
