• Model NO.：D15A
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Unfold Size：950X630X950mm
• Fold Size：600X300X800mm
• Max Load Capacity：120kg
• N.W(Without Battery)：24 Kg
• G.W(with Package)：27 Kg
• Front Wheel：7X1.75 Solid PU Tire
• Rear Wheel：10X2.25 Solid PU Tire
• Driving Distance：25 Km
• Max Speed：6 Km,H
• Charger：24V,2A
• Battery Rated Voltage/Capacity：6 Ah
• Motor：24V,180W Brushless
• Transport Package：7-Layer Carton
• Specification：heavy duty power wheelchair
• Trademark：JBH
• Origin：Nanjing China
• HS Code：8713900000
• Production Capacity：4000PCS,Month

Basic Info.

Model NO. D15A Material Aluminium Alloy Type Electric Wheelchair Unfold Size 950X630X950mm Fold Size 600X300X800mm Max Load Capacity 120kg N.W(Without Battery) 24 Kg G.W(with Package) 27 Kg Front Wheel 7X1.75 Solid PU Tire Rear Wheel 10X2.25 Solid PU Tire Driving Distance 25 Km Max Speed 6 Km/H Charger 24V/2A Battery Rated Voltage/Capacity 6 Ah Motor 24V/180W Brushless Transport Package 7-Layer Carton Specification heavy duty power wheelchair Trademark JBH Origin Nanjing China HS Code 8713900000 Production Capacity 4000PCS/Month

Product Description

JBH competitive price D15A Portable Folding Disabled Electric Power WheelchairWe are currently the largest manufacturer for power wheelchair and mobility scooter in China, with a 160,000 square meters production base, approved by ISO9001, ISO14001, ISO13485 international quality systems. Our products have been approved by CE & FDA, marketing over 100 countries in the world. We gained wide range recognition and trust from our customers. We will continue providing high quality products and service to contribute elders and handicapped an easier and better life!

We also offer OEM and ODM services to meet the needs of different customers.

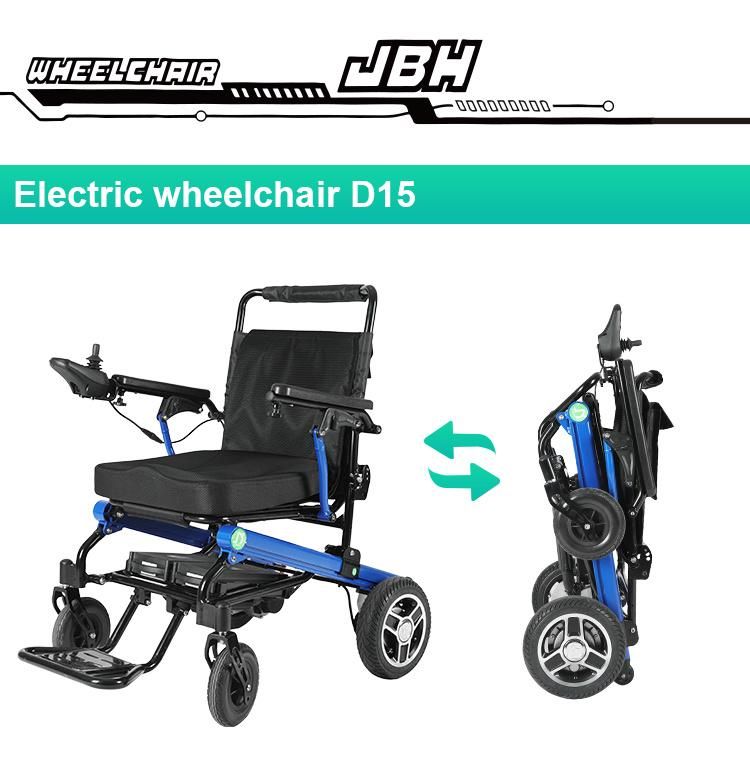

D15A Foldable electric wheelchair with recline back parameter
Advantages:
1. 5-seconds folding or unfolding, easy to carry for travel.

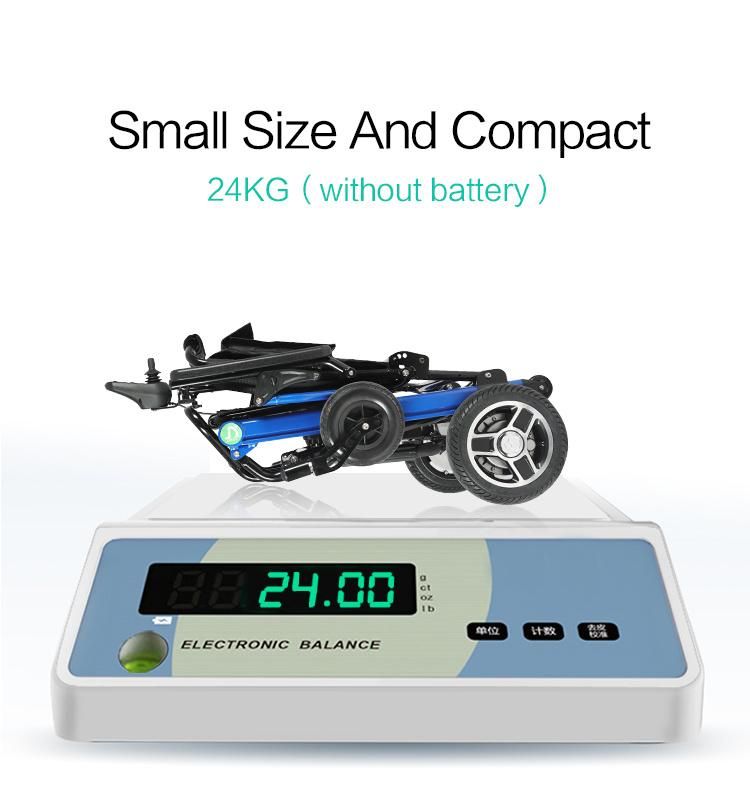

2. Very light weight, only 23kg (without battery).

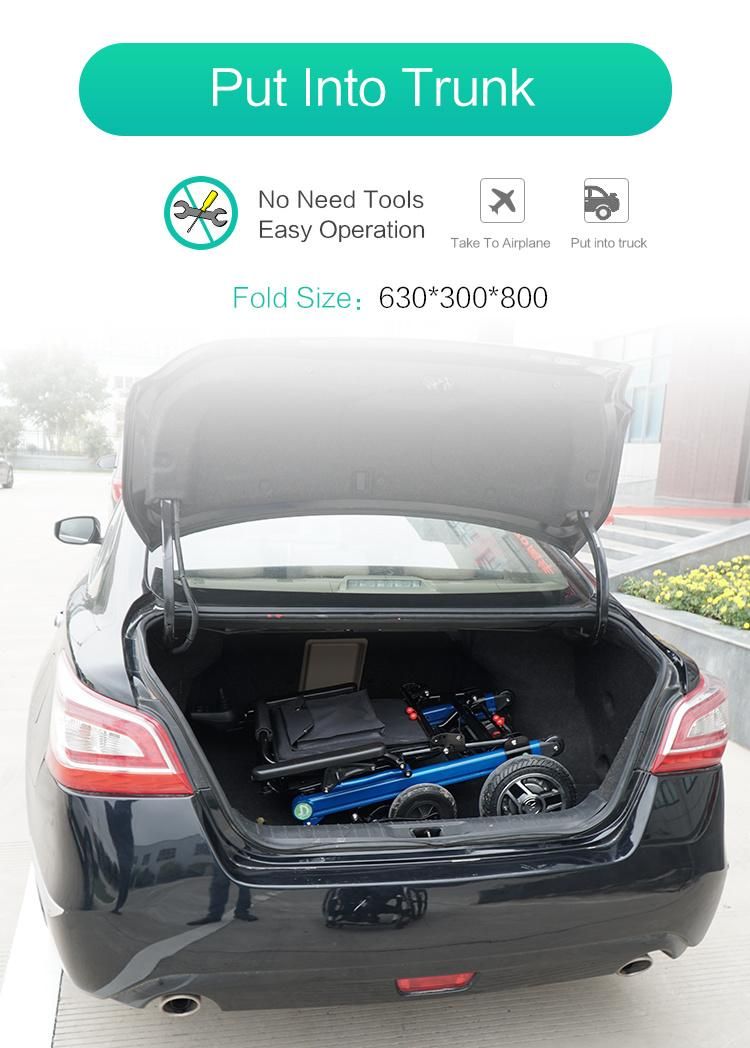

3.Small volume after folding, only 0.15 cbm,can put into car junk.

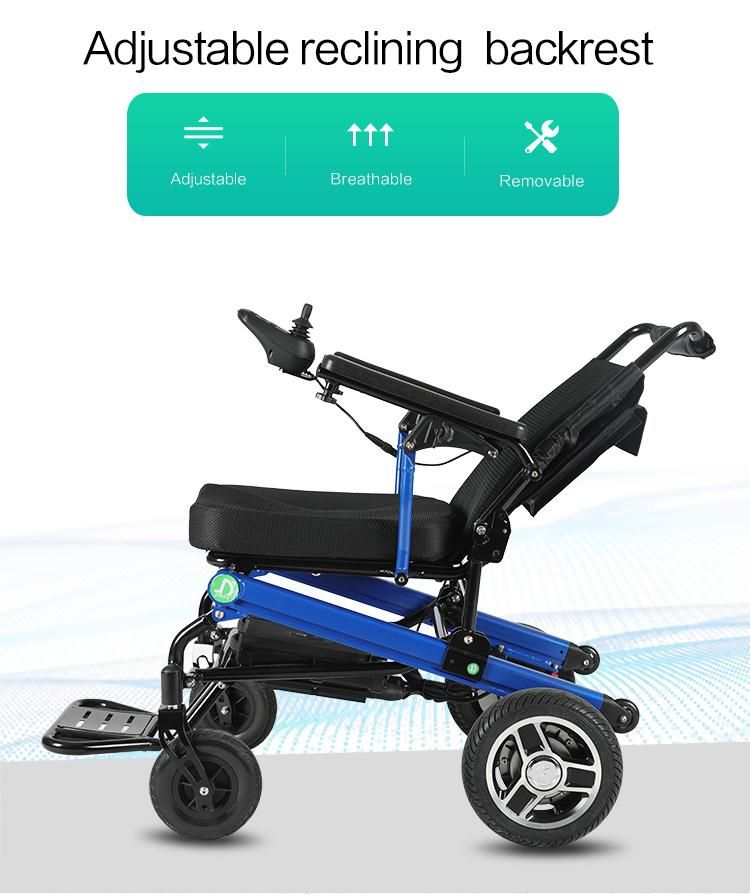

4. Adjustable angle recline backrest.
5.10 inch back motor rear or 12 inch rear free to replace.

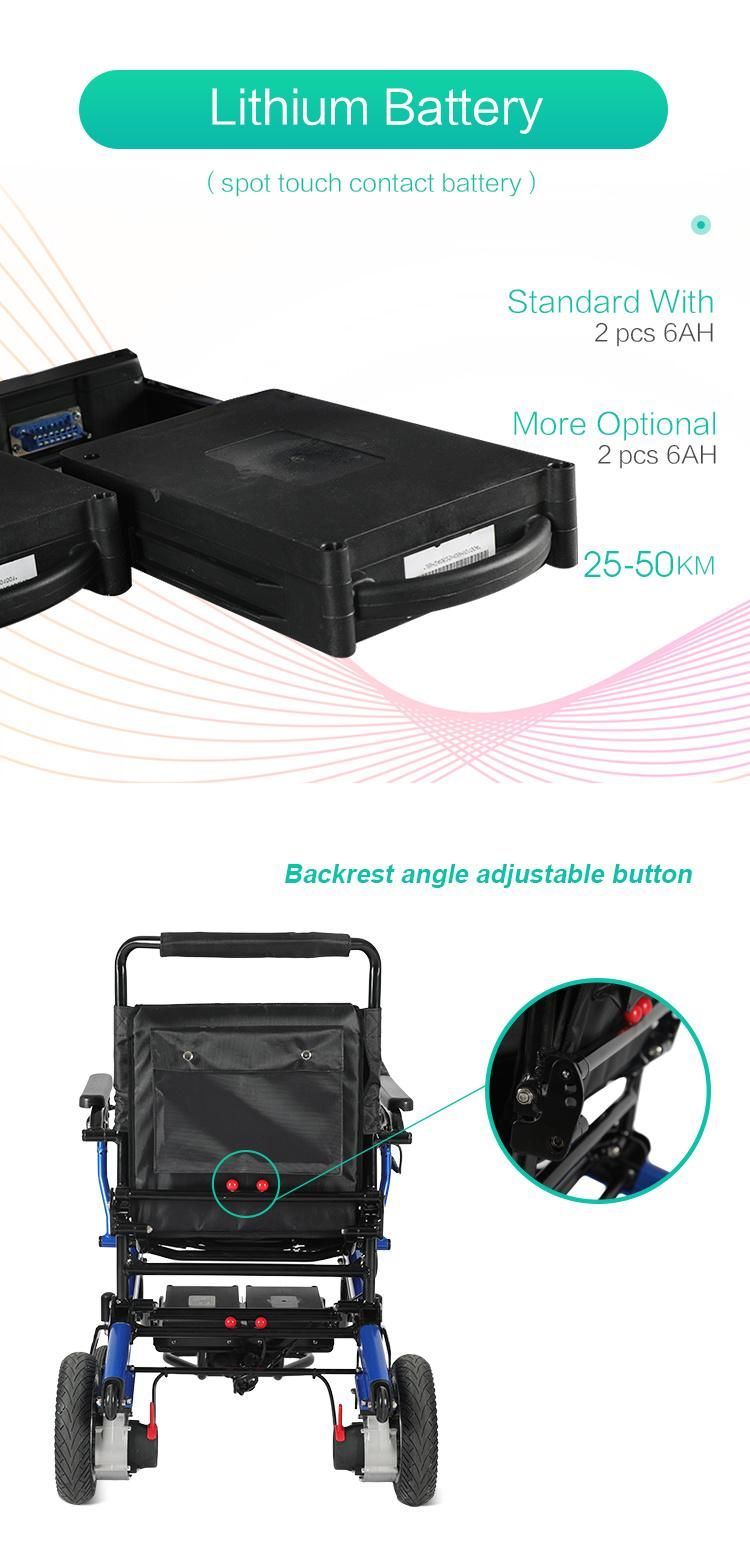

6.Dot touch type lithium battery, easy to take away and install.
7. Frame material: aluminum alloy.
8. Certificates: CE;FDA;ISO9001; ISO13485.
9. High efficiency brushless hub motor.
10.The warranty period for frame is 3 years, for battery is 6 months, for the other parts is 1 year.

Model No.:	D15A
Frame material	Aluminum alloy
Unfolded dimension:	940 x 640 x 950mm
Folded dimension:	610 x 340 x 800mm
Motor:	180W X 2 brushless motor
Lithium Battery:	24V 6AH*2PCS
Battery weight	1.4kg/pc
Braking system:	Intelligent type electromagnetic brake
Charger	24V 2A
Charging time:	5 hours
Max Speed :	6 km/h
Driving Range:	25km
Turning radius:	850mm
Loading capacity :	160KG
Climbing Slope:	8°
Front tires:	7"*1.75"  PU solid
Rear tires:	10"*1.96" or 12"*1.96" PU solid
Seat depth:	420mm
Seat width:	500mm
Seat height:	Front:500mm/ Back:480mm
N.W. without battery	24kg (with one battery)
Gross weight	27kg (with battery)
Package:	1 set/carton
carton size:	690x430x880mm

Certificates:SGS, CE, FDA, ISO13485.
Company information:

JBH Wheelchair is research and development, manufacturing and sales enterprise. Specialized in Portable power wheelchair, Portable electric scooter, knee walker, and electric standing wheelchair. Products passed through ISO 13485, FDA and CE standard. We provide OEM service, great quality. "JBH" as the registered trademark renowned for "Safe, Light and Portable" on the market. Products covers 20 Provinces in China and export to USA, UK, Canada, and Australia. JBH wheelchair gained wide range recognition and trust from our customers. We will continue providing high quality products and service.


Folding electric power wheelchair FAQ

Q1: Why Choose JIN BAI HE Products?
 We are one of the professional wheelchair factory here in China,
 Best production capability, Best quality control, Best Service,

 Q2: How is JIN BAI HE Products Quality?
 We only supply quality products, our manufacturing facilities have received the ISO, CE, recognition, and get FDA certificate for some products .
Every products will inspected to the standard before shipment, and every product has one year warranty period.

Q3:What is your MOQ(Minimum Order Quantity ?
  As a factory, our MOQ is one piece, it could be mixed the different models.

Q4: Payment and shipment
 We accept: T/T,Paypal, West Union.
 Delivery time: According the order.

Q5: Is the wheelchair foldable and portable?
Yes. Our wheelchair can be easily disassembled and placed in the trunk of a vehicle.

Q6: Is the wheelchair for indoor or outdoor use?
It was designed for both indoor and outdoor use.

Q7: Will you accept OEM orders?
Yes. We'd like to produce our customers' OEM/ODM orders.

Q8:Are you trading company or manufacturer?
We are professional manufacturer and have several years of wheelchairs experience in global market.

Q9,:What is the warranty period of the wheelchair?
The warranty period of frame is 3 years. Motors, controller, battery is 1 year.
