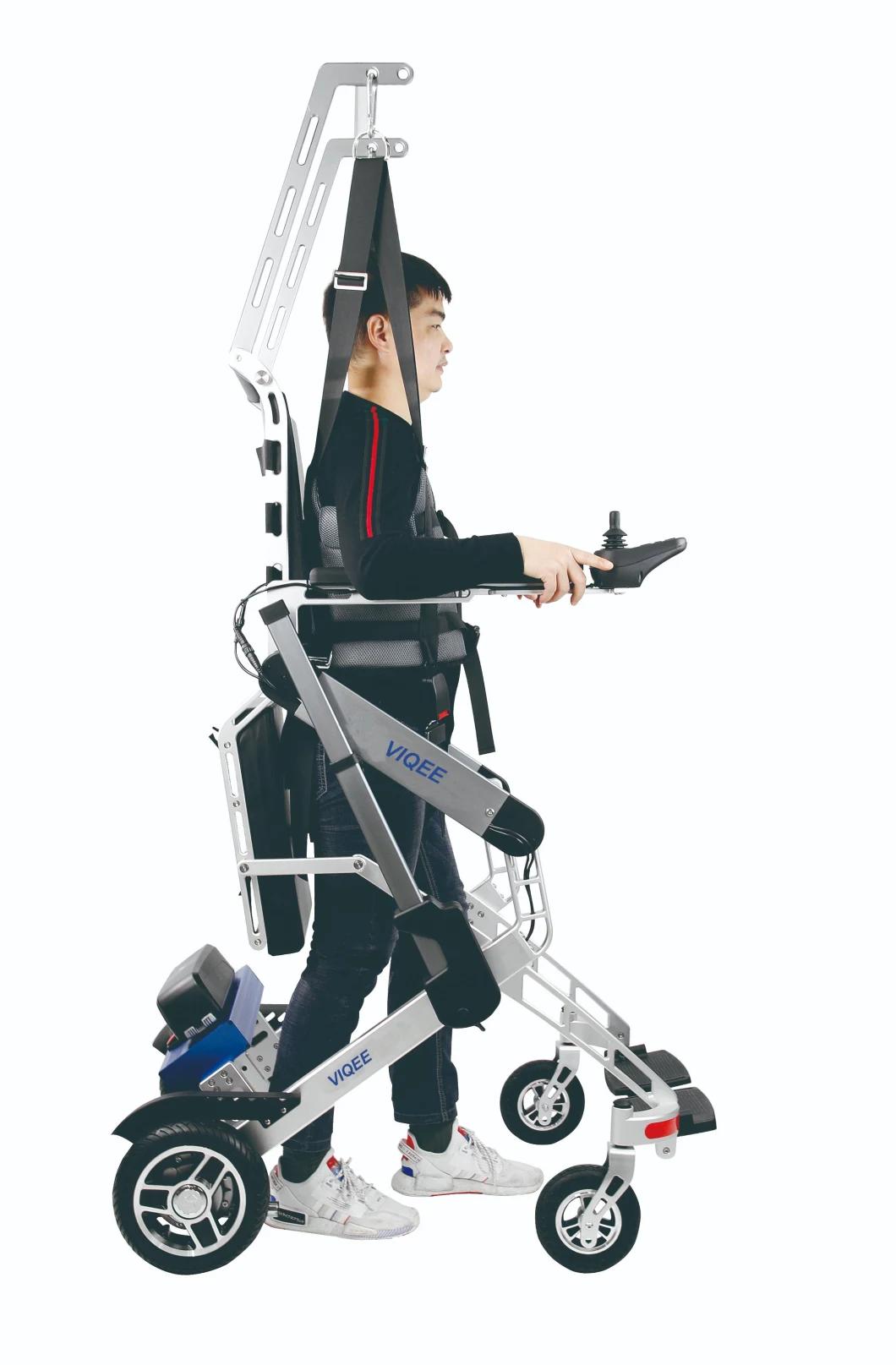

Intelligent Rehabilitation Wheelchair Robot Leg Training Instrument
Shenzhen Jinhui Medical Technology Co., Ltd.- Customized：Customized
- Certification：CE
- Condition：New
- Tilted：Tilted
- Folded：Folding
- Material：Aluminium Alloy
Base Info
- Model NO.：VQ-2101
- Type：Electric Wheelchair
- Trademark：VIQEE
- Origin：China
- Production Capacity：500PCS,Month
Description
SpecificationsBrand: VIQEE Product Name: Intelligent rehabilitation wheelchair Product model: VQ-2101 Sitting position size: 1050mm * 690mm * 690mm Standing position size: 1050mm * 690mm * 2000mm Safe load: 100 kg Lifting thrust: 100 kg Lifting speed: About 15mm / S Safety belt load: ≤ 100kg Battery: 24 V 15.4 ah original Samsung lithium battery, endurance ≥ 20 km Driving wheel motor: 250W high quality brushless motor * 2 With manual clutch Main frame: no welding aluminum alloy structure Net weight: 32kg Brake system: Electromagnetic brake Charging time: About 4 hours Obstacle surmounting ability: Sitting position ≤ 40mm, standing position ≤ 40mm Turning radius: ≤1.2m Driving speed: ≤ 6km / h Climbing ability: Wheelchair state ≤ 6, standing state = 0 People adapt to standing posture: height 140 cm - 185 cm, weight: ≤ 100 kg Wheel size: front 7 "non pneumatic tire, rear 10" non pneumatic tire
