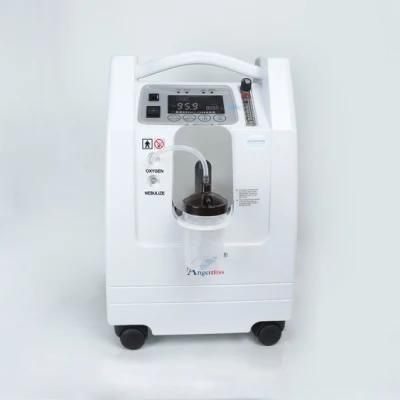

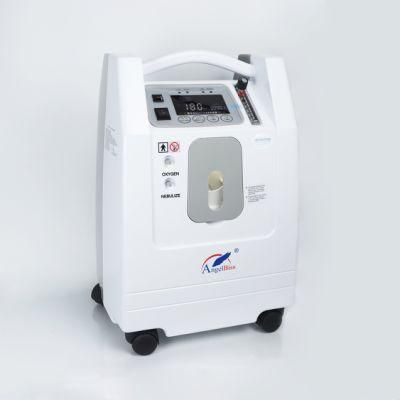

• Model NO.：ANGEL-5A
• HS Code：9019200000
• Production Capacity：50000pieces,Year

System MapFuntionsParametersOxygen Generating SystemOxygen Flow0.5~5L/minOxygen Concentration93% ± 3%Oxygen Output Pressure0.04-0.07MPaOxygen Number DisplayYESNebulizer SystemNebulize ModeYESIndividual Nebulizer OutletYESDisplay MethodOn LED screenOperating WayBy touch panel buttomAccessoriesNebulize nozzle and maskNebulizing Particle Size3.6μm ± 25%Screen Display SystemDisplay MaterialAll by LED lightsWhat Can Be Displayed? "Oxygen" light on"Nebulize" light on"Oxygen Percentage" light on"Each Runing Time" light on"Accumulated Time" light on"Timer Setting Number"Operating SystemOperating PanelSmartTouchOXYGENStart to produce OxygenNEBULIZEStart to run NebulizerTIMER "+" and "-"Seting from 0 to 3 hours
(15mins increase or decrease)Safety SystemLow Oxygen AlarmYesOxygen Pressure Protection AlarmYesPressure Faulty AlarmYesPower off AlarmYesCompressor Faulty AlarmYesOverheated ProtectionYesElectrical SystemPower Consumption300 WAuto Power off by timerYESScreen Sleep ModeYESNoise Level<47dB(A)PackingMachine Body Size380X270X580mmPackage Size460X350X680mmNet Weight15.6kgGross Weight19kgBody MaterialABS, GlazeOptional FunctionsRemote ControlOptionalVoice Guide SystemOptional

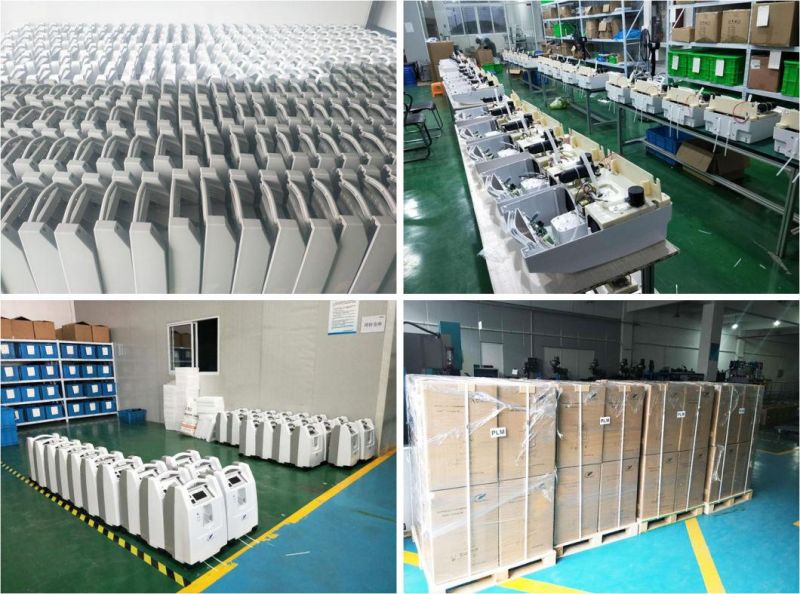

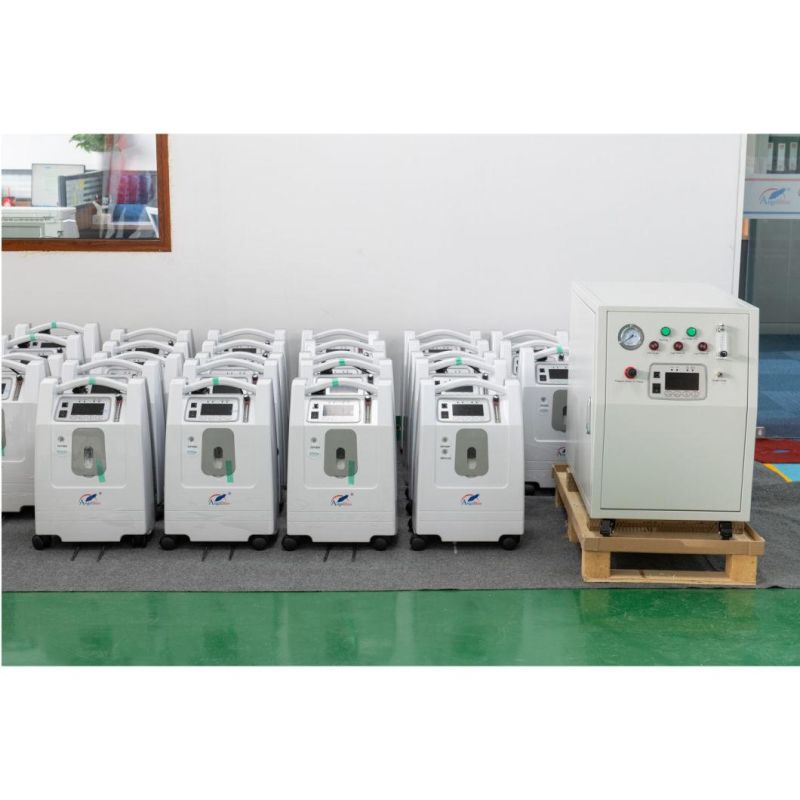

Production and packaging

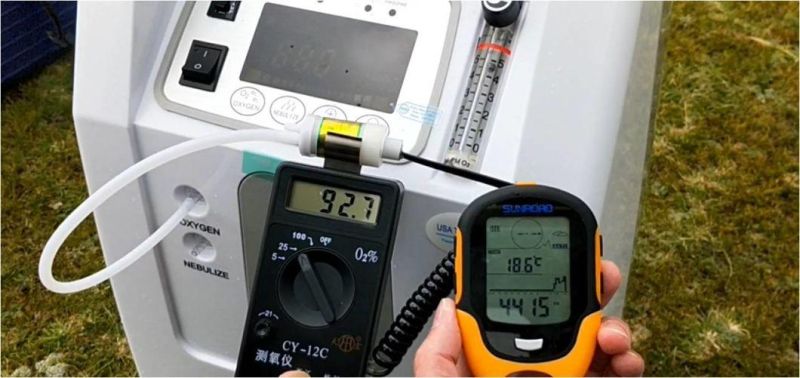

High altitude test

 ANGELBISS, the only one can control the oxygen output purity fluctuation rate within 0.1%, the only one to test 5L oxygen flow attain 93% on 15000 ft Tibet mountain.

In Sep 2019, our team conducted a three-day machine running test in Tibet mountain. At this altitude of 15,000 ft mountain, our 5L oxygen concentrator still maintains 93% oxygen purity. Tests over and over again proved that the AngelBiss oxygen concentrator was able to operate normally on high altitude countries and areas.




After sales service

We offer a three-year warranty to our global distributors and customers.
1- If the oxygen concentrator fails to be repaired, please contact our service center.
2- Maintenance service work can only be performed by technical engineers authorized by our company.
3- In order to ensure the long-term use of this oxygen concentrator, users are requested to strictly follow the guidelines for safety, cleaning and maintenance of the oxygen concentrator, and to use and maintain the operation methods that are beneficial to the normal operation of the oxygen concentrator

Before servicing, disconnect the power.
1. Do not open the oxygen concentrator shell. There are no user-maintainable parts inside
the oxygen concentrator.
2. The internal repair and maintenance of the oxygen concentrator can only be performed
by an agency authorized by AngelBiss. Do not attempt to repair the oxygen concentrator yourself.

Disposal
Except for specially designated oxygen concentrator parts and packaging boxes, please dispose of them or return them to our company for disposal in accordance with relevant national laws and regulations.
                                                           Choose AngelBiss, Now level up faithfullness of our health
