• Model NO.：D09
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Overall Size：985*600*950 mm
• Fold Size：600*355*790 mm
• Load Capacity：120 Kg
• Motor：24V 250W * 2PCS
• Frame Material：Aluminium Alloy
• Seat Depth：400 mm
• Seat Width：470 mm
• Seat Height：500 mm
• Weight：25 Kg , 28 Kg
• Speed：0-6 Km,H
• Battery：24V 6ah * 2PCS Lithium
• Charging Time：6-8h
• Gradient：0-8 Degree
• Driving Range：25 Km
• Guarantee：One Year
• Transport Package：Carton
• Specification：690*430*880 mm
• Trademark：JBH
• Origin：China
• HS Code：9713900000
• Production Capacity：6000 Sets,Month

Basic Info.

Model NO. D09 Material Aluminium Alloy Type Electric Wheelchair Overall Size 985*600*950 mm Fold Size 600*355*790 mm Load Capacity 120 Kg Motor 24V 250W * 2PCS Frame Material Aluminium Alloy Seat Depth 400 mm Seat Width 470 mm Seat Height 500 mm Weight 25 Kg / 28 Kg Speed 0-6 Km/H Battery 24V 6ah * 2PCS Lithium Charging Time 6-8h Gradient 0-8 Degree Driving Range 25 Km Guarantee One Year Transport Package Carton Specification 690*430*880 mm Trademark JBH Origin China HS Code 9713900000 Production Capacity 6000 Sets/Month

Product Description

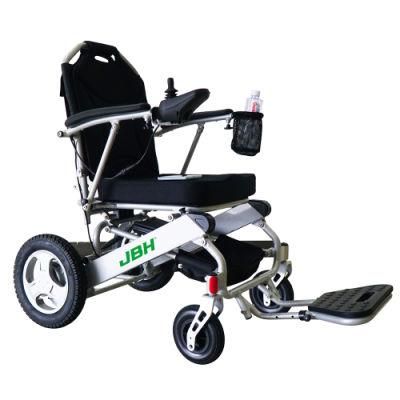

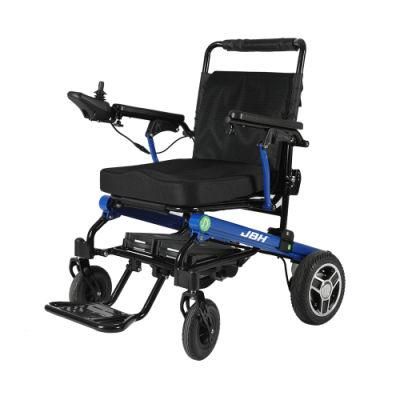

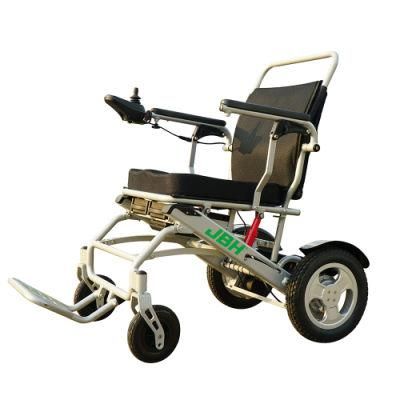

Rehabilitation Treatment Lithium Battery Folding Electric Wheelchair Of The Disabled
WHO WE ARE:We are enterprise with integration of R&D, manufacturing and sales, specialized in power wheelchair, electric scooter, knee walker, electric bed,manual wheelchair and electric standing wheelchair.
Approved by ISO9001, ISO14001, IS013485 international quality systems. Products have acquired FDA, CE, marketing over 40 countries in the world.
"JBH" as the registered trademark renowned for "Safe, Light and Portable" on the market.
We gained wide range recognition and trust from our customers. We will continue providing high quality products and service to contribute elders and handicapped an easier and better life!
 Welcome for inquiring/visiting! We are right here for you!
 Key features of this folding electric wheelchair:

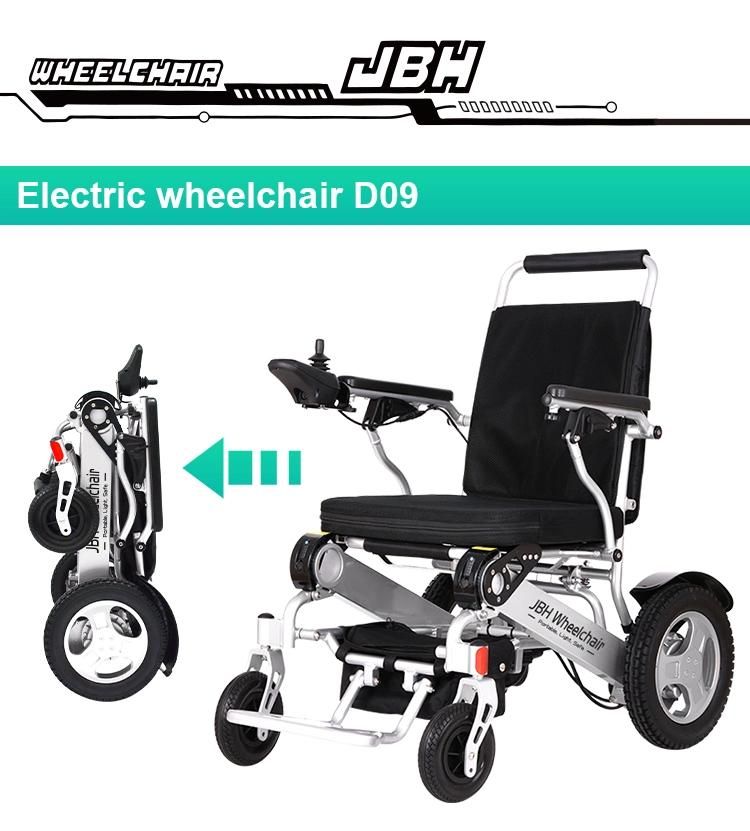

1. 5-seconds folding or unfolding, easy to carry as a luggage on plane or on train.
2. Very light weight, only 26.5kg.

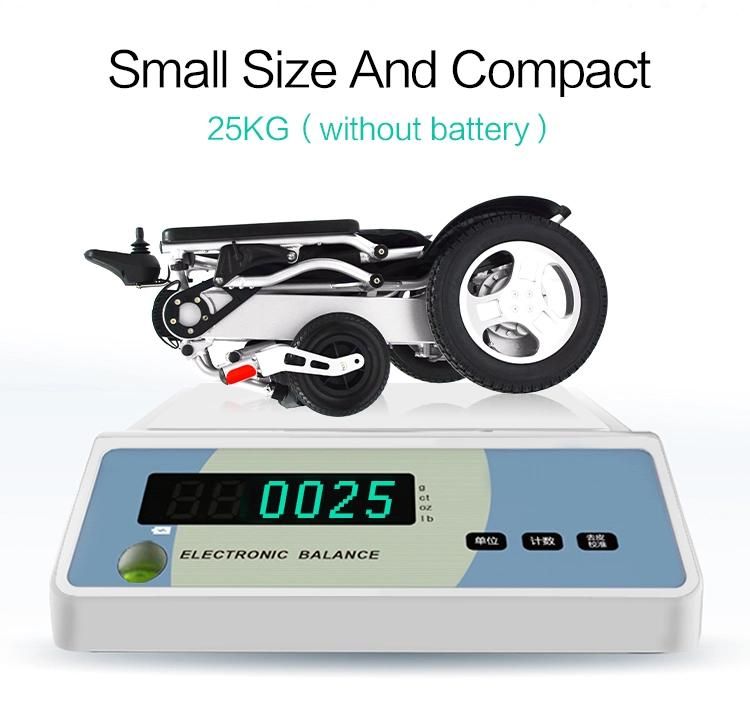

3.Small volume after folding, only 0.14 cbm.
4. Frame material: 7003 aerospace titanium-aluminum alloy.
5. Certificates: CE;FDA;ISO9001; ISO13485.
6. High efficiency brushless hub motor
7. Bigger rear tires, stronger gradeability.
8.The warranty period: Chair frame one year; motors, controller, batteries 3 years.
9.The best sale-after service.


Specifications of this folding electric wheelchair:


Product Name:	Hot sell reliable quality foldable adult use electric wheelchair
Item No.:	D09
Unfolded dimension:	968x 565 x 925mm
Folded dimension:	780x 565 x 320mm
Motor:	180W X 2 brushless motor

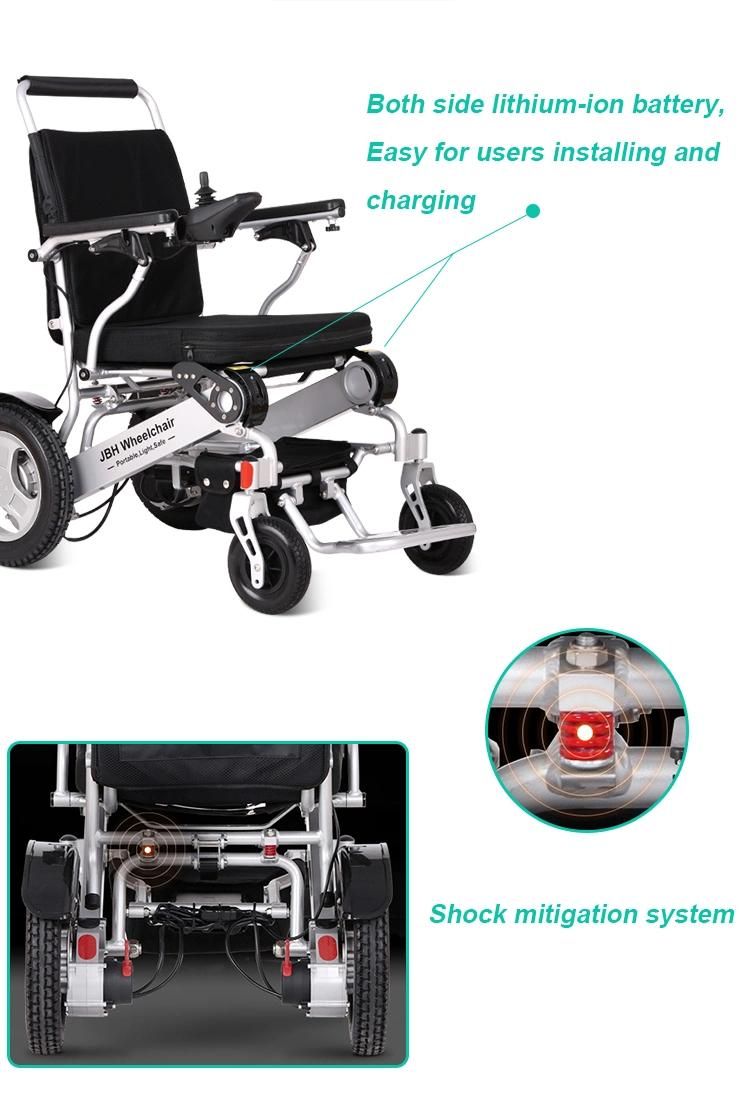

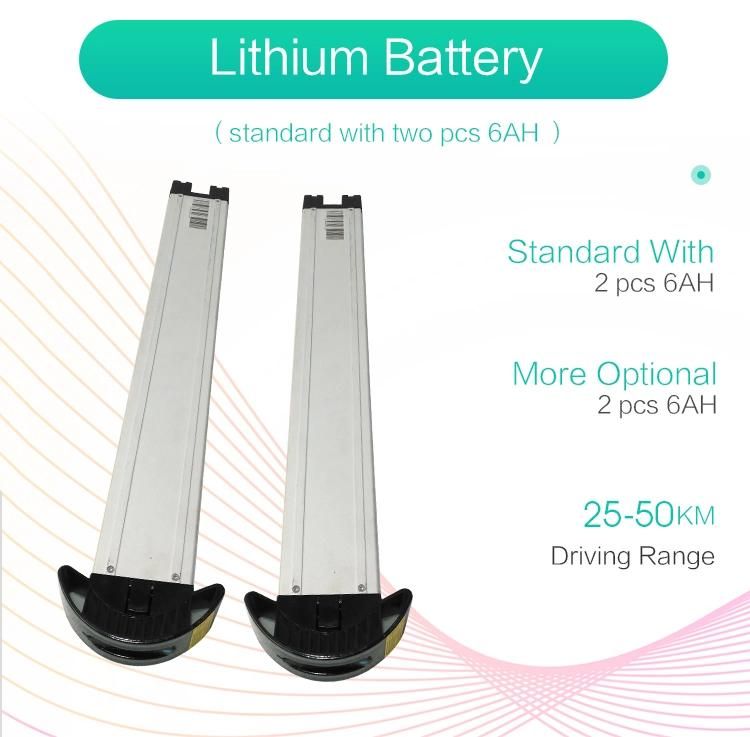

Battery:	lithium battery (6AH DC 24V)x2pcs

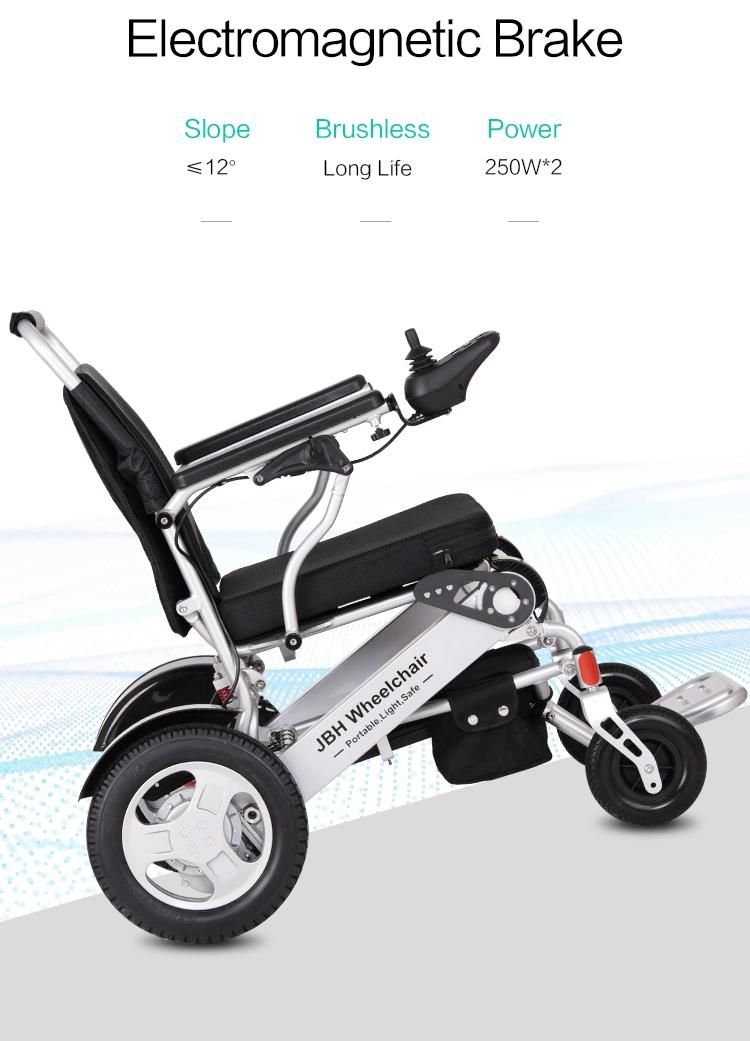

Braking system:	Intelligent type electromagnetic brake
Charging time:	6 hours
Max Speed :	6 km/h
Driving Range:	25-40km
Turning radius:	800mm
Max Loading :	180 kg
Climbing Slope:	8°
Front tires:	7.5"x2pcs PU
Rear tires:	12"x2pcs PU
Seat depth:	430mm
Seat width:	480mm
Seat Height:	460mm
Backrest height:	400mm
Armrest height:	250mm
N.W.:	26.5kg
Package:	1 set/carton
carton size:	690x420x900mm


F.A.Q:
Q1: Can I Take The Plane? What Documentation Is Required?
        Yes, our products can be allowed to be carried on the plane, different airlines will have different regulations, you can consult the airline staff of your flight.

Q2: To Avoid Overcharging, Should I Need Protective Measures When Charging?
        No, the charger has a power-off protection function. When the battery is fully charged, the charging power supply will cut off by itself.

Q3: Can I Use It In Different Countries?
        Yes, our products have an input voltage of 100-240V, which is suitable for most countries in the world. We can provide you with the right charger according to the type of plug used in your country.

Q4: Should I Need To Assemble After Unpacking?
        After unpacking, only the controller joystick needs to be installed, the wheelchair lock is fixed, and the power can be used.

Q5: Is It Possible To Switch Manually By Electric Mode?
        Yes, you can adjust the red handle on the motor position to switch the manual electric mode.

Q6: Can The Controller Lever Switch Between Left And Right?
        Yes, the joystick can be switched left and right.

Q7: What Is The Production Process Of The Wheelchair?

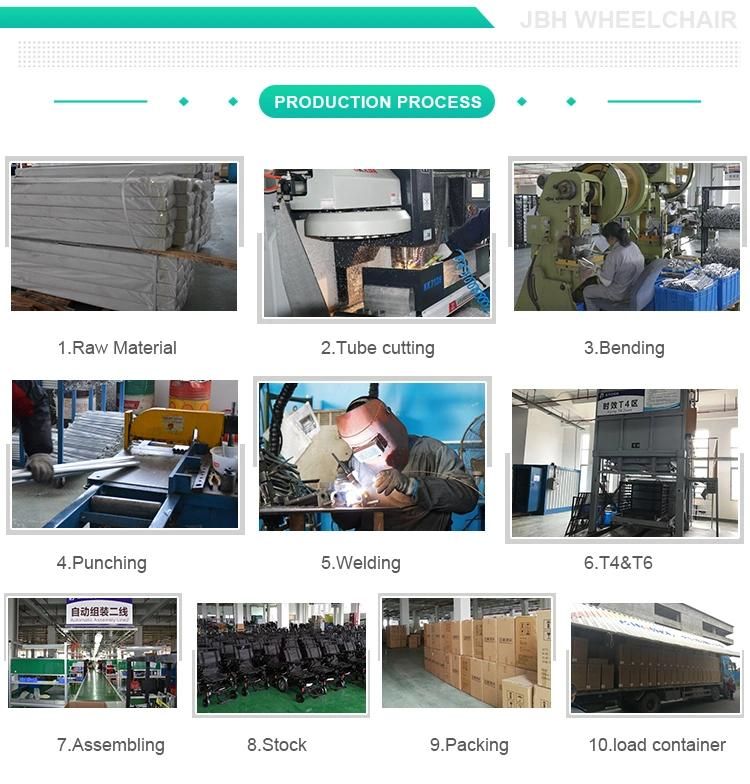

        Raw material cutting - processing forming - welding - heat treatment (increasing hardness) - baking paint - inspection - assembly - finished product - the packaging.

Q8: What Are The Optional Parts & Accessories?
        Battery, motor, tire, cup holder, controller, travel bag, rear control bracket, flashlight bracket, mobile phone  holder, headrest etc.

Q9: Can Product Quality Issues Be Returned?
        At present, my products do not support return, but if there are quality problems, we will send spare parts for customers to replace them during the warranty period. We also have a professional after-sales team to guide the installation.

Q10: Are You Directly OEM And ODM?
         OEM can, we can customize your LOGO in a wheelchair. ODM is also acceptable, but the cost of opening the mold is relatively expensive, requires the customer to pay for it, and the cycle is longer. If the customer can accept it, our factory is no problem.
