• Model NO.：D29
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Battery：24V 6ah Lithium Battery
• Folded Size：370*620*820mm
• Net Weight：24.6kg
• Distance：25km
• Weight Capacity：160kg
• Motor：180W
• Max Speed：6km,H
• MOQ：1PC
• Warranty：3 Year
• Color：Customized Color
• Sample：Available
• Transport Package：Carton
• Specification：970*600*910mm
• Trademark：JBH
• Origin：China
• HS Code：87139000
• Production Capacity：4000 Sets,Month

Basic Info.

Model NO. D29 Material Aluminium Alloy Type Electric Wheelchair Battery 24V 6ah Lithium Battery Folded Size 370*620*820mm Net Weight 24.6kg Distance 25km Weight Capacity 160kg Motor 180W Max Speed 6km/H MOQ 1PC Warranty 3 Year Color Customized Color Sample Available Transport Package Carton Specification 970*600*910mm Trademark JBH Origin China HS Code 87139000 Production Capacity 4000 Sets/Month

Product Description

CE Approved Elderly and Disabled Easy Operation Lightweight Folding Electric WheelchairWe are enterprise with integration of R&D, manufacturing and sales, specialized in power wheelchair, electric scooter, knee walker, manual wheelchair and electric standing wheelchair. Approved by ISO9001, ISO14001, IS013485 international quality systems. Products have acquired FDA, CE, marketing over 40 countries in the world. "JBH" as the registered trademark renowned for "Safe, Light and Portable" on the market. We gained wide range recognition and trust from our customers. We will continue providing high quality products and service to contribute elders and handicapped an easier and better life!Welcome for inquiring/visiting! We are right here for you!
Electric Wheelchair Advantage:
1. 5-seconds folding or unfolding,easy to carry on plane or on train.
2. Very light weight
3. Frame material: 7003 aerospace titanium-aluminum alloy
4. Certificates: CE;FDA;ISO9001; ISO13485;

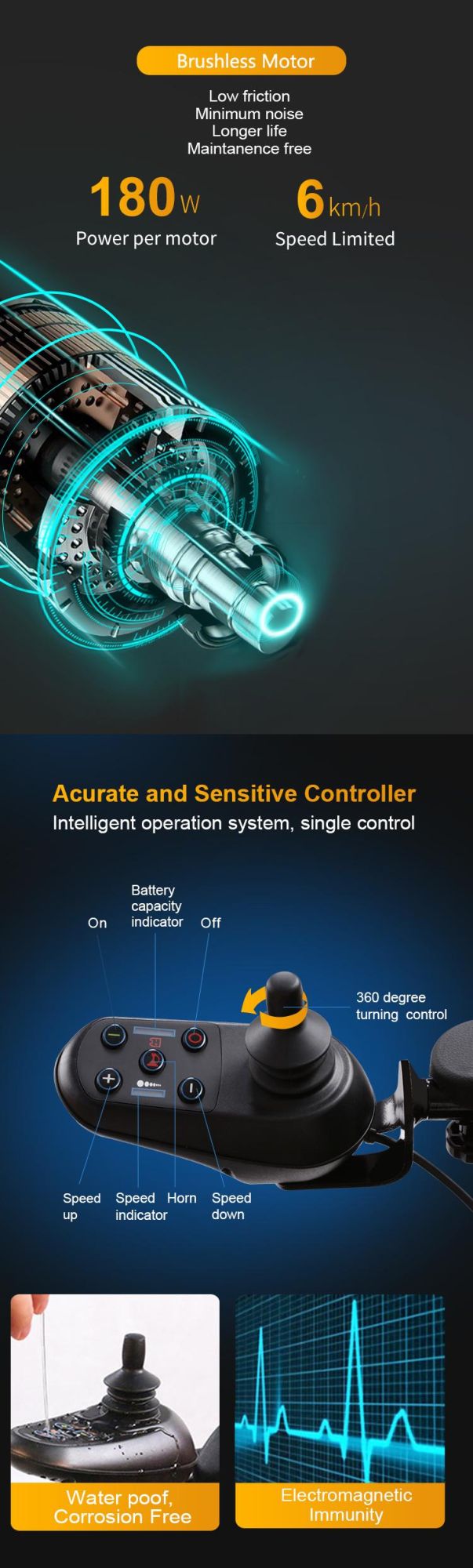

5. High efficiency brushless hub motor
6.The warranty period of frame is 3 years and other parts is 1 years

Electric Wheelchair Main Specifications:

Parameters:	High quality aluminium power folding wheelchair with lithium battery
Unfolded dimension:	1020 × 620 × 960mm
Folded dimension:	370 × 620 × 820mm
Motor:	180W X 2 brushless motor

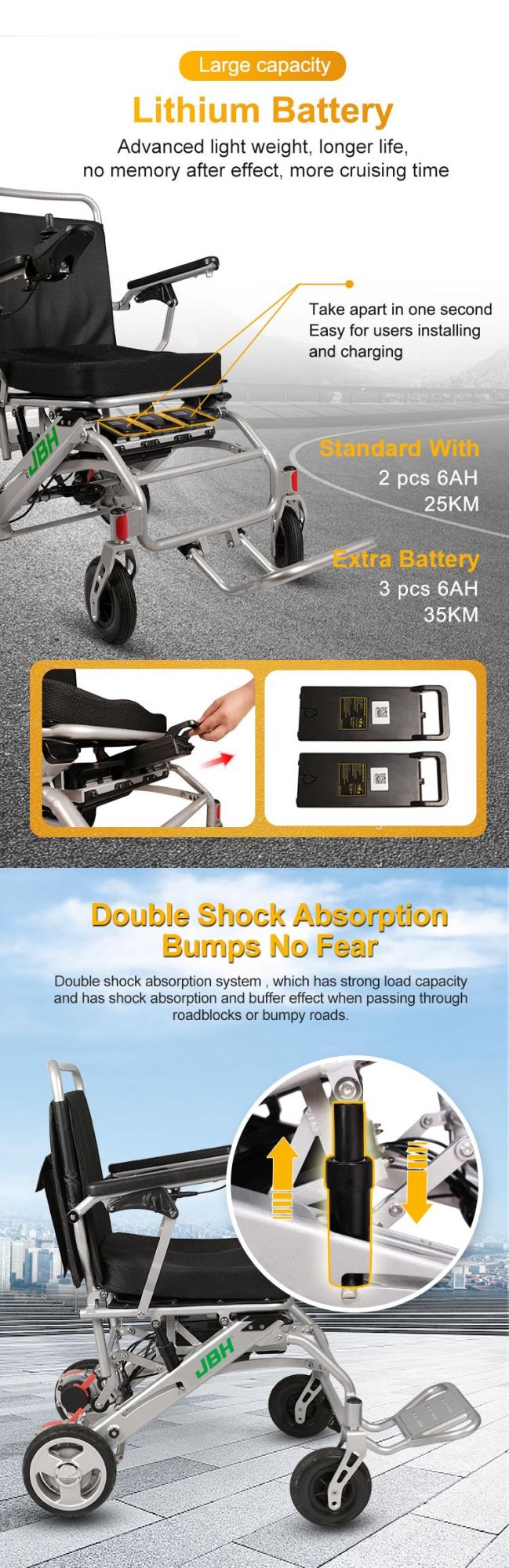

Battery:	2 pcs lion battery 6AH DC 24V

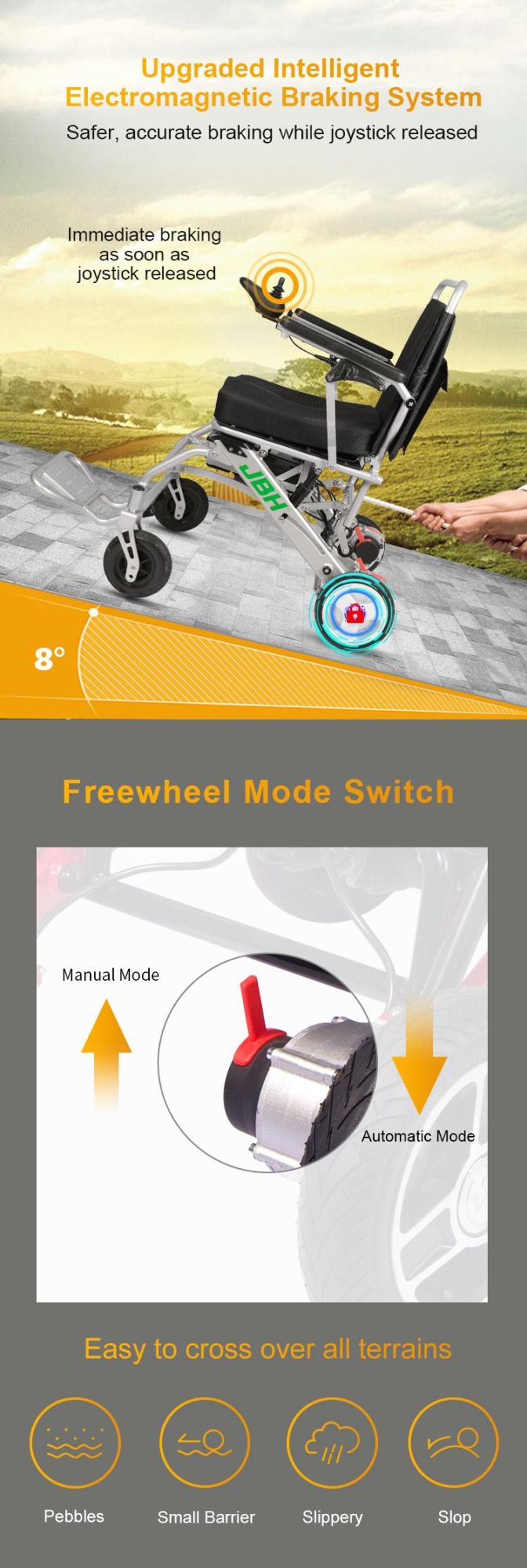

Braking system:	Intelligent type electromagnetic brake
Max Speed :	6 km/h
Driving Range:	25km
Turning radius:	820mm
Loading capacity :	160KG
Climbing Slope:	12°
Front tires:	7"x2pcs
Rear tires:	8"x2pcs
Seat depth:	450mm
Seat width:	430mm
Backrest height:	550mm
Armrest width:	520mm
Package:	1 set/carton
carton size:	700 × 440 × 900mm

F.A.Q:
Q1: Can I Take The Plane? What Documentation Is Required?
        Yes, our products can be allowed to be carried on the plane, different airlines will have different regulations, you can consult the airline staff of your flight.

Q2: To Avoid Overcharging, Should I Need Protective Measures When Charging?
        No, the charger has a power-off protection function. When the battery is fully charged, the charging power supply will cut off by itself.

Q3: Can I Use It In Different Countries?
        Yes, our products have an input voltage of 100-240V, which is suitable for most countries in the world. We can provide you with the right charger according to the type of plug used in your country.

Q4: Should I Need To Assemble After Unpacking?
        After unpacking, only the controller joystick needs to be installed, the wheelchair lock is fixed, and the power can be used.

Q5: Is It Possible To Switch Manually By Electric Mode?
        Yes, you can adjust the red handle on the motor position to switch the manual electric mode.

Q6: Can The Controller Lever Switch Between Left And Right?
        Yes, the joystick can be switched left and right.

Q7: What Is The Production Process Of The Wheelchair?
        Raw material cutting - processing forming - welding - heat treatment (increasing hardness) - baking paint - inspection - assembly - finished product - the packaging.

Q8: What Are The Optional Parts & Accessories?
        Battery, motor, tire, cup holder, controller, travel bag, rear control bracket, flashlight bracket, mobile phone  holder, headrest etc.

Q9: Can Product Quality Issues Be Returned?
        At present, my products do not support return, but if there are quality problems, we will send spare parts for customers to replace them during the warranty period. We also have a professional after-sales team to guide the installation.

Q10: Are You Directly OEM And ODM?
         OEM can, we can customize your LOGO in a wheelchair. ODM is also acceptable, but the cost of opening the mold is relatively expensive, requires the customer to pay for it, and the cycle is longer. If the customer can accept it, our factory is no problem.
