• Model NO.：D23
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Expand Dimension：980X600X970 mm
• Folded Dimension：330 X 300 X 750 mm
• Frame Material：Aluminum Alloy
• Battery Type：Lithium Battery 24V,6ah*2PCS
• Wheelchair Colour：Blue,Yellow,Silver,Red,Black,Pink
• Max Load：120kg
• Cerificate：ISO13485, ISO9001, FDA, CE
• Motor：180W*2 PCS Brushless Motor
• Weight：27kg (with Batteries)
• Wheelchair Driving Distance：20km
• Seat Width：430 mm
• Seat Height：460 mm
• Charging Time：6-8 Hours
• Brake System：Intelligent Electromagnetic Brake
• Using Ambient：Outdoor
• Transport Package：1 Set Electricpower Wheelchair,CTN
• Specification：CE, FDA, ISO13485, ISO9001
• Trademark：JBH
• Origin：Nanjing, Jiangsu, China
• HS Code：87139000
• Production Capacity：4000 Sets,Month

Basic Info.

Model NO. D23 Material Aluminium Alloy Type Electric Wheelchair Expand Dimension 980X600X970 mm Folded Dimension 330 X 300 X 750 mm Frame Material Aluminum Alloy Battery Type Lithium Battery 24V/6ah*2PCS Wheelchair Colour Blue/Yellow/Silver/Red/Black/Pink Max Load 120kg Cerificate ISO13485, ISO9001, FDA, CE Motor 180W*2 PCS Brushless Motor Weight 27kg (with Batteries) Wheelchair Driving Distance 20km Seat Width 430 mm Seat Height 460 mm Charging Time 6-8 Hours Brake System Intelligent Electromagnetic Brake Using Ambient Outdoor Transport Package 1 Set Electricpower Wheelchair/CTN Specification CE, FDA, ISO13485, ISO9001 Trademark JBH Origin Nanjing, Jiangsu, China HS Code 87139000 Production Capacity 4000 Sets/Month

Product Description

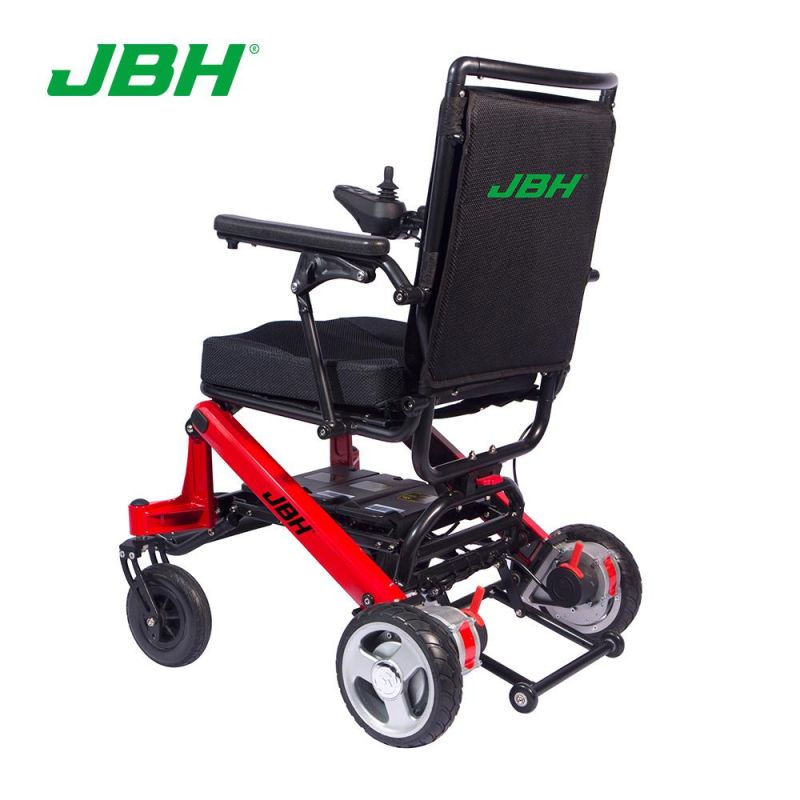

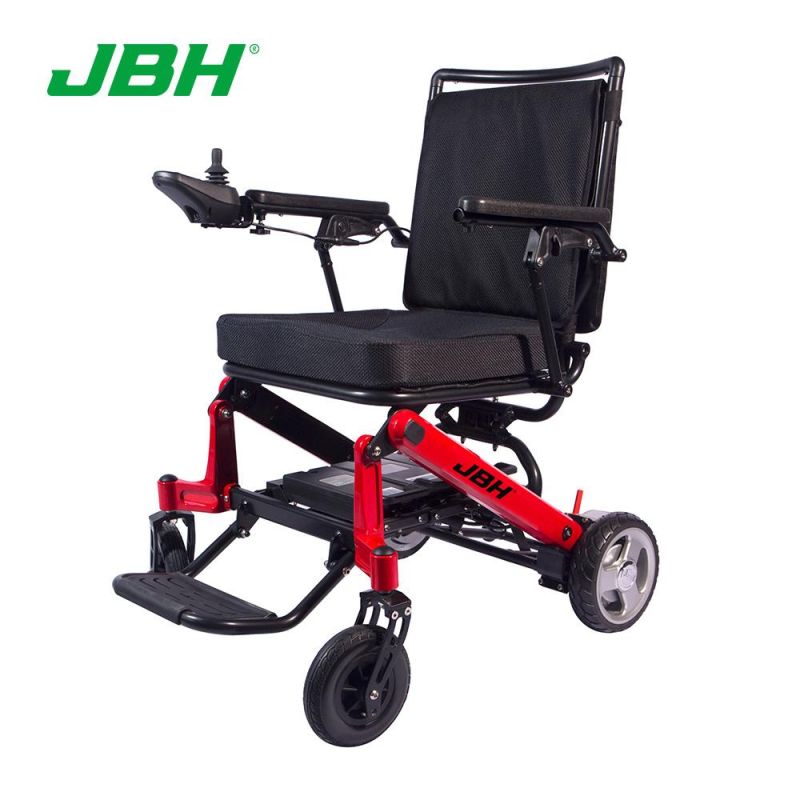

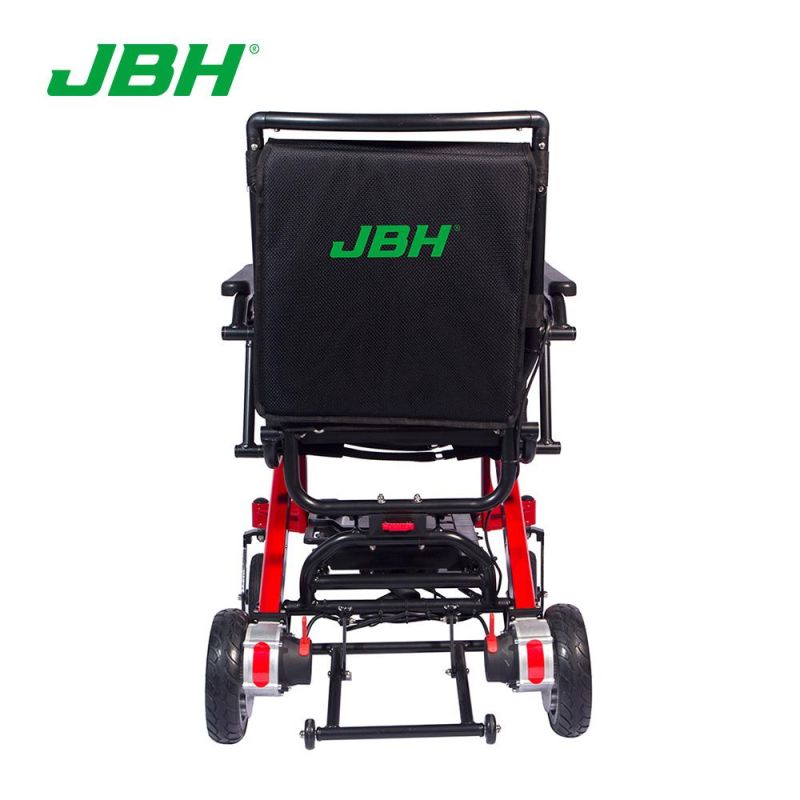

JBH D23 Lightweight Motorised Electric Wheelchair for Special Need



Product Name:	360W Lightweigh6 Folding Electric Power Wheelchair
Item No.:	D23
Unfolded dimension:	980x 600 x 970mm
Folded dimension:	330x 300 x 750mm
Motor:	180W X 2 brushless motor
Battery:	lithium battery (6AH DC 24V)x2pcs
Braking system:	Intelligent type electromagnetic brake
Charging time:	5 hours
Max Speed :	6 km/h
Driving Range:	25km
Turning radius:	800mm
Max Loading :	120 kg
Climbing Slope:	8°
Front tires:	7"x2pcs PU
Rear tires:	8"x2pcs PU
Seat depth:	400mm
Seat width:	430MM
Seat Height:	460mm
Backrest height:	400mm
Armrest height:	250mm
N.W.:	23.5kg
Package:	1 set/carton
carton size:	690x430x850mm

Folding electric power wheelchair Key Features:
1. 5-seconds folding/ unfolding,easy carry
2. Very light weight (26.5kgs)
3. Frame material: aluminum alloy
4. Certificates: CE;FDA;ISO9001; ISO13485;
5. High efficiency brushless hub motor

Folding electric power wheelchair Warranty:
Chair frame is 3 years. Motor, controller are 1 year. Battery is 6 months.


Company information:
JBH Wheelchair is research and development, manufacturing and sales enterprise. Specialized in Portable power wheelchair, Portable electric scooter, knee walker, and electric standing wheelchair. Products passed through ISO 13485, FDA and CE standard. We provide OEM service, great quality. "JBH" as the registered trademark renowned for "Safe, Light and Portable" on the market. Products covers 20 Provinces in China and export to USA, UK, Canada, and Australia. JBH wheelchair gained wide range recognition and trust from our customers. We will continue providing high quality products and service.


Folding electric power wheelchair FAQ

Q1: Why Choose JIN BAI HE Products?
 We are one of the professional wheelchair factory here in China,
 Best production capability, Best quality control, Best Service,

 Q2: How is JIN BAI HE Products Quality?
 We only supply quality products, our manufacturing facilities have received the ISO, CE, recognition, and get FDA certificate for some products .
Every products will inspected to the standard before shipment, and every product has one year warranty period.

Q3:What is your MOQ(Minimum Order Quantity ?
  As a factory, our MOQ is one piece, it could be mixed the different models.

Q4: Payment and shipment
 We accept: T/T,Paypal, West Union.
 Delivery time: According the order.

Q5: Is the wheelchair foldable and portable?
Yes. Our wheelchair can be easily disassembled and placed in the trunk of a vehicle.

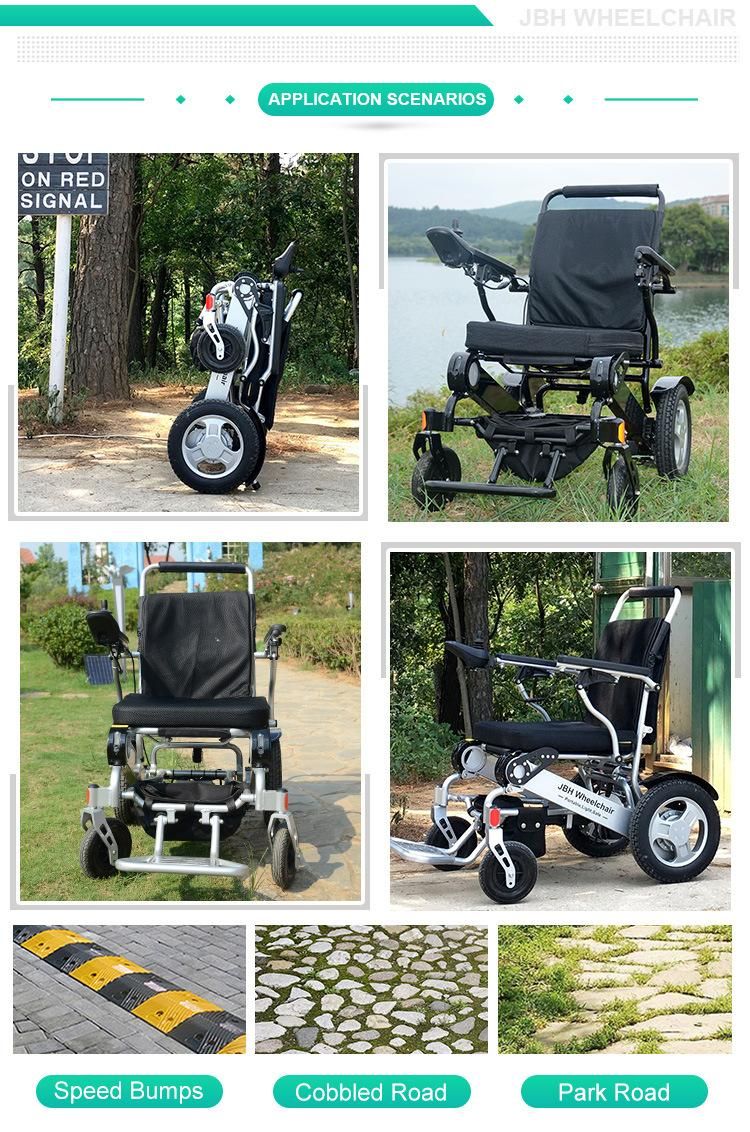

Q6: Is the wheelchair for indoor or outdoor use?
It was designed for both indoor and outdoor use.

Q7: Will you accept OEM orders?
Yes. We'd like to produce our customers' OEM/ODM orders.

Q8:Are you trading company or manufacturer?
We are professional manufacturer and have several years of wheelchairs experience in global market.

Q9,:What is the warranty period of the wheelchair?
The warranty period of frame is 3 years. Motors, controller Battery  is 1 year. .
