• Model NO.：D05A
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Expand Dimension：940*630*950mm
• Folded Dimension：640*320*750mm
• Frame Material：Aluminum Alloy
• Battery Type：Lithium Battery 24V 6ah*2PCS
• Wheelchair Colour：Blue,Yellow,Silver,Red,Black,Pink
• Max Load：120kg
• Cerificate：ISO13485, ISO9001, FDA, Ce
• Motor：Brushless 180W*2PCS
• Weight：24kg (with Batteries)
• Wheelchair Driving Distance：20km
• Transport Package：1 Set Electricpower Wheelchair,CTN
• Specification：CE, FDA, ISO13485, ISO9001
• Trademark：JBH
• Origin：Nanjing, Jiangsu, China
• HS Code：87139000
• Production Capacity：4000 Sets,Month

Basic Info.

Model NO. D05A Material Aluminium Alloy Type Electric Wheelchair Expand Dimension 940*630*950mm Folded Dimension 640*320*750mm Frame Material Aluminum Alloy Battery Type Lithium Battery 24V 6ah*2PCS Wheelchair Colour Blue/Yellow/Silver/Red/Black/Pink Max Load 120kg Cerificate ISO13485, ISO9001, FDA, Ce Motor Brushless 180W*2PCS Weight 24kg (with Batteries) Wheelchair Driving Distance 20km Transport Package 1 Set Electricpower Wheelchair/CTN Specification CE, FDA, ISO13485, ISO9001 Trademark JBH Origin Nanjing, Jiangsu, China HS Code 87139000 Production Capacity 4000 Sets/Month

Product Description

21kg lightweight foldable electric wheelchair with 12AH lithium Battery

D05A Folding Electric Power Wheelchair Advantages:

1. 5-seconds folding or unfolding, easy to carry as a luggage on plane or on train.
2. Very light weight, only 21kg.
3.Small volume after folding, only 0.15 cbm.
4. Frame material: Light aluminum alloy.
5. Certificates: CE;FDA;ISO9001; ISO13485.
6. High efficiency brushless hub motor
7.The warranty period of frame is 3 years and other parts is 1 years.



D05A Folding Electric Power Wheelchair Specifications:

Parameters:	21kg lightweight foldable electric wheelchair with 12AH lithium Battery
Model No.:	D05A
Frame material	Aluminum alloy
Unfolded dimension:	940*630*950mm
Folded dimension:	640*320*750mm
Motor:	24V 180W X 2 brushless motor
Battery:	2 pcs *lithium battery 24V 6AH (Extra 9AH battery for option)
Braking system:	Intelligent type electromagnetic brake
Charging time:	6 hours
Charger	24V/2A
Max Speed :	6 km/h
Driving Range:	20km
Turning radius:	850mm
Loading capacity :	120KG
Climbing Slope:	8°
Front tires:	7"x2pcs PU solid
Rear tires:	8"x2pcs PU solid
Anti-turned wheels:	2.5"x2pcs
Seat depth:	400mm
Seat width:	500mm
Backrest height:	360mm
Armrest height:	220mm
N.W.:	21kg (without battery)
N.W:	24kg (with 2 batteries)
Package:	1 set/carton
carton size:	700x400x880mm
Colour:	Silver, black, blue, yellow, pink, red

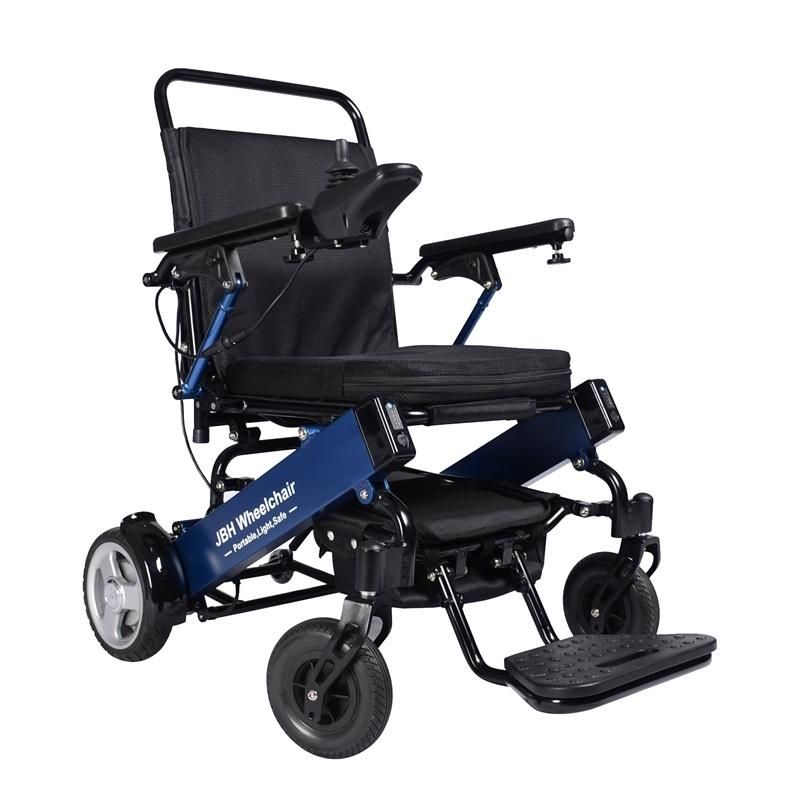

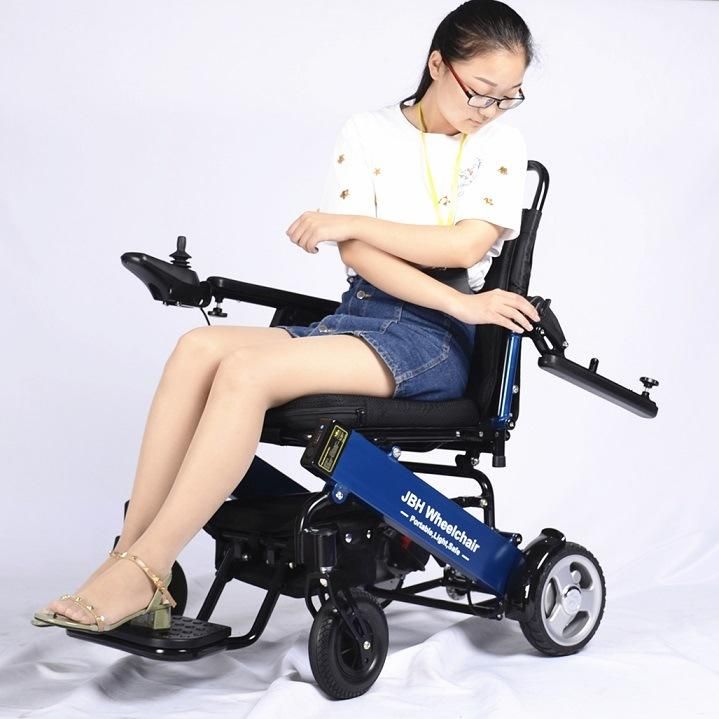

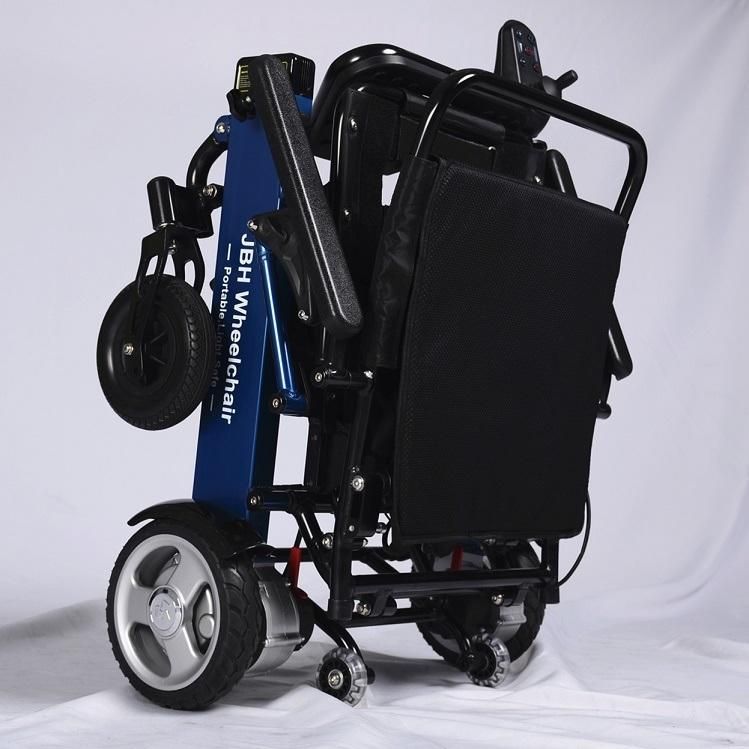

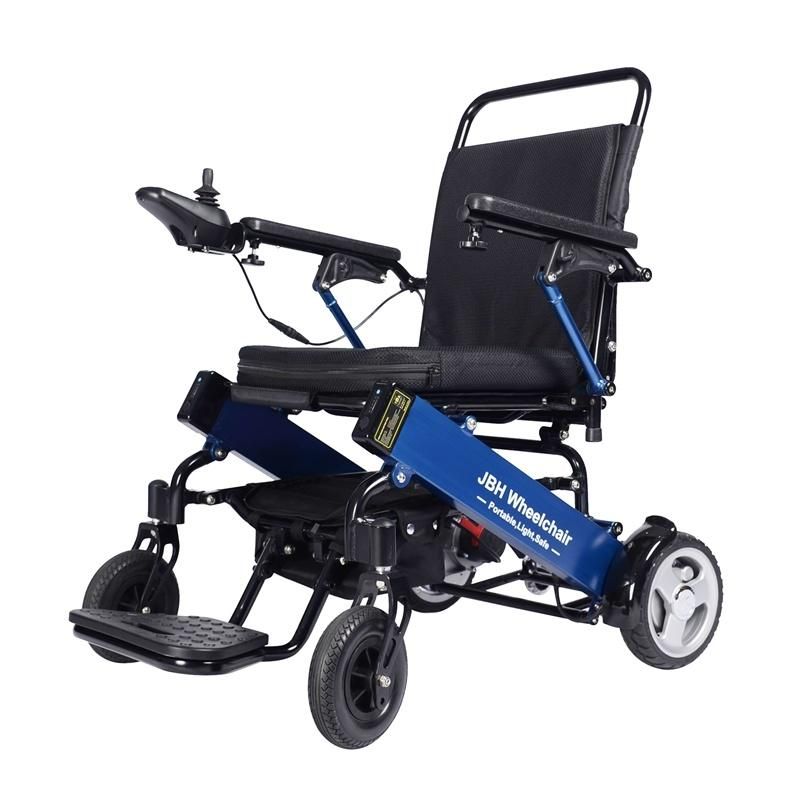

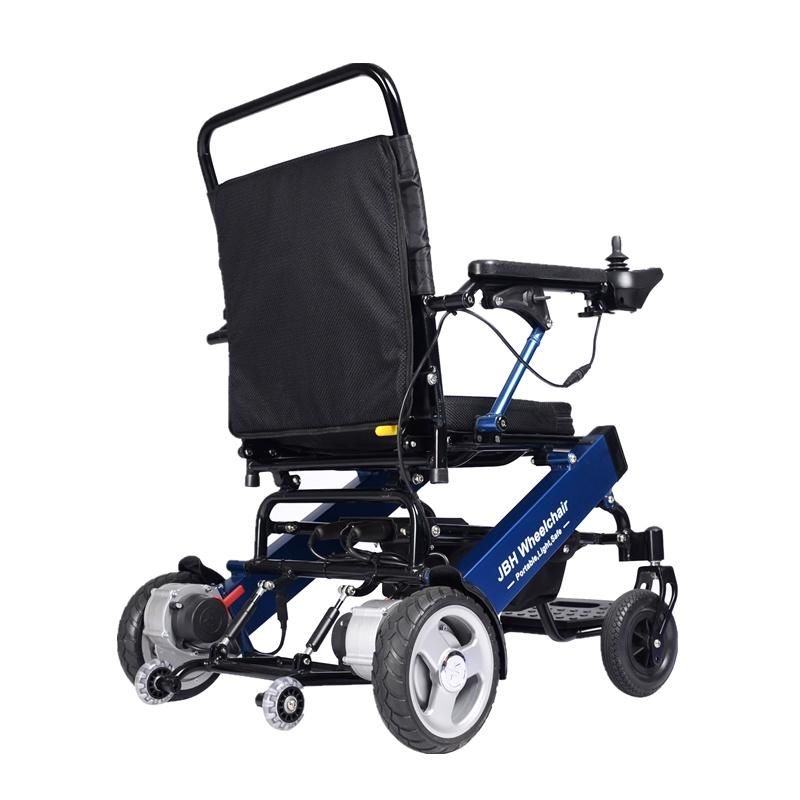

D05 folding electric power wheelchair detail pictures:


Certificates:
SGS, FDA, ISO 9001, CE.


Factory Brief Introduction:

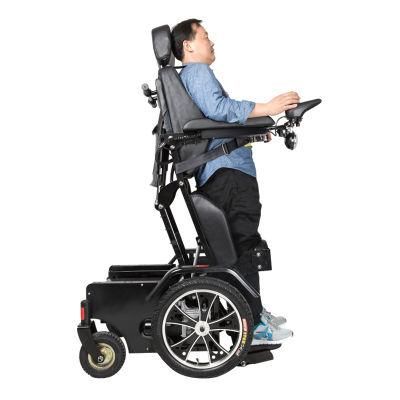

JBH Wheelchair is research and development, manufacturing and sales enterprise. Specialized in Portable power wheelchair, Portable electric scooter, knee walker, and electric standing wheelchair. Products passed through ISO 13485, FDA and CE standard. We provide OEM service, great quality. "JBH" as the registered trademark renowned for "Safe, Light and Portable" on the market. Products covers 20 Provinces in China and export to USA, UK, Canada, and Australia. JBH wheelchair gained wide range recognition and trust from our customers. We will continue providing high quality products and service.






FAQ

. Q1: Why Choose JIN BAI HE Products?
 We are one of the professional wheelchair factory here in China,
 Best production capability, Best quality control, Best Service,

 Q2: How is JIN BAI HE Products Quality?
 We only supply quality products, our manufacturing facilities have received the ISO, CE, recognition, and get FDA certificate for some products .
Every products will inspected to the standard before shipment, and every product has one year warranty period.

Q3:What is your MOQ(Minimum Order Quantity ?
  As a factory, our MOQ is one piece, it could be mixed the different models.

Q4: Payment and shipment
 We accept: L/C, T/T,WESTERN UNION;
      Delivery time: Within 25 Work days upon the order confirmed.

Q5: Is the wheelchair foldable and portable?
Yes. Our wheelchair can be easily disassembled and placed in the trunk of a vehicle.

Q6: Is the wheelchair for indoor or outdoor use?
It was designed for both indoor and outdoor use.

Q7: Will you accept OEM orders?
Yes. We'd like to produce our customers' OEM/ODM orders.

Q8:Are you trading company or manufacturer?
We are professional manufacturer and have several years of wheelchairs experience in global market.

Q9,:What is the warranty period of the wheelchair?
The warranty period of frame is 3 years. Controller,battary is 1 year.
