• Model NO.：D09
• Material：Aluminium Alloy
• Type：Wheelchair
• Expand Dimension：960 X 580 X930 mm
• Folded Dimension：580 X 325 X 780 mm
• Battery Type：Lithium Battery 24V,6ah*2PCS
• Max Load：150kg
• Wheelchair Net Weight：23.5kg
• Motors：24V,250W *2PCS
• Wheelchair Driving Distance：25km
• Wheelchair Max Speed：6km,H

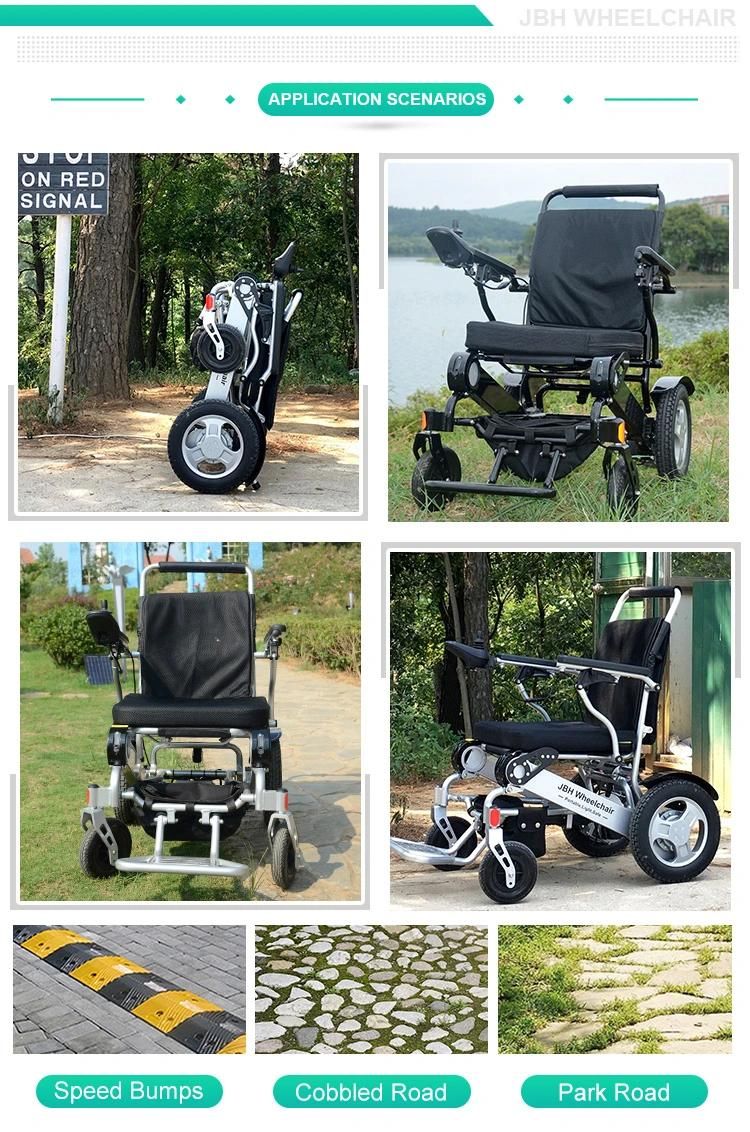

• Wheelchair Usage：for Disabled and Elder Outdoor and Indoor Using
• Transport Package：1set Electric Wheelchair,Carton
• Specification：CE, FDA, ISO13485, ISO9001
• Trademark：JBH
• Origin：Nanjing, Jiangsu, China
• HS Code：87139000
• Production Capacity：2000 Sets,Month

Basic Info.

Model NO. D09 Material Aluminium Alloy Type Wheelchair Expand Dimension 960 X 580 X930 mm Folded Dimension 580 X 325 X 780 mm Battery Type Lithium Battery 24V/6ah*2PCS Max Load 150kg Wheelchair Net Weight 23.5kg Motors 24V/250W *2PCS Wheelchair Driving Distance 25km Wheelchair Max Speed 6km/H Wheelchair Usage for Disabled and Elder Outdoor and Indoor Using Transport Package 1set Electric Wheelchair/Carton Specification CE, FDA, ISO13485, ISO9001 Trademark JBH Origin Nanjing, Jiangsu, China HS Code 87139000 Production Capacity 2000 Sets/Month

Product Description

handicapped electric wheelchair saudi arabia

D09 is especially designed for big size customers, its load capacity reaches 150KG! At the meantime, its 250W*2pcs brushless motor and  24V/12AH Li-on battery are extremely powerful and energy saving. It is your best choice!

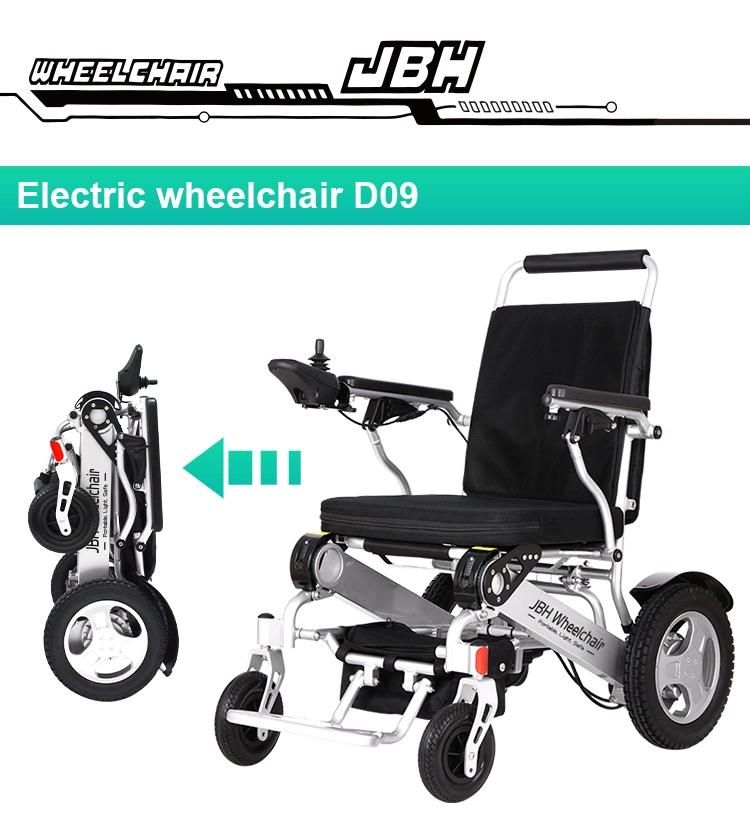

D09 folding electric power wheelchair Advantages:

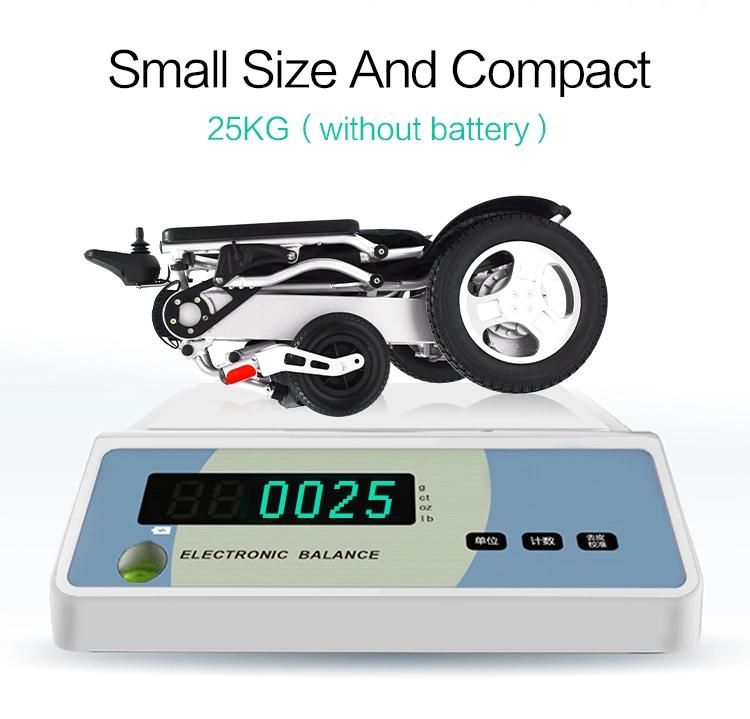

1. Lightweight:only weights 26.5kg!

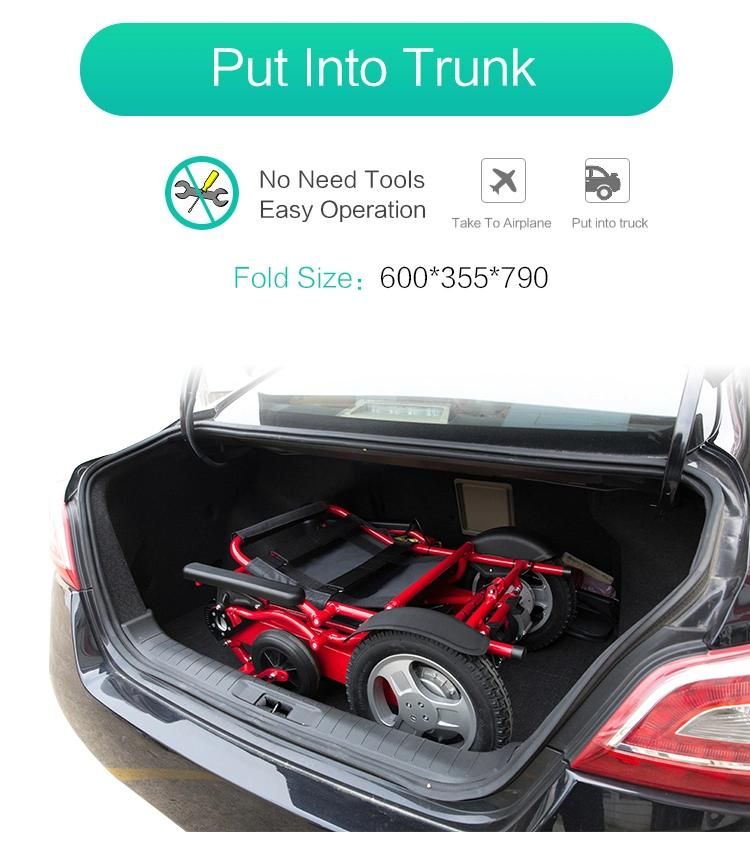

2. Small folded size: 57.5 x 32.5 x 78cm, easy to put in the car trunk or   co-pilot's seat.
3. Quick and easy folding procedure: 5 seconds operation.
4. Adjustable armrest and footrest: offer you a comfortable life.

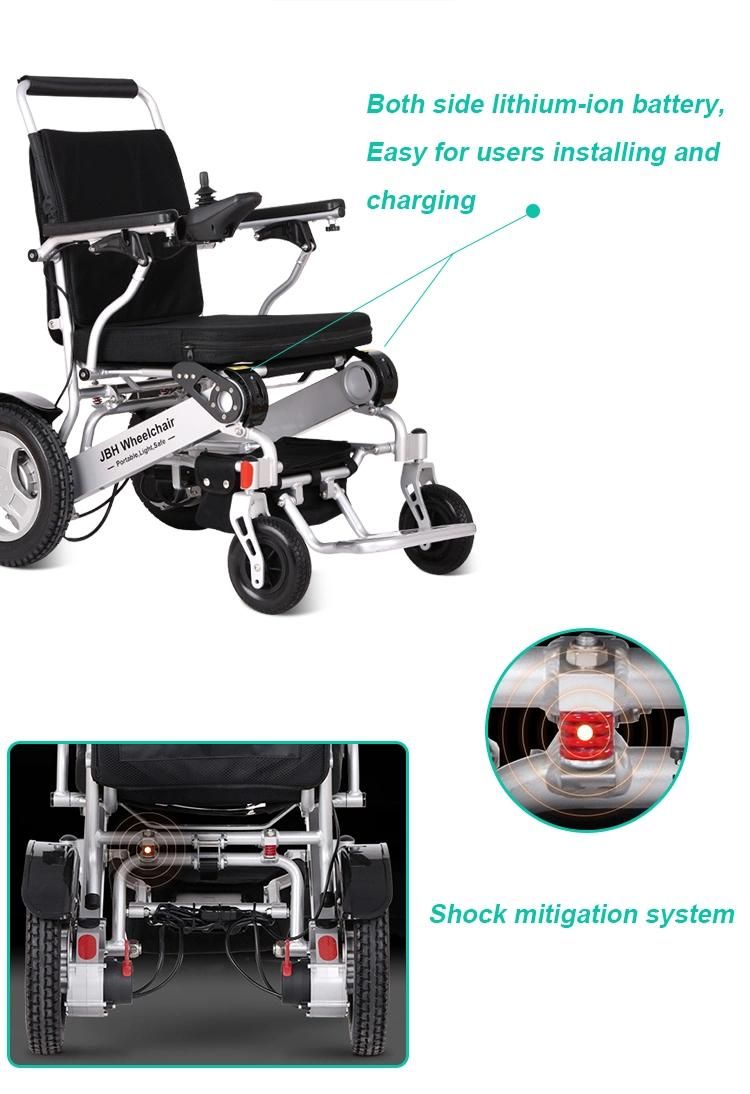

5. 8" shock absorbing front casters.

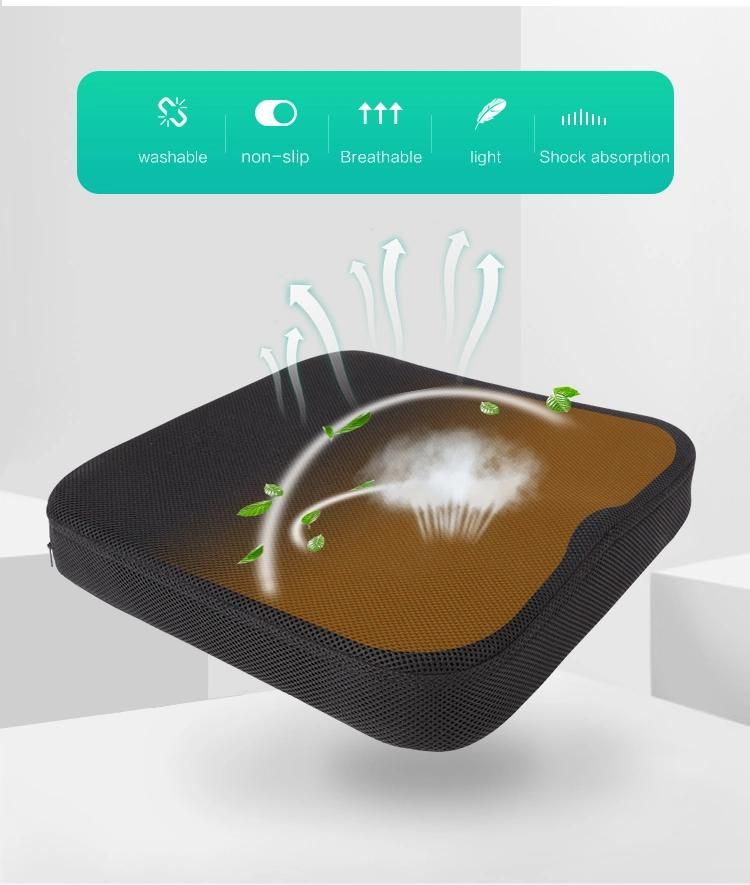

6. Detachable and washable backrest and seat cushion.
7. Tiny-Turn Radius for tight corners, makes you ride more stable.
8. What's more?! Model D09 Power Wheelchair is designed for large size customers, it has 150KG load capacity!

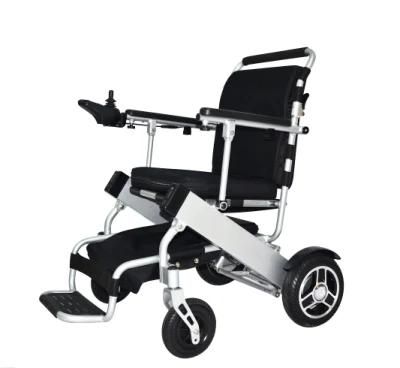

D09 folding electric power wheelchair Specifications:


Product Name:	handicapped electric wheelchair saudi arabia
Item No.:	D09
Unfolded dimension:	968x 565 x 925mm
Folded dimension:	780x 565 x 320mm
Motor:	250W X 2 brushless motor

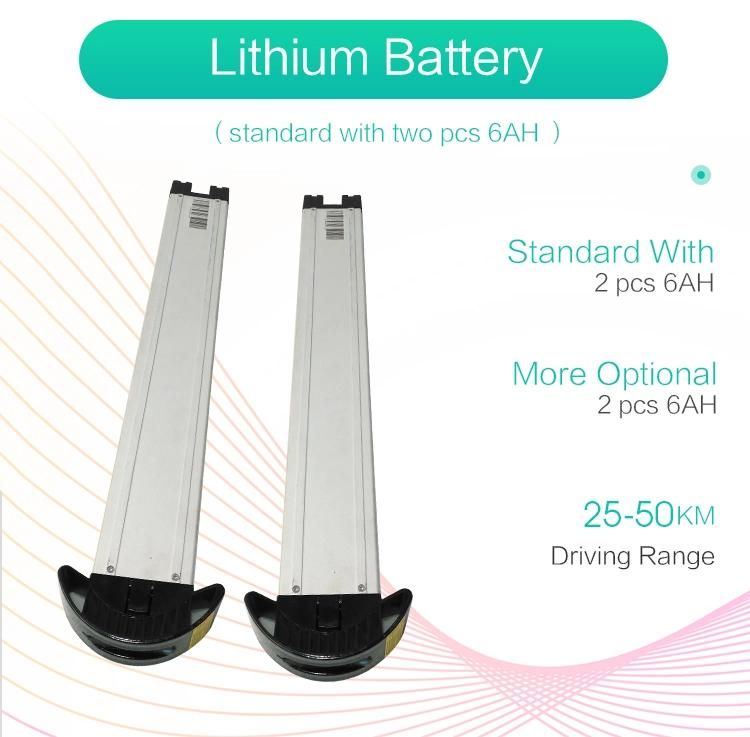

Battery:	lithium battery (6AH DC 24V)x2pcs

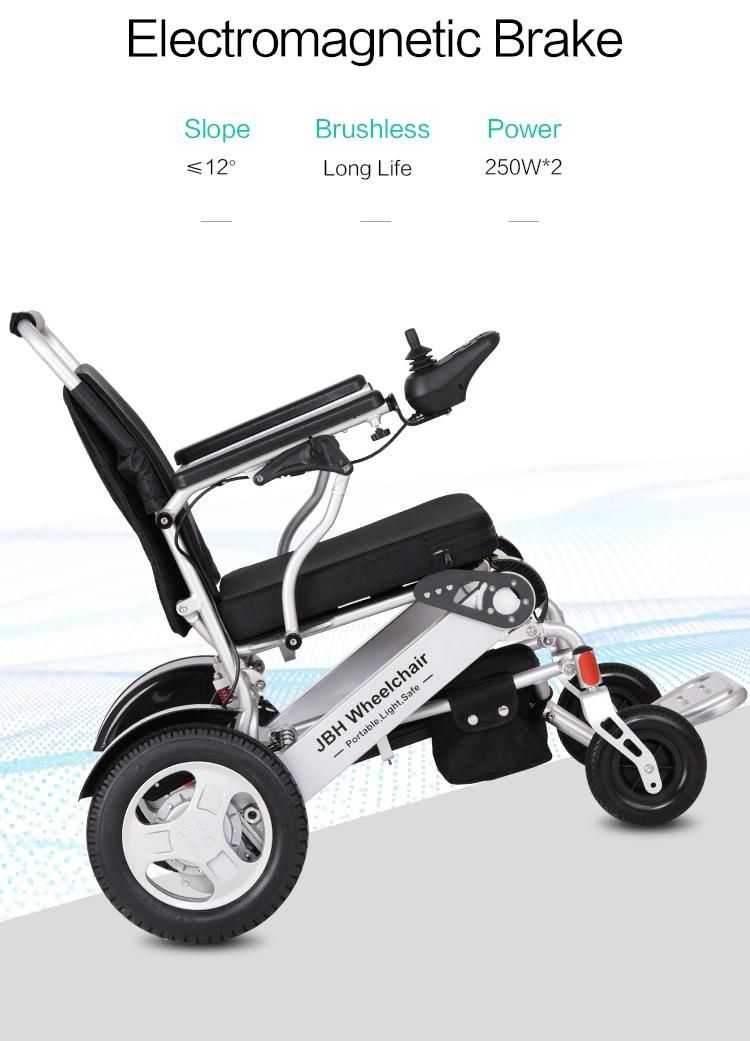

Braking system:	Intelligent type electromagnetic brake
Charging time:	5 hours
Max Speed :	6 km/h
Driving Range:	25-40km
Turning radius:	800mm
Max Loading :	150 kg
Climbing Slope:	12°
Front tires:	7.5"x2pcs PU
Rear tires:	12"x2pcs PU
Seat depth:	430mm
Seat width:	480mm or 530mm
Seat Height:	460mm
Backrest height:	400mm
Armrest height:	250mm
N.W.:	26.5kg
Package:	1 set/carton
carton size:	690x420x900mm

Folding electric power wheelchair Warranty:
Chair frame is 3 years. Motor, controller are 1 year. Battery is 6 months.

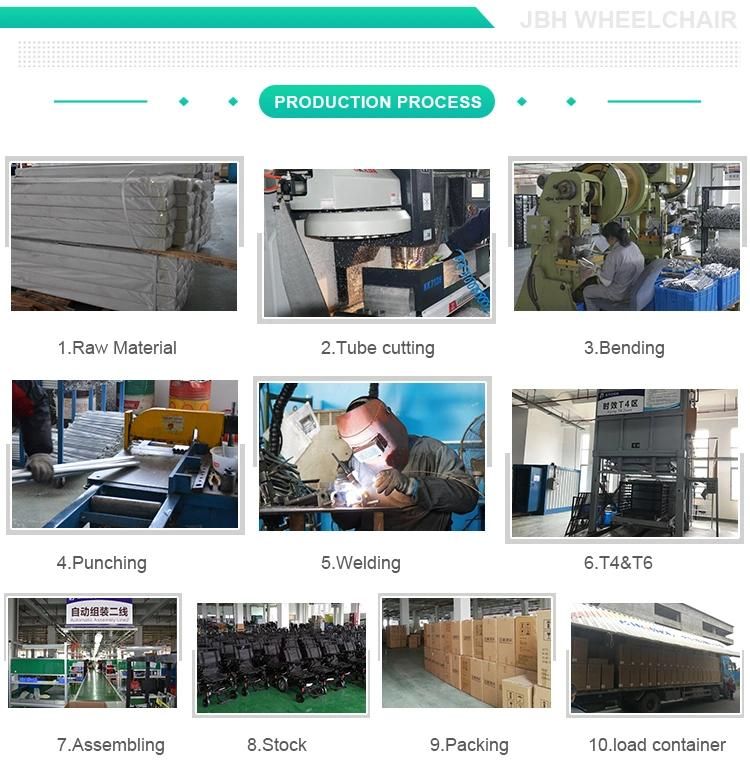

Factory Brief Introduction:

JBH Wheelchair is research and development, manufacturing and sales enterprise. Specialized in Portable power wheelchair, Portable electric scooter, knee walker, and electric standing wheelchair. Products passed through ISO 13485, FDA and CE standard. We provide OEM service, great quality. "JBH" as the registered trademark renowned for "Safe, Light and Portable" on the market. Products covers 20 Provinces in China and export to USA, UK, Canada, and Australia. JBH wheelchair gained wide range recognition and trust from our customers. We will continue providing high quality products and service.



Cerificates:

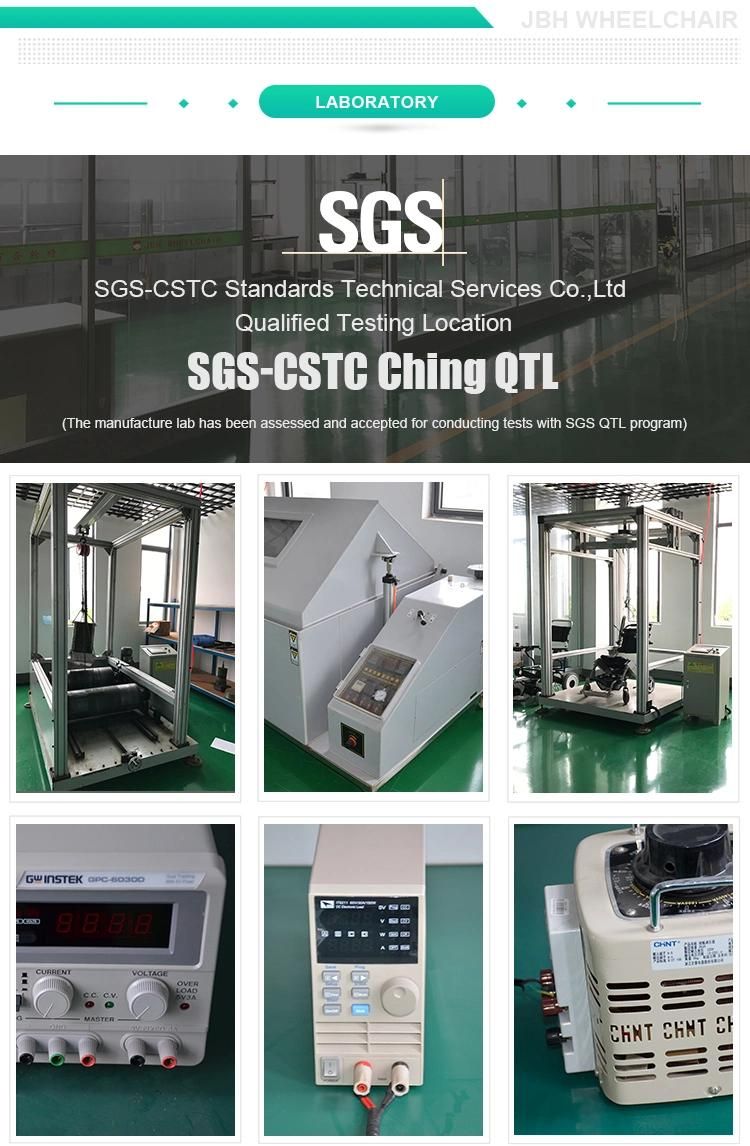

FDA, SGS, ISO 13485, CE.
