• Model NO.：Z01
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Name：960W 18" Big Wheel Electric Power Brushless Wheel
• Motor：960W*2 PCS Brushless Motor
• Battery：24V,20ah*4 PCS
• Wheel：18",2.5" PU Tires
• Max Loading：125kgs
• Driving Range：30km
• Charger：24V2a
• Charging Time：6-8hours
• Climbing：8 Deg
• Weight：124kgs
• Over Size：1120*660*1040mm
• Flod Size：1700mm
• Using Site：Move Inconvenience
• Controller：Pg
• Motors：Taiwan Suoyang
• Transport Package：Carton
• Specification：1120*660*1040mm
• Trademark：JBH
• Origin：Jiangsu, China
• HS Code：8713100000
• Production Capacity：500sets,Month

Basic Info.

Model NO. Z01 Material Aluminium Alloy Type Electric Wheelchair Name 960W 18" Big Wheel Electric Power Brushless Wheel Motor 960W*2 PCS Brushless Motor Battery 24V/20ah*4 PCS Wheel 18"/2.5" PU Tires Max Loading 125kgs Driving Range 30km Charger 24V2a Charging Time 6-8hours Climbing 8 Deg Weight 124kgs Over Size 1120*660*1040mm Flod Size 1700mm Using Site Move Inconvenience Controller Pg Motors Taiwan Suoyang Transport Package Carton Specification 1120*660*1040mm Trademark JBH Origin Jiangsu, China HS Code 8713100000 Production Capacity 500sets/Month

Product Description

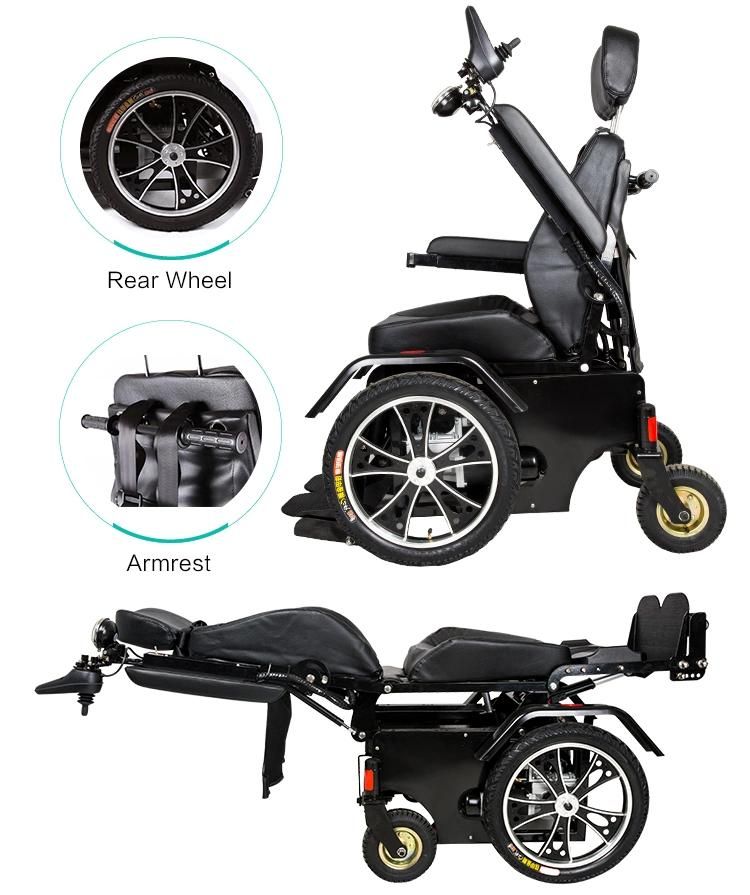

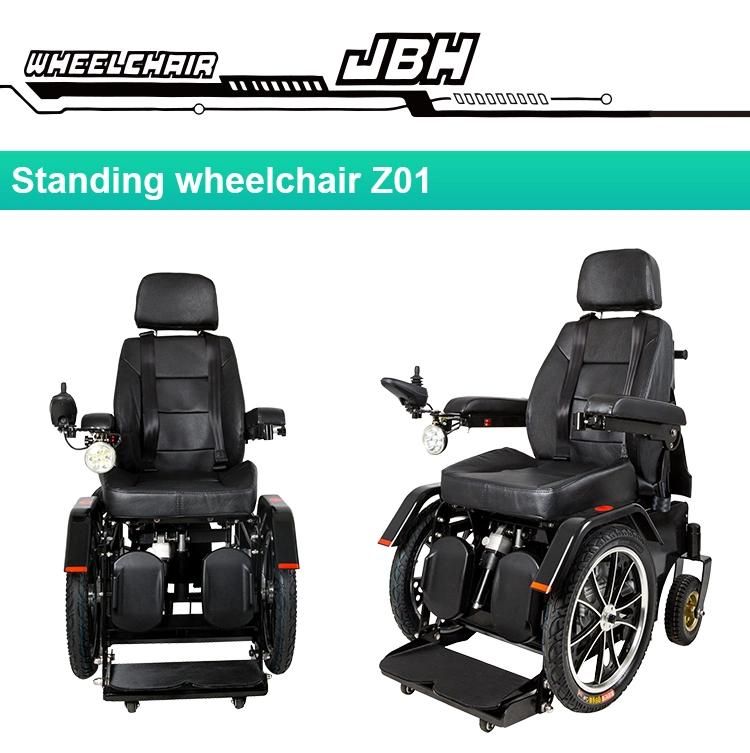

                              960W  18" big wheel electric power brushless wheelchair

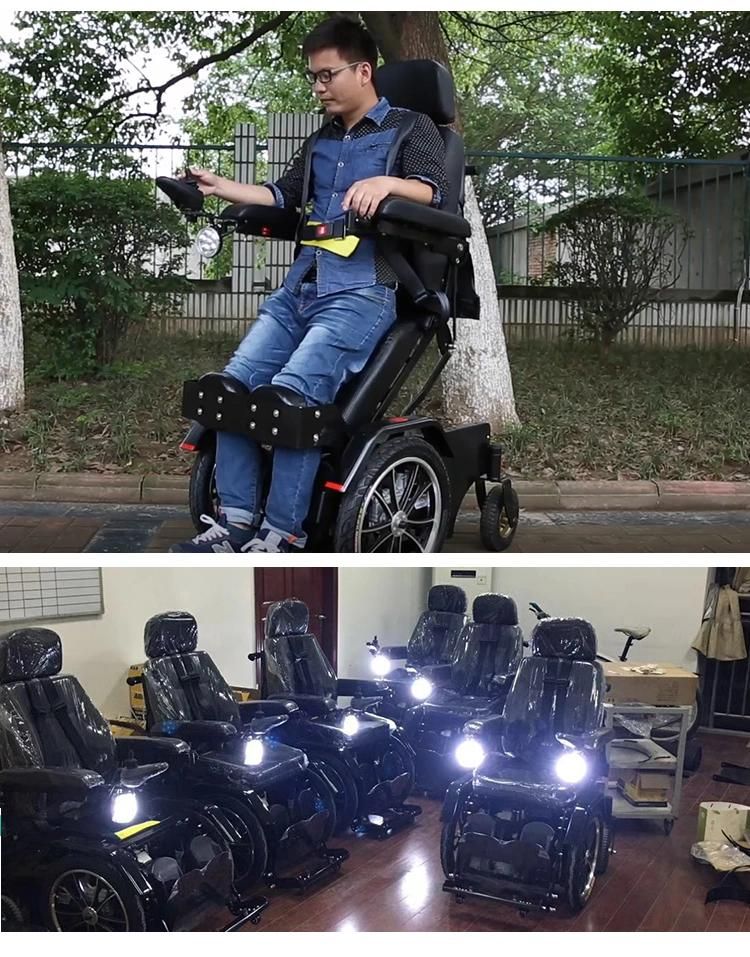

Product Name:	18" big wheels standing up electric wheelchair for disabled people
Model No.:	Z01

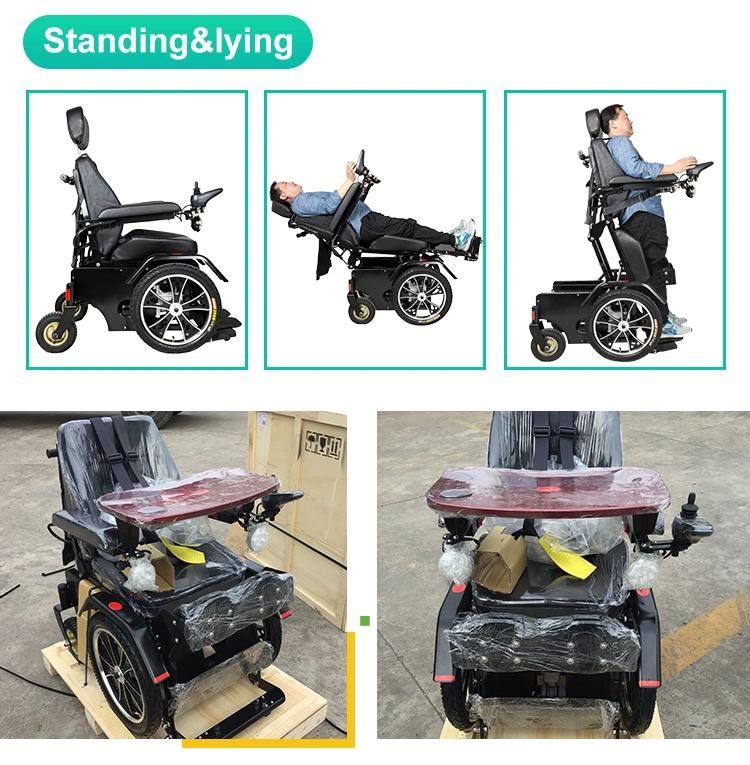

Type:	standing wheelchair
Dimension:	1120x660x1100mm
Braking system:	full automatic electromagnetic
Front tires:	18"x2.5/64-355
Back tires:	2.5"x4
Loading capacity :	120KG
Driving distance:	50km
Seat width:	450mm
Seat depth:	450mm
Seat height:	560mm
Backrest height:	600mm
Armrest height:	360mm
Climbing Slope:	12°
Pushrod motor:	LINIX DC 3500Nx3 DC 6000Nx1

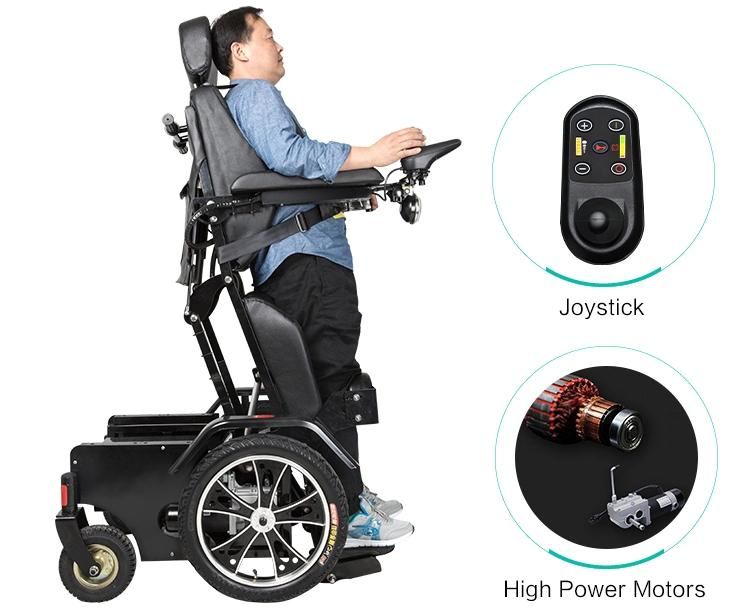

Driving Motor:	MTM DC 320Wx2PCS
Controller:	PG VR-2 PG R-NET
Charger:	Input: 110-230V/AC; output:24V/DC

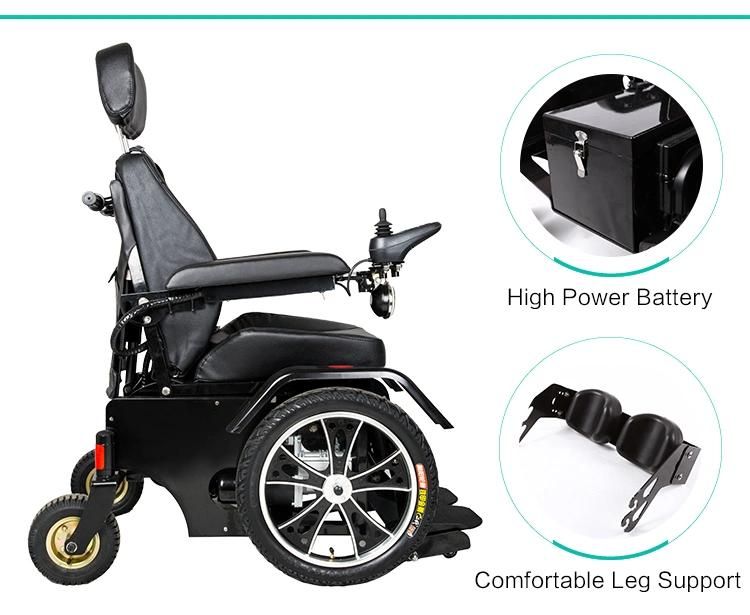

Battery"	12V 20AH x4 pcs
Net weight:	125 kgs
Carton size:	1.05m*0.78m*1.2m, 1 set/wood carton

FAQ

. Q1: Why Choose JIN BAI HE Products?
 We are one of the professional wheelchair factory here in China,
 Best production capability, Best quality control, Best Service,

 Q2: How is JIN BAI HE Products Quality?
 We only supply quality products, our manufacturing facilities have received the ISO, CE, recognition, and get FDA certificate for some products .
Every products will inspected to the standard before shipment, and every product has one year warranty period.

Q3:What is your MOQ(Minimum Order Quantity) ?
  As a factory, our MOQ is one piece, it could be mixed the different models.

Q4: Payment and shipment
 We accept: L/C, T/T,WESTERN UNION;
 Delivery time: according to order.

Q5: Is the wheelchair for indoor or outdoor use?
It was designed for both indoor and outdoor use.

Q6: Will you accept OEM orders?
Yes. We'd like to produce our customers' OEM/ODM orders
