Convenient Travel Folding Power Wheelchair
Nanjing Jin Bai He Medical Apparatus Co., Ltd.- Customized：Non-Customized
- Certification：ISO, CE
- Condition：New
- Tilted：Non-Tilted
- Folded：Folding
- Leg Rest Type：Across Both Sides
Base Info
- Model NO.：D09
- Material：Aluminium Alloy
- Type：Electric Wheelchair
- Product Name：Deluxe Aluminum Wheelchair
- Expand Dimension：985X600X950mm
- Folded Dimension：600X355X790mm
- Colour：Blue,Yellow,Silver,Black,Red,Pink
- Frame Material：Aerospace Titanium-Aluminum Alloy
- Motors：250W*2PCS
- Battery Type：Lithium Battery 6ah*2PCS
- Charger：24V2a
- Guarantee：One Year
- Max Load：120kg
- Nw：25.1kgs
- Gw：28kg
- Front：7"
- Rear：12.5"
- Gradient：8°
- Transport Package：One Set Folding Power Wheelchair,Carton
- Specification：CE, ISO13485, ISO9001
- Trademark：Jin Bai He
- Origin：Nanjing, Jiangsu, China
- HS Code：87139000
- Production Capacity：5000 Sets,Month
Description
Basic Info.
Model NO. D09 Material Aluminium Alloy Type Electric Wheelchair Product Name Deluxe Aluminum Wheelchair Expand Dimension 985X600X950mm Folded Dimension 600X355X790mm Colour Blue/Yellow/Silver/Black/Red/Pink Frame Material Aerospace Titanium-Aluminum Alloy Motors 250W*2PCS Battery Type Lithium Battery 6ah*2PCS Charger 24V2a Guarantee One Year Max Load 120kg Nw 25.1kgs Gw 28kg Front 7" Rear 12.5" Gradient 8° Transport Package One Set Folding Power Wheelchair/Carton Specification CE, ISO13485, ISO9001 Trademark Jin Bai He Origin Nanjing, Jiangsu, China HS Code 87139000 Production Capacity 5000 Sets/MonthProduct Description
Convenient travel folding power wheelchair
D09 folding electric power wheelchair Specifications:
| Product Name: | Deluxe aluminum wheelchair |
| Item No.: | D09 |

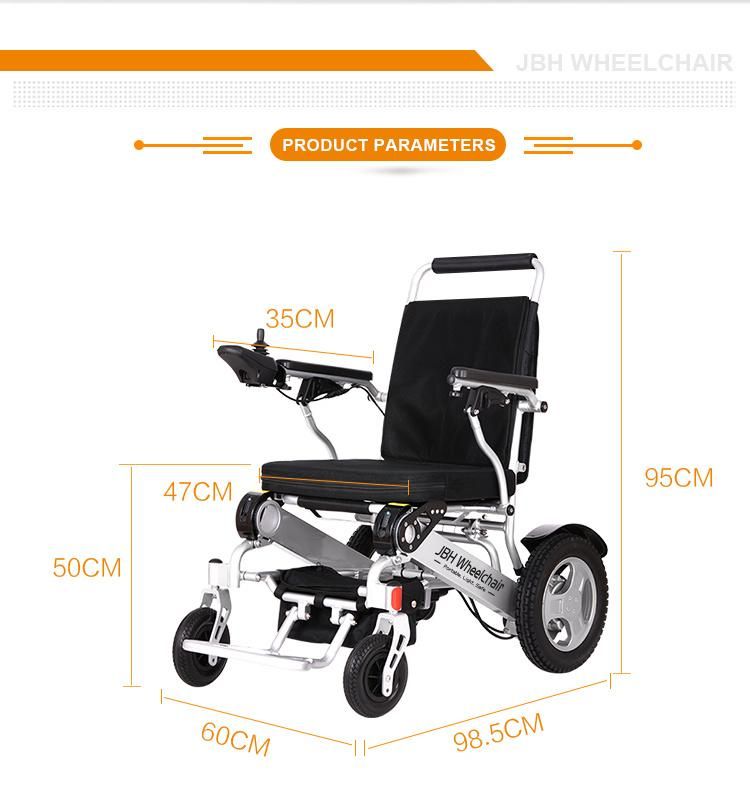

| Unfolded dimension: | 985x 600 x 950mm |
| Folded dimension: | 600x 355 x 790mm |
| Motor: | 250W X 2 brushless motor |
| Battery: | lithium battery (6AH DC 24V)x1pcs |

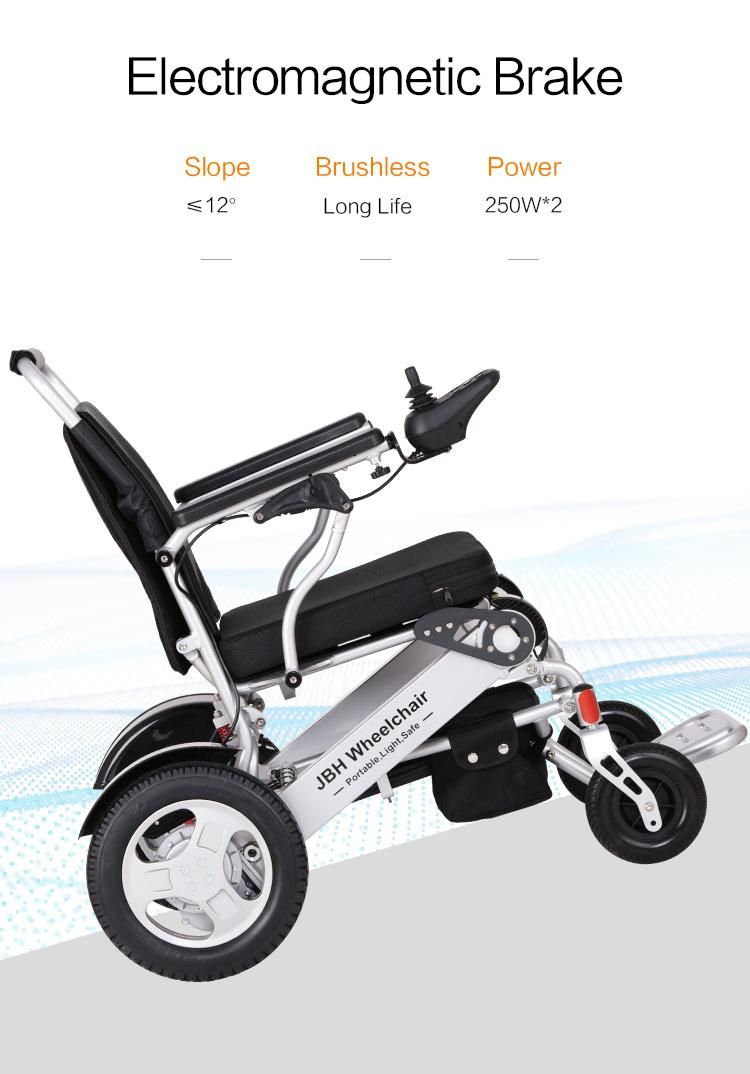

| Braking system: | Intelligent type electromagnetic brake |
| Charging time: | 5hours |
| Max Speed : | 6 km/h |
| Driving Range: | 25km |
| Max Loading : | 120 kg |
| Climbing Slope: | 8° |
| Front tires: | 7"x2pcs PU |
| Rear tires: | 12.5"x2pcs PU |
| Seat depth: | 400mm |
| Seat width: | 470mm |
| Seat Height: | 480mm |
| N.W.: | 25.1.5kg |
| Package: | 1 set/carton |
FAQ
Q1:Are you trading company or manufacturer?
A1.Welcome to our factory if you are free.We are professional fold light wheelchair,knee walker scooter and electric scooter manufacturer,we have much more experience in global market.we can ensure products quality,The pre-sale and after sale service,every spare parts can be sent when u need to replace.
Q2. May i print our company logo on models,do you accept OEM/ODM orders?
A2:Yes,we accept OEM/ODM orders.It is available to print logo on electric wheelchair.Please send your HD logo before our production and will confirm with u until get your satisfaction for the sample.
Q3. What are the certificates you have?
We have CE,ISO13485,ISO9000

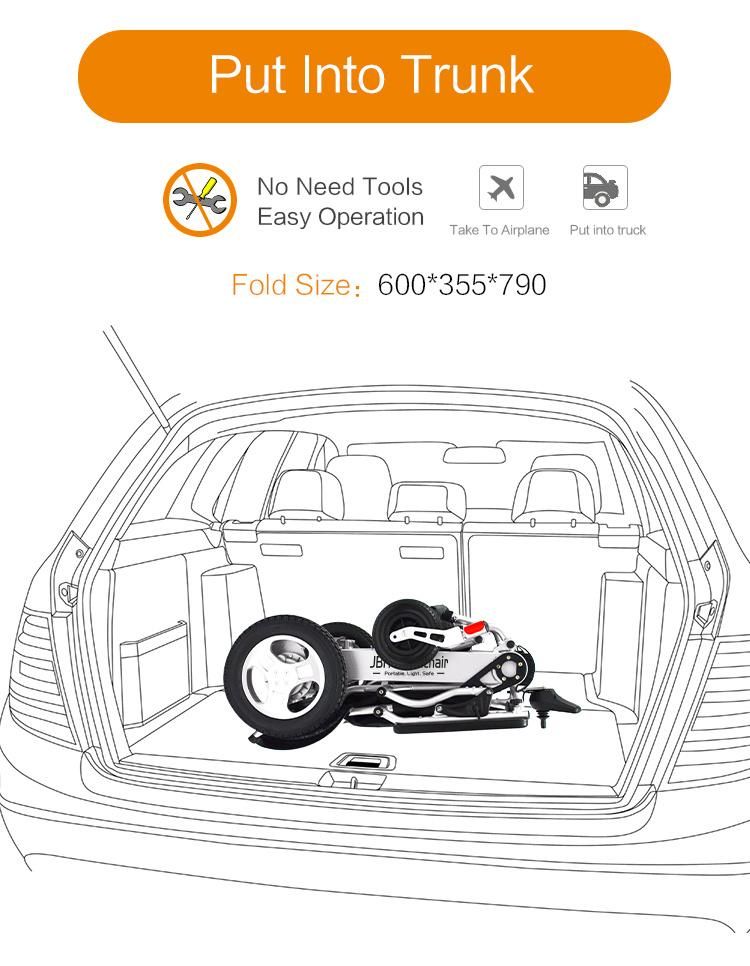

Q4: Is the electric wheelchair foldable and portable?
Yes. Our electric wheelchair can be easily folded and disassembled in 3 seconds,then it is so easy to placed in the trunk of a vehicle,it is convenient for traveling,isn't it?
Q5: Do you offer guarantee for the electric wheelchair?
A: 36 months for wheelchair frame,12 months for brushless motor,lithium battery,joystick controller and other parts.
