Lightweight Aluminum Handicapped Foldable Power Electric Wheelchair

Zhejiang Qianxi Vehicle Co., Ltd.
  • Customized：Customized
  • Certification：ISO, CE
  • Condition：New
  • Tilted：Non-Tilted
  • Folded：Non-Folding
  • Leg Rest Type：Both Sides Separate

Base Info

  • Model NO.：XFG-203FL
  • Material：Aluminium Alloy
  • Type：Electric Wheelchair
  • Motor：250W*2 Brush
  • Battery：24V 20ah Lithium
  • Controller：Joystick
  • Forward Speed (Adjustable)：0-6km,H
  • Reverse Speed(Adjustable)：0-6km,H
  • Charging Time：4-6h
  • Rear Wheel：12" Pneumatic
  • Front Wheel：8" PU Solid
  • Max Load：100kgs
  • Brake：Intelligent Electromagnetic Brake
  • Climbing Ability：12°
  • Driving Range/Charge：10km,20km
  • Whole Wheelchair Size：110*63*93cm
  • N.W(with Battery)：31kgs
  • G.W.：38kgs
  • Transport Package：Carton
  • Specification：65*38*79cm
  • Trademark：Flybrother or customized
  • Origin：China
  • HS Code：8713900000
  • Production Capacity：5000PCS,Month

Description

Item No.XFG-102FLXFG-103FLXFG-104FLAc100-240v 50/60hz
Output:
24v 5AAc100-240v
50/60hz
Output:
24v 3AAc100-240v
50/60hz
Output:
24v 1.8ALoading capacity110kgs110kgs120kgs120kgs110kgs110kgsClimbing ability10°≥10°≥12°12°≤13°≥6°Driving distance14km25km25km30km20km10kmSeat410*460mm,
Foldable,
Width can be customized410*460mm,
Foldable460*470mm,
Width adjustable,
135°lie low,
Foldable490*460mm,
Width adjustable,
Seat 360°rotate,
180°lie low,
Foldable450*450mm,
Width
Adjustable,
Foldable410*460mm,
Foldable
3.Electric wheelchair images:

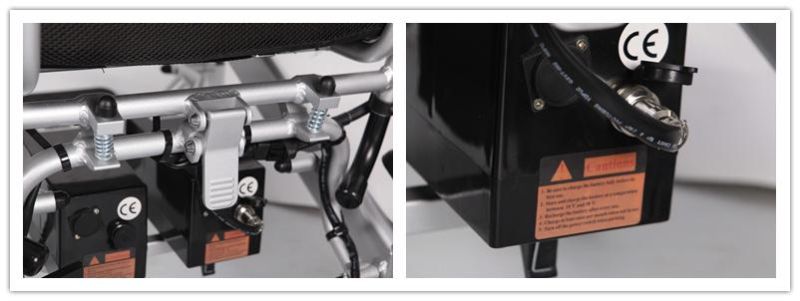

1.Brush electromagnetic motor, change to mauanl operation easily.

Lightweight Aluminum Handicapped Foldable Power Electric Wheelchair


2.Choose the lithium battery capacity according to the mileage.With Simple folded button.

Lightweight Aluminum Handicapped Foldable Power Electric Wheelchair

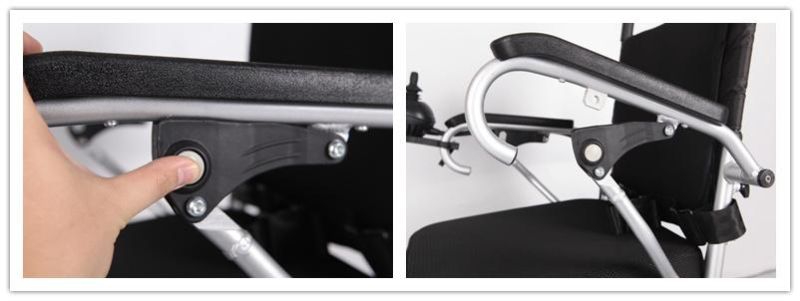

3.Adjustable armrest.

Lightweight Aluminum Handicapped Foldable Power Electric Wheelchair

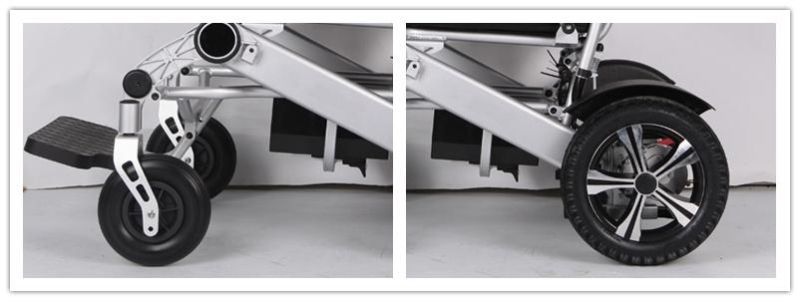

4.Front and rear tire.

Lightweight Aluminum Handicapped Foldable Power Electric Wheelchair


5.Products
Lightweight Aluminum Handicapped Foldable Power Electric Wheelchair


4.About Us

Lightweight Aluminum Handicapped Foldable Power Electric Wheelchair
Zhejiang Qianxi Vehicle Co.,Ltd. was established in 2000, specialized in producing electric scooters, electric motorcycle, electric wheelchair and electric mobility scooter.
Ourfactorycovers the area of 200,000 square meters with more than 500employees,R&D 10 persons and has passed  ISO9001, CE, EEC, EN12184 certifications.
Till now, we developed more than 50 serials products with 11 National Patents.
Our products are very popular in the world , such as the USA, Korea, Spain, Germany, Czech, Turkey etc.
Welcome OEM or ODM project and cooperation, please feel free to contact us for professional service.

5.Exhibition
Lightweight Aluminum Handicapped Foldable Power Electric Wheelchair


6.FAQ
Q: Are you a factory or a trading company ?
A: We are professional medical equipments ,lightweight power wheelchair & mobility scooter manufacturer.

Q. What are your trading terms of lightweight electric wheelchair and electric mobility scooter?
A: Payment term: T/T 30% deposit after order confirmed, the balance paid before shipping or against bill of lading; D/P and L/C are also acceptable for order more than USD200,000.

Q: What's your warranty policy of folding electric wheelchair and mobility scooter?
A: We provide 1 year free warranty for electric wheelchairs & mobility scooters by non-human factor. You just need to send us pictures or videos of the damaged parts, then we send new parts or compensation to you.

Q: Can we have your sample?
A: Samples are available and be ready in 7-15 days upon receipt of payment.The sample cost will be increased USD100 for local charge.
