• Model NO.：M6017A
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Product Name：Automatic Electric Folding Power Wheelchair
• Electric Wheelchair Unfold Size：1080*630*960mm
• Electric Wheelchair Fold Size：1080*630*960mm
• Brush Motor：250W*2PCS
• Lithium Battery：24V 20ah
• Chair Loading：150kg
• Driving Distance：25km
• Max Speed：6km,H
• Seat Width：45cm
• Climbing Slope：Climbing Slope
• Transport Package：One Chair Per Box with Protect Foams
• Specification：250W automatic folding electric wheelchair
• Trademark：AISHUN
• Origin：Nanjing, Jiangsu, China
• HS Code：87139000
• Production Capacity：2000 PCS,Month

Basic Info.

Model NO. M6017A Material Aluminium Alloy Type Electric Wheelchair Product Name Automatic Electric Folding Power Wheelchair Electric Wheelchair Unfold Size 1080*630*960mm Electric Wheelchair Fold Size 1080*630*960mm Brush Motor 250W*2PCS Lithium Battery 24V 20ah Chair Loading 150kg Driving Distance 25km Max Speed 6km/H Seat Width 45cm Climbing Slope Climbing Slope Transport Package One Chair Per Box with Protect Foams Specification 250W automatic folding electric wheelchair Trademark AISHUN Origin Nanjing, Jiangsu, China HS Code 87139000 Production Capacity 2000 PCS/Month

Product Description

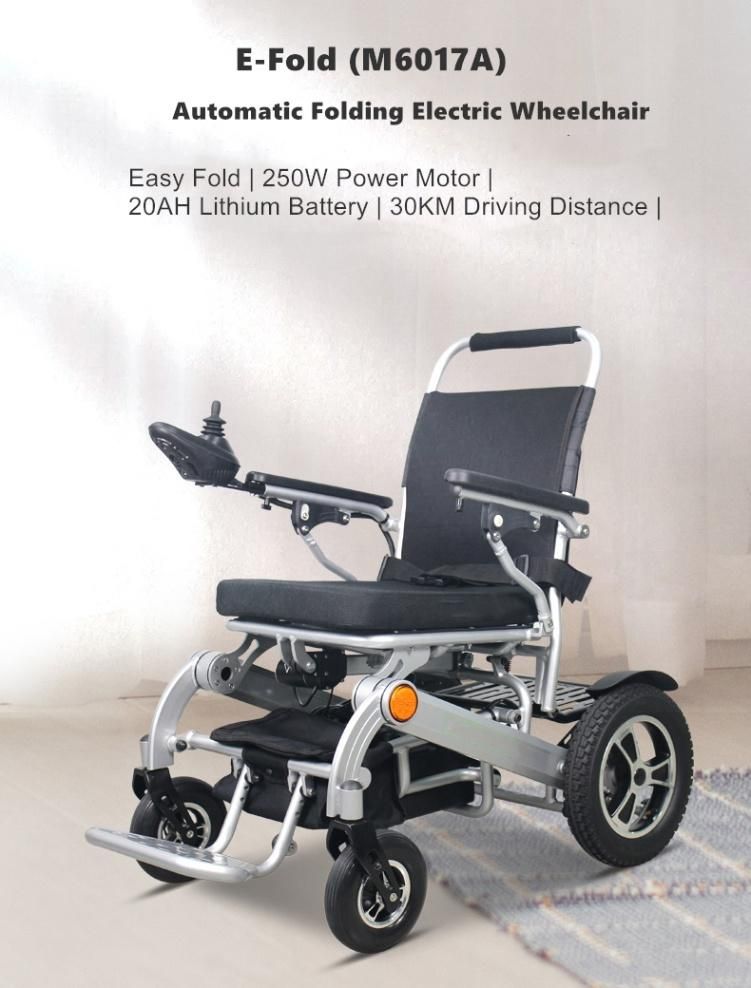

Outdoor Aluminium auto folding electric power wheelchair with led front light

 E-Fold (M6017A) Outdoor Aluminium auto folding electric power wheelchair with led front light Futures:

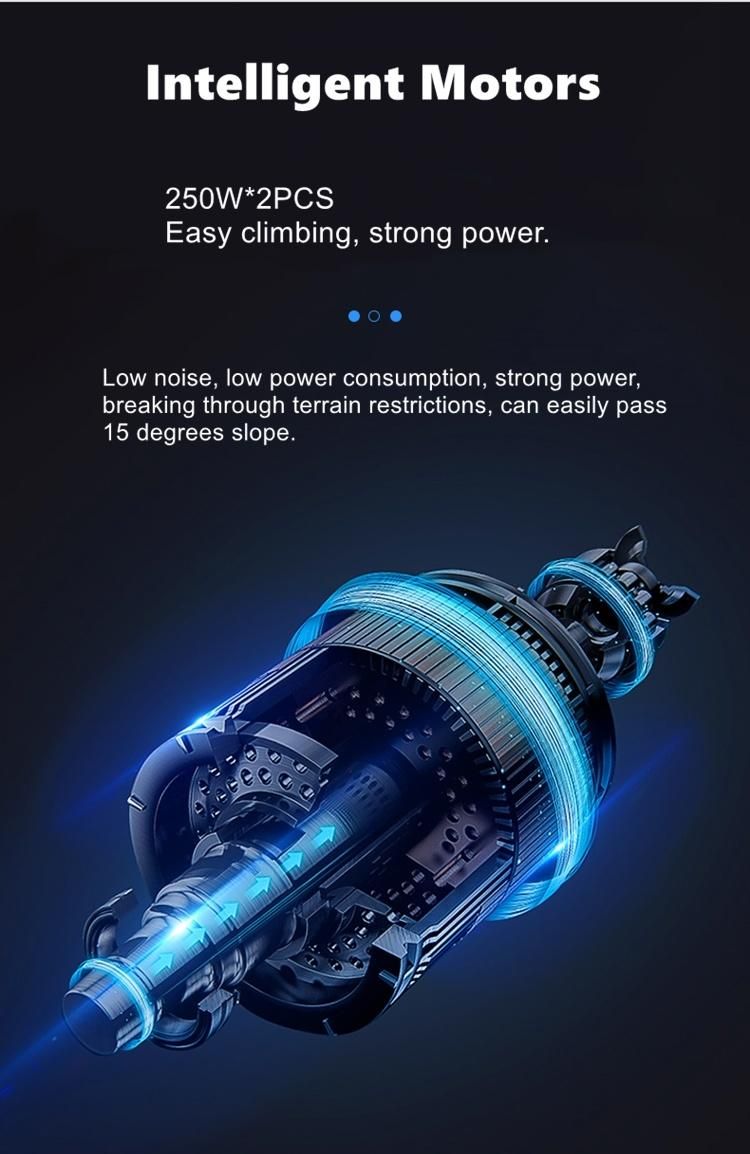

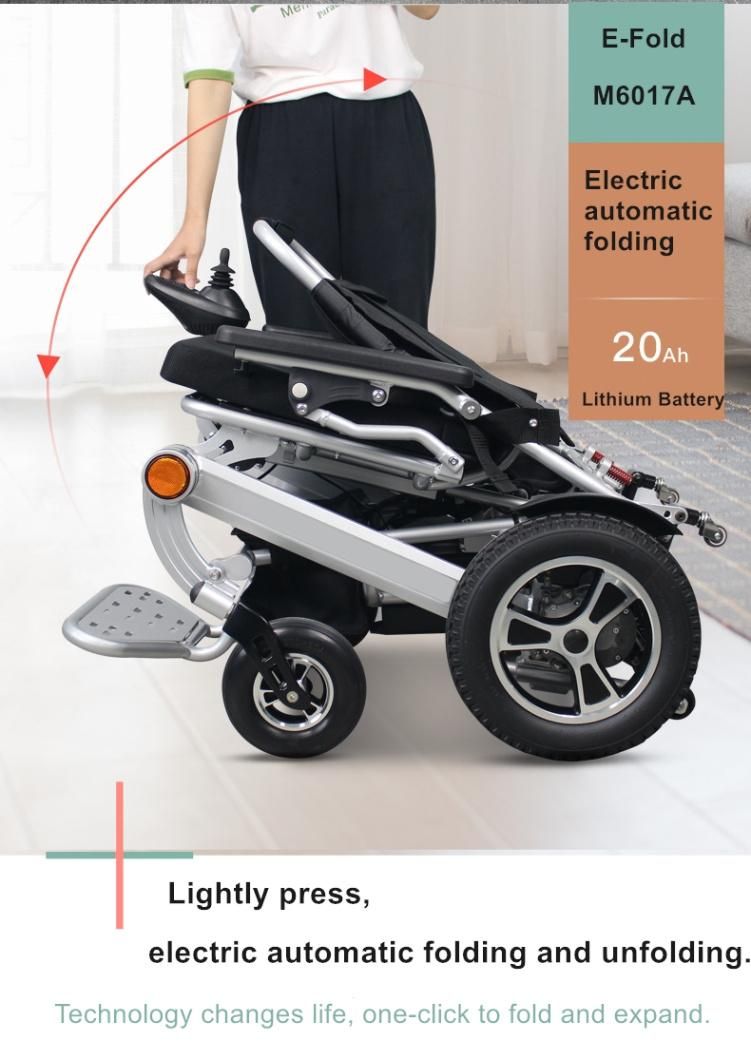

1. 250W brush motor, longer using life with higher energy exchange rate.2. Automatic folding or unfolding, easy to carry as a luggage on plane or on train.

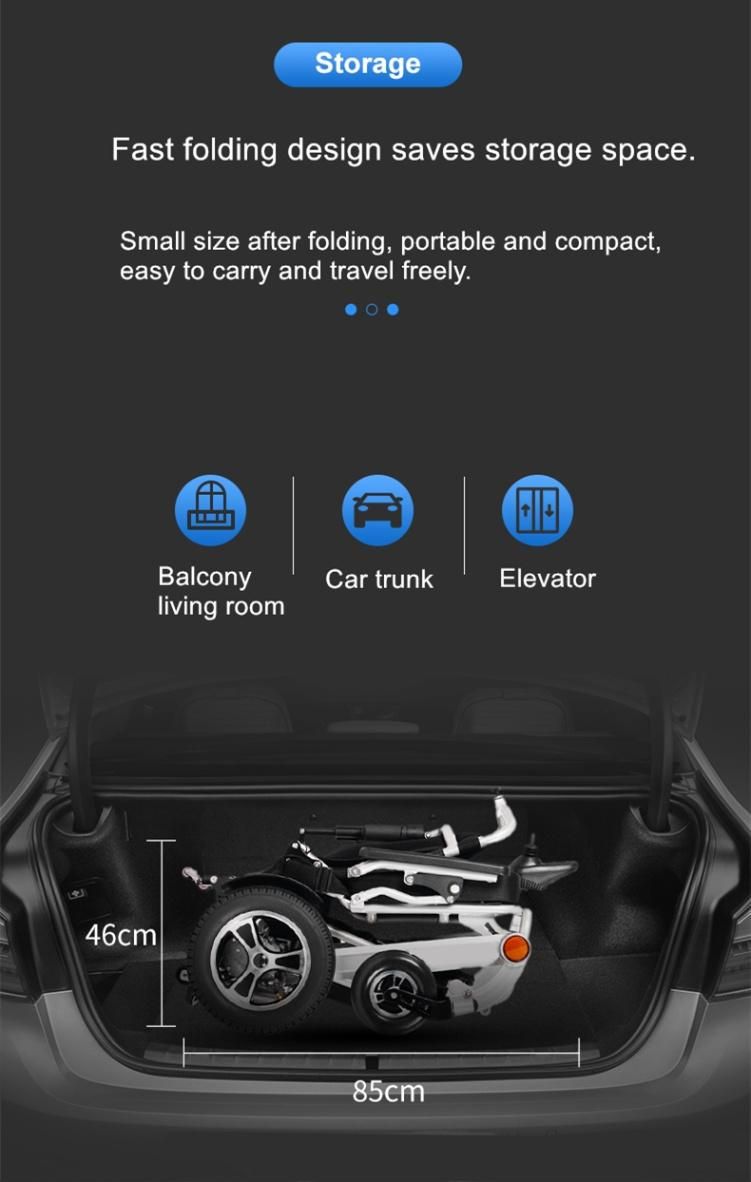

2.  Small volume after folding, only 0.25 cbm.
3.  Frame material: Light aluminum alloy.

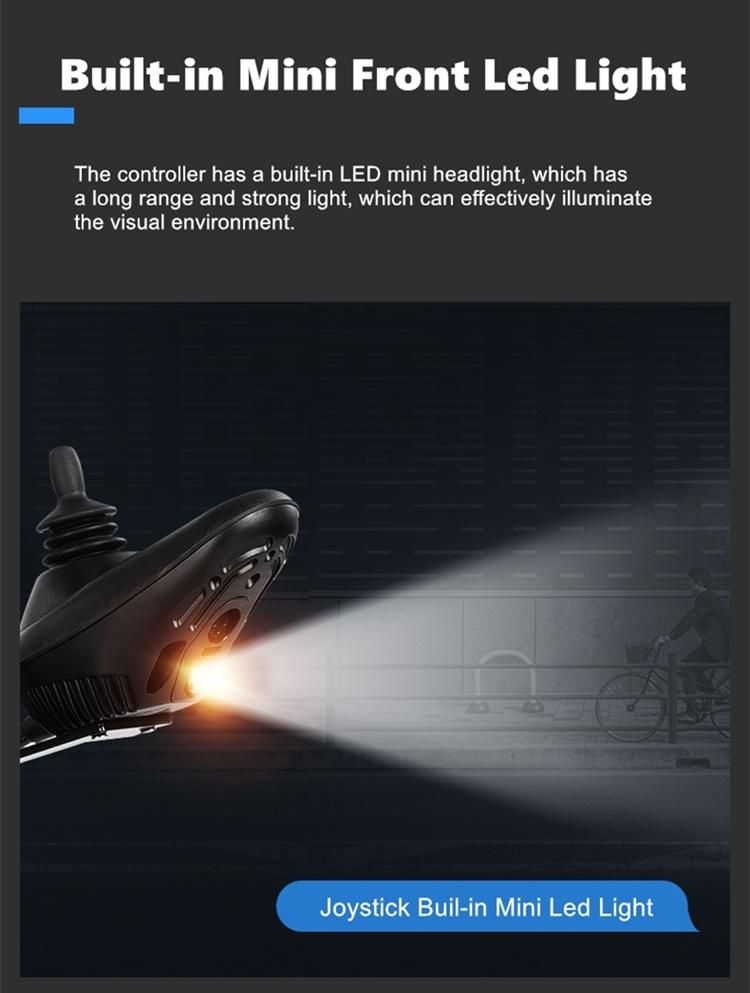

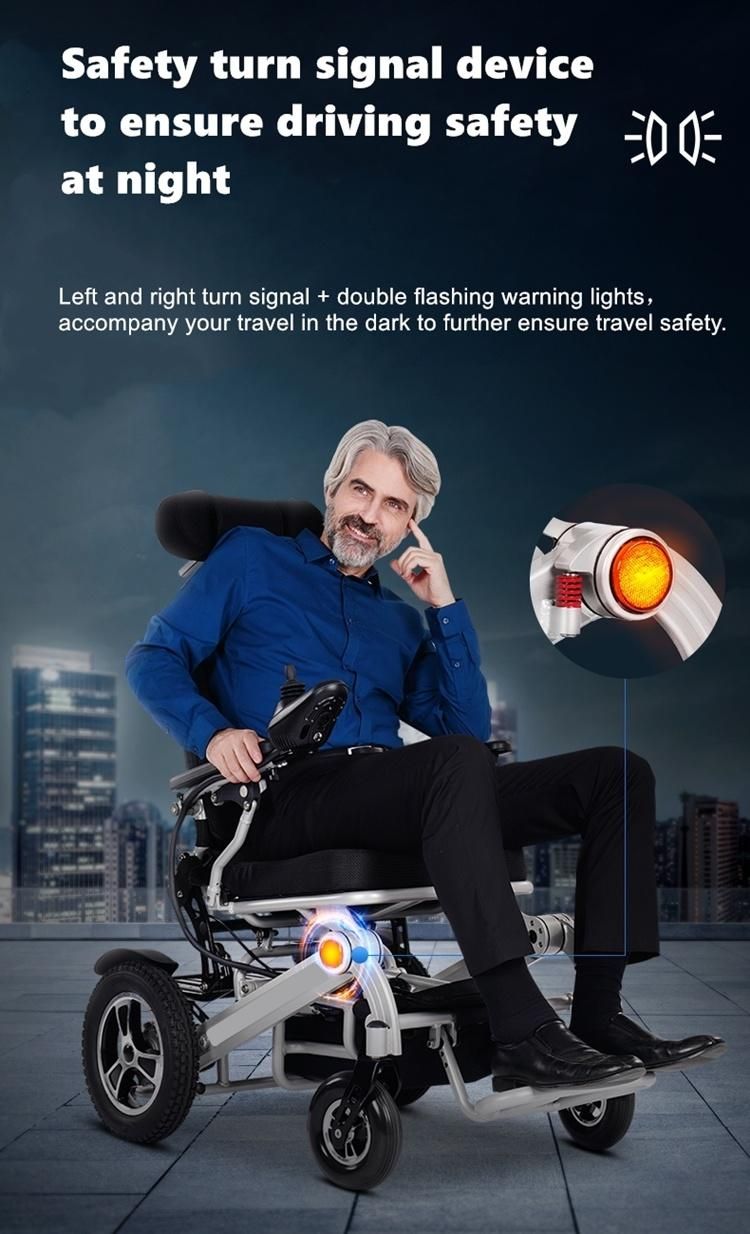

4. 24V20AH removable lithium battery, easy to take and charge.5. Left/right turning signal lights.6. Front led light.7. Warranty:motor, battery, controller are one year. Chair frame is 3 years.

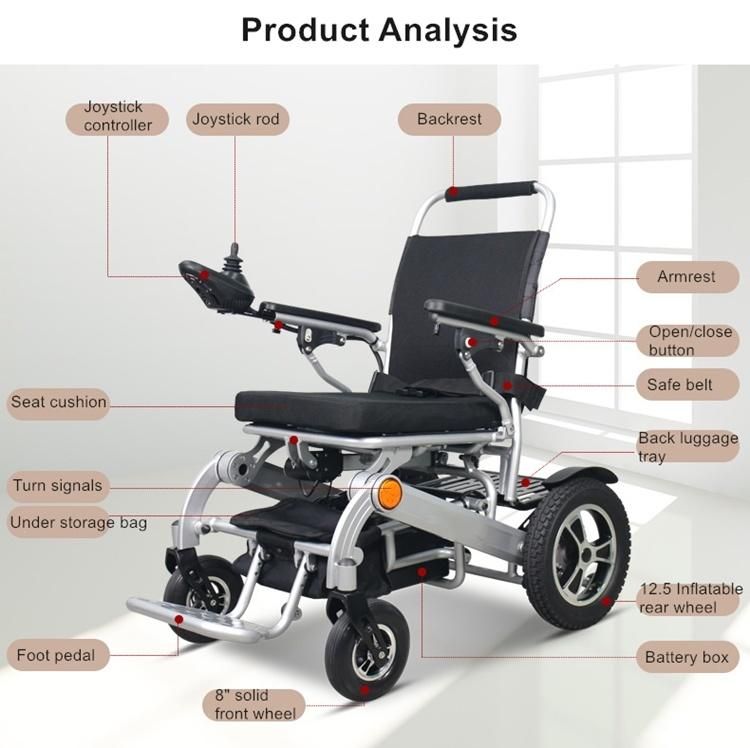

E-Fold (M6017A) Outdoor Aluminium auto folding electric power wheelchair with led front light Detail parameters:

Model No.	E-Fold (M6017A)
Frame material	Aluminium alloy frame
Unfold size (L*W*H)	1080*630*960mm
Fold size (L*W*H)	850*630*460mm
Max speed	6Km/H
Max Loading	150kg
Climbing slope	≤12°
Motor	Brush motor 250W*2pcs

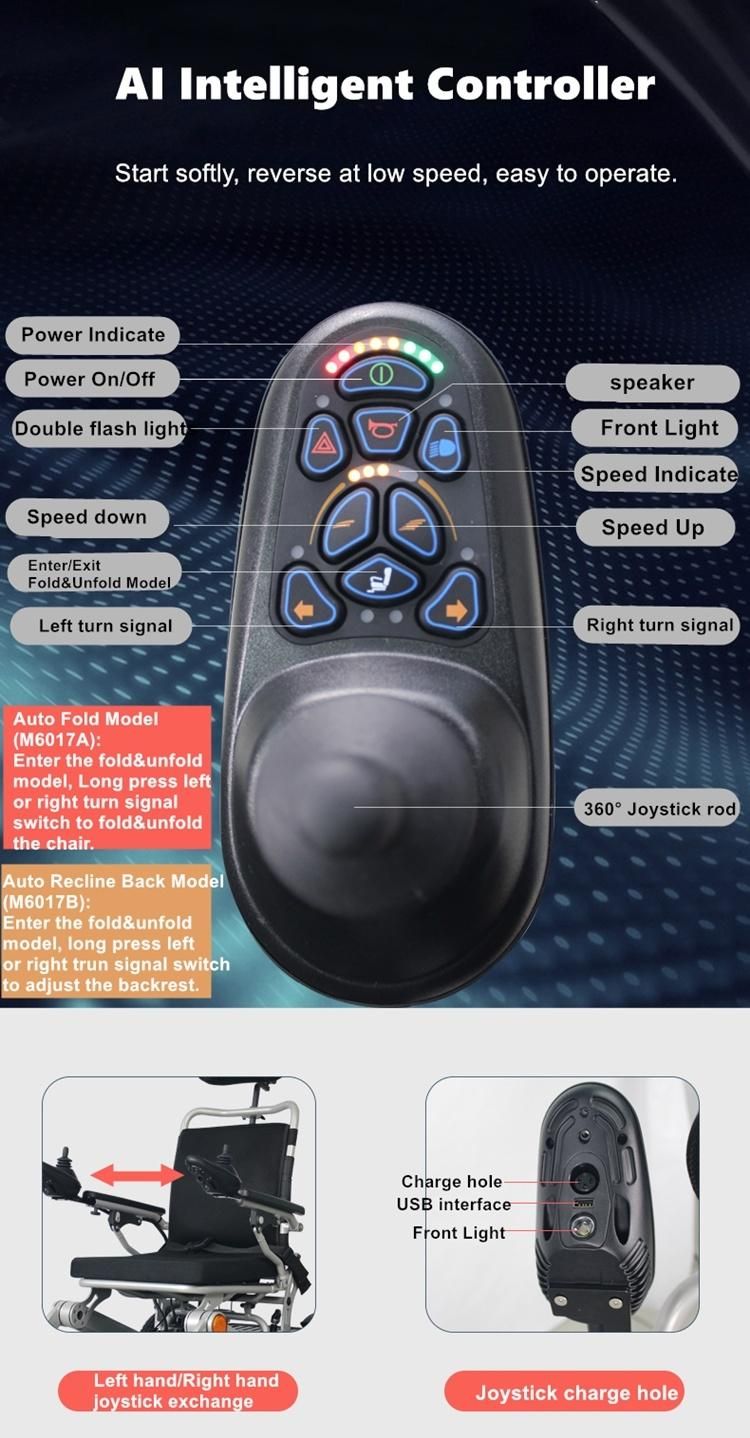

Controller	Intelligent Universal Controller

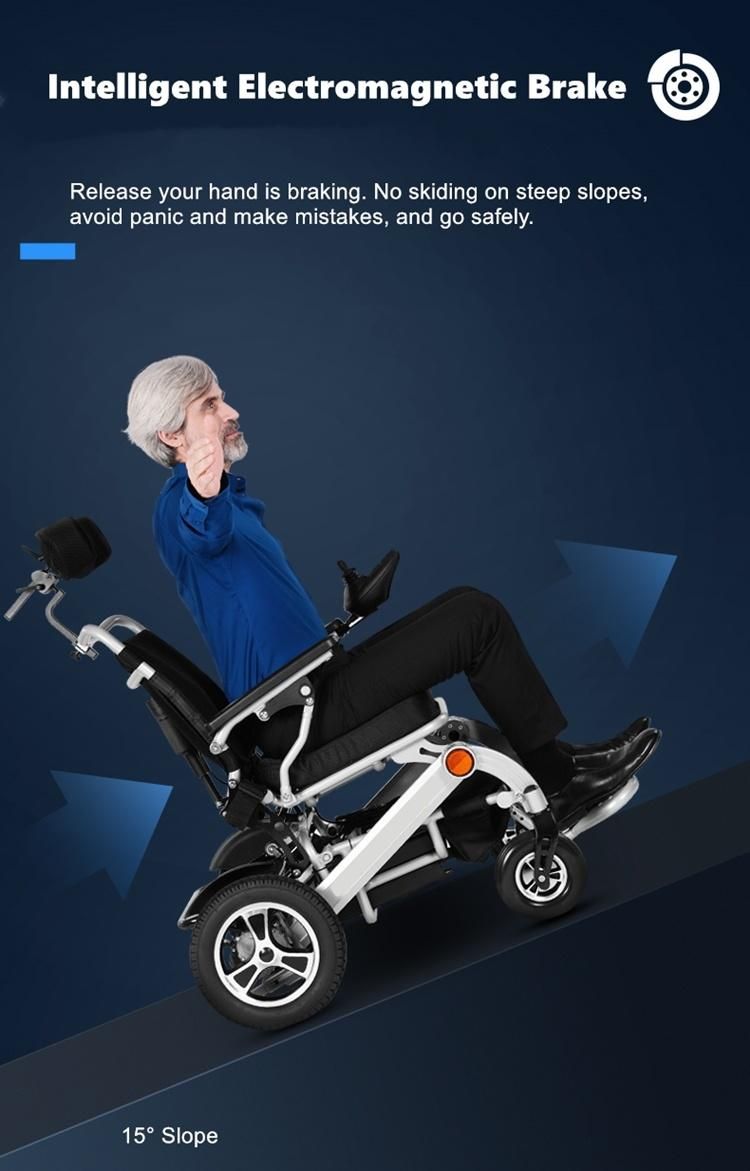

Brake System	electromagnetic brake
Lithium battery	24V20AH
Charge	DC 24V 5AH
Charging time	6 hours
Driving distance	25km
Front wheels	8" solid PU
Rear wheels	12.5" Inflatable tyres
Seat width	450mm
Seat height	505mm
Seat depth	450mm
Turning radius	≤650mm
Net weight (without battery)	32kg
Net weight (with 20AH battery)	35.2kg
Gross weight	42kg
Colour	Silver
Package box size	68*50*90cm
Standard Accessories	Back luggage tray

Company Information:Nanjing Aishun Tech. is a professional and comprehensive enterprise in Wheelchairs and Mobility scooters.
We specialized in folded power wheelchairs and scooters, to make disabled and elders go outdoor easily, live better life.

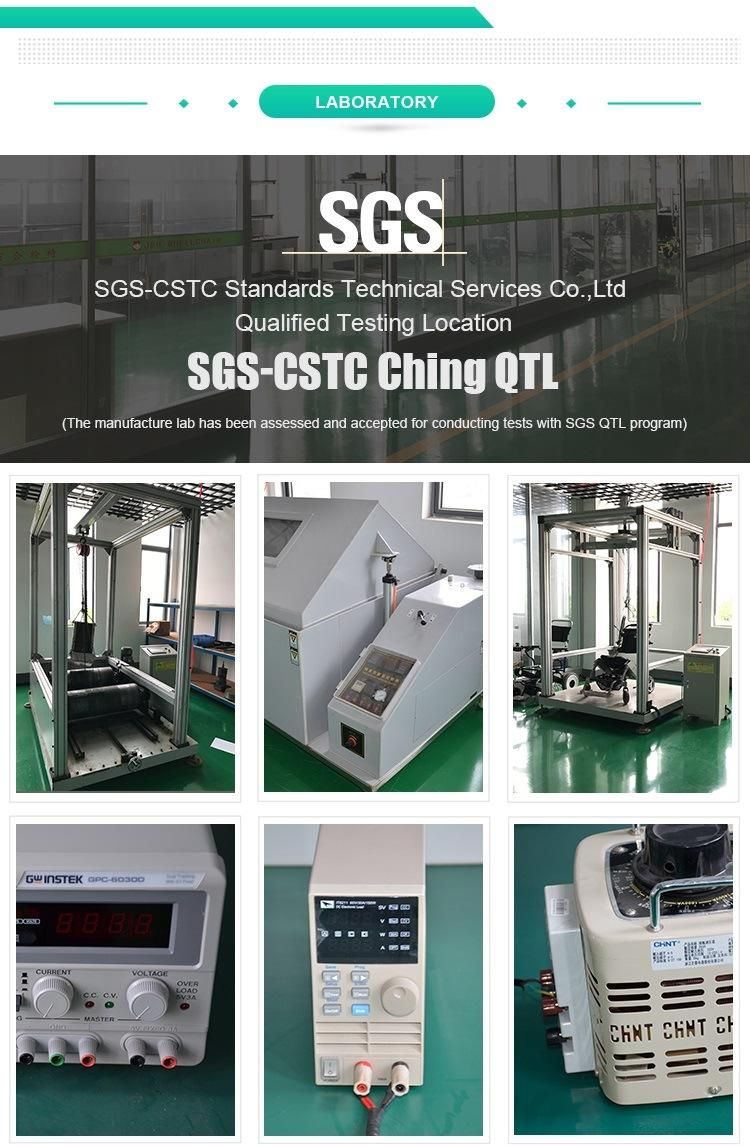

Base on high-quality technique, we own CE, FDA, ISO 13485, SGS certificates.



Certificates:
CE, FDA,ISO 9001,SGS.



FAQ
Q1: Why Choose Aishun Green Tech. Products?
We are one of the professional wheelchair and scooters factory here in China,
Best production capability ,Best quality control, Best Service,

Q2:What is your MOQ(Minimum Order Quantity )?
As a factory, our MOQ is a one piece sample, it could be mixed the different models for containers.

Q3: Payment and shipment
We accept: L/C, T/T, Paypal.
Q4: Delivery time.
Within 20 Work days upon the order confirmed.

Q5: Warranty.
Chair frame is 2 years. Motor, controller and battery are 1 year.
