• Model NO.：EPW65S
• Type：Wheelchair
• Certificate：CE
• Power Supply：Electric-Powered
• Using Ambient：Outdoor
• Transport Package：Cartons,Plywood Box
• Trademark：Enjoycare
• Origin：China
• HS Code：8713900000

Basic Info.

Model NO. EPW65S Type Wheelchair Certificate CE Power Supply Electric-Powered Using Ambient Outdoor Transport Package Cartons/Plywood Box Trademark Enjoycare Origin China HS Code 8713900000

Product Description

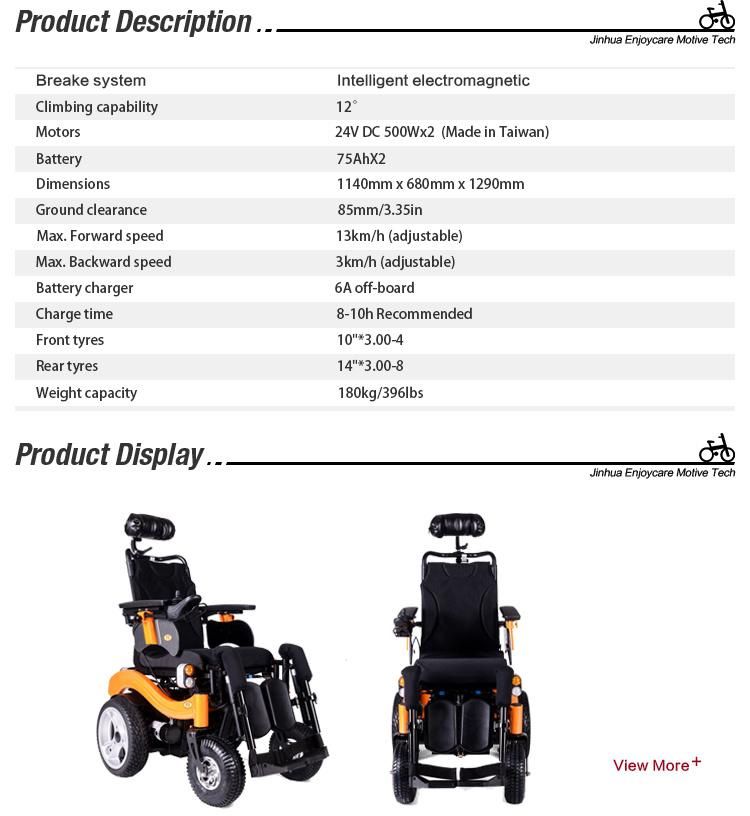

Model EPW65S   Power Wheelchair

Heavy duty, outdoor use , with big capacity battery , front light , turning light and braking light .





Dimensions	1140mm (L) x 680mm (W) x 1290mm ( H) 44.88 "(L) x 26.77" (W) x 50.78" (H)
Ground clearance	85mm / 3.35"
Max. forward speed	8.2 mph        13km/h (adjustable)
Max. backward speed	1.86 mph 3km/h (adjustable)
Mini Turning radius	850mm / 33.5"
Range	45±5km / 25 mile
Climbing capability	12°
Motors	24V DC500W x 2 (Made in Taiwan)
Controller	PG or  Curtis 75A (Lighting Control )
Brake system	Intelligent eletromagnetic
Battery	75AH x 2
Charger	HP 8A off-board
Charge time	8-10 H
Front Tyres	10" *3.00-4
Rear Tyres	15"
Weight Capacity	180kg / 396 lbs
Gross Weight	150KG
Net Weight	81kg / 178 lbs (without batteries)
Battery Weight	24kg / 53lbs x2 pcs (75AH)
Packing size Body	800x 710 x770 mm 31.49 x 27.95 x 30.31 in (Add 100mm/4inch if include fork feet)
Qty/20'	60 PCS
Qty/40'HQ	126 PCS
