Medical Equipment Electric Power Wheelchair with Ce Certification
Zhejiang Qianxi Vehicle Co., Ltd.- Customized：Customized
- Certification：CE
- Condition：New
- Tilted：Non-Tilted
- Folded：Folding
- Leg Rest Type：Both Sides Separate
Base Info
- Model NO.：XFG-103FL
- Material：Steel
- Type：Electric Wheelchair
- Motor Power：300W X 2PCS
- Battery：12V 24ax2PCS
- Controller：Smart Joystick
- Packing Size：1030 X 640 X 930mm
- Wheel Size：Front: 20, Rear: 32
- G/N.W：54,64kg
- Max Load：120kg
- Power Supply：Electric-Powered
- Using Ambient：Outdoor
- Using Site：Feet
- Transport Package：117PCS for 20gp; 282PCS for 40gp
- Specification：CE
- Trademark：Flybrother
- Origin：Zhejiang, China
- HS Code：8711901010
- Production Capacity：5000,Per Month
Description
Basic Info.
Model NO. XFG-103FL Material Steel Type Electric Wheelchair Motor Power 300W X 2PCS Battery 12V 24ax2PCS Controller Smart Joystick Packing Size 1030 X 640 X 930mm Wheel Size Front: 20, Rear: 32 G/N.W 54/64kg Max Load 120kg Power Supply Electric-Powered Using Ambient Outdoor Using Site Feet Transport Package 117PCS for 20gp; 282PCS for 40gp Specification CE Trademark Flybrother Origin Zhejiang, China HS Code 8711901010 Production Capacity 5000/Per MonthProduct Description
1.Electric wheelchair application
Electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around, lying down.
2.Electric wheelchair specification:
| No. | Item | XFG-102FL | XFG-103FL | XFG-104FL | XFG-105FL |
| 1 | Container loading quantity | 70pcs/20"GP 216pcs/40"GP 216pcs/40"GP | 118pcs/20"GP 248pcs/40"GP 268pcs/40"HQ | 48pcs/20"GP 102pcs/40"GP 153pcs/40"HQ | 62pcs/20"GP 133pcs/40"GP 135pcs/40"HQ |
| 2 | Motor | 24V/200W*2 | 24V/300W*2 | 24V/300W*2 | 24V/300W*2 |
| 3 | Battery (lead-acid) | 12V20Ah*2 | 12V28Ah*2 | 12V38Ah*2 | 12V38Ah*2 |
| 4 | Charger | AC100-240V 50/60HZ Output:24V 3A | AC100-240V 50/60HZ Output:24V 3A | AC100-240V 50/60HZ Output:24V 5A | AC100-240V 50/60HZ Output:24V 5A |
| 5 | Controller | Flybrother | Flybrother | Flybrother | Flybrother |
| 6 | Loading capacity | 110kgs | 110kgs | 110kgs | 120kgs |
| 7 | Charging time | 6-8h | 6-8h | 6-8h | 6-8h |
| 8 | Forward speed | 0-9km/h | 0-9km/h | 0-9km/h | 0-9km/h |
| 9 | Reverse speed | 0-4km/h | 0-4km/h | 0-4km/h | 0-4km/h |
| 10 | Turning radius | 600mm | 600mm | 600mm | 600mm |
| 11 | Climbing ability | 12° | ≥8° | ≥8° | ≥8° |
| 12 | Driving distance (full charge) | 20km | 20km | 32km | 30km |
| 13 | Seat | 410*460mm, foldable | 410*460mm, foldable | 460*470mm, width adjustable, 135°lie low, foldable | 490*460mm, width adjustable, seat 360°rotate, 180°lie low, foldable |
| 14 | Front wheel size (inch) | 200*50mm 8*2" | 200*50mm 8*2" | 200*50mm 8*2" | 200*50 mm 8*2" |
| 15 | Rear wheel size (inch) | 610mm/24" | 320mm/13" | 320mm/13" | 260mm*85mm/11" |
| 16 | Anti-tip wheel size (inch) | 75*25mm/3*1" | 50*25mm/2*1" | 50*25mm/2*1" | 64*18mm |
| 17 | Controller's current | Max output 50A | Max output 50A | Max output 50A | Max output 50A |
| 18 | Whole product size (unfolded) | 1090-1150*660 *980mm | 1030-1110*640 *930mm | 1040*640 *126mm | 980*690 *1210mm |
| 19 | Packing size (mm) | 820*430*780 | 790*370*780 320*250*220 | 720*690*830 | 850*700*760 |
| 20 | G.W. | 55kgs | 67kgs | 89kgs | 97kgs |
| 21 | N.W. (With battery) | 47.5kgs | 56kgs | 79kgs | 82.5kgs |
3.Electric wheelchair parts images:

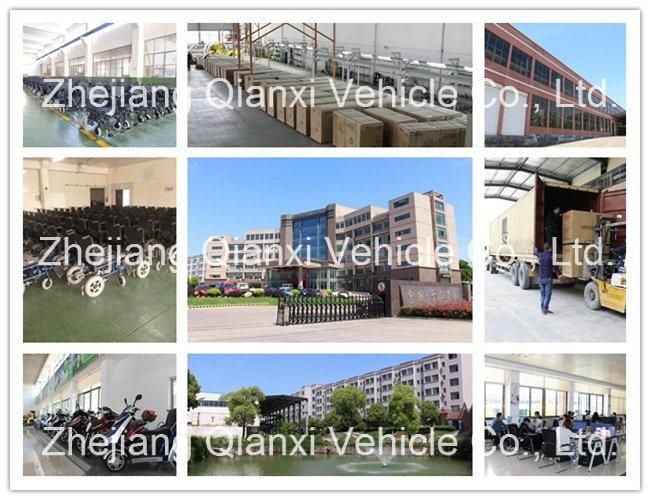

4.Our factory:
