• Model NO.：Pioneer Y204
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Frame：Powder Coating
• Seat Width：17",18",19"
• Front/Rear Wheel：8" PU Castor,12.5" Pneumatic Rear Wheel
• Armrest/Footrest：Flip up,Detachable
• Seat：Detachable Thick Cushion
• Motor：200W*2
• Max. Speed：5-7km
• Travel Mileage：20km
• Slope：10 Degree
• Battery：Lead Acid 2*12V20ah
• Controller：Pg (UK)
• Special：Anti-Tipper,Backrest Half Folding
• Weight Capacity：135kg
• Color：Blue, Black, Sliver etc.
• Warranty：One Year
• Transport Package：One Piece Per Carton+Separate Carton for Battery
• Specification：87*38*81cm
• Trademark：Intco
• Origin：China
• HS Code：8713900000

Basic Info.

Model NO. Pioneer Y204 Material Aluminium Alloy Type Electric Wheelchair Frame Powder Coating Seat Width 17"/18"/19" Front/Rear Wheel 8" PU Castor/12.5" Pneumatic Rear Wheel Armrest/Footrest Flip up/Detachable Seat Detachable Thick Cushion Motor 200W*2 Max. Speed 5-7km Travel Mileage 20km Slope 10 Degree Battery Lead Acid 2*12V20ah Controller Pg (UK) Special Anti-Tipper/Backrest Half Folding Weight Capacity 135kg Color Blue, Black, Sliver etc. Warranty One Year Transport Package One Piece Per Carton+Separate Carton for Battery Specification 87*38*81cm Trademark Intco Origin China HS Code 8713900000

Product Description

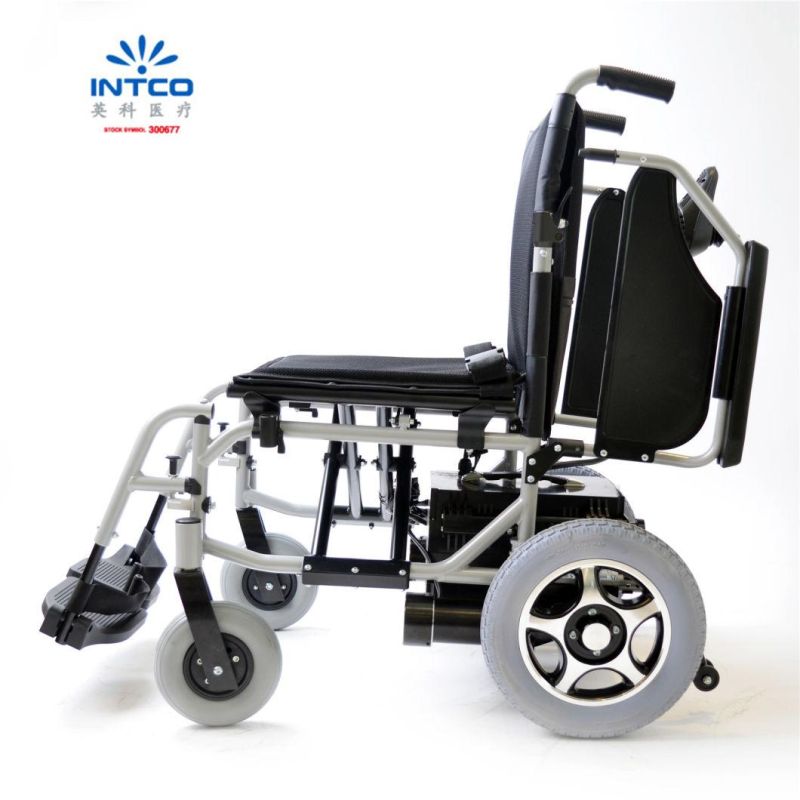

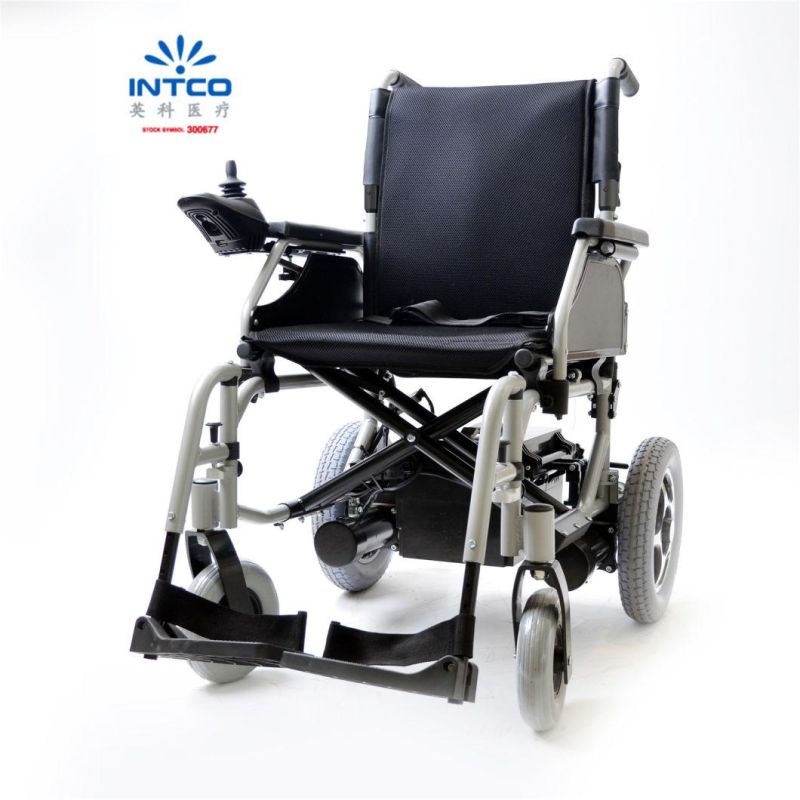

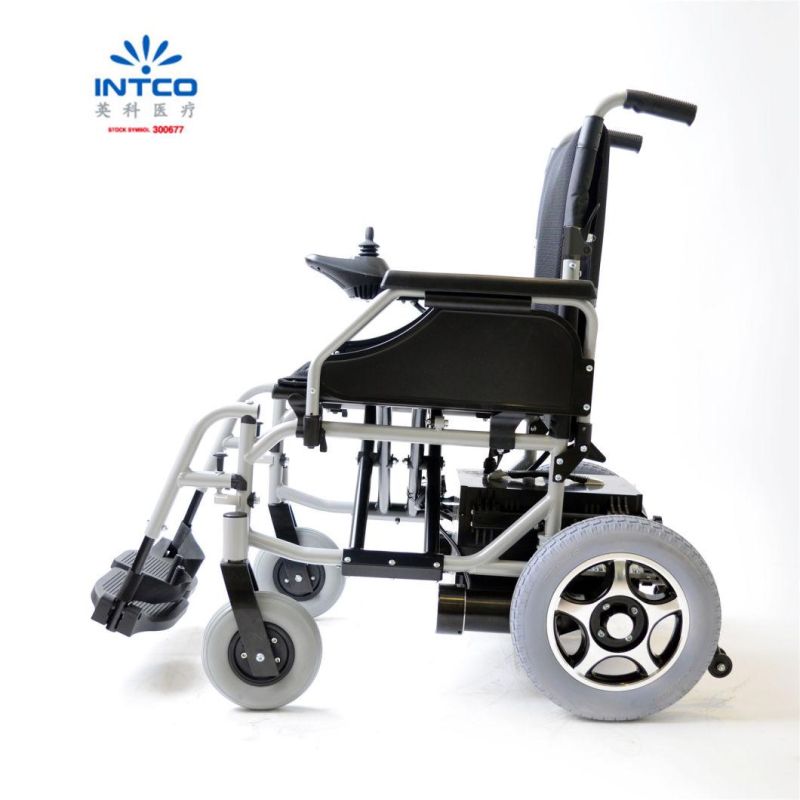

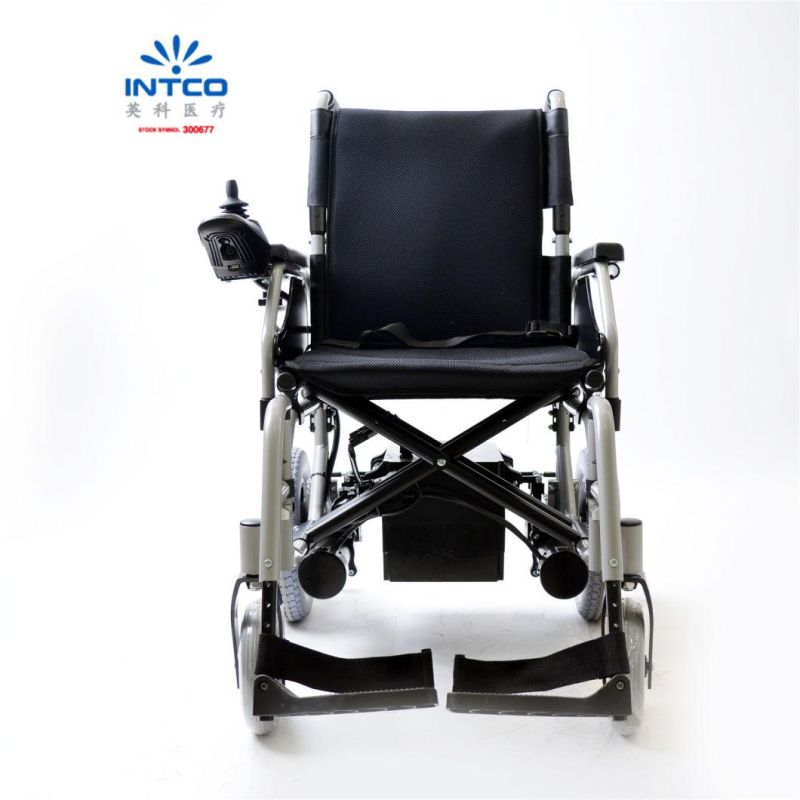

Aluminum Folable Standard Electric Power Wheelchair with Various Sizes
Product Description

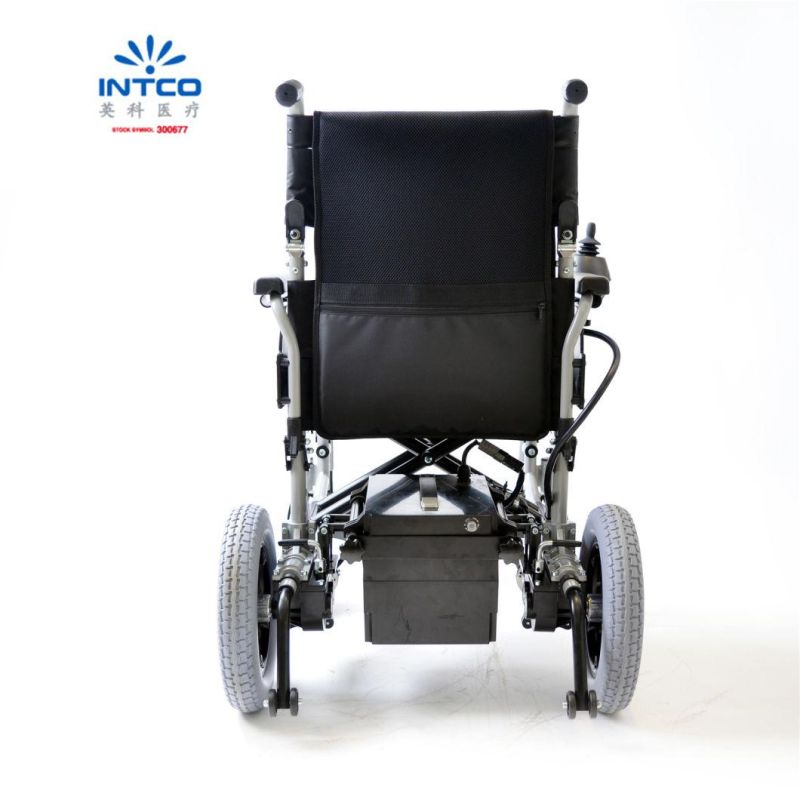

Model: Pioneer Y204: standard model with various sizes
1. 8" front castor with PU tires and aluminum front fork, 12.5" rear wheel with pneumatic tires
2. Flip up armrest
3. Detachable footrest with ankle belt
4. 200W*2 motor
5. Lead acid 2*12V20Ah battery (32Ah/36Ah optional)
6. PG (UK) controller
7. Special: safe belt
                  anti-tipper

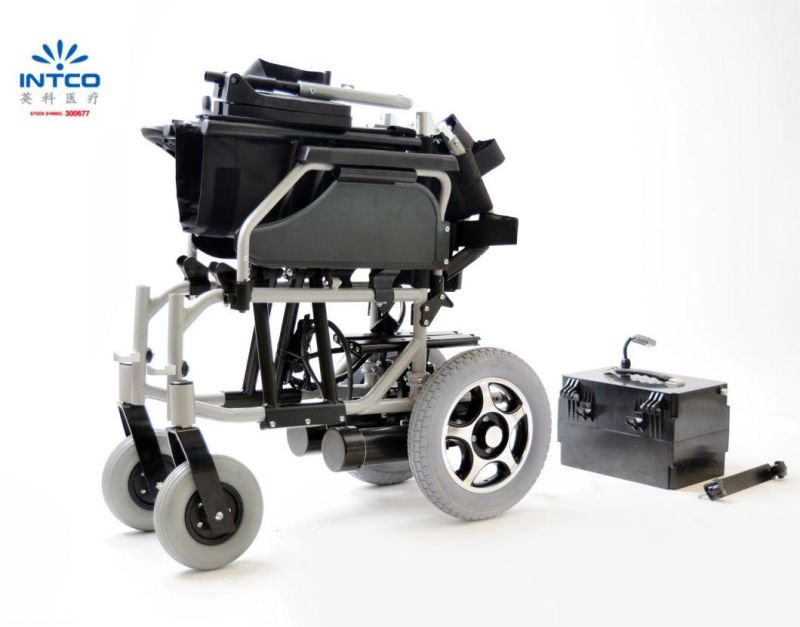

                  backrest half folding

Reference Data
1. Max. weight capacity: 135kg
2. G.W. / N.W.:  58.0 / 50.3kg
3. Carton box size: 87*38*81cm
4. Package: around 75pcs / 20GP, 185pcs / 40HQ

Item No.	Size	Overall length (cm)	Overall width (cm)	Overall height (cm)	Overall width folded (cm)	Seat width (cm)	Seat depth (cm)	Back height (cm)	Floor to seat height (cm)
Pioneer		108	63	97	34	43-48	43	45	52

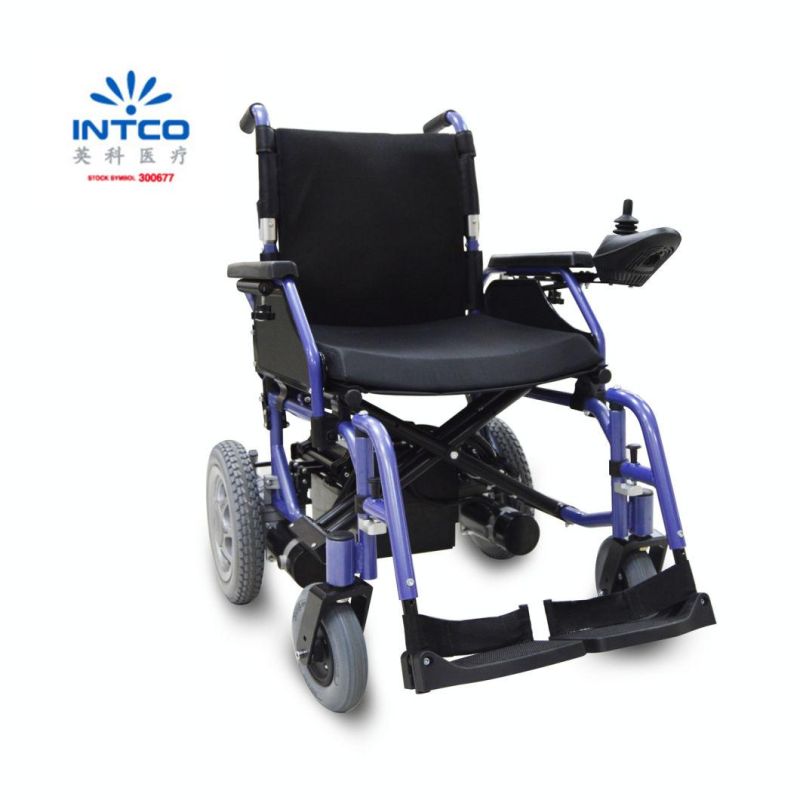

Reference pictures for difference colors choices


About Intco

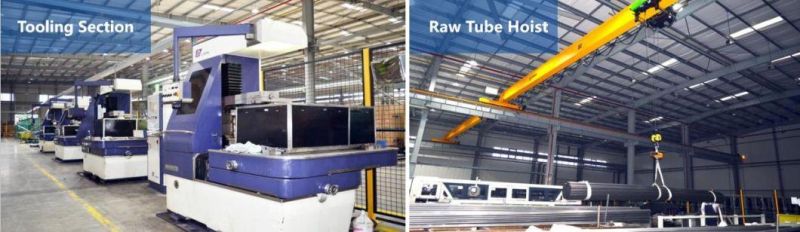

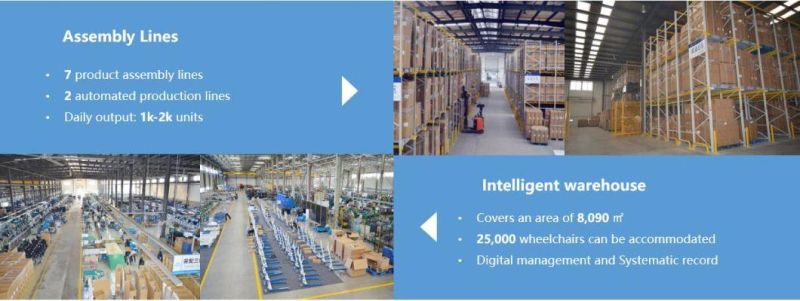

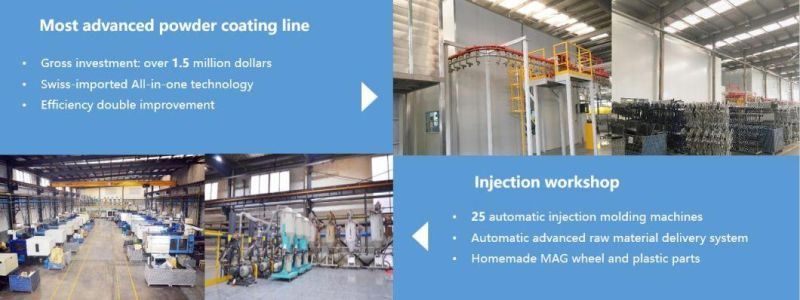

Jiangsu Intco Medical Products Co., Ltd. was established in 2004 in Zhenjiang. Through years of development, the factory building area reaches 80,000 m² and a new double area mainly for electric wheelchair and scooter has also launched from July 2018. We are specialized in supplying various types of durable medical equipment, such as manual/power wheelchair, patient lift, rollator, commode chair, shower chair, walker etc.

Intco Medical has been distinguished with approvals and certifications, such as FDA 510 (K), ISO9001, EN13485, CE by TUV, SGS for providing high quality products. Serving the needs of human beings is always the main mission of Intco Medical.




Incto Services

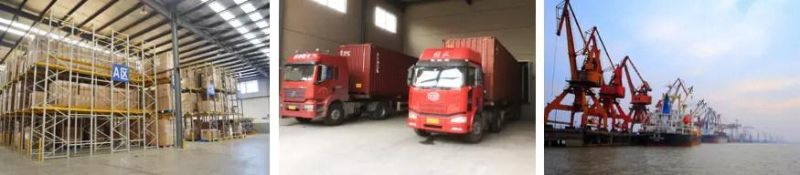

With over 20 years of rapid development, we provides quality products and services for the United States, Europe, Asia and other more than 100 countries and regions and accumulated rich experience in customer service.

FAQ
1. How long does it take to receive my wheelchairs after I place the order from Intco?
Delivery time varies from 45 to 60 days according to the different models and quantities.

2.Can I put our logo on your product?
Yes, we can as we providing OEM.

3.How about the after-sales service?
Warranty period is one year.
After one year, we also provide after-sales service for charge.
