• Model NO.：XFG-102FL
• Material：Steel
• Type：Electric Wheelchair
• Using Site：Skeleton
• Power Supply：Electric-Powered
• Using Ambient：Outdoor and Indoor
• Transport Package：Carton
• Specification：800*430*1020cm
• Trademark：Flybrother or customized
• Origin：China
• HS Code：871390000
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. XFG-102FL Material Steel Type Electric Wheelchair Using Site Skeleton Power Supply Electric-Powered Using Ambient Outdoor and Indoor Transport Package Carton Specification 800*430*1020cm Trademark Flybrother or customized Origin China HS Code 871390000 Production Capacity 5000PCS/Month

Product Description

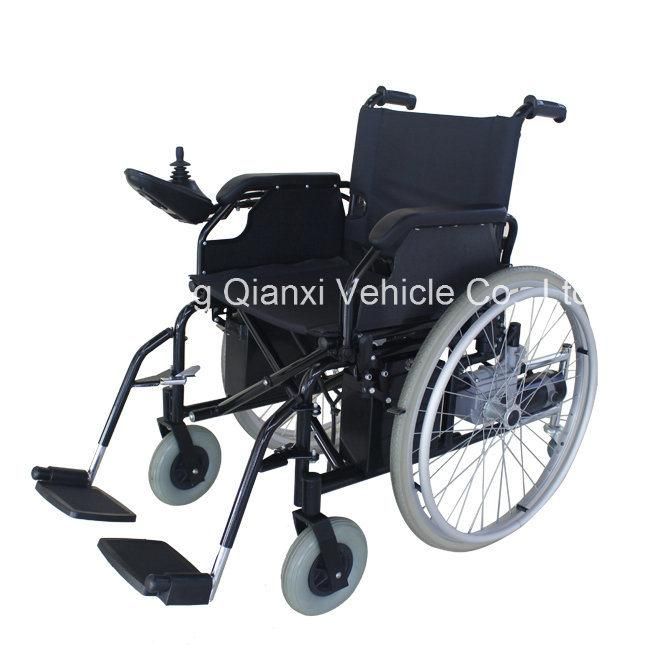

1.Electric wheelchair application

Electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around, lying down.

2.Electric wheelchair specification:

No.	Item	XFG-102FL	XFG-103FL	XFG-104FL
1	Container  loading  quantity	70pcs/20"GP 216pcs/40"GP 216pcs/40"GP	118pcs/20"GP 248pcs/40"GP 268pcs/40"HQ	48pcs/20"GP 102pcs/40"GP 153pcs/40"HQ
2	Motor	24V/200W*2	24V/300W*2	24V/300W*2
3	Battery  (lead-acid)	12V20Ah*2	12V28Ah*2	12V38Ah*2
4	Charger	AC100-240V 50/60HZ  Output:24V 3A	AC100-240V 50/60HZ  Output:24V 3A	AC100-240V 50/60HZ   Output:24V 5A
5	Controller	Flybrother	Flybrother	Flybrother
6	Loading capacity	110kgs	110kgs	110kgs
7	Charging time	6-8h	6-8h	6-8h
8	Forward speed	0-9km/h	0-9km/h	0-9km/h
9	Reverse speed	0-4km/h	0-4km/h	0-4km/h
10	Turning radius	600mm	600mm	600mm
11	Climbing ability	12°	≥8°	≥8°
12	Driving distance  (full charge)	20km	20km	32km
13	Seat	410*460mm, foldable	410*460mm, foldable	460*470mm, width adjustable, 135°lie low, foldable
14	Front wheel size (inch)	200*50mm 8*2"	200*50mm 8*2"	200*50mm 8*2"
15	Rear wheel size (inch)	610mm/24"	320mm/13"	320mm/13"
16	Anti-tip wheel size (inch)	75*25mm/3*1"	50*25mm/2*1"	50*25mm/2*1"
17	Controller's current	Max output 50A	Max output 50A	Max output 50A
18	Whole product size (unfolded)	1090-1150*660 *980mm	1030-1110*640 *930mm	1040*640 *126mm
19	Packing size (mm)	820*430*780	790*370*780 320*250*220	720*690*830
20	G.W.	55kgs	67kgs	89kgs
21	N.W. (With battery)	47.5kgs	56kgs	79kgs

3.Electric wheelchair parts images:

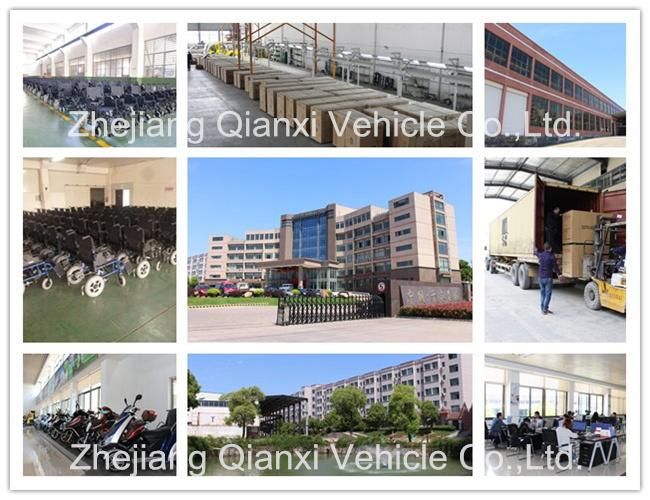

4.Our factory:

5.Certificate:
Factory:ISO9001:2008 standard
Products:CE
6.Our services:
1.For all your inquires about us or our products, we will reply you in detail within 24 hours
2.We own passional sales & after- sale services who can speak fluent english language
3.We offer oem services.Can print your own logo on product , can customize the retail box packing and other things.
4.We have very experienced engineers and we help you better use our products.
