• Model NO.：D05A
• Type：Electric Wheelchair
• Overall Size：940*630*950 mm
• Fold Size：640*320*750 mm
• Lithium Battery：24V 6ah*2PCS
• HS：8713900000
• Motor：180W*2PCS
• Max Speed：6km,H
• Brake：Intelligent Electromagnetic Brake
• Climbing Slope：12
• Frame：Aluminum Alloy
• Loading Capacity：120kg
• Weight：21kg
• Trademark：JBH
• Origin：Anhui, Jiangsu, China
• HS Code：8713900000
• Production Capacity：4000 Pieces,Month

Basic Info.

Model NO. D05A Type Electric Wheelchair Overall Size 940*630*950 mm Fold Size 640*320*750 mm Lithium Battery 24V 6ah*2PCS HS 8713900000 Motor 180W*2PCS Max Speed 6km/H Brake Intelligent Electromagnetic Brake Climbing Slope 12 Frame Aluminum Alloy Loading Capacity 120kg Weight 21kg Trademark JBH Origin Anhui, Jiangsu, China HS Code 8713900000 Production Capacity 4000 Pieces/Month

Product Description

8 inch untra light disabled folding electric wheelchair

D05A Folding Electric Power Wheelchair Advantages:

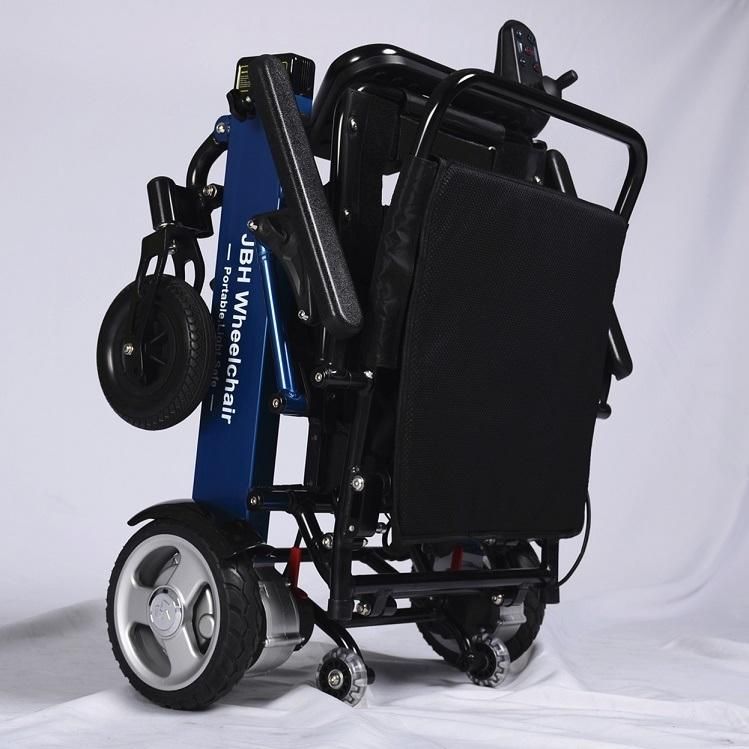

1. 5-seconds folding or unfolding, easy to carry as a luggage on plane or on train.
2. Very light weight, only 21kg.
3.Small volume after folding, only 0.15 cbm.
4. Frame material: Light aluminum alloy.
5. Certificates: CE;FDA;ISO9001; ISO13485.
6. High efficiency brushless hub motor
7.The warranty period of frame is 3 years,motors and controller,1 year,battery 6 months



D05A Folding Electric Power Wheelchair Specifications:

Parameters:	8 inch untra light disabled folding electric wheelchair
Model No.:	D05A
Frame material	Aluminum alloy
Unfolded dimension:	940*630*950mm
Folded dimension:	640*320*750mm
Motor:	24V 180W X 2 brushless motor
Battery:	2 pcs *lithium battery 24V 6AH (Extra 9AH battery for option)
Braking system:	Intelligent type electromagnetic brake
Charging time:	6 hours
Charger	24V/2A
Max Speed :	6 km/h
Driving Range:	20km
Turning radius:	850mm
Loading capacity :	120KG
Climbing Slope:	8°
Front tires:	7"x2pcs PU solid
Rear tires:	8"x2pcs PU solid
Anti-turned wheels:	2.5"x2pcs
Seat depth:	400mm
Seat width:	500mm
Backrest height:	360mm
Armrest height:	220mm
N.W.:	21kg (without battery)
N.W:	24kg (with 2 batteries)
Package:	1 set/carton
carton size:	700x400x880mm
Colour:	Silver, black, blue, yellow, pink, red

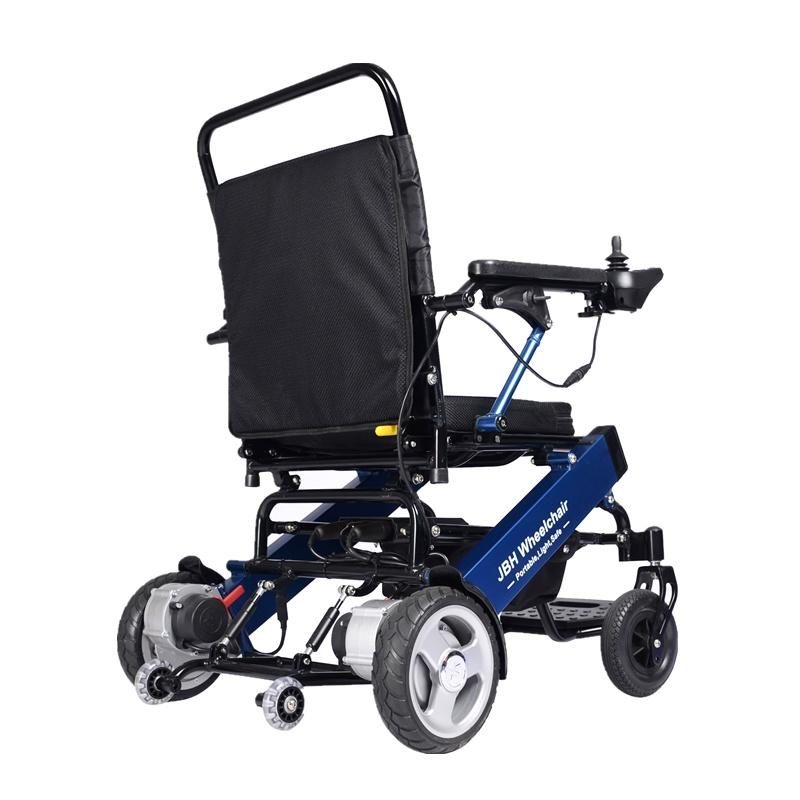

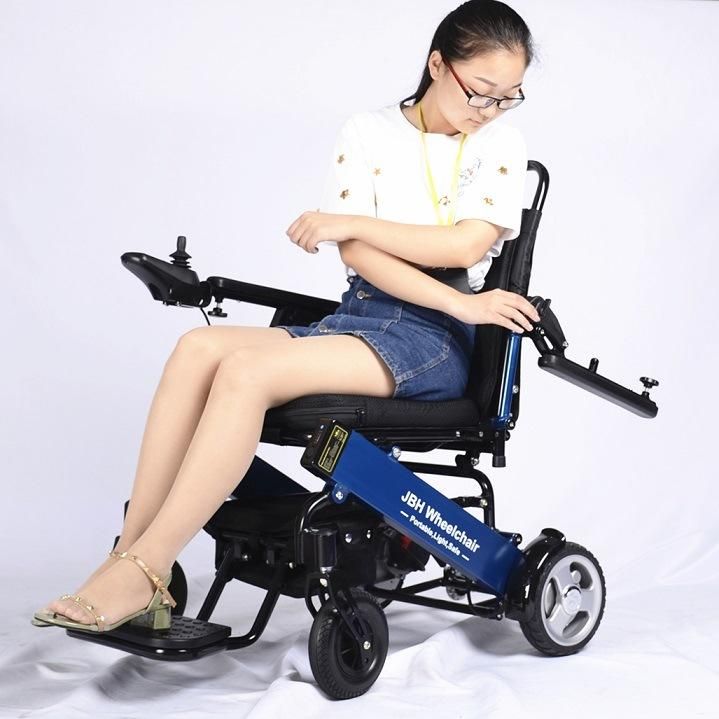

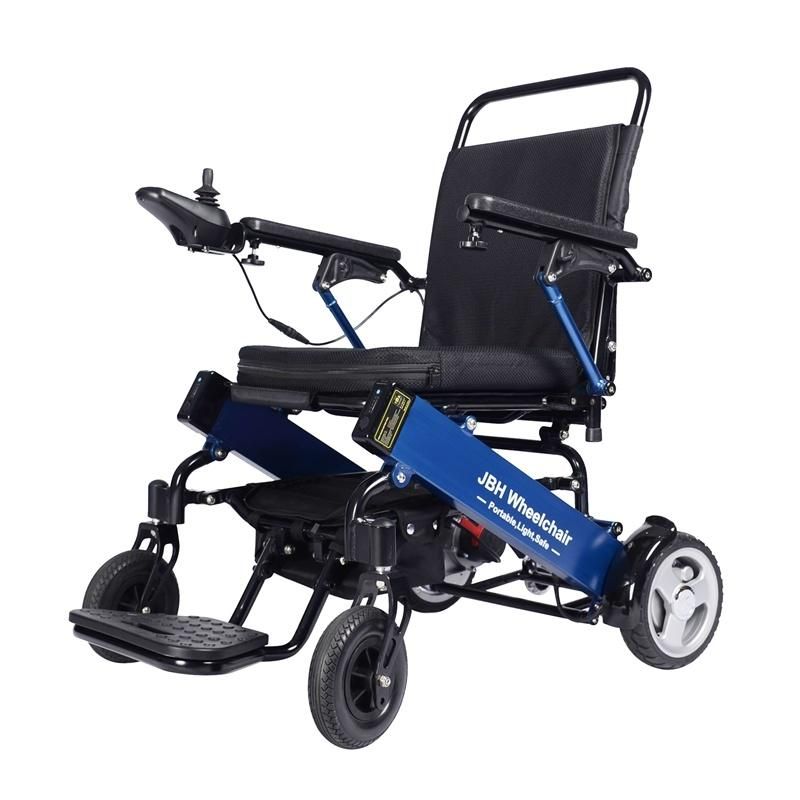

D05 folding electric power wheelchair detail pictures:


Certificates:
SGS, FDA, ISO 9001, CE.

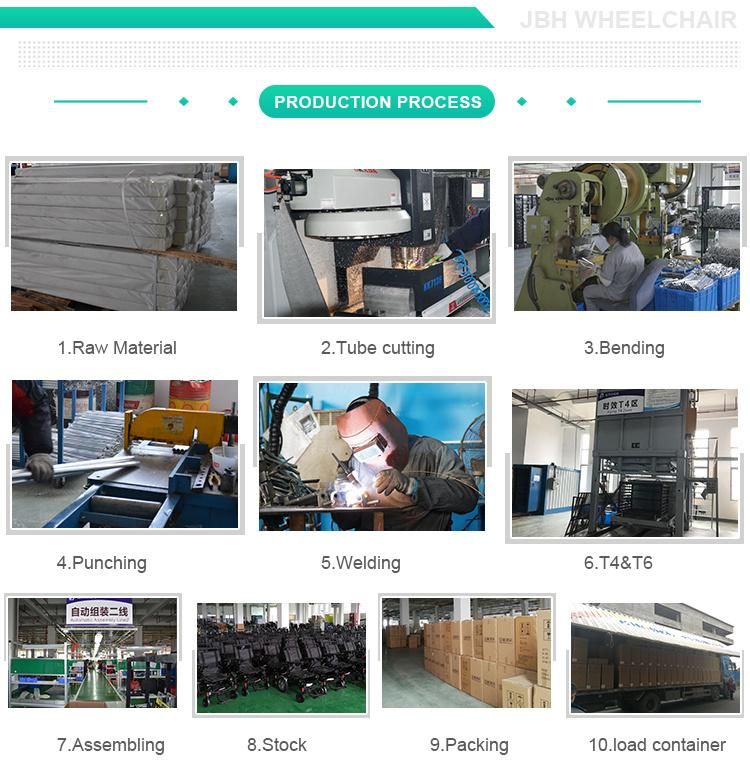

Factory Brief Introduction:

JBH Wheelchair is research and development, manufacturing and sales enterprise. Specialized in Portable power wheelchair, Portable electric scooter, knee walker, and electric standing wheelchair. Products passed through ISO 13485, FDA and CE standard. We provide OEM service, great quality. "JBH" as the registered trademark renowned for "Safe, Light and Portable" on the market. Products covers 20 Provinces in China and export to USA, UK, Canada, and Australia. JBH wheelchair gained wide range recognition and trust from our customers. We will continue providing high quality products and service.






FAQ

. Q1: Why Choose JIN BAI HE Products?
 We are one of the professional wheelchair factory here in China,
 Best production capability, Best quality control, Best Service,

 Q2: How is JIN BAI HE Products Quality?
 We only supply quality products, our manufacturing facilities have received the ISO, CE, recognition, and get FDA certificate for some products .
Every products will inspected to the standard before shipment, and every product has one year warranty period.

Q3:What is your MOQ(Minimum Order Quantity ?
  As a factory, our MOQ is one piece, it could be mixed the different models.

Q4: Payment and shipment
 We accept: L/C, T/T,WESTERN UNION;
      Delivery time: Within 25 Work days upon the order confirmed.

Q5: Is the wheelchair foldable and portable?
Yes. Our wheelchair can be easily disassembled and placed in the trunk of a vehicle.

Q6: Is the wheelchair for indoor or outdoor use?
It was designed for both indoor and outdoor use.

Q7: Will you accept OEM orders?
Yes. We'd like to produce our customers' OEM/ODM orders.

Q8:Are you trading company or manufacturer?
We are professional manufacturer and have several years of wheelchairs experience in global market.

Q9,:What is the warranty period of the wheelchair?
The warranty period of frame is 3 years. Controller,motors is 1 year.
