Rehabilitation Therapy Supplies

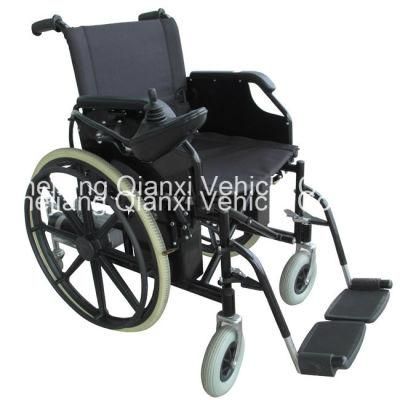

Comfortable Electric Wheelchair for Elderly

Zhejiang Qianxi Vehicle Co., Ltd.
  • Customized:Non-Customized
  • Certification:ISO, CE
  • Condition:New
  • Tilted:Non-Tilted
  • Folded:Non-Folding
  • Leg Rest Type:Both Sides Separate

Base Info

  • Model NO.:XFG-104FL
  • Material:Steel
  • Type:Electric Wheelchair
  • Using Site:Skeleton
  • Power Supply:Electric-Powered
  • Using Ambient:Outdoor and Indoor
  • Transport Package:Carton
  • Specification:1040*640*1090cm
  • Trademark:Flybrother or customized
  • Origin:China
  • HS Code:871390000
  • Production Capacity:5000PCS,Month

Description

Basic Info.

Model NO. XFG-104FL Material Steel Type Electric Wheelchair Using Site Skeleton Power Supply Electric-Powered Using Ambient Outdoor and Indoor Transport Package Carton Specification 1040*640*1090cm Trademark Flybrother or customized Origin China HS Code 871390000 Production Capacity 5000PCS/Month

Product Description

1.Electric wheelchair application

Electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around, lying down.

Comfortable Electric Wheelchair for Elderly


2.Electric wheelchair specification:
No.ItemXFG-102FLXFG-103FLXFG-104FLXFG-105FL
1Container
loading
quantity
70pcs/20"GP
216pcs/40"GP
216pcs/40"GP
118pcs/20"GP
248pcs/40"GP
268pcs/40"HQ
48pcs/20"GP
102pcs/40"GP
153pcs/40"HQ
62pcs/20"GP
133pcs/40"GP
135pcs/40"HQ
2Motor24V/200W*224V/300W*224V/300W*224V/300W*2
3Battery
(lead-acid)
12V20Ah*212V28Ah*212V38Ah*212V38Ah*2
4ChargerAC100-240V
50/60HZ
Output:24V 3A
AC100-240V
50/60HZ
Output:24V 3A
AC100-240V
50/60HZ
Output:24V 5A
AC100-240V
50/60HZ
Output:24V 5A
5ControllerFlybrotherFlybrotherFlybrotherFlybrother
6Loading capacity110kgs110kgs110kgs120kgs
7Charging time6-8h6-8h6-8h6-8h
8Forward speed0-9km/h0-9km/h0-9km/h0-9km/h
9Reverse speed0-4km/h0-4km/h0-4km/h0-4km/h
10Turning radius600mm600mm600mm600mm
11Climbing ability12°≥8°≥8°≥8°
12Driving distance
(full charge)
20km20km32km30km
13Seat410*460mm,
foldable
410*460mm,
foldable
460*470mm,
width adjustable,
135°lie low,
foldable
490*460mm,
width adjustable,
seat 360°rotate,
180°lie low,
foldable
14Front wheel
size (inch)
200*50mm
8*2"
200*50mm
8*2"
200*50mm
8*2"
200*50 mm
8*2"
15Rear wheel
size (inch)
610mm/24"320mm/13"320mm/13"260mm*85mm/11"
16Anti-tip wheel
size (inch)
75*25mm/3*1"50*25mm/2*1"50*25mm/2*1"64*18mm
17Controller's currentMax output 50AMax output 50AMax output 50AMax output 50A
18Whole product
size (unfolded)
1090-1150*660
*980mm
1030-1110*640
*930mm
1040*640
*126mm
980*690
*1210mm
19Packing size
(mm)
820*430*780790*370*780
320*250*220
720*690*830850*700*760
20G.W.55kgs67kgs89kgs97kgs
21N.W.
(With battery)
47.5kgs56kgs79kgs82.5kgs

3.Electric wheelchair parts images:

Comfortable Electric Wheelchair for Elderly
4.Our factory
:

Smart Folding Electric Wheelchair for Elderly
5.Certificate:
Factory:ISO9001:2008 standard
Products:CE


6.Our services:
1.For all your inquires about us or our products, we will reply you in detail within 24 hours
2.We own passional sales & after- sale services who can speak fluent english language
3.We offer oem services.Can print your own logo on product , can customize the retail box packing and other things.
4.We have very experienced engineers and we help you better use our products.
