2019 New Arrival Electric Wheelchair for Disabled and Elderly Xfg-107FL

Zhejiang Qianxi Vehicle Co., Ltd.
  • Customized：Non-Customized
  • Certification：CE
  • Condition：New
  • Tilted：Non-Tilted
  • Folded：Folding
  • Leg Rest Type：Both Sides Separate

Base Info

  • Model NO.：XFG-107FL
  • Material：Aluminium Alloy
  • Type：Electric Wheelchair
  • Motor：DC250W*2 Brushless
  • Battery：24V 13ah,26ah
  • Climbing Ability：10 Degree
  • Power Supply：Electric-Powered
  • Using Ambient：Outdoor and Indoor
  • Forward Reverse Speed (Adjustable)：0-6km,H
  • Front Wheel Size：8" PU Solid
  • Rear Wheel Size：12" Pneumatic
  • Anti-Tip Wheel：50*25mm,2*1"
  • Brake：Intelligent Electromagnetic Brake
  • Color：Silver,Brown,Black
  • N.W：29kgs(24V 13ah),31kgs(24V 26ah)
  • Transport Package：Carton and Steel Shelf
  • Specification：65*38*79cm
  • Trademark：flybrother
  • Origin：Zhejiang
  • HS Code：871390000
  • Production Capacity：5000PCS,Month

Description

Item No.XFG-102FLXFG-103FLXFG-104FLAc100-240v
50/60hz
Output:
24v 3AAc100-240v
50/60hz
Output:
24v 4AAc100-240v
50/60hz
Output:
24v 5AAc100-240v 50/60hz
Output:
24v 3AAc100-240v
50/60hz
Output:
24v 3AAc100-240v
50/60hz
Output:
24v 1.8ALoading capacity110kgs110kgs120kgs120kgs120kgs110kgsClimbing ability10°≥10°≥12°≤10°≤10°≥6°Driving distance14km25km25km15-20km/30-40km15-20km/30-40km10kmSeat410*460mm,
Foldable,
Width can be customized410*460mm,
Foldable460*470mm,
Width adjustable,
135°lie low,
Foldable450*450mm,
Width
Adjustable,
Foldable450*450mm,
Width
Adjustable,
Foldable410*460mm,
Foldable

3.Electric wheelchair parts images:

2019 New Arrival Electric Wheelchair for Disabled and Elderly Xfg-107FL

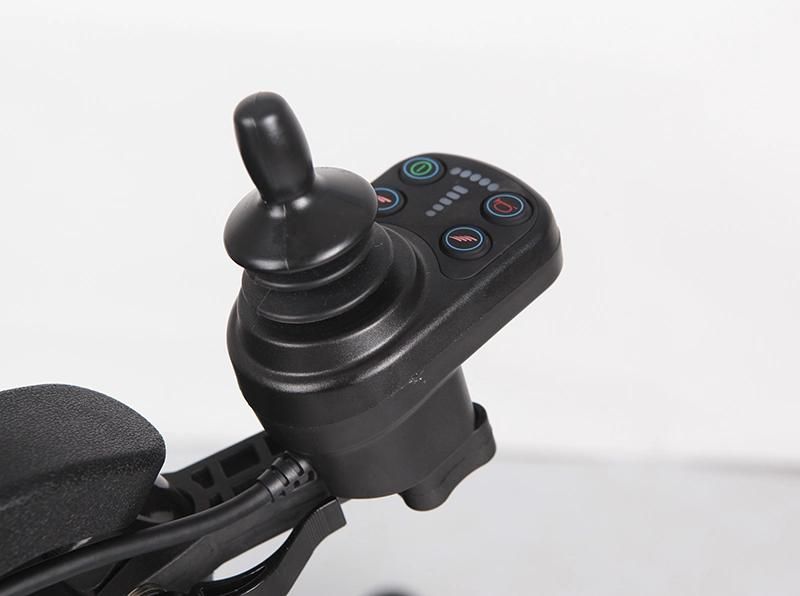

Controller Match with Brushless Motor


2019 New Arrival Electric Wheelchair for Disabled and Elderly Xfg-107FL

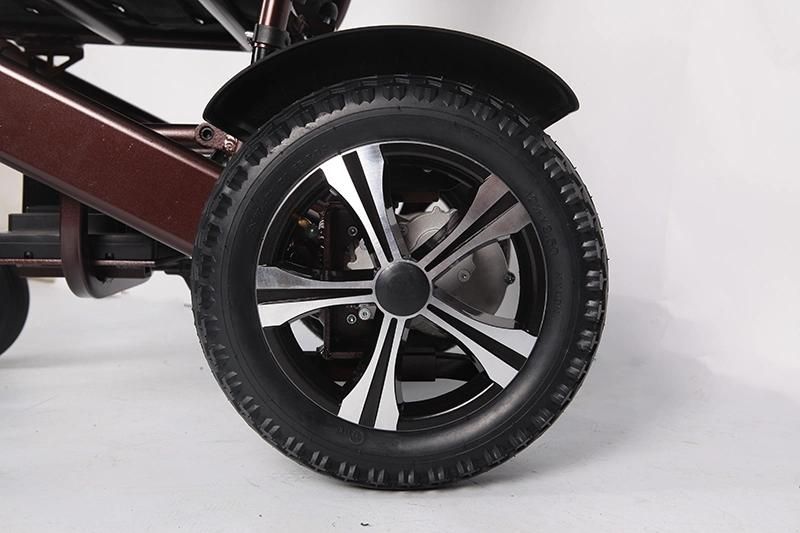

Allumium Alloy Wheel hub

2019 New Arrival Electric Wheelchair for Disabled and Elderly Xfg-107FL

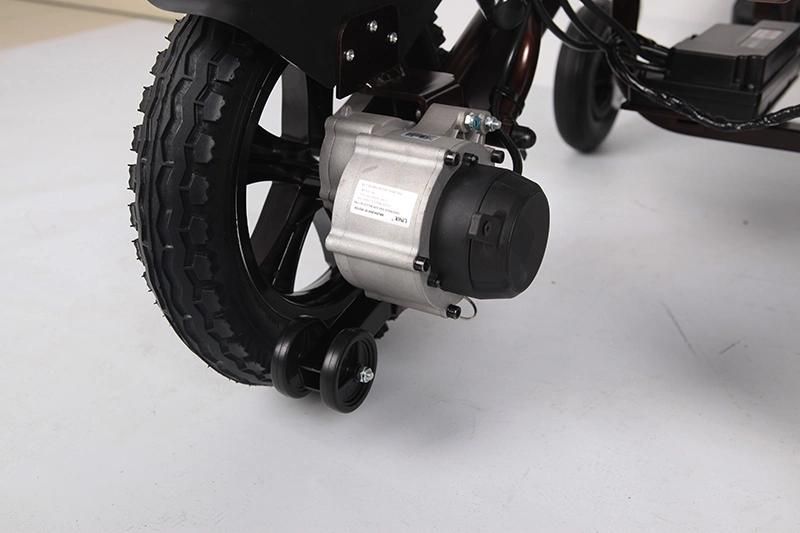

Brushless Motor and anti-tip wheel


2019 New Arrival Electric Wheelchair for Disabled and Elderly Xfg-107FL

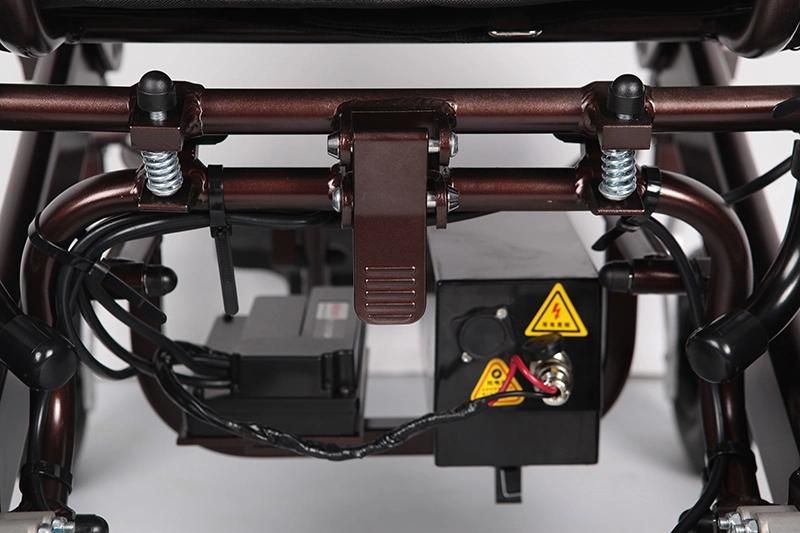

Lithium Battery, choose 1 or 2 sets

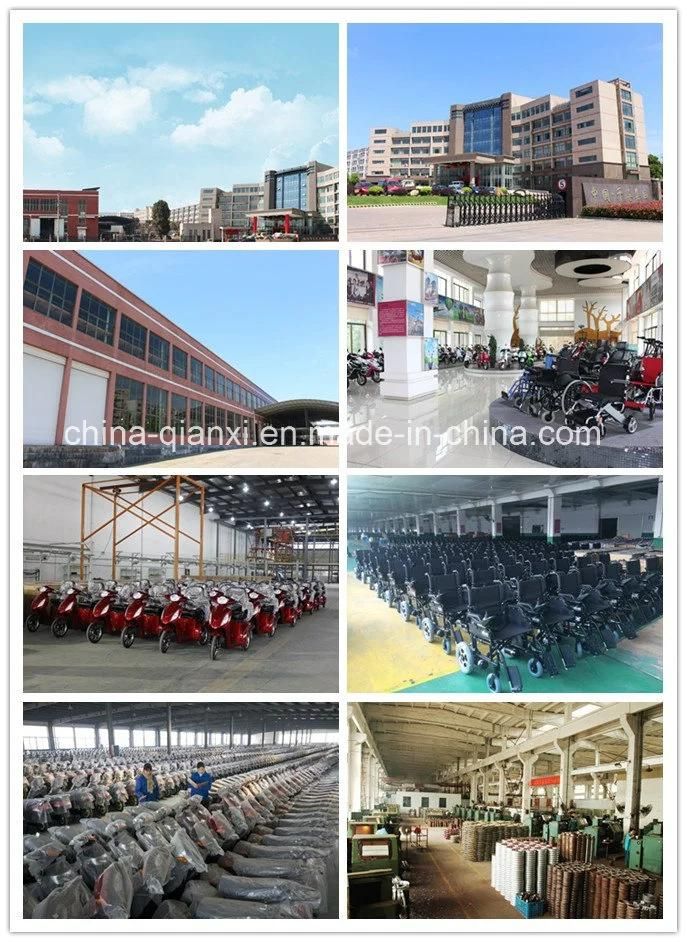

4.Our factory:
2019 New Arrival Electric Wheelchair for Disabled and Elderly Xfg-107FL

5.Certificate:
Factory:ISO9001:2008 standard
Products:All electric wheelchairs have been reviewed against the slef declaration requirements of conformity for ce marking according to annex 1 & 4 of the 93/42/eec medical device directive (including 2007/47/ec).
6.Our services:
1.For all your inquires about us or our products, we will reply you in detail within 24 hours.
2.We own passional sales & after- sale services who can speak fluent english language
3.We offer oem services.Can print your own logo on product , can customize the retail box packing and other things.
4.We have very experienced engineers and we help you better use our products.
