• Model NO.：XFG-203FL
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Products：Electric Wheelchair
• Motor：24V,250W*2 Brush
• Controller：Joystick
• Loading Capacity：100kgs
• Charging Time：4-6h
• Forward Speed：0-6km,H
• Reverse Speed：0-6km,H
• Backrest：L400*H4000*T15mm
• Turning Radius：600mm
• Climbing Ability：12 Degree
• Driving Distance：15-20km
• Front Wheel：8"
• Rear Wheel：12"
• Packing Size：650*380*790mm
• N.W.(with Battery)/G.W.：31,38kgs
• Transport Package：Carton
• Specification：24V13ah,20ah
• Trademark：Flybrother
• Origin：China
• HS Code：8713900000
• Production Capacity：2000PCS,Month

Basic Info.

Model NO. XFG-203FL Material Aluminium Alloy Type Electric Wheelchair Products Electric Wheelchair Motor 24V/250W*2 Brush Controller Joystick Loading Capacity 100kgs Charging Time 4-6h Forward Speed 0-6km/H Reverse Speed 0-6km/H Backrest L400*H4000*T15mm Turning Radius 600mm Climbing Ability 12 Degree Driving Distance 15-20km Front Wheel 8" Rear Wheel 12" Packing Size 650*380*790mm N.W.(with Battery)/G.W. 31/38kgs Transport Package Carton Specification 24V13ah/20ah Trademark Flybrother Origin China HS Code 8713900000 Production Capacity 2000PCS/Month

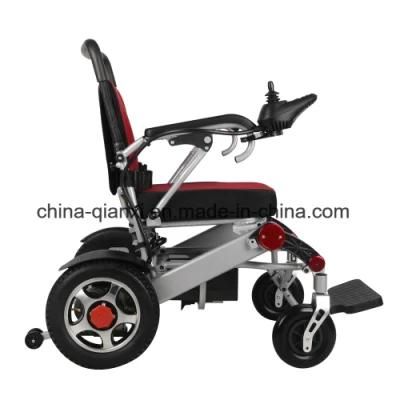

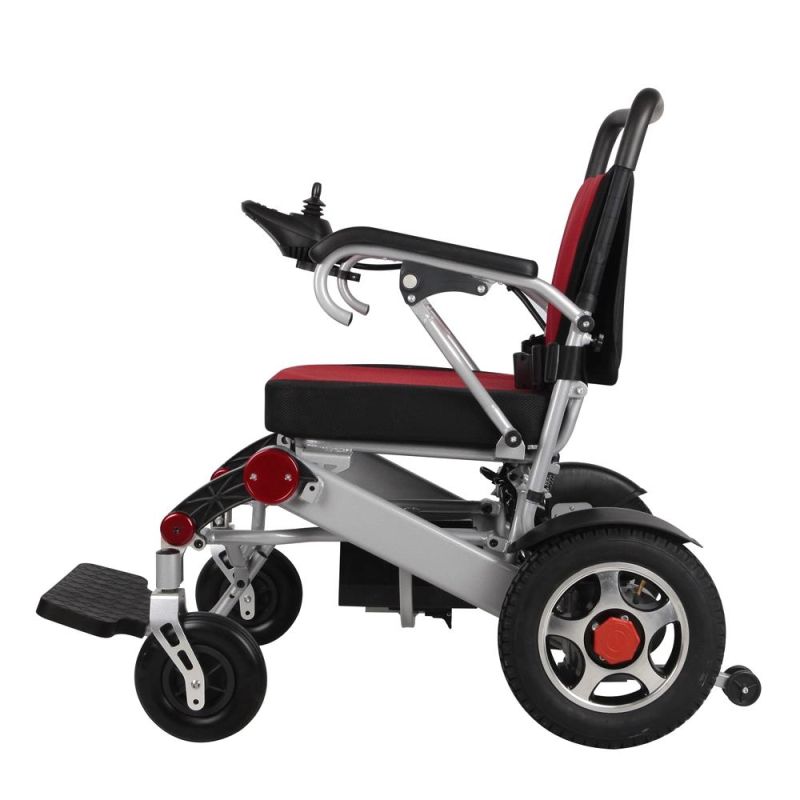

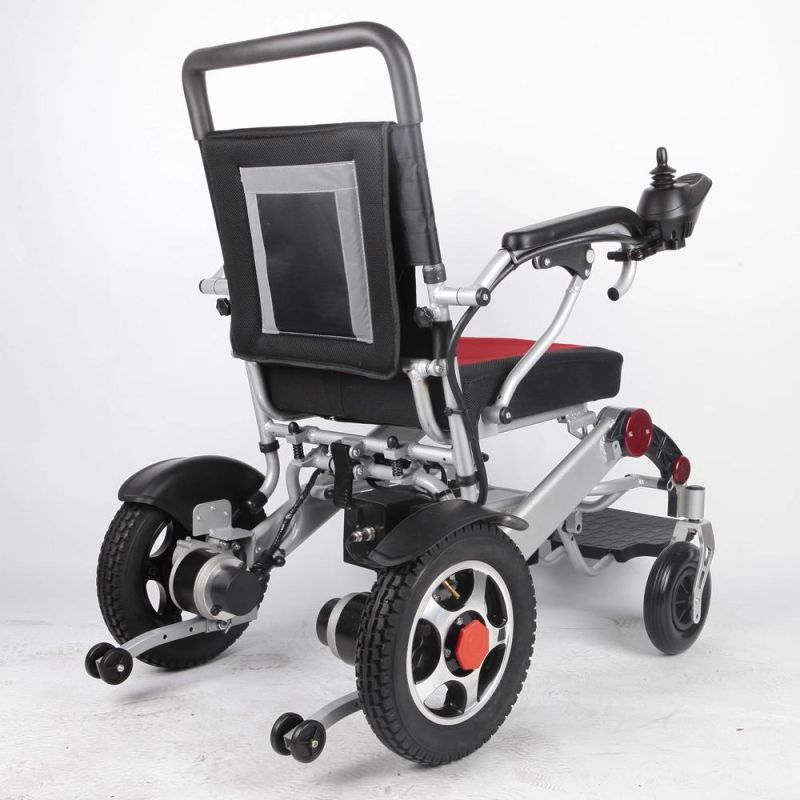

Product Description





Motor	24v/250W*2 Brush	Backrest	L400*H4000*T15mm
Battery	24V  13AH/ 20AH lithium	Front wheel size (inch)	8" PU solid
Charger	AC100-240V 50/60HZ  Output:24V 1.8A/3A	Rear wheel size (inch)	12" Rubber pneumatic
Controller	Joystick	Anti-tip wheel size (inch)	50mm×25mm/2×1" PU
Loading capacity	100kgs	Controller's current	≤40A
Charging time	4-6h	Size (unfolded)	1100x630x960mm
Forward speed	0-6Km/h	Size (folded)	610x320x780mm
Reverse speed	0-6Km/h	Packing size	650*380*790mm
Turning radius	600mm	G.W.	36 / 38kgs
Climbing ability	≤12°	N.W.(With battery)	29 / 31kgs
Driving range / charge	15km / 20km	N.W.(No battery)	26kgs
Fuction	L400*W430mm*T60mm  foldable ,lightweight	Container loading quantity	158 pcs / 20GP

Zhejiang Qianxi Vehicle Co.,Ltd. was established in 2000, specialized in producing electric scooters, electric motorcycle,
electric wheelchair and electric mobility scooter.

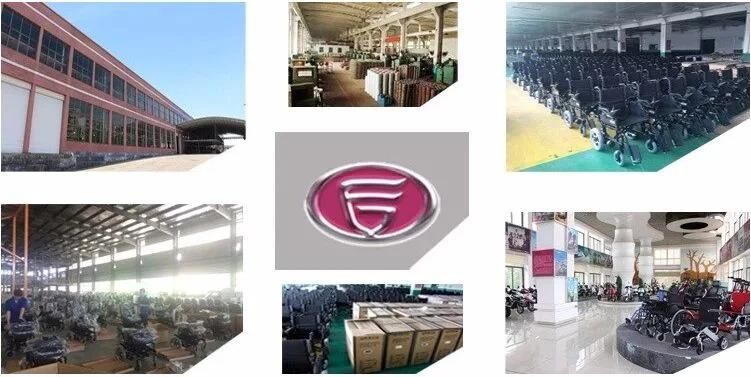

Ourfactorycovers the area of 200,000 square meters with more than 500employees,R&D 10 persons and has passed
 ISO9001, CE, EEC, EN12184 certifications.

Till now, we developed more than 50 serials products with 11 National Patents.

Our products are very popular in the world , such as the USA, Korea, Spain, Germany, Czech, Turkey etc.
Welcome all kinds of OEM or ODM project and cooperation, please feel free to contact us for professional service.

    FAQQ: Are you a factory or a trading company?
A: We are professional medical equipments & scooter manufacturer.

Q. What are your trading terms?
A: Payment term: T/T 30% deposit after order confirmed, the balance paid before shipping or against bill of lading; D/P and L/C are also acceptable for order more than USD20,000.

Q: What's your warranty policy?
A: We provide 1 year free warranty for wheelchairs & scooters by non-human factor. You just need to send us pictures or videos of the damaged parts, then we send new parts or compensation to you.

Q: Can we have your sample?
A: Samples are available and be ready in 7-15 days upon receipt of payment.The sample cost will be increased USD100 for local charge.
