• Model NO.：D12
• Rear Wheel：12.25"X2.25"Solid PU Tire
• Pedal High From Ground：Max:16cm; Min:11cm
• Driving Distance：25km
• Color：Can Be Customized
• Speed：6km,H
• Motor：Brushless Motor 24V 250W X 2
• Battery：Lithium Ion Battery 6ah X 2
• Seat Depth：40cm
• Seat Width：42cm
• Brake System：Electromagnetic Brake
• Transport Package：1 Set Folding Electric Wheelcahir,Carton
• Specification：102*67*93.5cm
• Trademark：JBHD12
• Origin：China
• HS Code：8713900000
• Production Capacity：4000 Sets,Month

Product Name:

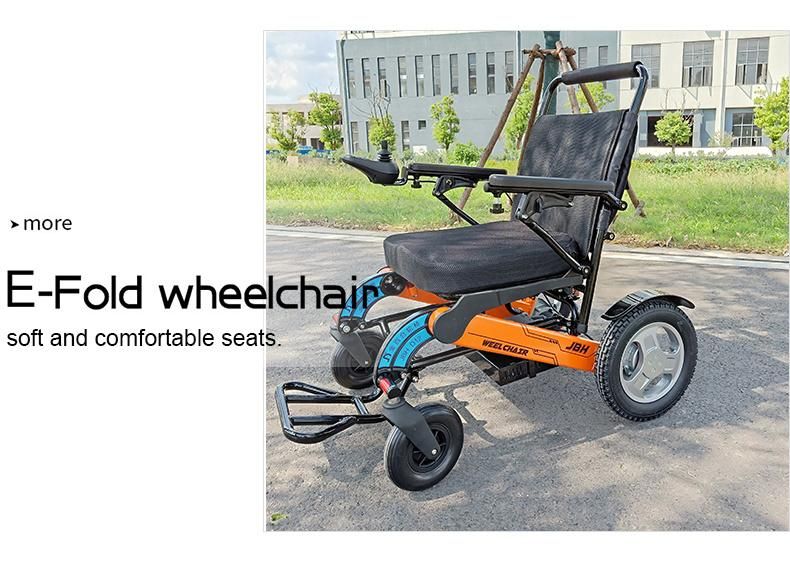

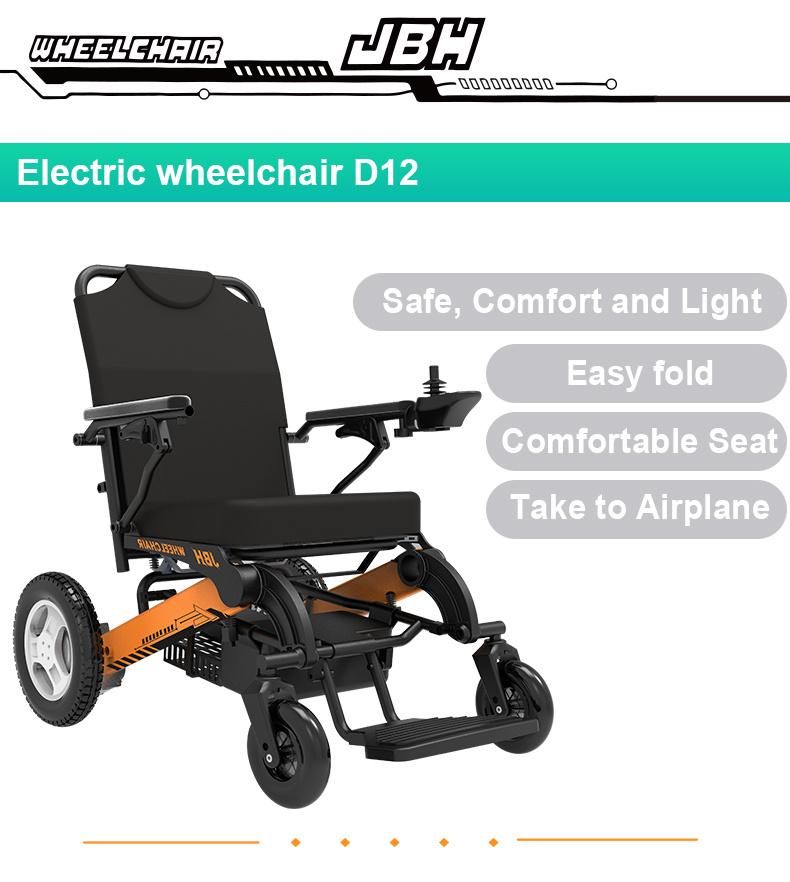

Aluminum Alloy Folding Power Electric Wheelchair for Elderly Use

Item No.:

D12

Frame material:

Aerospace titanium-aluminum alloy

Unfolded Dimension:

1020*670*935MM

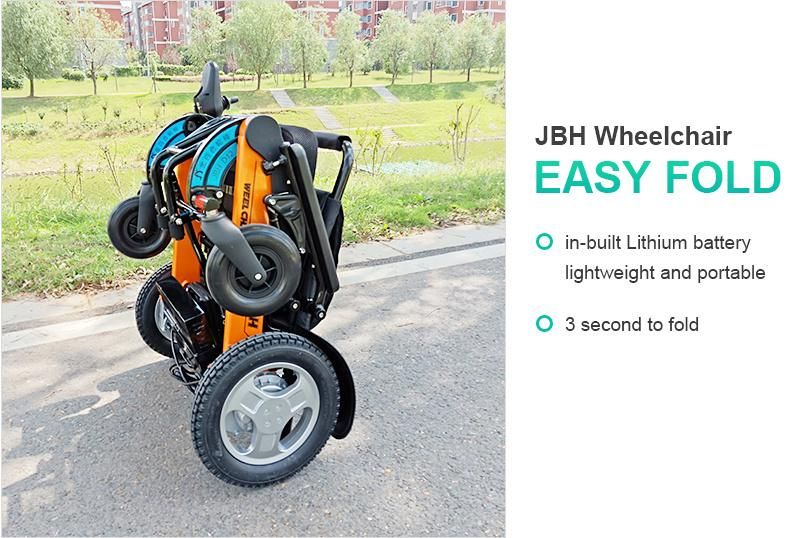

Folded Dimension:

670*370*760MM

Motor:

250W X 2 DC 24V brush motor

Battery:

Lithium battery (7AH, DC 24V)*2PCS

Braking System:

Intelligent type electromagnetic brake

Braking Distance:

0.7m ( when at the top speed)

Charging Time:

6 to 8 hours

Max Speed :

6 km/h

Driving Range:

25km/15.53miles (approx)

Turning Radius:

500mm

Loading Capacity :

150KG/330lbs

Climbing Slope:

Max 12°

Front Tires:

8"x2pcs PU Solid Tire

Rear Tires:

12"x2pcs PU Solid Tire

Seat Depth:

400mm

Seat Width:

480mm

Seat Height:

500mm

Ground Clearance:

120mm

Pedal Height

130mm

N.W.:

26.7KG(without battery)/29.7KG(include battery)

Color

Silver and mixed color etc or customize

Package:

1 set/carton

carton size:

760*460*880mm
