• Model NO.：D10
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Transport Package：Carton
• Specification：950*645*1040mm
• Trademark：JBH
• Origin：China
• HS Code：87139000
• Production Capacity：4000 Sets,Month

Basic Info.

Model NO. D10 Material Aluminium Alloy Type Electric Wheelchair Transport Package Carton Specification 950*645*1040mm Trademark JBH Origin China HS Code 87139000 Production Capacity 4000 Sets/Month

Product Description

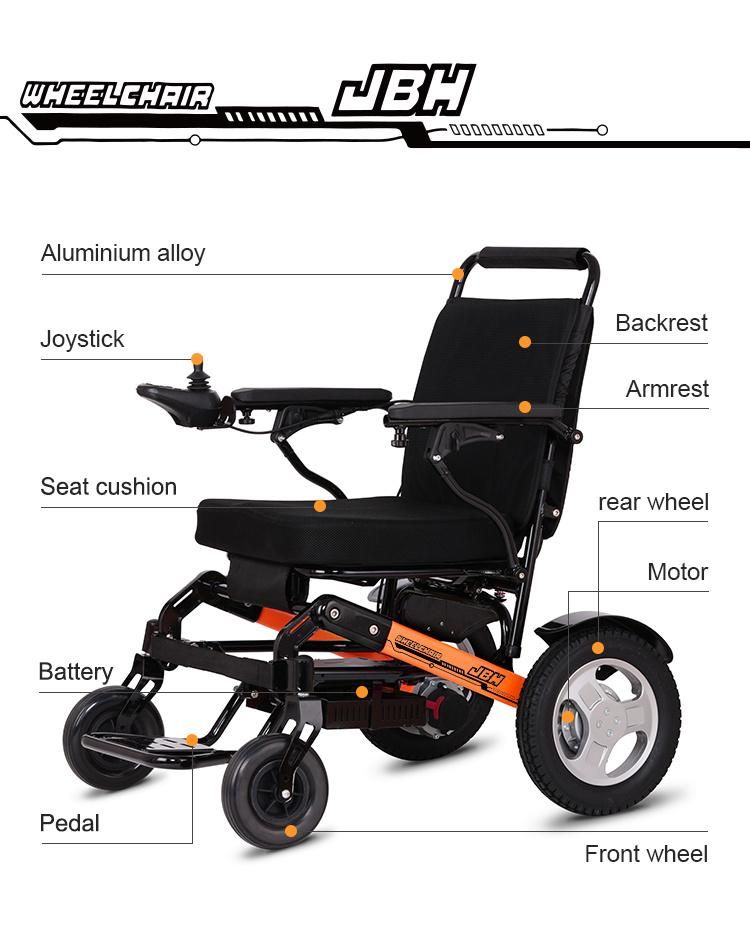

JBH D10 Smart Power Folding Electric Portable Wheelchair for ElderlyWe are currently the largest manufacturer for power wheelchair and mobility scooter in China, with a 160,000 square meters production base, approved by ISO9001, ISO14001, ISO13485 international quality systems. Our products have been approved by CE & FDA, marketing over 100 countries in the world. We gained wide range recognition and trust from our customers. We will continue providing high quality products and service to contribute elders and handicapped an easier and better life!

We also offer OEM and ODM services to meet the needs of different customers.

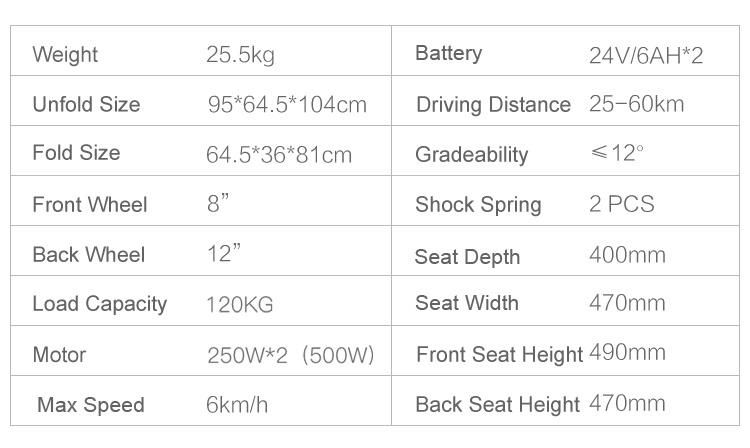

Model	D10
Material	Aluminum alloy

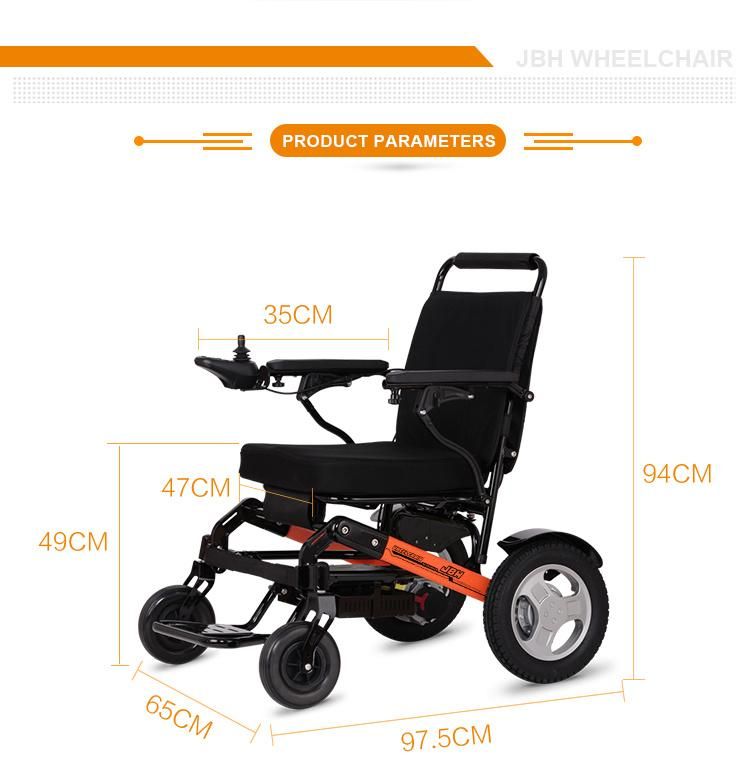

unfold size	940*650*975mm

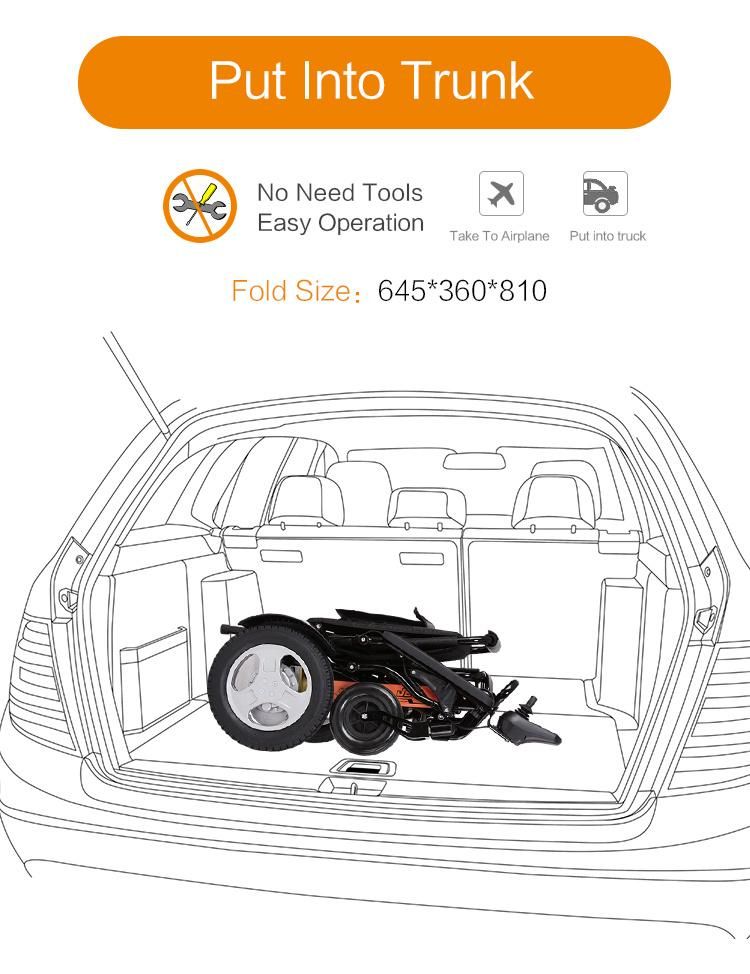

fold size	650*350*775mm
loading capacity	160kg
Motor	250W*2pcs brushless motors

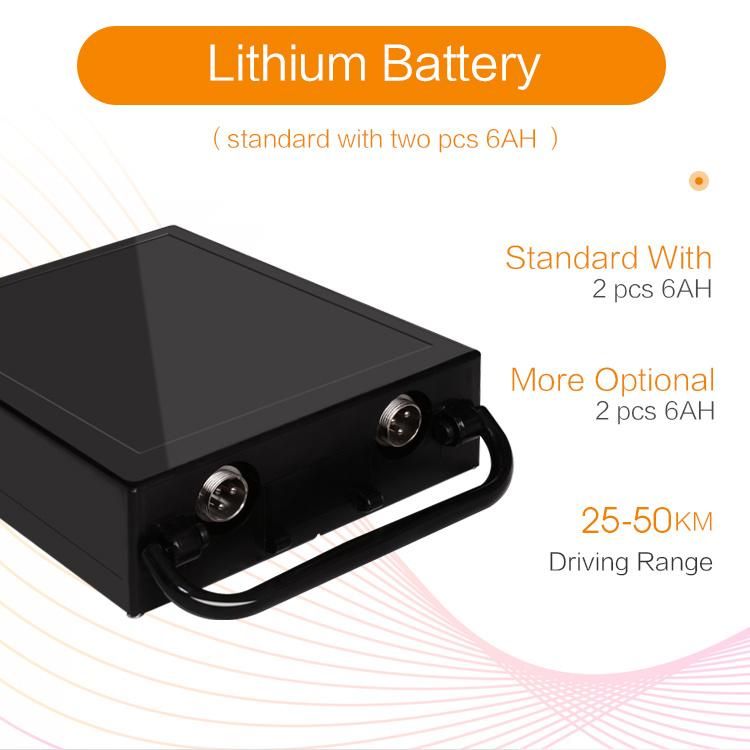

Battery	24V 7AH*2 pcs lithium battery   (battery opption, max can 24v 7AH*4 pcs)
max speed	6km/hour
Driving range	25KM
front tires	8"*1.25" PU solid tires
rear tires	12.5"*2.125" PU solid tires
climbing slope	max 8°
charging time	6-8 hours
width of armrest	510mm
seat width	435 mm
seat depth	430 mm
seat height	front 490mm/ back 470mm
turning radius	850mm
net weight without battery	25.2kg
net weight with two batteries	27.8kg
Drive model	rear drive

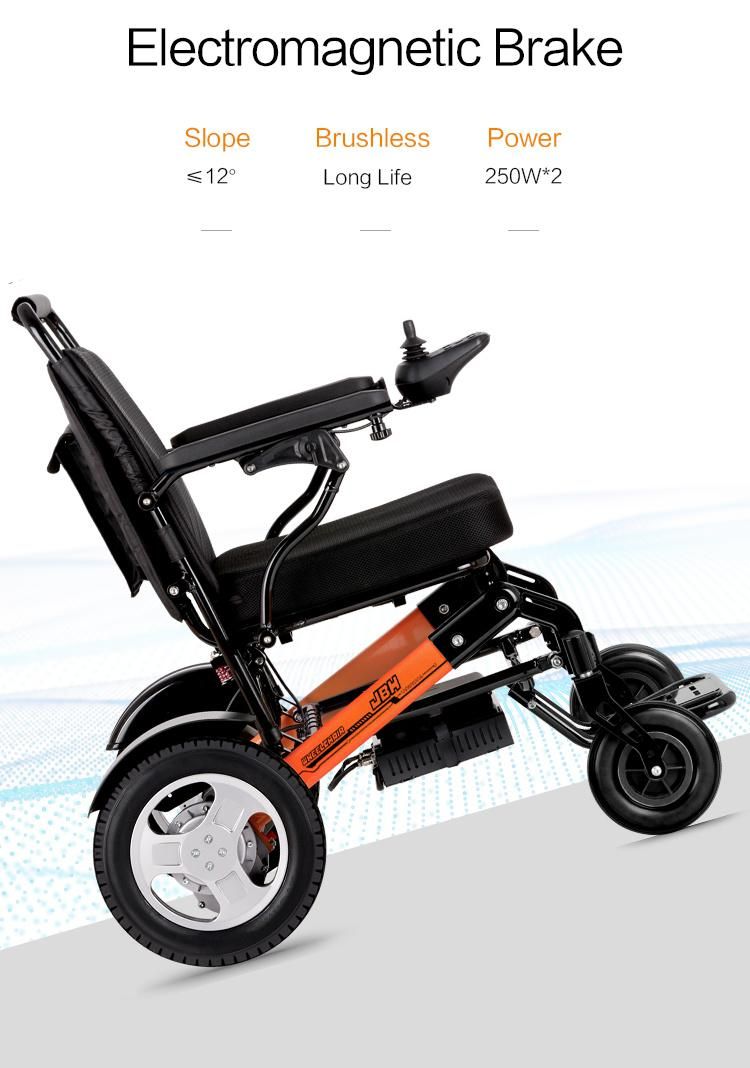

braking system	electromanetic brake
Factory Colour	yellow/orange/red
Package carton size	730*440*880mm

F.A.Q:
Q1: Can I Take The Plane? What Documentation Is Required?
        Yes, our products can be allowed to be carried on the plane, different airlines will have different regulations, you can consult the airline staff of your flight.

Q2: To Avoid Overcharging, Should I Need Protective Measures When Charging?
        No, the charger has a power-off protection function. When the battery is fully charged, the charging power supply will cut off by itself.

Q3: Can I Use It In Different Countries?
        Yes, our products have an input voltage of 100-240V, which is suitable for most countries in the world. We can provide you with the right charger according to the type of plug used in your country.

Q4: Should I Need To Assemble After Unpacking?
        After unpacking, only the controller joystick needs to be installed, the wheelchair lock is fixed, and the power can be used.

Q5: Is It Possible To Switch Manually By Electric Mode?
        Yes, you can adjust the red handle on the motor position to switch the manual electric mode.

Q6: Can The Controller Lever Switch Between Left And Right?
        Yes, the joystick can be switched left and right.

Q7: What Is The Production Process Of The Wheelchair?

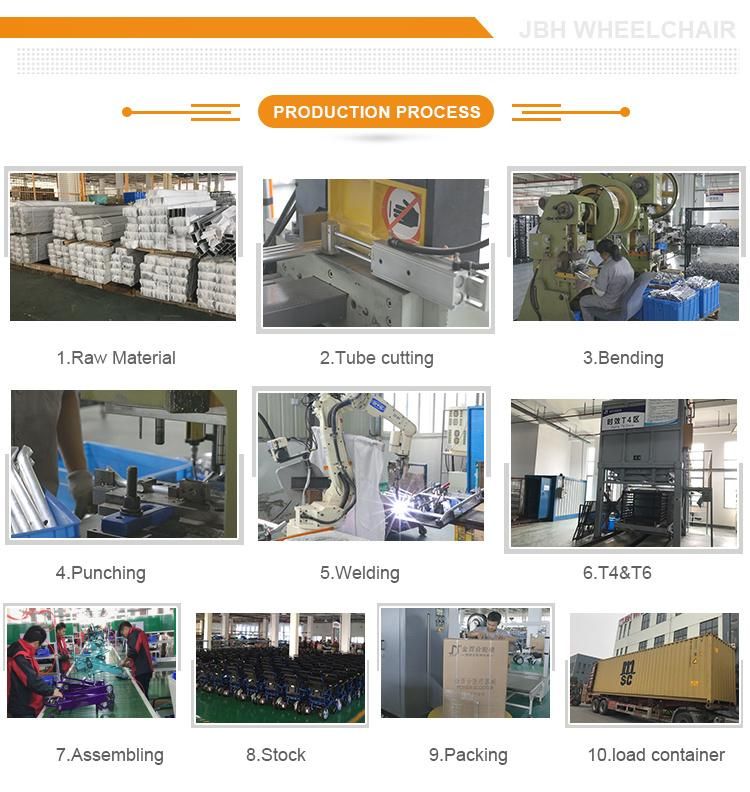

        Raw material cutting - processing forming - welding - heat treatment (increasing hardness) - baking paint - inspection - assembly - finished product - the packaging.

Q8: What Are The Optional Parts & Accessories?
        Battery, motor, tire, cup holder, controller, travel bag, rear control bracket, flashlight bracket, mobile phone  holder, headrest etc.

Q9: Can Product Quality Issues Be Returned?
        At present, my products do not support return, but if there are quality problems, we will send spare parts for customers to replace them during the warranty period. We also have a professional after-sales team to guide the installation.

Q10: Are You Directly OEM And ODM?
         OEM can, we can customize your LOGO in a wheelchair. ODM is also acceptable, but the cost of opening the mold is relatively expensive, requires the customer to pay for it, and the cycle is longer. If the customer can accept it, our factory is no problem.
