Slightly Larger Portable Folding Electric Wheelchair with Ce FDA
Nanjing Jin Bai He Medical Apparatus Co., Ltd.- Customized:Customized
- Certification:ISO, CE, FDA
- Condition:New
- Tilted:Non-Tilted
- Folded:Folding
- Leg Rest Type:Across Both Sides
Base Info
- Model NO.:D19
- Material:Aluminium Alloy
- Type:Electric Wheelchair
- Overall Size:1140*630*1020 mm
- Fold Size:630*500*810 mm
- Seat Depth:400mm
- Seat Width:480mm
- Seat Height:500mm
- Front Wheel:8"
- Rear Wheel:12.5"
- Motion Motor:24V 200W * 2PCS
- Lithium Battery:24V 6ah * 2PCS
- Driving Range:20km
- Speed:0-6 Km,H
- Load Capacity:150kg
- Gradient:0-8 Degree
- Folding Control:East Touch or Remote Control
- Weight:36kg , 39kg
- Transport Package:1 Set Folded in Carton
- Specification:57*77*103cm pack
- Trademark:JBH
- Origin:China
- HS Code:8713900000
- Production Capacity:5000 Sets,Month
Description
Basic Info.
Model NO. D19 Material Aluminium Alloy Type Electric Wheelchair Overall Size 1140*630*1020 mm Fold Size 630*500*810 mm Seat Depth 400mm Seat Width 480mm Seat Height 500mm Front Wheel 8" Rear Wheel 12.5" Motion Motor 24V 200W * 2PCS Lithium Battery 24V 6ah * 2PCS Driving Range 20km Speed 0-6 Km/H Load Capacity 150kg Gradient 0-8 Degree Folding Control East Touch or Remote Control Weight 36kg / 39kg Transport Package 1 Set Folded in Carton Specification 57*77*103cm pack Trademark JBH Origin China HS Code 8713900000 Production Capacity 5000 Sets/MonthProduct Description

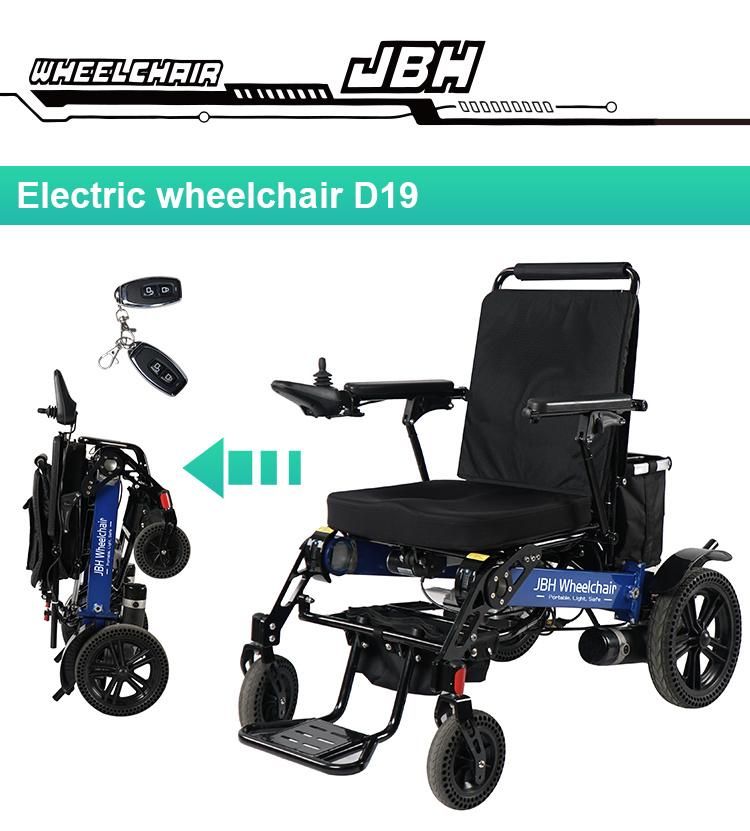

Slightly Larger Portable Folding Electric Wheelchair with CE FDAFolding Electric Wheelchair D19
Advantages:

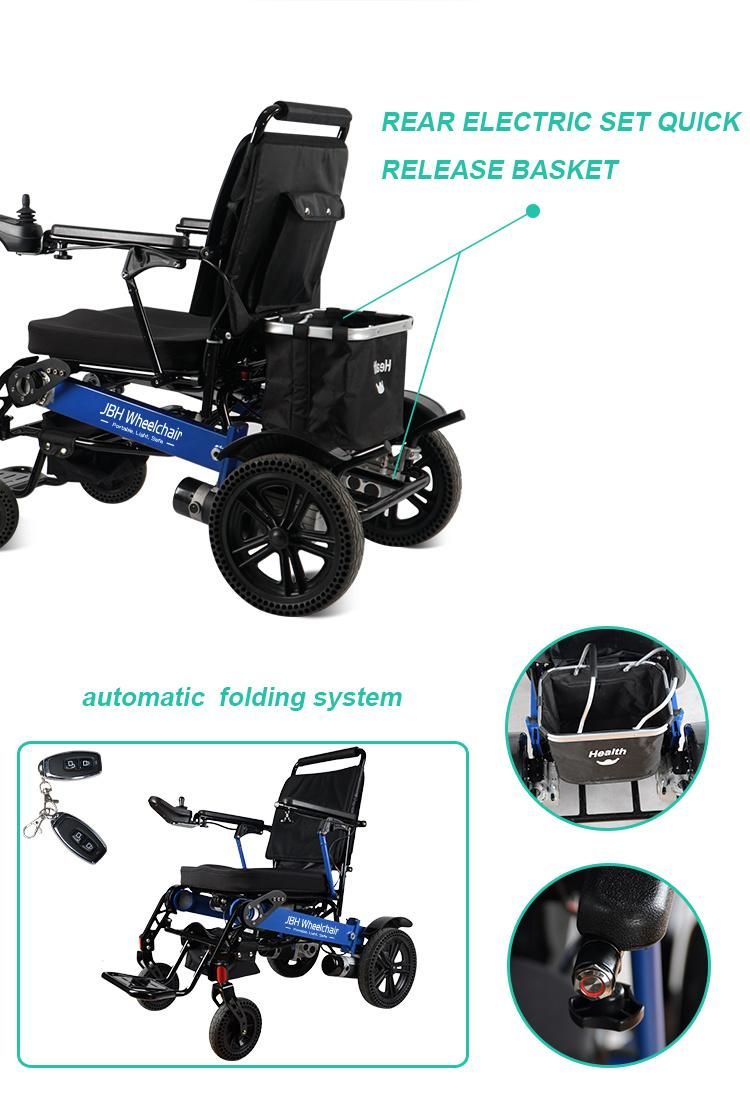

- Automatic Electronic folding with remote.

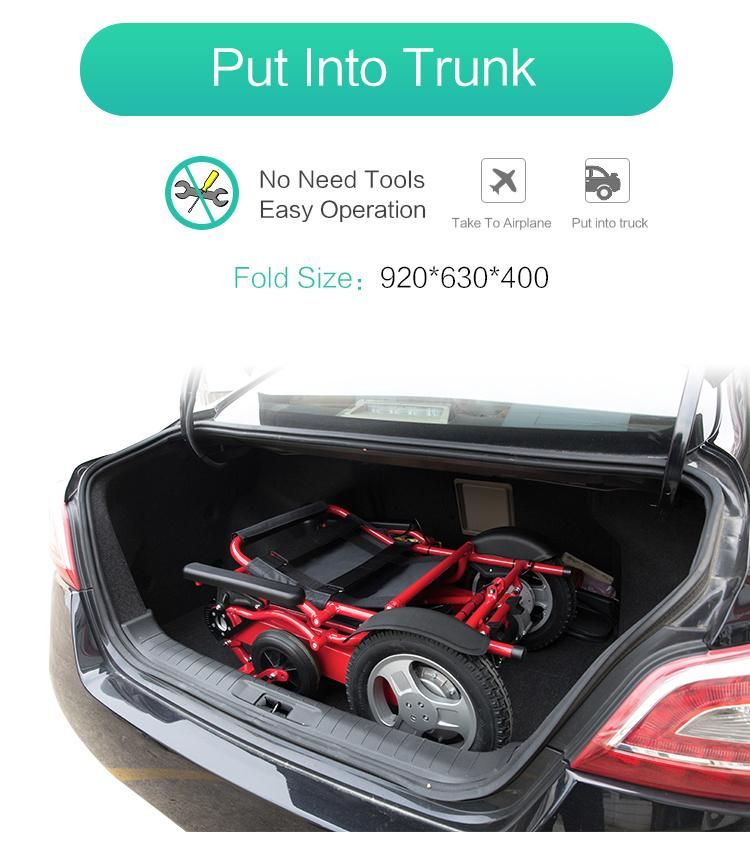

- Motor can be quick removed from chair, can put into car junk.
- Honeycomb holes solid PU front and back wheels, can reduce the shock.
- Big back shopping crate.
- Big size chair for fat user.
Model | D19 |
Unfold size | 1140*630*1020mm |
Fold size | 810*630*500mm |
Motor | Suoyang 24V/200W brush motor (can quick removed) |
Push rod motor | 24V 1000N |
Controller | Dynamic controller |
Seat width | 480mm |
Seat height | 530mm |
Seat depth | 230mm |
Distance from seat to pedal | 440mm |
Front tires | 8" Honeycomb hole solid PU tires |
Back rears | 12" Honeycomb hole solid PU wheels |
Max speed | 6km/hour |

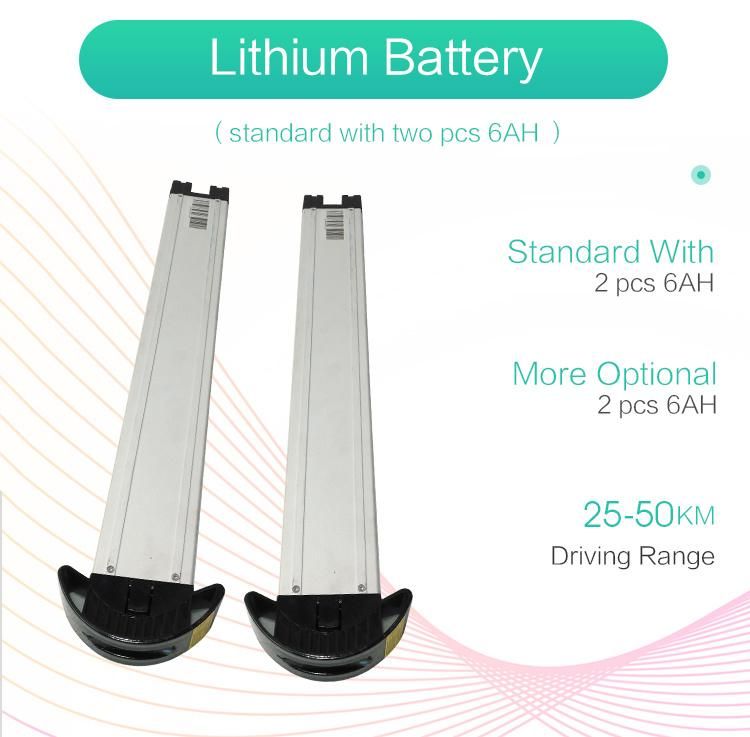

Battery | 24V 6AH lithium battery *2pcs |
Max load capacity | 150kg |
Driving range | 20km |

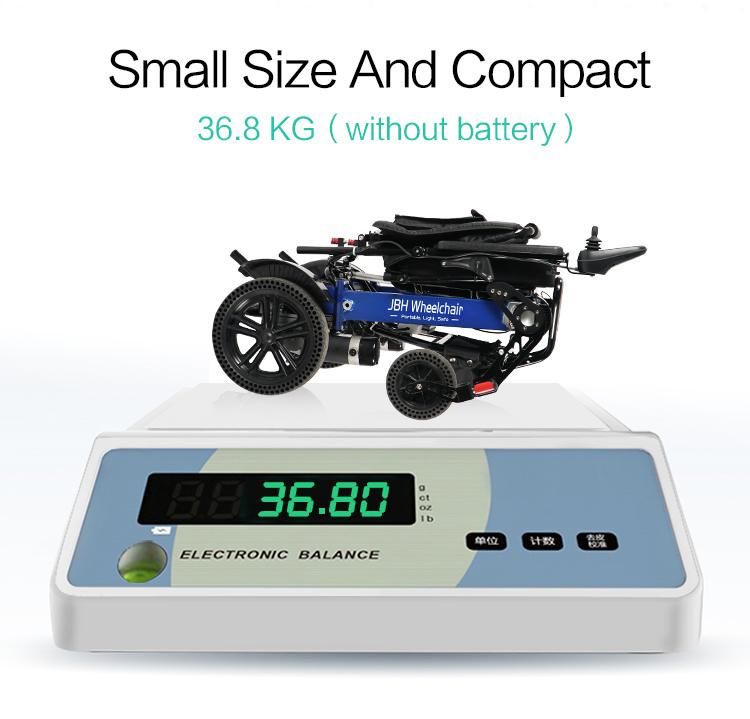

Chair weight without battery | 36.9kg |
Chair weight with battery | 39.9kg |
