• Model NO.：XFG-104FL
• Material：Steel
• Type：Electric Wheelchair
• Motor：300W
• Battery：24V,38ah
• Controller：Joystic
• Frame：Steel
• Speed：0-7 Km,H
• Range：25 Kms
• Power Supply：Electric-Powered
• Using Site：Whole Body
• Transport Package：Iron Frame+Carton Box
• Specification：CE
• Trademark：flybrother
• Origin：China
• HS Code：871390000
• Production Capacity：5, 000 PCS,Month

Basic Info.

Model NO. XFG-104FL Material Steel Type Electric Wheelchair Motor 300W Battery 24V/38ah Controller Joystic Frame Steel Speed 0-7 Km/H Range 25 Kms Power Supply Electric-Powered Using Site Whole Body Transport Package Iron Frame+Carton Box Specification CE Trademark flybrother Origin China HS Code 871390000 Production Capacity 5, 000 PCS/Month

Product Description

1.Electric wheelchair application

Electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around, lying down.

2.Electric wheelchair specification:

No.	Item	XFG-104FL	XFG-105FL	XFG-107FL	XFG-112FL
1	Container  loading  quantity	48pcs/20"GP 102pcs/40"GP 153pcs/40"HQ	62pcs/20"GP 133pcs/40"GP 135pcs/40"HQ	72pcs/20"GP 153pcs/40"GP 153pcs/40"HQ	118pcs/20"GP 248pcs/40"GP 268pcs/40"HQ
2	Motor	24V/300W*2	24V/300W*2	24V/300W*2	24V/250W*2
3	Battery  (lead-acid)	12V38Ah*2	12V38Ah*2	12V28Ah*2	12V12Ah*2
4	Charger	AC100-240V 50/60HZ   Output:24V 5A	AC100-240V 50/60HZ   Output:24V 5A	AC100-240V 50/60HZ  Output:24V 3A	AC100-240V 50/60HZ  Output:24V 1.8A
5	Controller	Flybrother	Flybrother	Flybrother	Flybrother
6	Loading capacity	110kgs	120kgs	110kgs	100kgs
7	Charging time	6-8h	6-8h	6-8h	6-8h
8	Forward speed	0-9km/h	0-9km/h	0-9km/h	0-9km/h
9	Reverse speed	0-4km/h	0-4km/h	0-4km/h	0-4km/h
10	Turning radius	600mm	600mm	600mm	600mm
11	Climbing ability	≥8°	≥8°	≥8°	≥6°
12	Driving distance  (full charge)	32km	30km	15-20km	12km
13	Seat	460*470mm, width adjustable, 135°lie low, foldable	490*460mm, width adjustable, seat 360°rotate, 180°lie low, foldable	410*460mm, width adjustable, foldable	410*460mm, foldable
14	Front wheel size (inch)	200*50mm 8*2"	200*50 mm 8*2"	200*50mm 8*2"	250*50mm 10*2"
15	Rear wheel size (inch)	320mm/13"	260mm*85mm/11"	320mm/13"	405mm/16"
16	Anti-tip wheel size (inch)	50*25mm/2*1"	64*18mm	50*25mm/2*1"	50*25mm/2*1"
17	Controller's current	Max output 50A	Max output 50A	Max output 50A	Max output 50A
18	Whole product size (unfolded)	1040*640 *126mm	980*690 *1210mm	1080*640 *1000mm	1150*620 *980mm
19	Packing size	720*690*830mm	850*700*760mm	720*690*730mm	790*370*780mm 320*250*220mm
20	G.W.	89kgs	97kgs	74kgs	54kgs
21	N.W. (With battery)	79kgs	82.5kgs	64kgs	44kgs

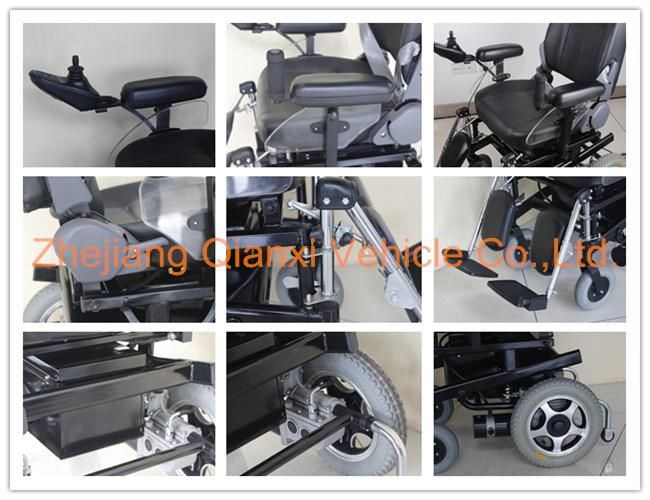

3.Electric wheelchair parts images:

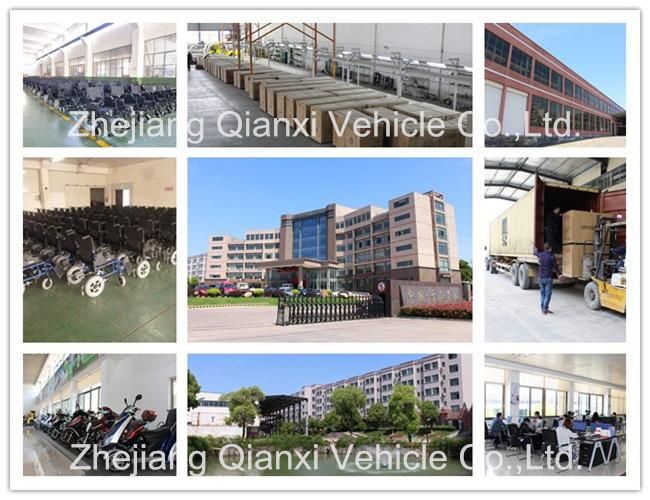

4.Our factory:

5.Certificate:
Factory:ISO9001:2008 standard
Products:CE
6.Our services:
1.For all your inquires about us or our products, we will reply you in detail within 24 hours
2.We own passional sales & after- sale services who can speak fluent english language
3.We offer oem services.Can print your own logo on product , can customize the retail box packing and other things.
4.We have very experienced engineers and we help you better use our products.
