Rehabilitation Therapy Supplies

Home > Product > Wheelchair

Lightweight Electric Power Wheelchair for The Handicapped

Zhejiang Qianxi Vehicle Co., Ltd.
  • Customized：Non-Customized
  • Certification：ISO, CE
  • Condition：New
  • Tilted：Non-Tilted
  • Folded：Folding
  • Leg Rest Type：Both Sides Separate

Base Info

  • Model NO.：XFG-107FL
  • Material：Aluminium Alloy
  • Type：Electric Wheelchair
  • Motor：250W*2 Brushless
  • Power Supply：Electric-Powered
  • Using Ambient：Outdoor and Indoor
  • Max Load：100kgs
  • Wheel Hub：Alluminum Alloy Wheel Hub
  • Brake：Intelligent Electromagnetic Brake
  • Rear Wheel Size：300mm,12 1,2"
  • Front Wheel Size：200*50mm,8*2"
  • Anti-Tip Wheel：50*25mm,2*1"
  • N.W：29kgs(24V 13ah),31kgs(24V 26ah)
  • Transport Package：1PC,CTN Steel Frame + Carton Box
  • Specification：65*38*79cm
  • Trademark：Flybrother or customized
  • Origin：China
  • HS Code：871390000
  • Production Capacity：5000PCS,Month

Description

Item No.XFG-102FLXFG-103FLXFG-104FLAc100-240v
50/60hz
Output:
24v 3AAc100-240v
50/60hz
Output:
24v 4AAc100-240v
50/60hz
Output:
24v 5AAc100-240v 50/60hz
Output:
24v 3AAc100-240v
50/60hz
Output:
24v 3AAc100-240v
50/60hz
Output:
24v 1.8ALoading capacity110kgs110kgs120kgs120kgs120kgs110kgsClimbing ability10°≥10°≥12°≤10°≤10°≥6°Driving distance14km25km25km15-20km/30-40km15-20km/30-40km10kmSeat410*460mm,
Foldable,
Width can be customized410*460mm,
Foldable460*470mm,
Width adjustable,
135°lie low,
Foldable450*450mm,
Width
Adjustable,
Foldable450*450mm,
Width
Adjustable,
Foldable410*460mm,
Foldable

3.Electric wheelchair parts images:

Lightweight Electric Power Wheelchair for The Handicapped

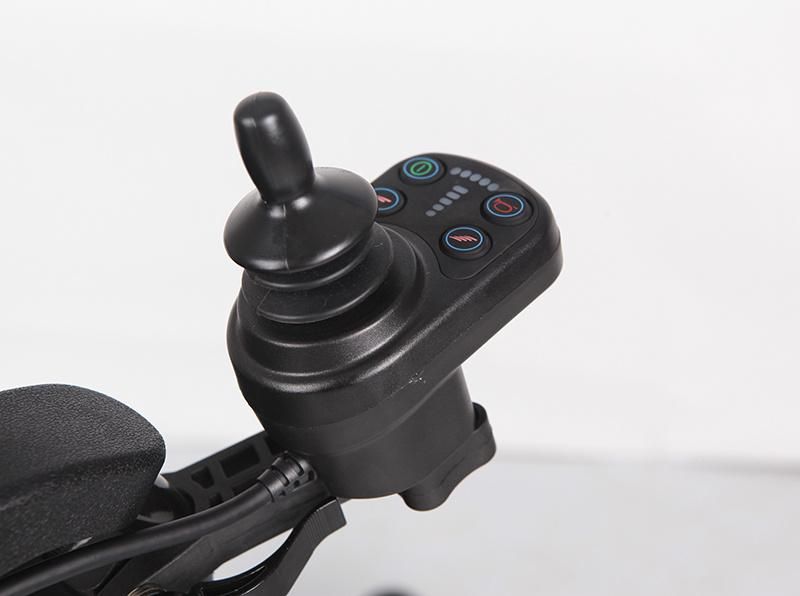

Controller Match with Brushless Motor


Lightweight Electric Power Wheelchair for The Handicapped

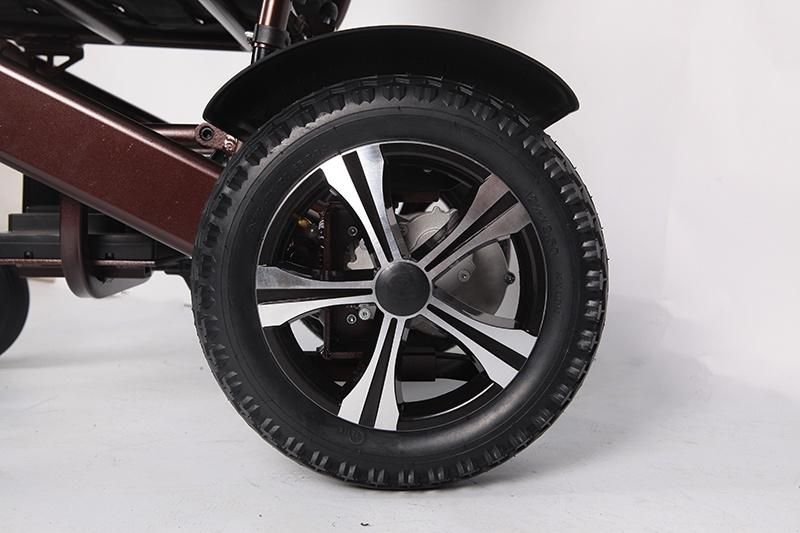

Allumium Alloy Wheel hub

Lightweight Electric Power Wheelchair for The Handicapped

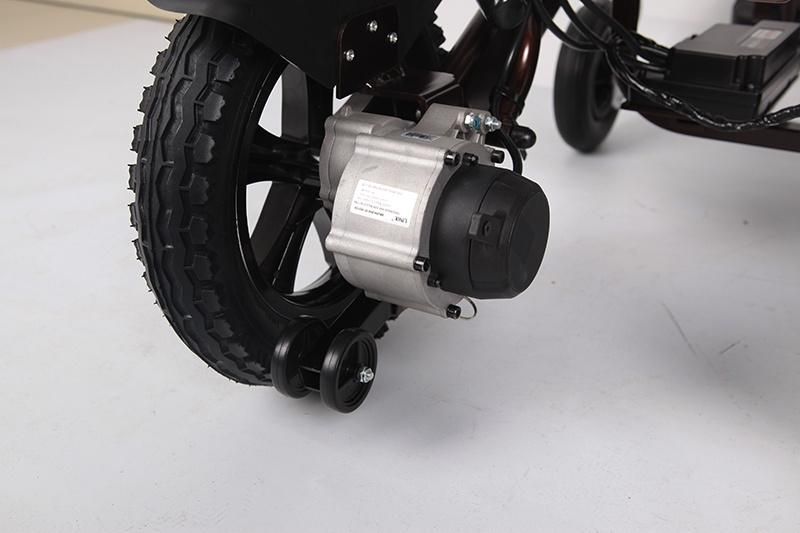

Brushless Motor and anti-tip wheel


Lightweight Electric Power Wheelchair for The Handicapped

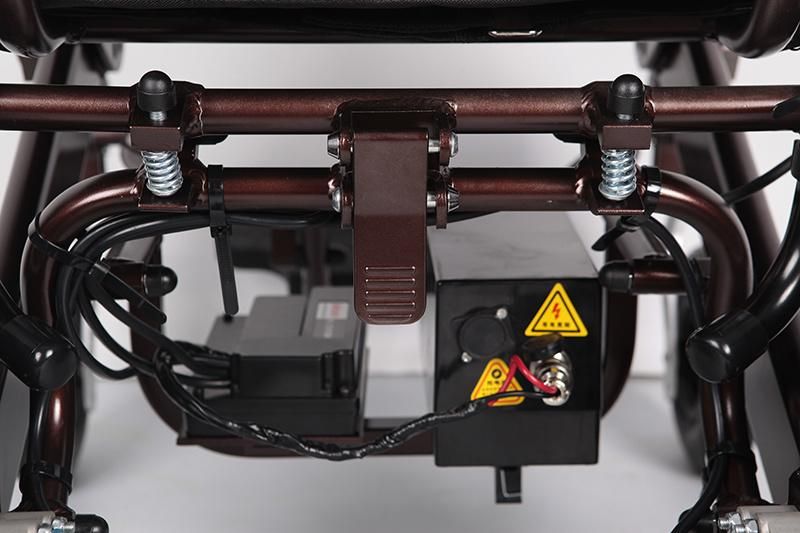

Lithium Battery, choose 1 or 2 sets

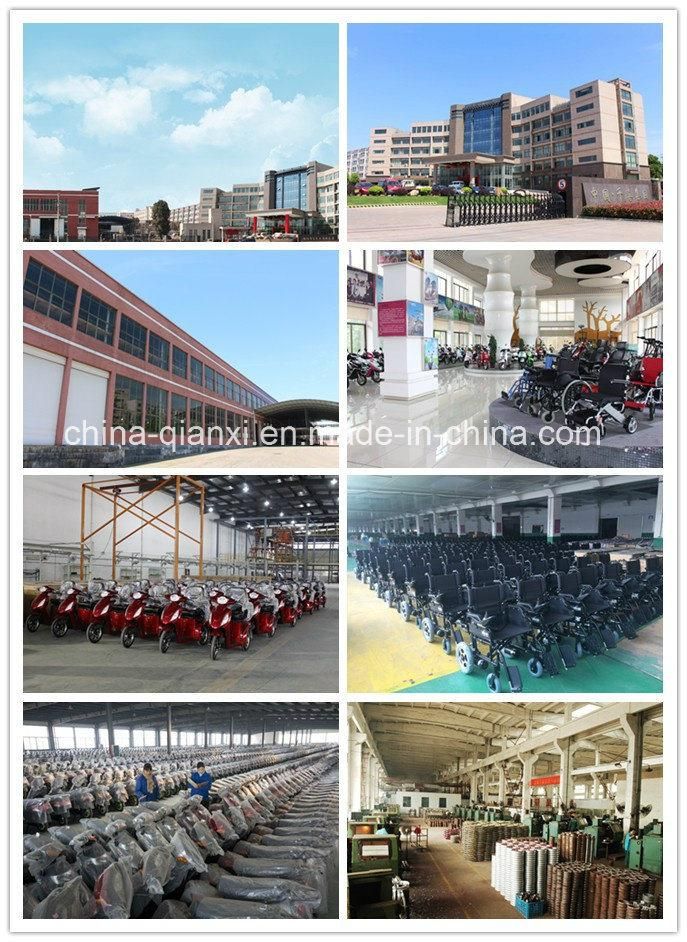

4.Our factory:
Lightweight Electric Power Wheelchair for The Handicapped

5.Certificate:
Factory:ISO9001:2008 standard
Products:All electric wheelchairs have been reviewed against the slef declaration requirements of conformity for ce marking according to annex 1 & 4 of the 93/42/eec medical device directive (including 2007/47/ec).
6.Our services:
1.For all your inquires about us or our products, we will reply you in detail within 24 hours.
2.We own passional sales & after- sale services who can speak fluent english language
3.We offer oem services.Can print your own logo on product , can customize the retail box packing and other things.
4.We have very experienced engineers and we help you better use our products.
