• Model NO.：D10
• Type：Electric Wheelchair
• Overall Size：940*650*975mm
• Fold Size：630*390*710 mm
• Lithium Battery：24V 6ah*2PCS
• HS：8713900000
• Motor：250W*2PCS
• Max Speed：6km,H
• Brake：Intelligent Electromagnetic Brake
• Climbing Slope：12
• Frame：Aluminum Alloy
• Loading Capacity：150kg
• Weight：25.6kg
• Trademark：JBH
• Origin：Anhui, Jiangsu, China
• HS Code：8713900000
• Production Capacity：4000 Pieces,Month

Basic Info.

Model NO. D10 Type Electric Wheelchair Overall Size 940*650*975mm Fold Size 630*390*710 mm Lithium Battery 24V 6ah*2PCS HS 8713900000 Motor 250W*2PCS Max Speed 6km/H Brake Intelligent Electromagnetic Brake Climbing Slope 12 Frame Aluminum Alloy Loading Capacity 150kg Weight 25.6kg Trademark JBH Origin Anhui, Jiangsu, China HS Code 8713900000 Production Capacity 4000 Pieces/Month

Product Description

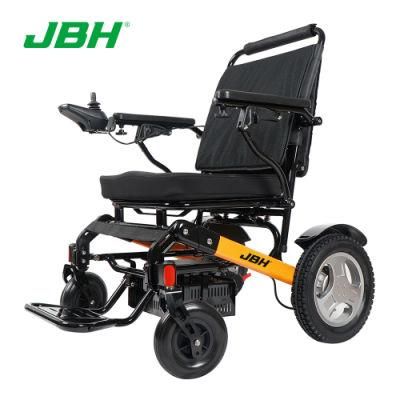

 D10 folding power electric wheelchair Key Features:

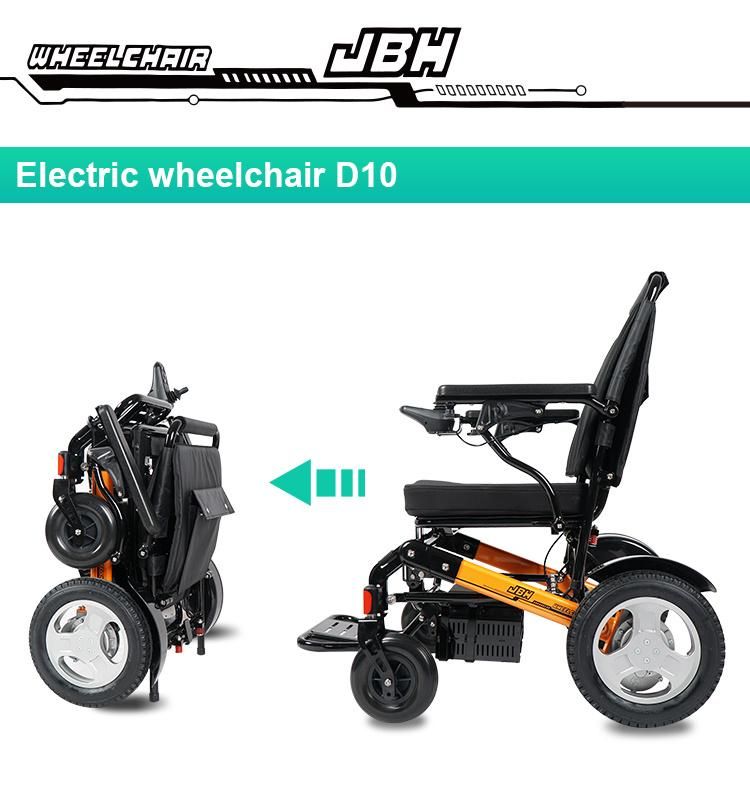

1. 5-seconds folding or unfolding, easy to carry as a luggage on plane or on train.
2. Very light weight, only 25.6kg.
3.Small volume after folding.
4. Frame material: magnesium alloy.
5. Certificates: CE;FDA;ISO9001; ISO13485.
6. High efficiency brushless hub motor

7.The warranty period of frame is 3 years; Motors, controller are 1 years. Battery is 6 months.

D10 light folding electric power wheelchair parameters:

Model	D10
Material	Aluminum alloy
unfold size	940*650*975mm
fold size	650*350*775mm
loading capacity	150kg
Motor	250W*2pcs brushless motors

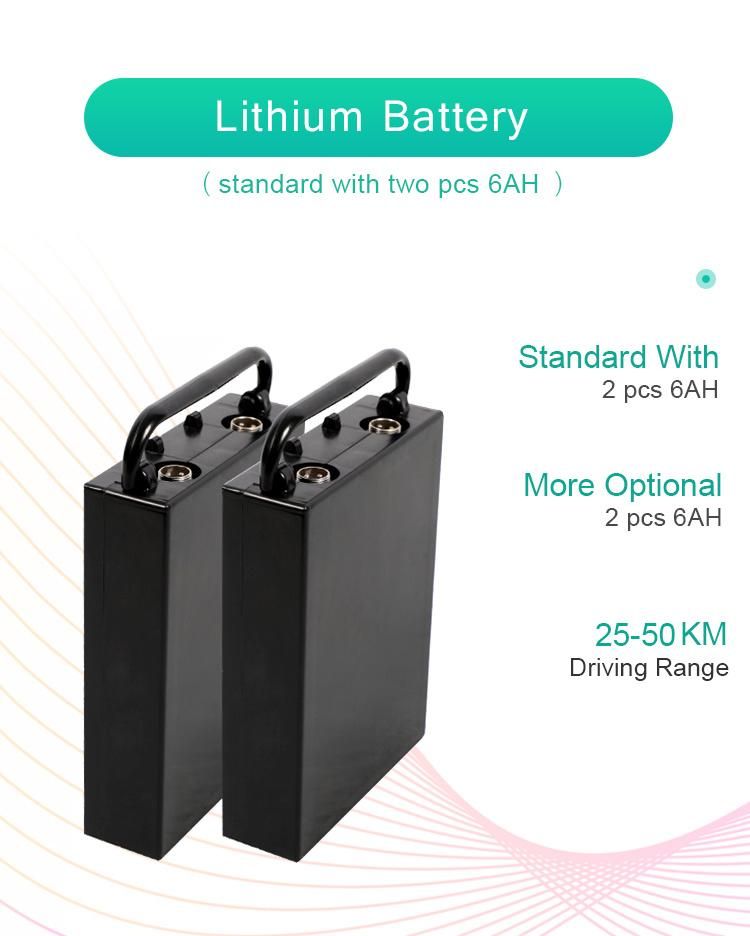

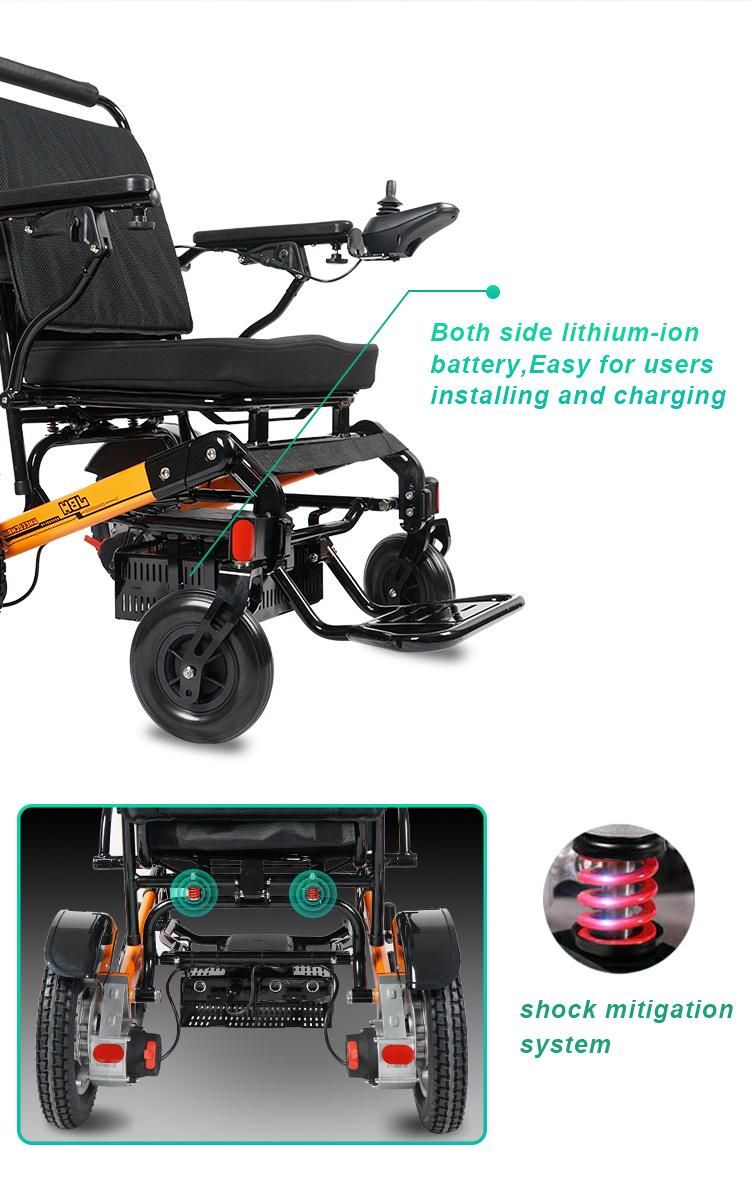

Battery	24V 6AH*2 pcs lithium battery   (battery opption, max can 24v 6AH*4 pcs)
max speed	6km/hour
Driving range	22KM
front tires	8"*1.25" PU solid tires
rear tires	12.5"*2.125" PU solid tires
climbing slope	max 8°
charging time	6-8 hours
width of armrest	510mm
seat width	435 mm
seat depth	430 mm
seat height	front 490mm/ back 470mm
turning radius	850mm

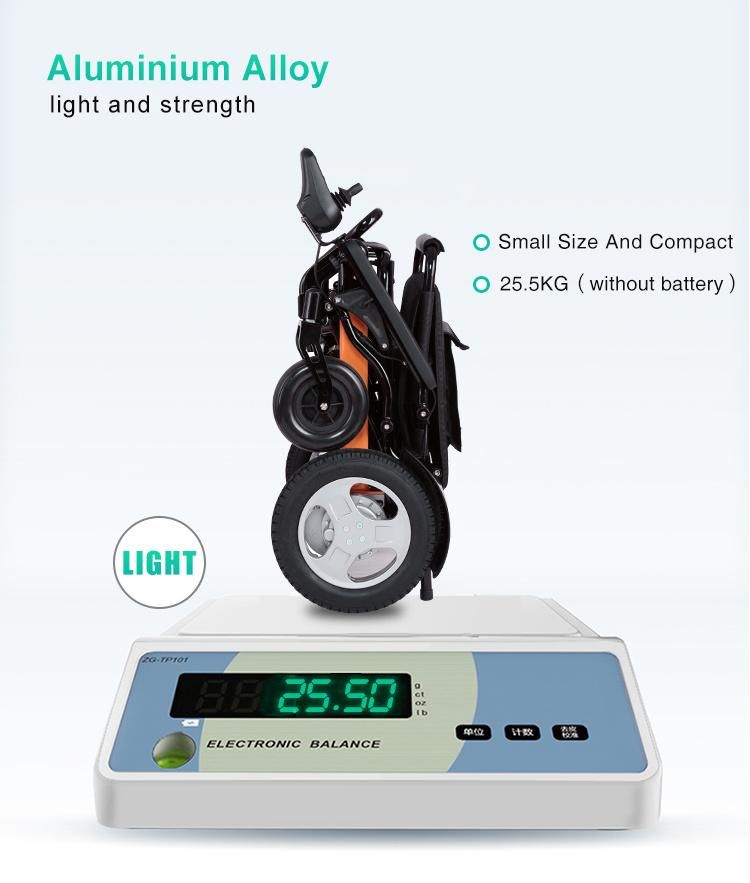

net weight without battery	25.6kg
net weight with two batteries	28.4kg
Drive model	rear drive

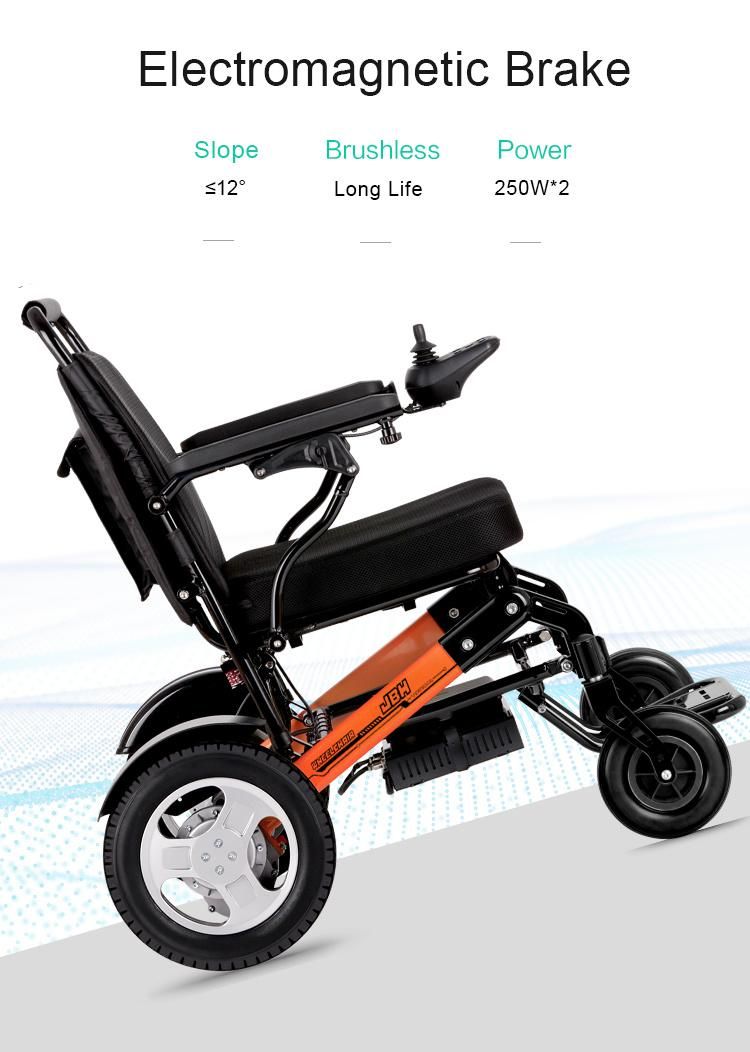

braking system	electromanetic brake
Factory Colour	yellow/orange/red
Package carton size	730*440*880mm

Package: one set D10 folding electric power wheelchair / carton with protected foams.

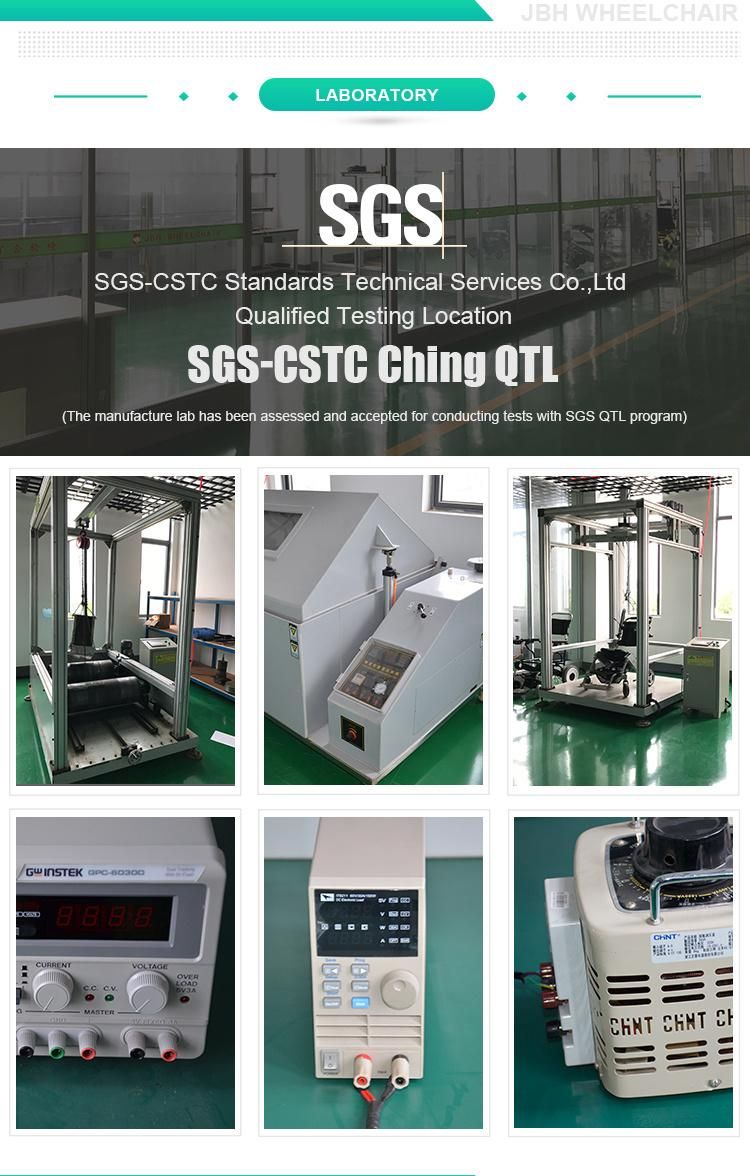

Certificates:SGS, CE, FDA, ISO13485.


Company information:
JBH Wheelchair is research and development, manufacturing and sales enterprise. Specialized in Portable power wheelchair, Portable electric scooter, knee walker, and electric standing wheelchair. Products passed through ISO 13485, FDA and CE standard. We provide OEM service, great quality. "JBH" as the registered trademark renowned for "Safe, Light and Portable" on the market. Products covers 20 Provinces in China and export to USA, UK, Canada, and Australia. JBH wheelchair gained wide range recognition and trust from our customers. We will continue providing high quality products and service.





Folding electric power wheelchair FAQ

Q1: Why Choose JIN BAI HE Products?
 We are one of the professional wheelchair factory here in China,
 Best production capability, Best quality control, Best Service,

 Q2: How is JIN BAI HE Products Quality?
 We only supply quality products, our manufacturing facilities have received the ISO, CE, recognition, and get FDA certificate for some products .
Every products will inspected to the standard before shipment, and every product has one year warranty period.

Q3:What is your MOQ(Minimum Order Quantity ?
  As a factory, our MOQ is one piece, it could be mixed the different models.

Q4: Payment and shipment
 We accept: T/T,Paypal, West Union.
 Delivery time: According the order.

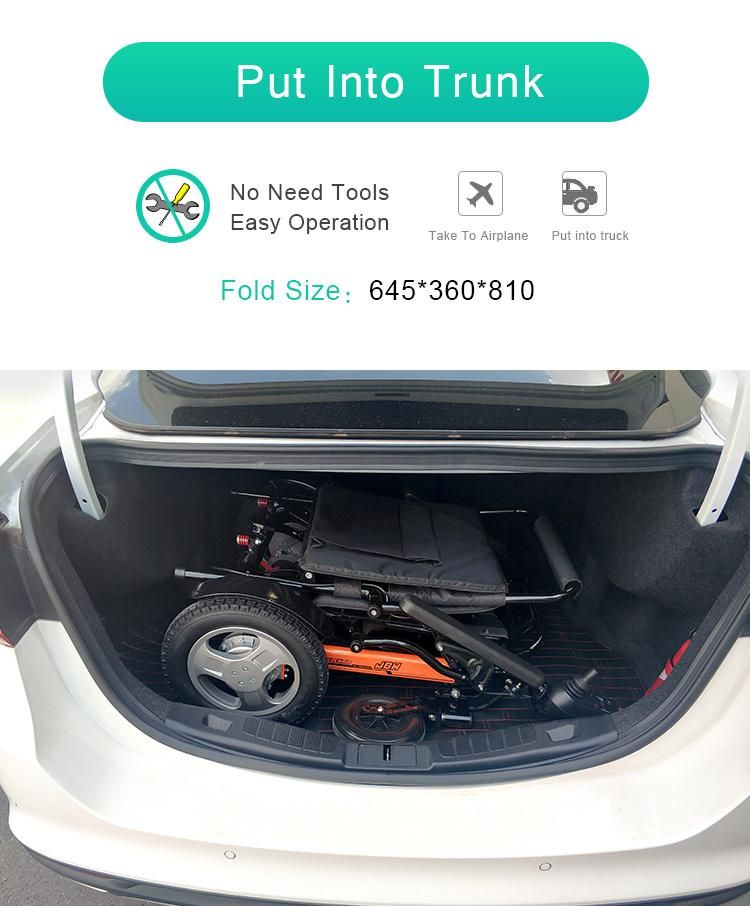

Q5: Is the wheelchair foldable and portable?
Yes. Our wheelchair can be easily disassembled and placed in the trunk of a vehicle.

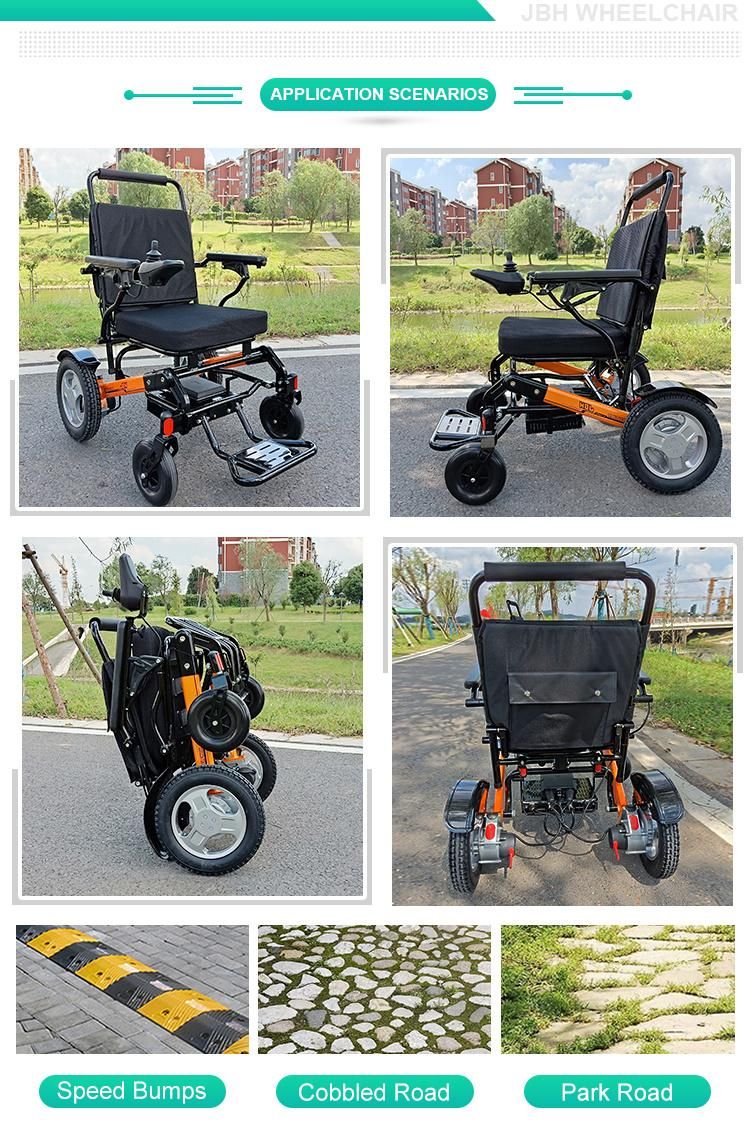

Q6: Is the wheelchair for indoor or outdoor use?
It was designed for both indoor and outdoor use.

Q7: Will you accept OEM orders?
Yes. We'd like to produce our customers' OEM/ODM orders.

Q8:Are you trading company or manufacturer?
We are professional manufacturer and have several years of wheelchairs experience in global market.

Q9,:What is the warranty period of the wheelchair?
The warranty period of frame is 3 years. Motors, controller is 1 year. Battery is 6 months.
