• Model NO.：D05
• Model No.：D05
• Unfolded Size：870 X 610 X 920mm
• Folded Size：610 X 260 X 770mm
• Battery：Lithium Battery (10ah,20ah, DC 24V)
• Motor：180W X 2 Brushless Motors
• Load Capacity：150kg
• Endurance：20-40km
• Max Speed：6km,H
• Color：Red, Blue, Pink, Black, Yellow, Silver
• N.W.：19kgs
• G.W.：21kgs
• Charging Time：6-8 Hours
• Controller：DC 24V,2A
• Tires：7",8"
• Transport Package：Standard Export Sea-Worthy Paper Carton
• Specification：0.27CBM
• Trademark：JBH
• Origin：Jiangsu, China
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. D05 Model No. D05 Unfolded Size 870 X 610 X 920mm Folded Size 610 X 260 X 770mm Battery Lithium Battery (10ah/20ah, DC 24V) Motor 180W X 2 Brushless Motors Load Capacity 150kg Endurance 20-40km Max Speed 6km/H Color Red, Blue, Pink, Black, Yellow, Silver N.W. 19kgs G.W. 21kgs Charging Time 6-8 Hours Controller DC 24V/2A Tires 7"/8" Transport Package Standard Export Sea-Worthy Paper Carton Specification 0.27CBM Trademark JBH Origin Jiangsu, China Production Capacity 1000 Sets/Month

Product Description

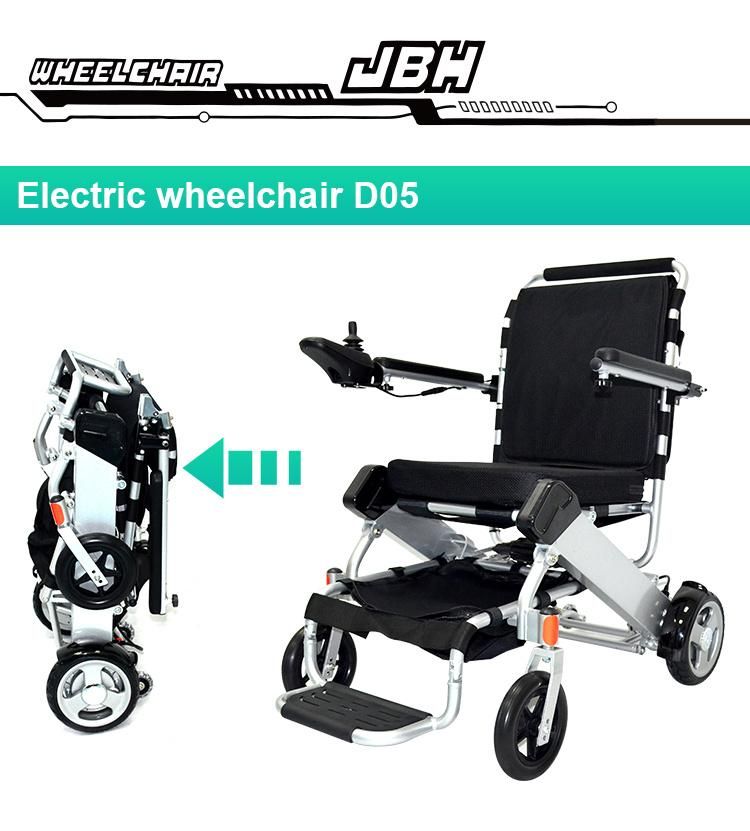

Portable folding electric wheelchair with speed controller for kids






Item No.	D05 Folding electric wheelchair
Unfolded dimension	870 x 610 x 910mm
Folded dimension	610 x 260 x 770mm
Motor	180W X 2 brushless motors

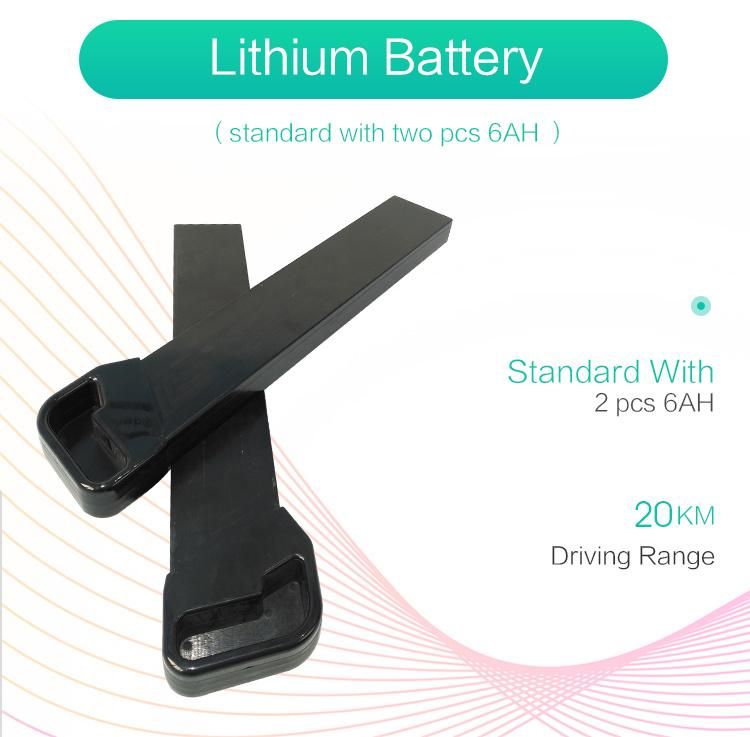

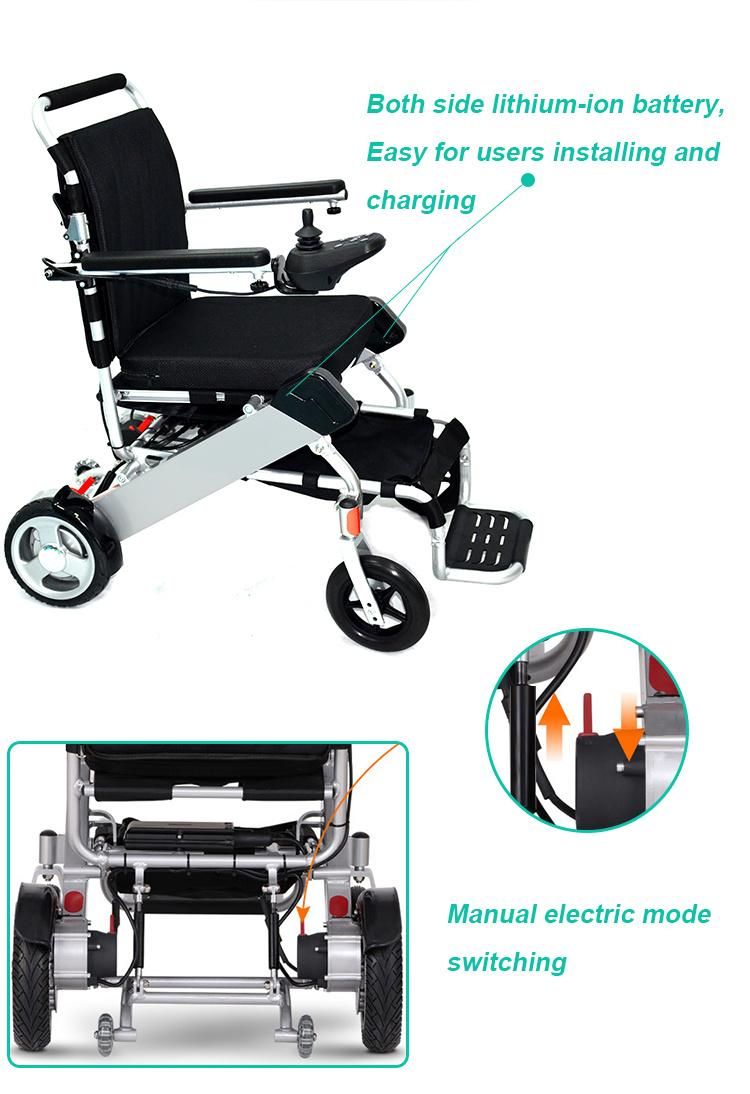

Battery	1pc lion battery 10AH DC 24V (can fit additional 10AH lion battery)

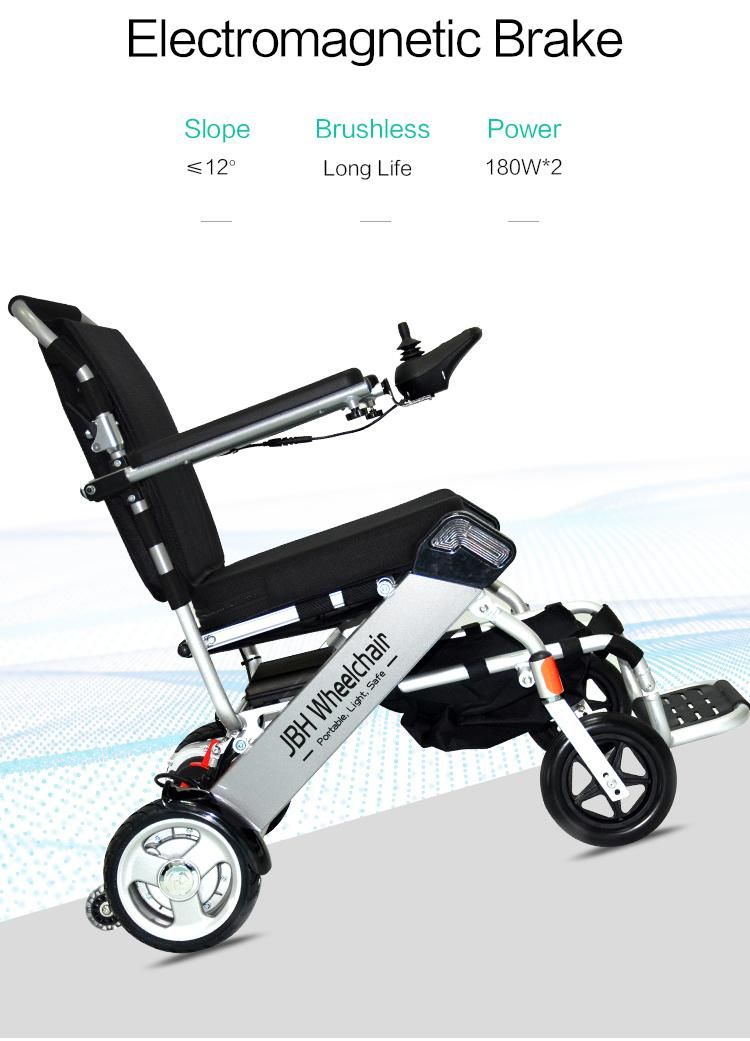

Braking system	Intelligent type electromagnetic brake
Charging time	5 hours
Max speed	6km/h
Driving range	20-40km
Turning radius	800mm
Loading capacity	150kg
Climbing slope	12°
Front tires	7"x2pcs
Rear tires	8"x2pcs
Anti-turned wheels	2.5"x2pcs
Seat depth	400mm
Seat width	400mm
Backrest height	360mm
Armrest height	220mm

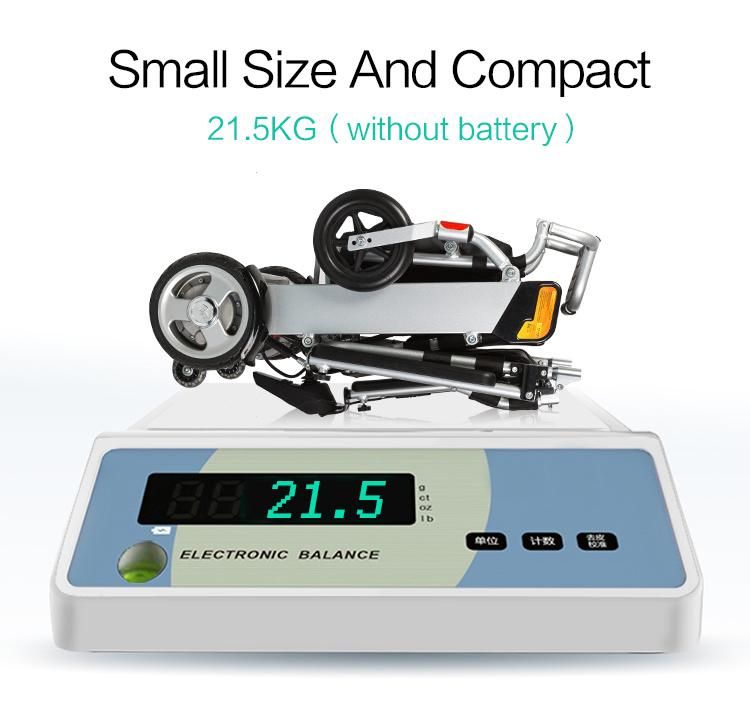

N.W.	21.5kg (with one battery)
Package	1 set/carton
Carton size	700x400x880mm
Color	Red, Blue, Pink, Black, Yellow, Silver

Key Features:

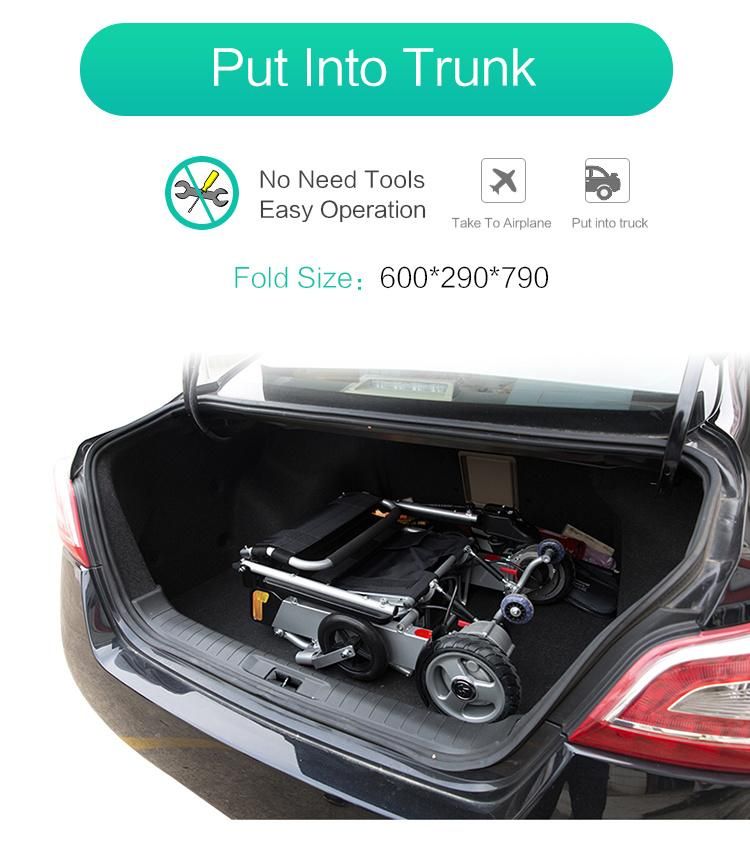

1. 5-seconds folding or unfolding, easy to carry as a luggage on plane or on train.
2. Very light weight, only 19kg (without battery).
3. Small volume after folding, only 0.12cbm. Cheap aluminum alloy foldable electric wheelchair for sale.
4. Frame material: aluminum alloy.

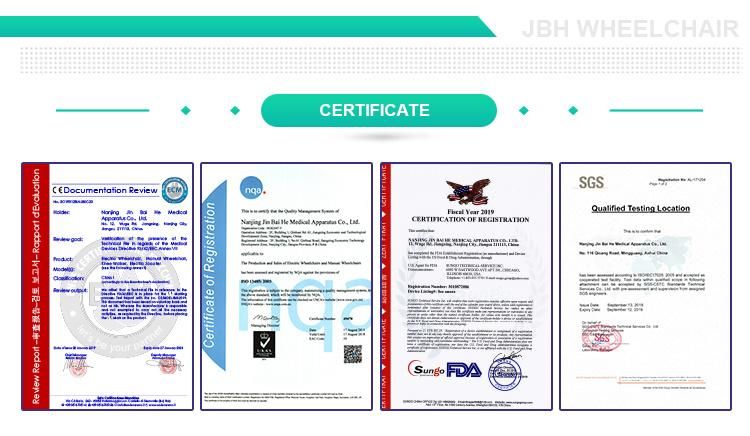

5. Certificates: CE; FDA; ISO9001; ISO13485.
6. High efficiency brushless hub motor.
7. The warranty period of frame is 3 years. Motor, battery, controller are 1 year.
