• Model NO.：WD02
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Product Name：Folding Electric Climbing Stairs Wheelchair
• Electric Wheelchair Unfold Size：(80~110)*50*(110~160)Cm
• Electric Wheelchair Fold Size：115*50*27cm
• Motor：24V 200W
• Lithium Battery：24V,13ah*1PC
• Chair Loading：160kg
• Speed：About 45 Steps,Minute
• Seat Width：55cm
• Using Time of Full Power：2 Hours
• Transport Package：One Electric Climbing Stairs Wheelchair Per Box
• Specification：electric climbing stairs wheelchair strench
• Trademark：AISHUN
• Origin：Nanjing, Jiangsu, China
• HS Code：9402900000
• Production Capacity：2000 PCS,Month

Basic Info.

Model NO. WD02 Material Aluminium Alloy Type Electric Wheelchair Product Name Folding Electric Climbing Stairs Wheelchair Electric Wheelchair Unfold Size (80~110)*50*(110~160)Cm Electric Wheelchair Fold Size 115*50*27cm Motor 24V 200W Lithium Battery 24V/13ah*1PC Chair Loading 160kg Speed About 45 Steps/Minute Seat Width 55cm Using Time of Full Power 2 Hours Transport Package One Electric Climbing Stairs Wheelchair Per Box Specification electric climbing stairs wheelchair strench Trademark AISHUN Origin Nanjing, Jiangsu, China HS Code 9402900000 Production Capacity 2000 PCS/Month

Product Description

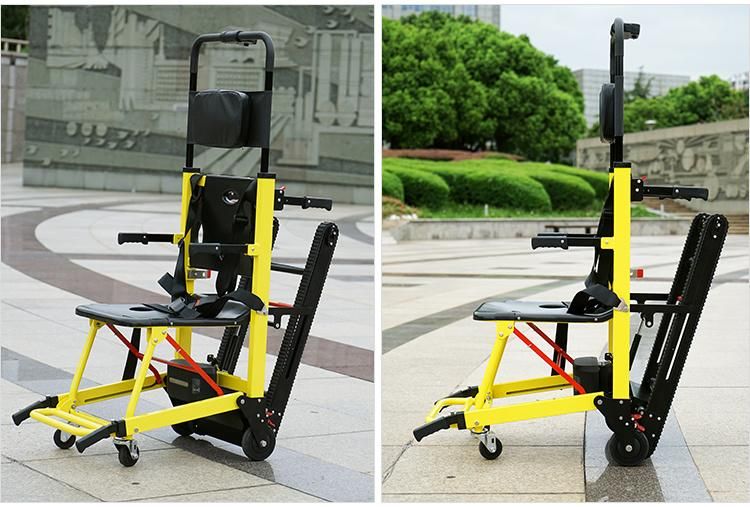

160kg loading folding electric manual stair climbing wheelchair


WD02  Folding Electric Stair Climbing Wheelchair Specification:
1) 24V, 200W brushless motor,three speeds adjustable ,with cover, power system with soft start protection , make battery using time longer , motor and battery service life also longer

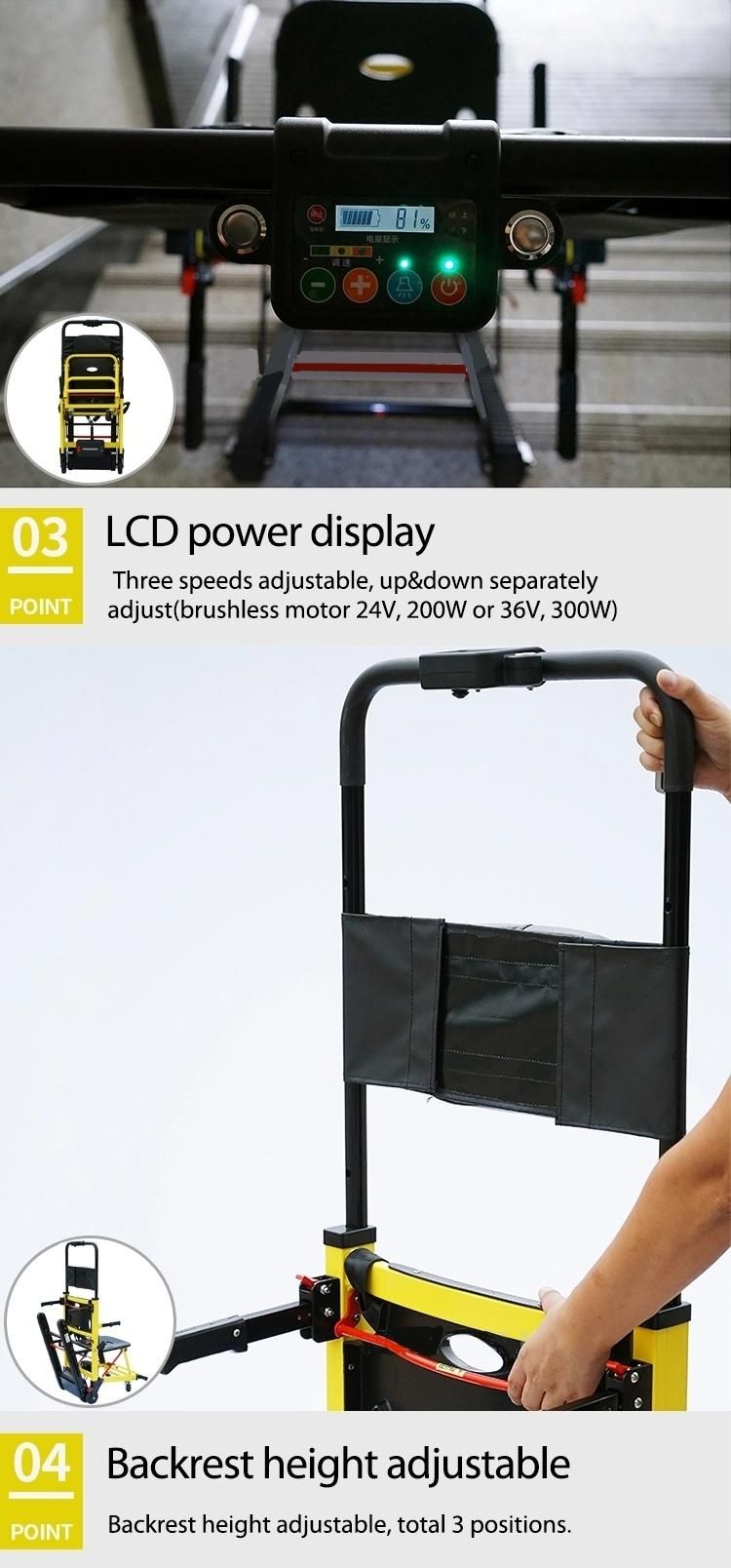

2) With LED light, LCD power display
3) Easy operating, it can climb up and down stairs smoothly and steadily by track.
4) It won't glide or fall down when stop on the stairs, very safe and reliable.
5) Circuit is inside the pipe, waterproof, long life time, motor is no noise during operating.
6) The installation position of the battery is in accordance with international standards, not close to the body, make users feel more comfortable. Detachable battery
7) With 4 wear-resistant rubber wheels, the chair can use as a wheelchair on the ground.
8) The chair is equipped with vest type ,metal buckle straps, to ensure the safety during transport.

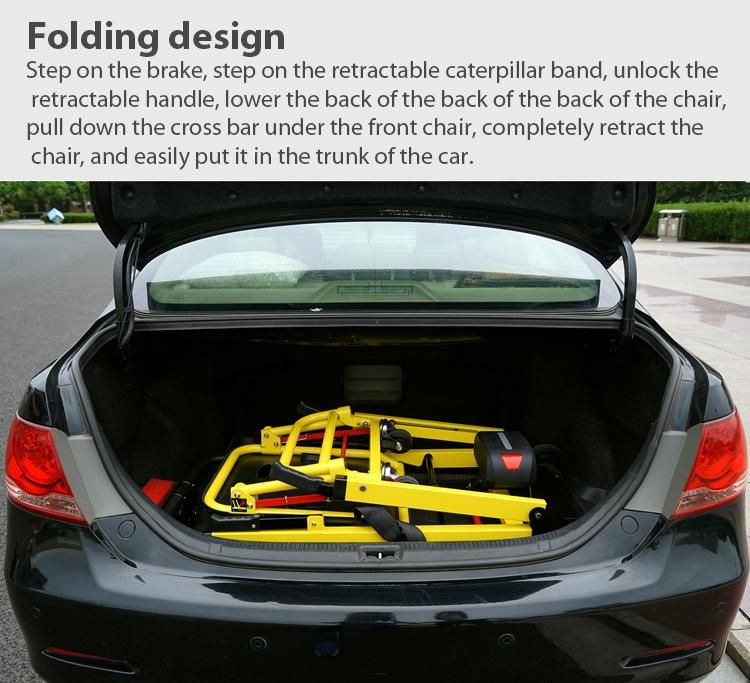

9) Made of aluminum alloy, foldable, compact and lightweight.
10) The electric stair chair is widely used in the home for the old people, school security, hospitals, hotels etc for emergency evacuation.
Accessories: vest belt, lithium battery, wrench set, spongy cushion
Optional: Dust cover, Wall bracket

160kg loading folding electric manual stair climbing wheelchair Parameter:

Product name	Folding electric stair climbing wheelchair
Model	WD02
Unfold size	(80~110)*50*(110~160)cm
Fold size	115*50*27cm
Chair net weight	30kg
Loding capacity	160kg
Using time of full power	2 hours, up and down five floors (24 steps per floor) for 15 times
Repeated charge times	500 times
Battery life	3~5 years
Lithium Battery	24V/13A
Motor	200W/24V
Front tires/back rears	3"/5"
Speed	About 45 steps/Minute
Backrest width	50cm
Seat width	550mm
Gross weight	45kg
Package	1 chair/wood case
Case size	116*55*30cm
Accessories	vest-style seat belt, tighten screw wrench suit,  cushion

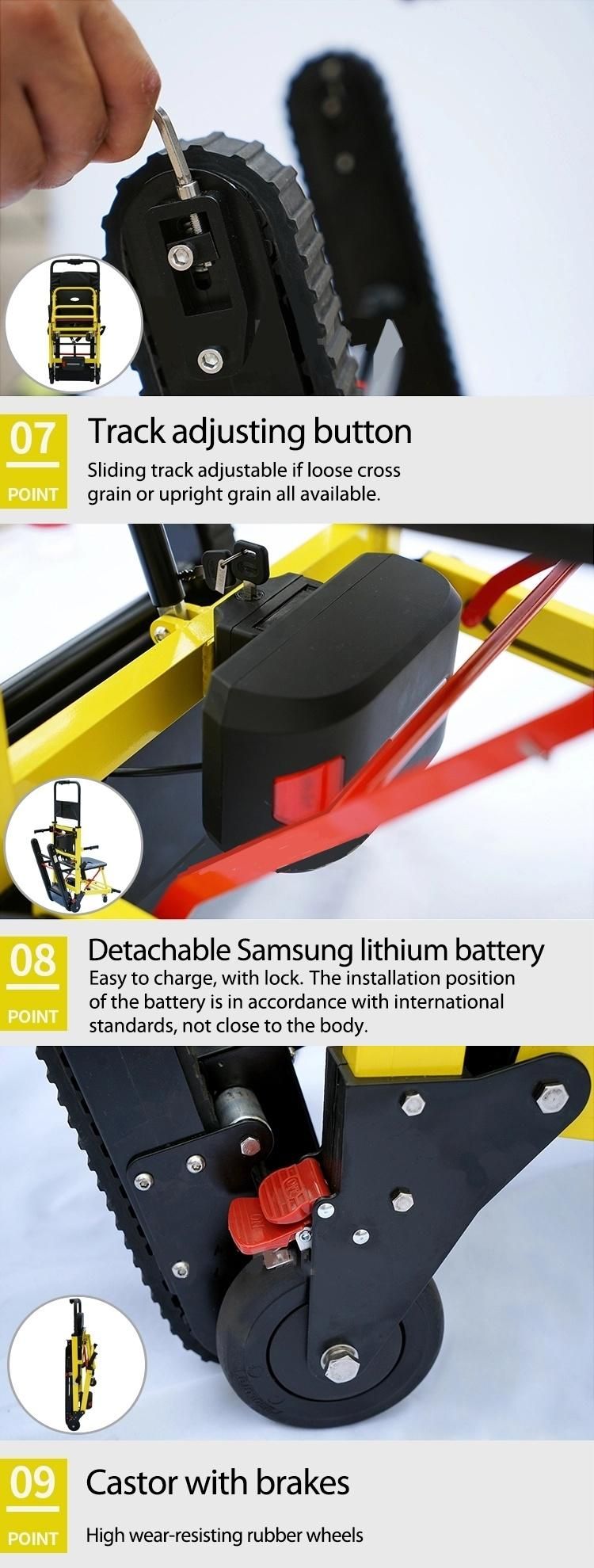

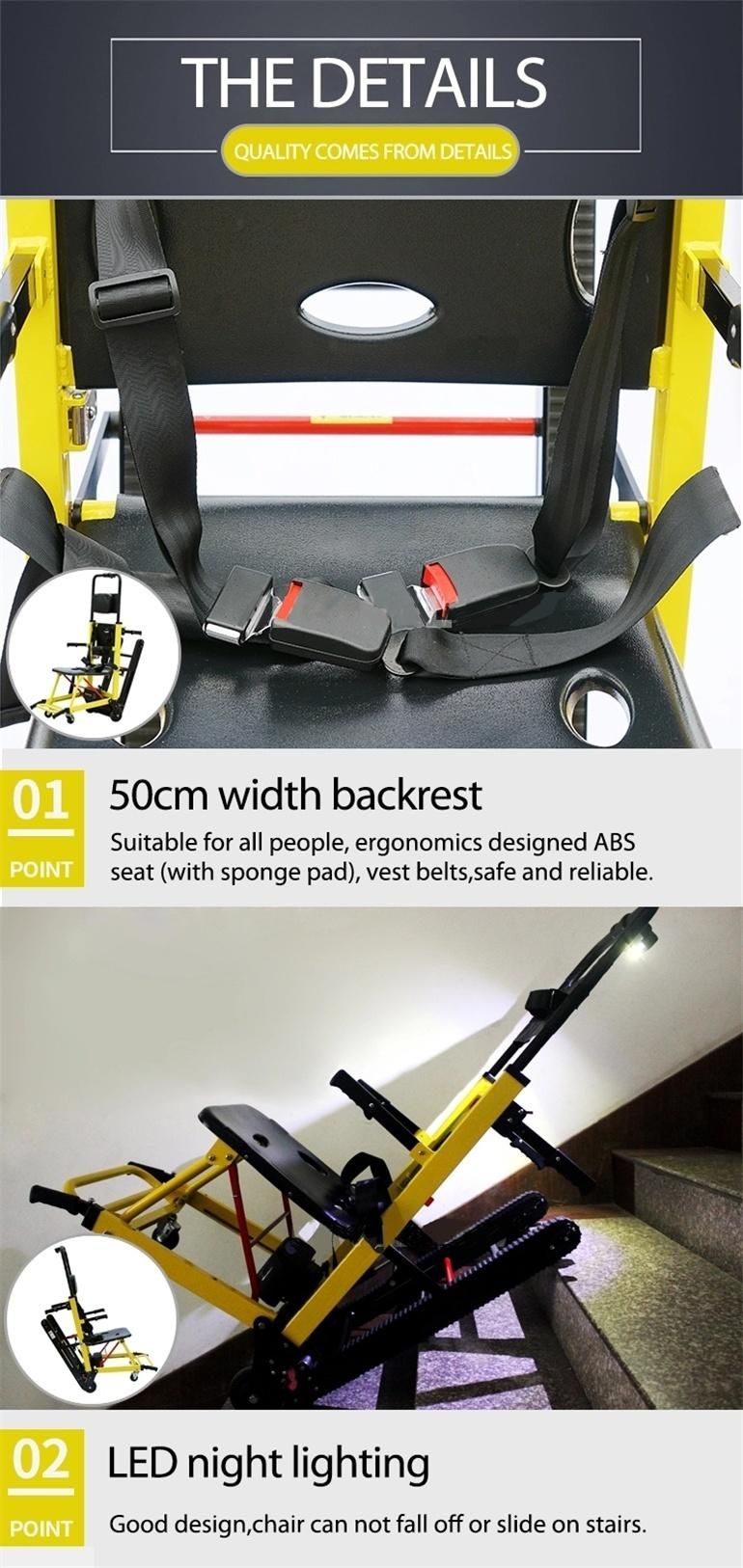

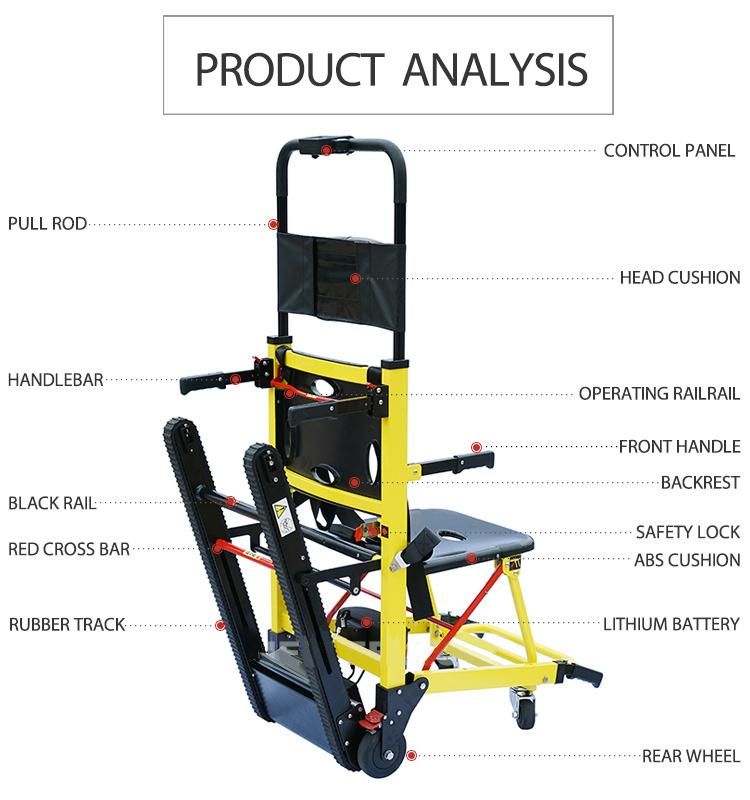

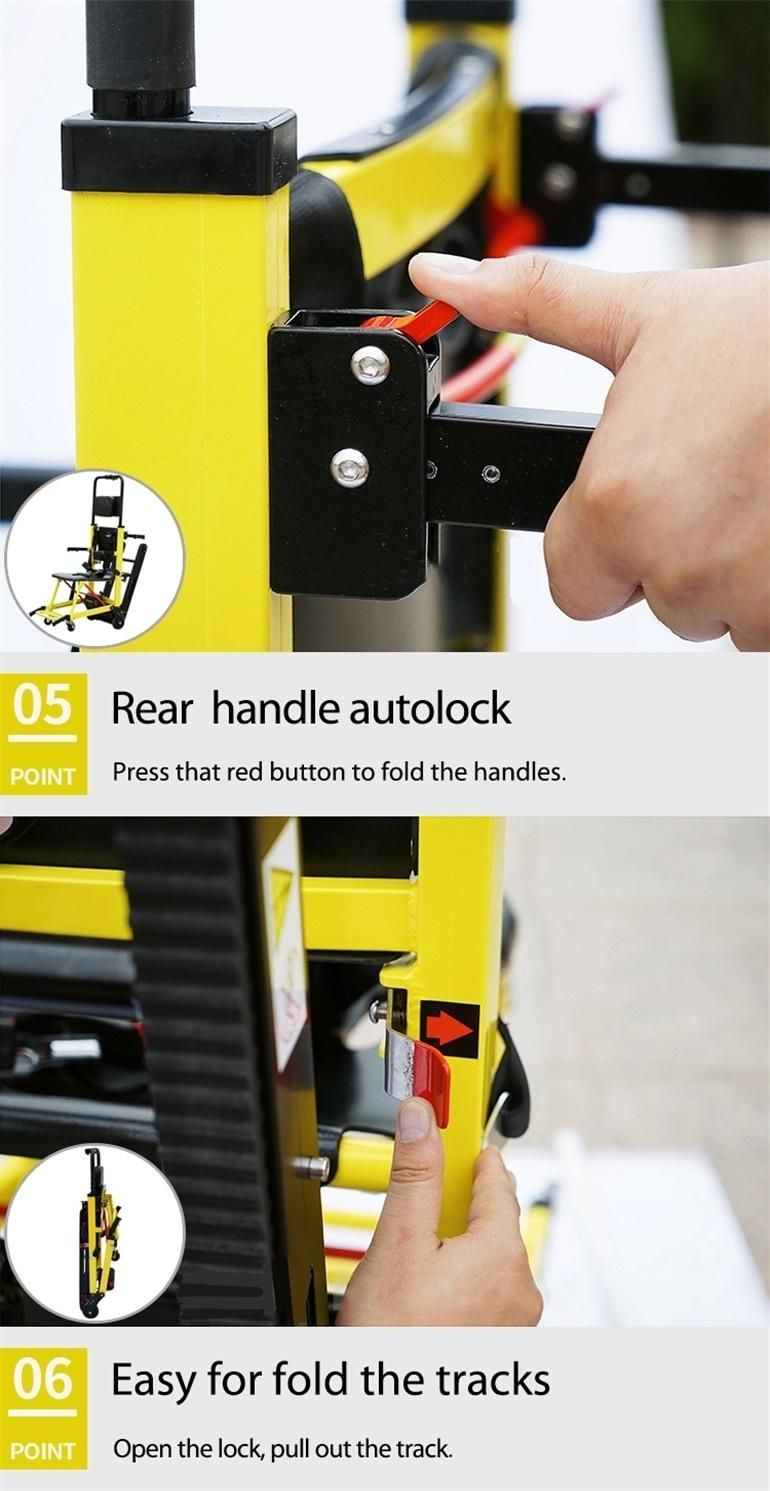

160kg loading folding electric manual stair climbing wheelchair Details

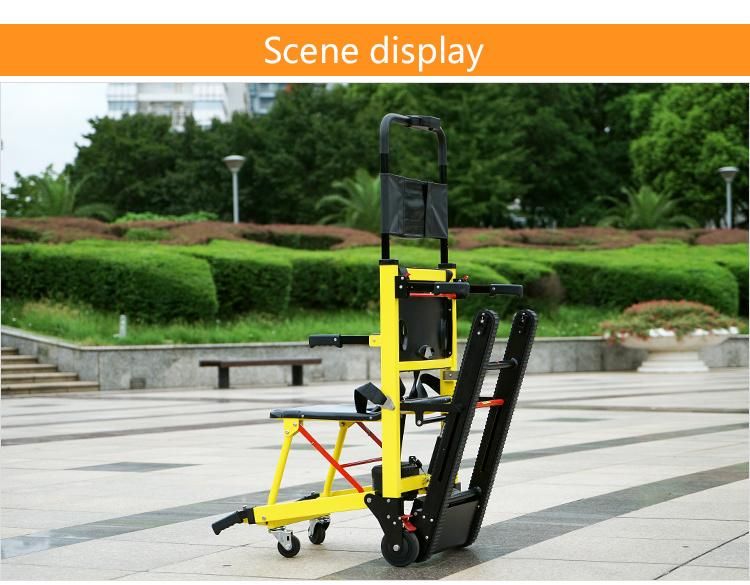

160kg loading folding electric manual stair climbing wheelchair Scene

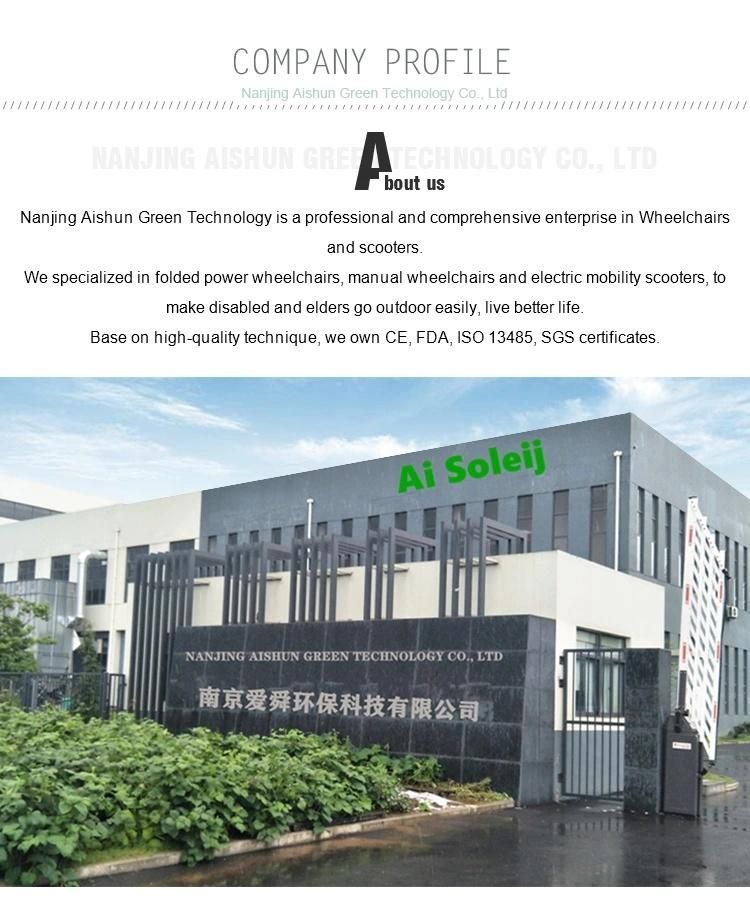

Company Information:

Nanjing Aishun Tech. is a professional and comprehensive enterprise in Wheelchairs and Mobility scooters.
We specialized in folded power wheelchairs and scooters, to make disabled and elders go outdoor easily, live better life.
Base on high-quality technique, we own CE, FDA, ISO 13485, SGS certificates.

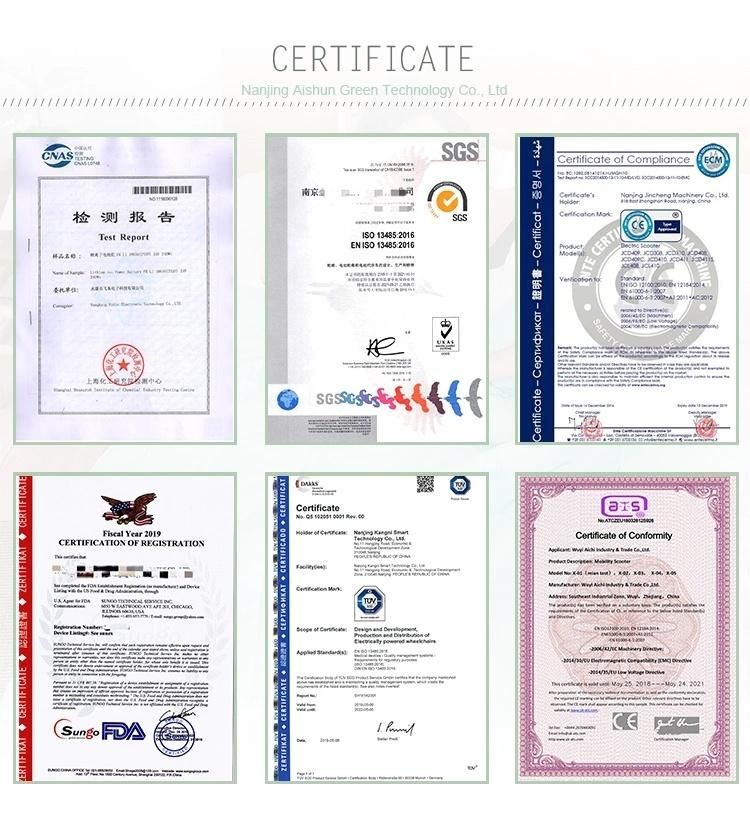

Certificates:
CE, FDA,ISO 9001,SGS.



FAQ
.Q1: Why Choose Aishun Green Tech. Products?
 We are one of the professional wheelchair and scooters factory here in China,
 Best production capability ,Best quality control, Best Service,

Q2:What is your MOQ(Minimum Order Quantity )?
 As a factory, our MOQ is a 20 GP container, it could be mixed the different model.

Q3: Payment and shipment
We accept: L/C, T/T, Paypal.
Delivery time: Within 20 Work days upon the order confirmed.

Q4:Warranty:
Chair frame is 3 years; motor, battery and controller are one year.
