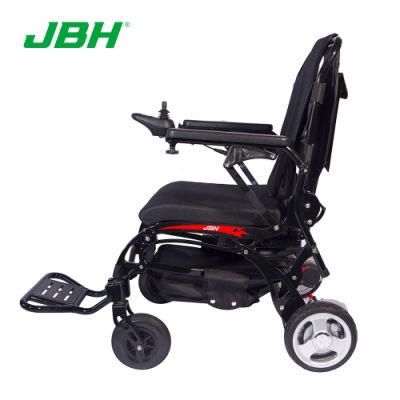

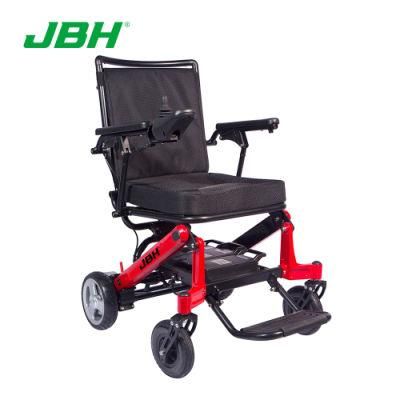

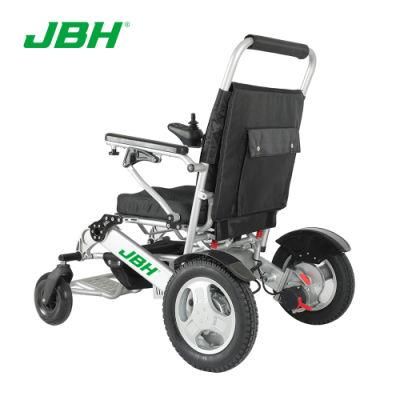

CE FDA Approved Jbh D10 Electric Power Wheelchair / Handicapped Wheelchair

Nanjing Jin Bai He Medical Apparatus Co., Ltd.
  • Customized：Customized
  • Certification：ISO, CE, FDA
  • Condition：New
  • Tilted：Tilted
  • Folded：Folding
  • Leg Rest Type：Across Both Sides

Base Info

  • Model NO.：D10

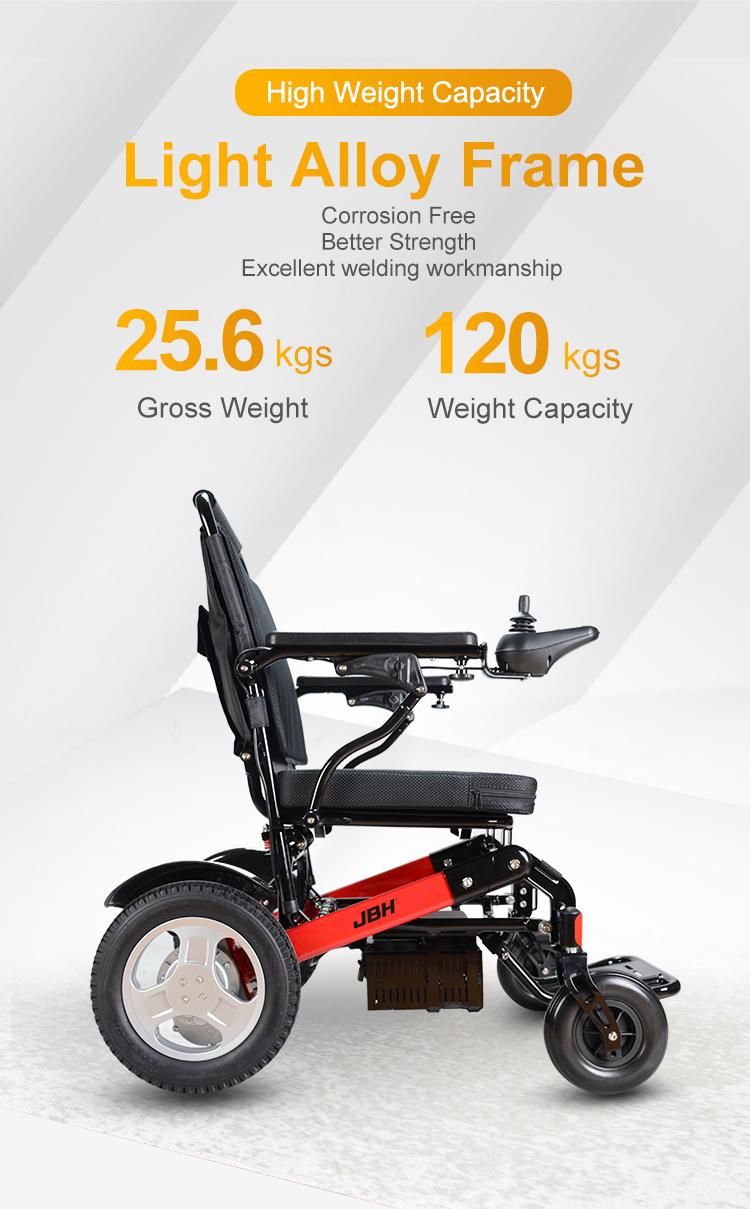

  • Material：Aluminium Alloy
  • Type：Electric Wheelchair
  • Model No.：D10
  • Unfolded Size：950X645X1040mm
  • Folded Size：645*360*810mm

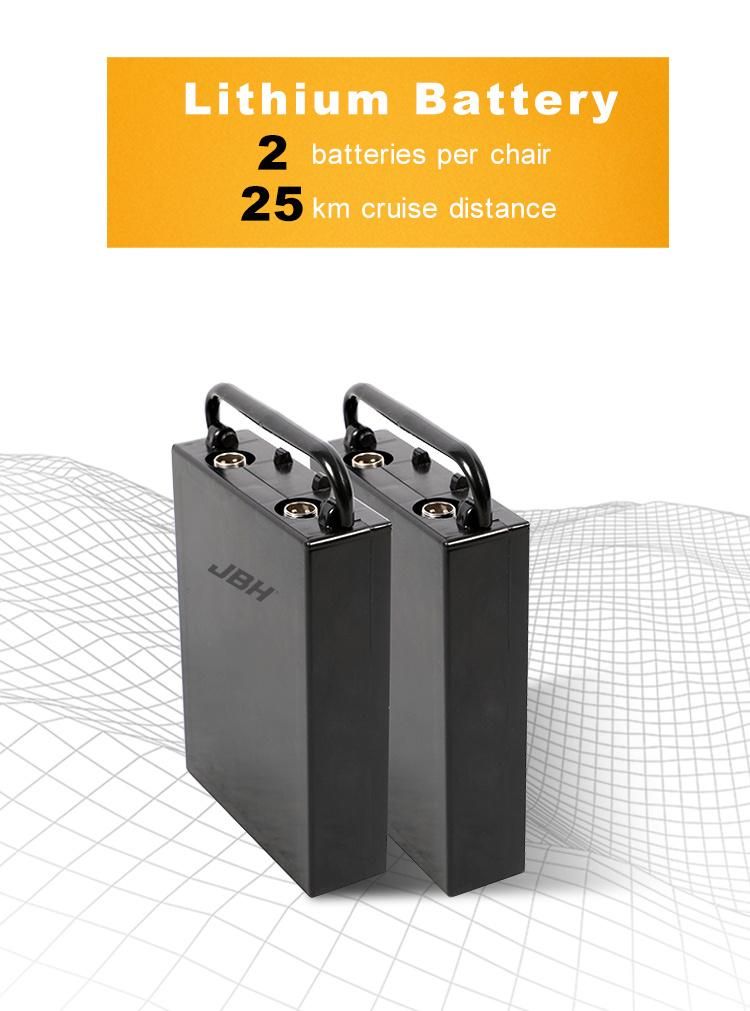

  • Battery：Lithium Battery (6ah*2 PCS, DC 24V)

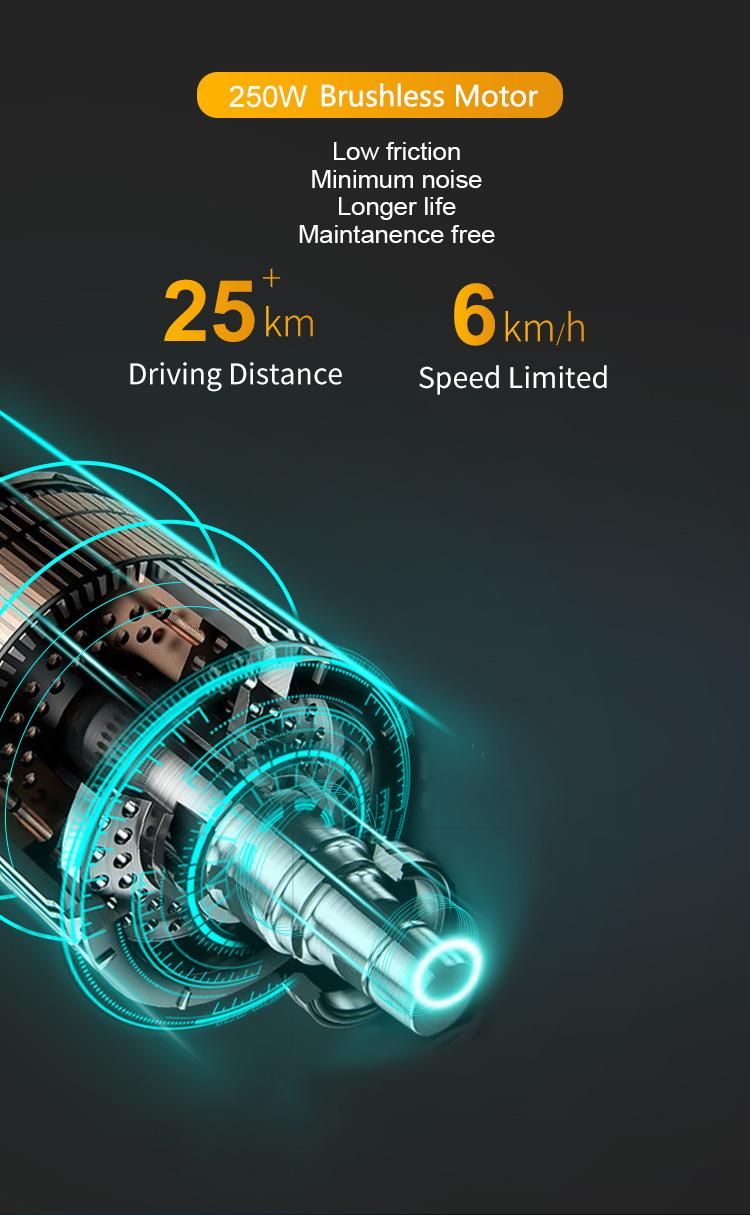

  • Motor：250W * 2 Brushless Motors
  • Load Capacity：120kg
  • Endurance：25km
  • Max Speed：6km,H
  • N.W(Without Battery)：25.6 Kg
  • G.W(with Package)：28.4 Kg
  • Charger：24V,2A
  • Brake：Intelligent Electromagnetic Brake
  • Climbing Slope：8°
  • Color：Silver, Black
  • Tire：PU Solid Tire
  • Transport Package：Standard Export Sea-Worthy Paper Carton
  • Specification：loading capacity 120kg
  • Trademark：JBH
  • Origin：Jiangsu, China
  • HS Code：8713900000
  • Production Capacity：4000 Sets,Month

Description

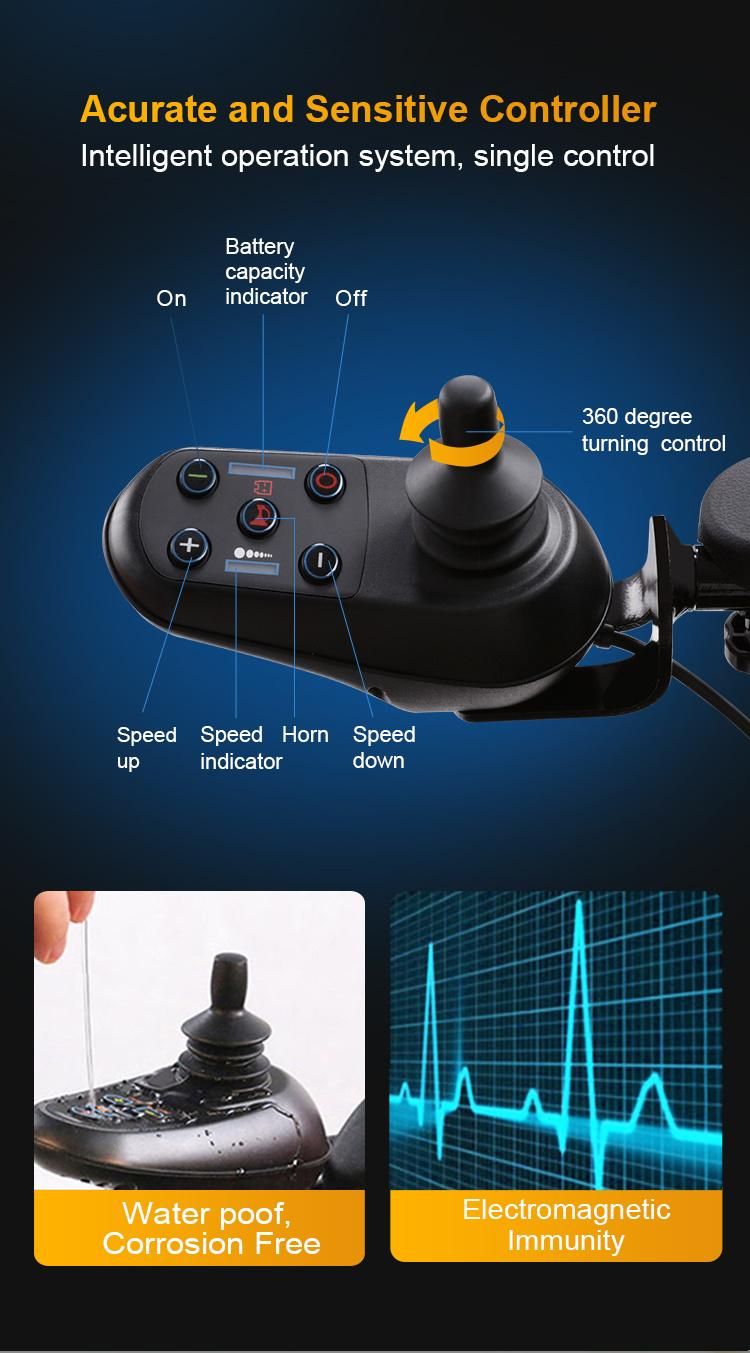

MaterialAluminum AlloyUnfolded Dim(LxWxH)Folded Dim(LxWxH)N.W. (Without battery)25.6KGN.W. (With battery)28.4KGMax Speed6km/hFront Tires8" x 1.75" PU solidRear Tires12.5" x 2.25" PU solidArmrests Distance520mmmore suitable for big size peopleRear Seat height480mmFront Seat Height500mmmore comfortable for big size peopleSeat Width420mmSeat Depth400mmPedal High From Ground140mmPacking Carton(LxWxH)750x450x880mmDriving Range25KMLoading Capacity120KGMotor250Wx2pcs blushless motorsControllerDC 24V 2A,100~220VAC,50~60HzLithiun Battery24V 6AHx2/4 pcsClimbing SlopeMax 8°Charging Time6 to 8 hrDrive ModeRear DriveBraking SystemElectromagnetic BrakeWarranty3 months for cushion and tires, 6 months for charger,
1 year for motor, battery and controller, 3 years for frame

CE FDA Approved Jbh D10 Electric Power Wheelchair / Handicapped WheelchairCE FDA Approved Jbh D10 Electric Power Wheelchair / Handicapped WheelchairCE FDA Approved Jbh D10 Electric Power Wheelchair / Handicapped WheelchairCE FDA Approved Jbh D10 Electric Power Wheelchair / Handicapped WheelchairCE FDA Approved Jbh D10 Electric Power Wheelchair / Handicapped WheelchairCE FDA Approved Jbh D10 Electric Power Wheelchair / Handicapped Wheelchair
CE FDA Approved Jbh D10 Electric Power Wheelchair / Handicapped WheelchairCE FDA Approved Jbh D10 Electric Power Wheelchair / Handicapped WheelchairCE FDA Approved Jbh D10 Electric Power Wheelchair / Handicapped Wheelchair

lithium battery & charger1 year warrantybrushless motor1 year warrantycontroller1 year warrantyAluminum alloy frame2 year warranty

Q: The way your factory cooperates
A: We warmly welcome distributors and end users

For distributors, we provide LOW MOQ ,best price ,privite lable ,drop shipping etc .

For end users, the price will not be lower than the dealer's , however ,group purchase discount .
