• Model NO.：D03
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Unfold Size：940X630X950 mm
• Fold Size：640X320X750 mm
• Max Load Capacity：120kg

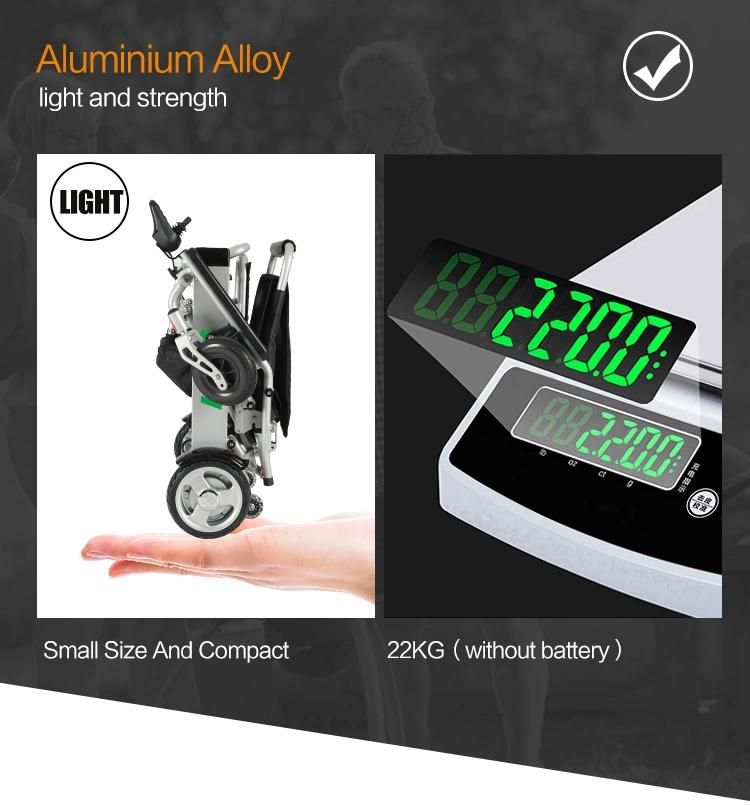

• N.W(Without Battery)：21 Kg
• N.W(with Battery)：24 Kg
• G.W(with Package)：29 Kg
• Front Wheel：7X 1.25 Solid PU Tire
• Rear Wheel：8X1.95 Solid PU Tire
• Driving Distance：25 Km
• Max Speed：6 Km,H
• Charger：24V,2A
• Battery Rated Voltage/Capacity：6 Ah
• Colors：Silver

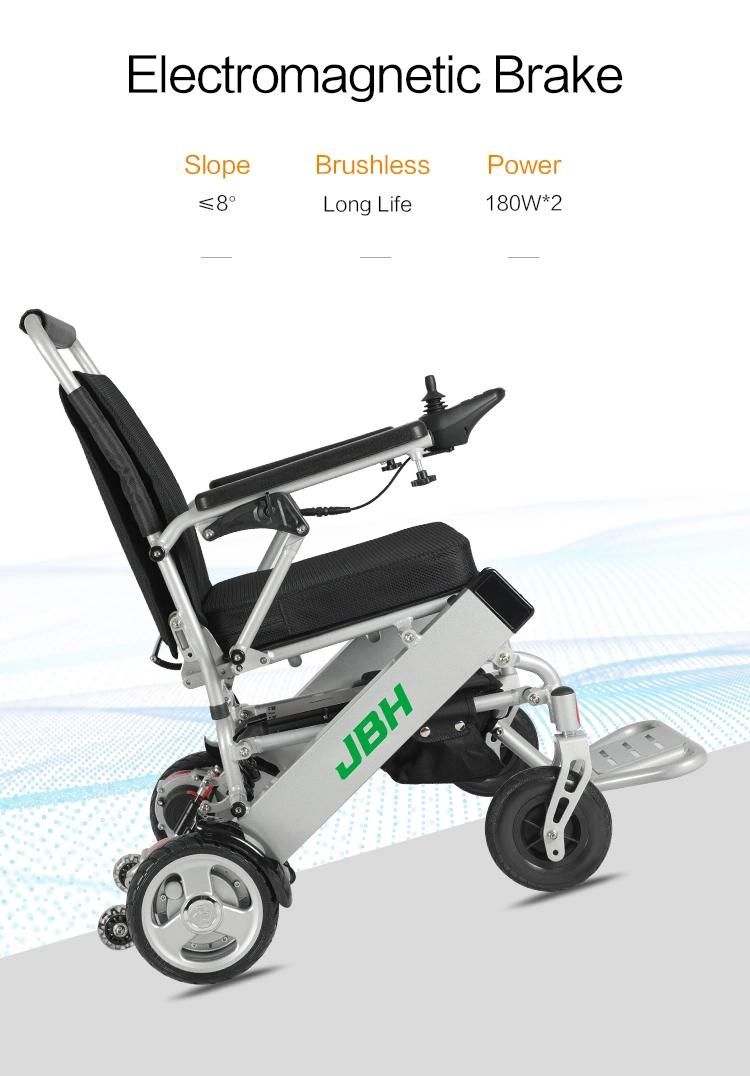

• Brake System：Electromagnetic Brake
• Motor：24V,180W Brushless
• Transport Package：7-Layer Carton
• Specification：heavy duty power wheelchair
• Trademark：JBH
• Origin：Nanjing China
• HS Code：8713900000
• Production Capacity：4000PCS,Month

Overview Product Parameters



SpecificationUnfolded Dim(LxWxH)37x24.8x37.4inch940×630×950mmFolded Dim(LxWxH)25x12.6x30inch640×320×750mmWidth of Armrests19''490mmSeat Width15.7'' 400mmSeat Depth15.7'400mmSeat Height19.7''500mmPacking Carton(LxWxH)29x16.5x34.2inch740x420x870mmWeightN.W. (Without Battery)46.2lbs21kg N.W. (With 1 battery)50.6lbs23kgN.W. (With 2 batteries)55lbs24kgG.W. (with 1 battery)61.6lbs28kgG.W. (with 2 batteries)66lbs31kgPerformanceMax Speed3.75mph 6km/hourLoading Capacity264lbs120kgClimbing SlopeMax 8°MotorTypeDC Brushless motorMotor180W×2pc (360W)BatteryTypeLithium BatteryVoltage24VCurrent24V 10AHx1 or 2pcsPower144WHRange (1 battery)12.4miles20KMRanger (2 batteries) 24.8miles40KMWeight3.3lbs1.5kg/pc Intput Voltage100~240VAC 50/60HzChargerOutput Voltage24VCharging Time6HourTiresFront Tires7" PU solid tiresRear Tires8" PU solid tiresBrake SystemBrakeElectromagnetic BrakeOthersMaterialAluminum AlloyDrive ModeRear DriveColorSilver, Black, Blue, Yellow, Red & PinkContainerone 20FCL=98pcs, one 40HQ=250pcsWarranty

12 months for motor, battery and controller

36 months for frame
