• Model NO.：DYN30A , D07
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Battery：Lithium Battery
• Motor：150W*2
• Motor Type：Blushless
• Nw：Frame 18.5 Kg
• Transport Package：CTN
• Specification：65*55*76cm
• Trademark：METTER2
• Origin：China
• HS Code：87139000
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. DYN30A / D07 Material Aluminium Alloy Type Electric Wheelchair Battery Lithium Battery Motor 150W*2 Motor Type Blushless Nw Frame 18.5 Kg Transport Package CTN Specification 65*55*76cm Trademark METTER2 Origin China HS Code 87139000 Production Capacity 1000PCS/Month

Product Description

 Electric Wheelchair(Model Number: DYN30A/D07)

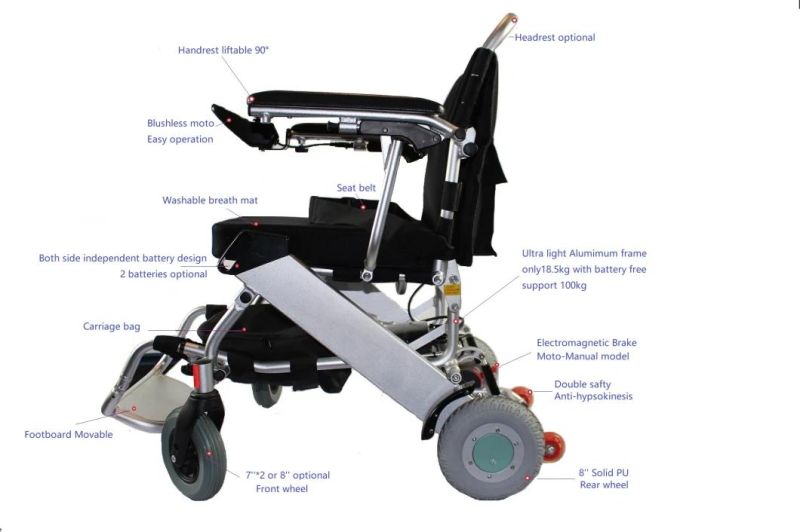

Our  Advantages:
  •  It can be put into trunk easily for its foldable lightweight aluminum alloy frame.
  • The foot pedal can be flipped up.
  • The Armrest can be liftable.
  • Aluminum frame enables the wheelchair ultra-lightweight, only weighs 18.5kg.
  • Patent anti-back incline setting, which is super safty.
  • Intelligentel ectromagnetic brake keeps users safe.

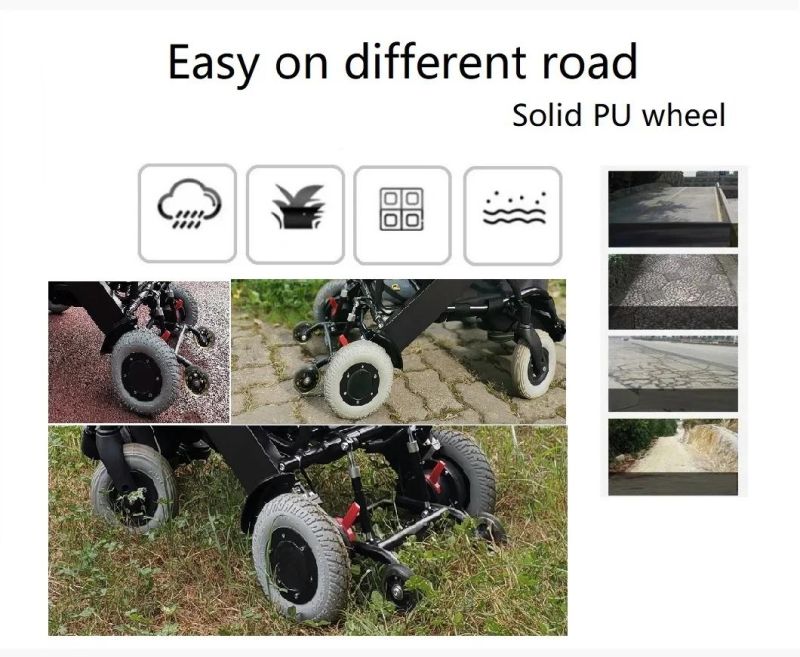

  • Solid PU wheel, different road applicative.
  • Color: silver, black, red, pink and blue.
  • Logo custom made( Laser marking or printing)



General information
Model Number: DYN30A/D07	Type: Electric Wheelchair
Net weight/battery free: frame 18.5kg/40.7lb,	Distance: 15km/9.3mi
Net weight/with battery: 20kg/44lb(battery 1.5kg/3.3lb)	Battery Capacity: 24V8AH,2 batteries optional,
Frame Weight with Motors Removed: 11.5kg/25.4lb,	Charge Time: 5h-6h,
Each Motor Weight: 3.5kg/7.7lb,	Maximum Speed 6km/h,
Unfolded(LxWxH) size: 87.5x57x87.5cm,	Min turning radius: 782mm,

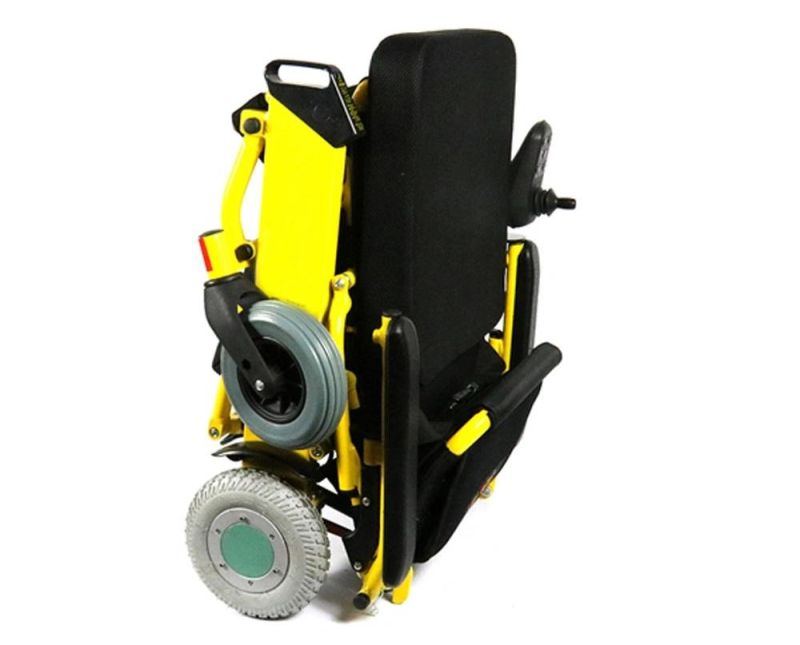

Folded size: 57x29x69cm,	Gradeability: 10 degree,
Seat mat size: 40*44*6cm,	Drive mode: Rear-wheel Drive,
Material: Aluminum alloy,	Front Wheels: 7Inches*2  PU Tyre                        or  8Inches*2 Pneumatic tyres
Load Capacity 100kg/220lb,	Real Wheels: 8Inches*2,
Brake Mode: Electromagnetic Brake,	Rear Wheel Material: Solid PU wheel,
Motor: Brushless Motor,	Anti-back incline: Yes with patent,
Motor Power:150W*2,	Armrest: liftable,
Battery Type: Lithium Battery,	Seat belt: Yes,

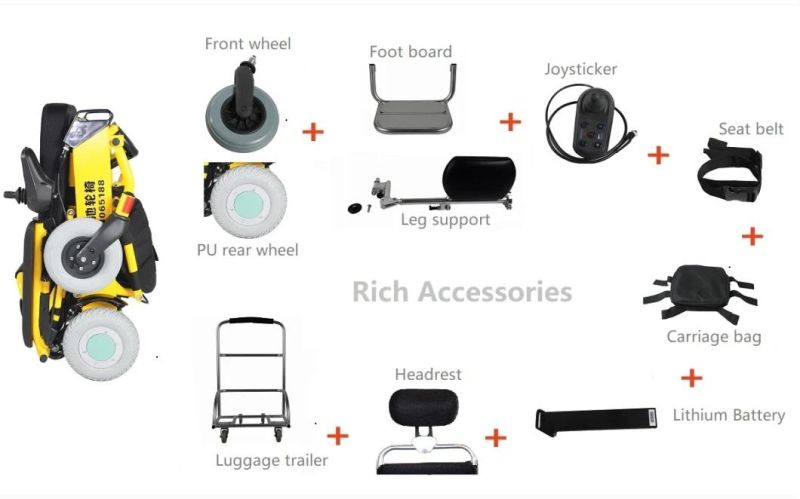

Color: Silver/Red/Black 3 color optional	Optional accessories: Headset, footset, Joystick fixing device customized for different degrees of disability
Certifications: CE, ISO13485,ISO9001	HS Code: 8713900000,



Packaging Details
Individual Package Weight: 25kg/55lb	# of PCS /Master Carton:  1pcs
Individual Package Dimension (L*W*H): 64*35*77cm	# of 20'' container: 160pcs
Packing: Carton pack with foam	#of 40'' container: 320pcs
Warranty information
Warranty: battery:18 month, controller: 1 year, Motor:1 year	Warranty: Frame 3 years
