2022 Latest Design Folding Power Wheelchair with FDA, CE Approval

Nanjing Jin Bai He Medical Apparatus Co., Ltd.
  • Customized：Non-Customized
  • Certification：ISO, CE, FDA
  • Condition：New
  • Tilted：Non-Tilted
  • Folded：Folding
  • Leg Rest Type：Both Sides Separate

Base Info

  • Model NO.：D05
  • Material：Aluminium Alloy
  • Type：Electric Wheelchair
  • Unfolded Size(L * W * H)：870*610*920mm
  • Folded Size (L * W * H)：610 * 260 * 770mm
  • Color：Red,Blue,Black (Any Colors You Like)
  • Max Load：120kg

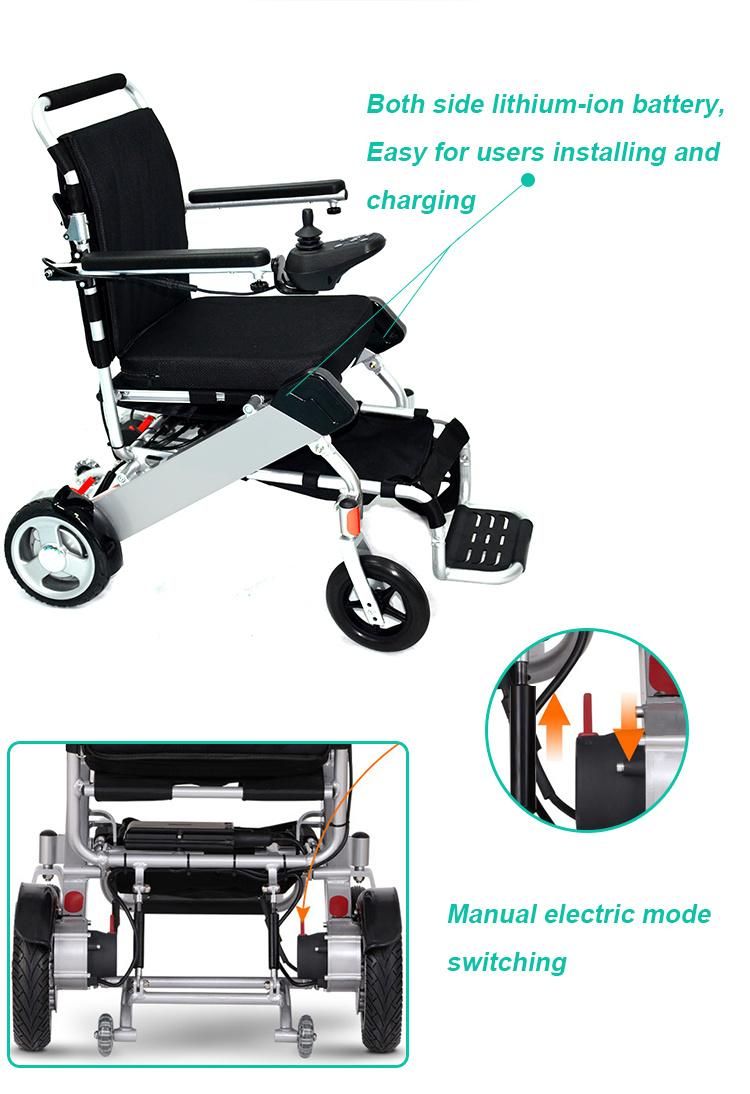

  • Battery：Lithium, 24V,10ah
  • Controller：European Standard, AC 100-240V, 50-60Hz
  • Motor：Brushless DC Motor, 180W*2 PCS
  • Driving Range：20km,10ah Battery
  • Max Speed：6km,H
  • Turning Radius：820mm
  • Power Supply：Electric-Powered
  • Using Site：Hip
  • Using Ambient：Indoor and Outdoor
  • Charging Time：6-8hours
  • Tires：7",8"
  • Transport Package：Carton Packaging
  • Specification：CE, FDA, ISO9001, ISO13485
  • Trademark：DAVID
  • Origin：Nanjing, China
  • HS Code：87139000
  • Production Capacity：5000 Sets Per Month

Description

Net Weight21kgs with one battery, 23kgs with twoWeight Capacity120kgsCaster8"x2 pcs shock absorbing casterRear Wheel8" x2 pcs width casterMotor180WX2 Brushless motorLithium Battery24V/10AH-standard, 6AH for airplaneMax speed6kmphGradeability12°Charging period6 hoursDriving Range20km/10AH batteryProduct Specification:Overall Length (mm)Overall Width (mm)Overall Height (mm)Overall Width FoldedSeat Width (mm)Seat Depth (mm)Back Height (mm)Floor to Seat Height (mm)8706109202604004003604702022 Latest Design Folding Power Wheelchair with FDA, CE Approval
2022 Latest Design Folding Power Wheelchair with FDA, CE Approval
2022 Latest Design Folding Power Wheelchair with FDA, CE Approval
2022 Latest Design Folding Power Wheelchair with FDA, CE Approval
2022 Latest Design Folding Power Wheelchair with FDA, CE Approval
2022 Latest Design Folding Power Wheelchair with FDA, CE Approval
2022 Latest Design Folding Power Wheelchair with FDA, CE Approval
1. Light-weight Wheelchair: 19kg
2. Folded size: 61.0 x 26.0 x 77.0 CM, easier to be put in the co-pilot's seat or in the trunk of a family car.
3. Fast and easy wheelchair folding procedure: 5-second operation.
4. Adjustable armrest; adjustable footrest: offer you a comfortable life
5. 6" shock absorbing front casters
7. Detachable back and seat cushion; Washable seat cushion cover.
8. Tiny-Turn Radius for tight corners
