• Model NO.：D02
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Standard Loading Capacity：120kg
• Driving Range：25km
• Lithium Battery：24V,6A*2PCS
• Charging Time：6hours
• Motor：Brushless, 200W * 2PCS
• Wheels：Front:6" Rear:8" PU Solid Tire
• Package Size：790*680*460 mm
• Warranty：3 Years
• Wight W/O Battery：27kg
• Properties：Rehabilitation Therapy Supplies
• Folded Size：875*415*715mm
• Weight with Battery：30kg
• Package Weight：35kg
• Controller：24V Brushless
• Max Speed：6km,H
• Transport Package：1PC,Carton with Foam Inside
• Specification：Unfold Size: 880*580*810 mm
• Trademark：JBH
• Origin：Nanjing Jiangsu China
• HS Code：87139000
• Production Capacity：1000PCS Per Month

Basic Info.

Model NO. D02 Material Aluminium Alloy Type Electric Wheelchair Standard Loading Capacity 120kg Driving Range 25km Lithium Battery 24V/6A*2PCS Charging Time 6hours Motor Brushless, 200W * 2PCS Wheels Front:6" Rear:8" PU Solid Tire Package Size 790*680*460 mm Warranty 3 Years Wight W/O Battery 27kg Properties Rehabilitation Therapy Supplies Folded Size 875*415*715mm Weight with Battery 30kg Package Weight 35kg Controller 24V Brushless Max Speed 6km/H Transport Package 1PC/Carton with Foam Inside Specification Unfold Size: 880*580*810 mm Trademark JBH Origin Nanjing Jiangsu China HS Code 87139000 Production Capacity 1000PCS Per Month

Product Description

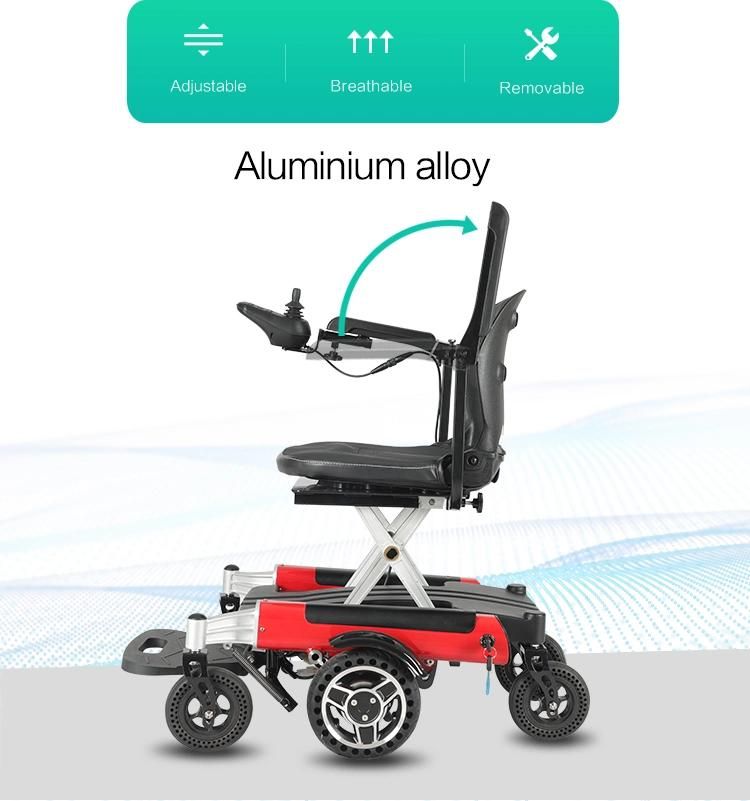

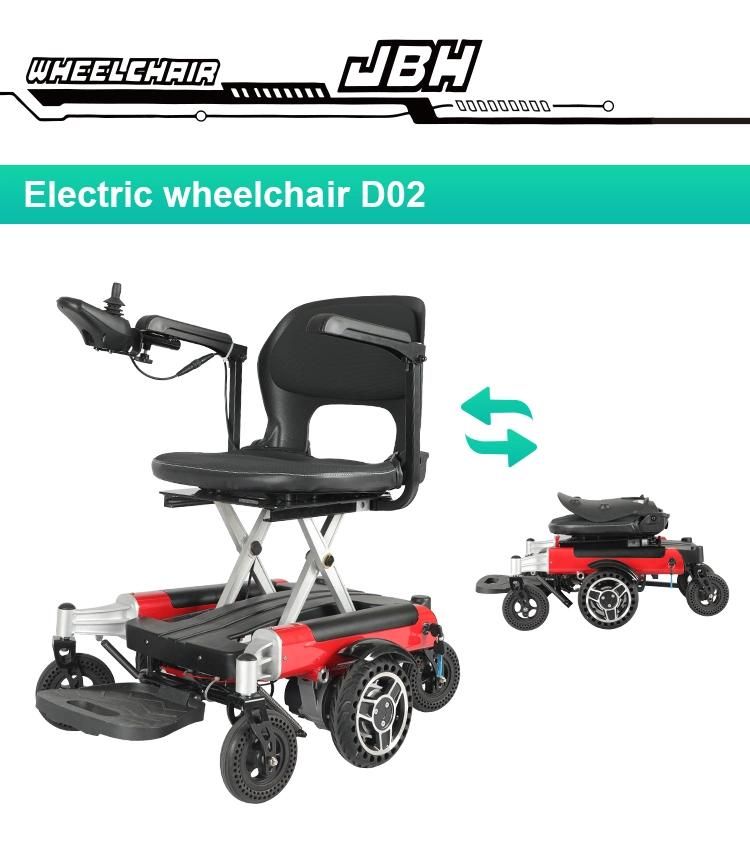

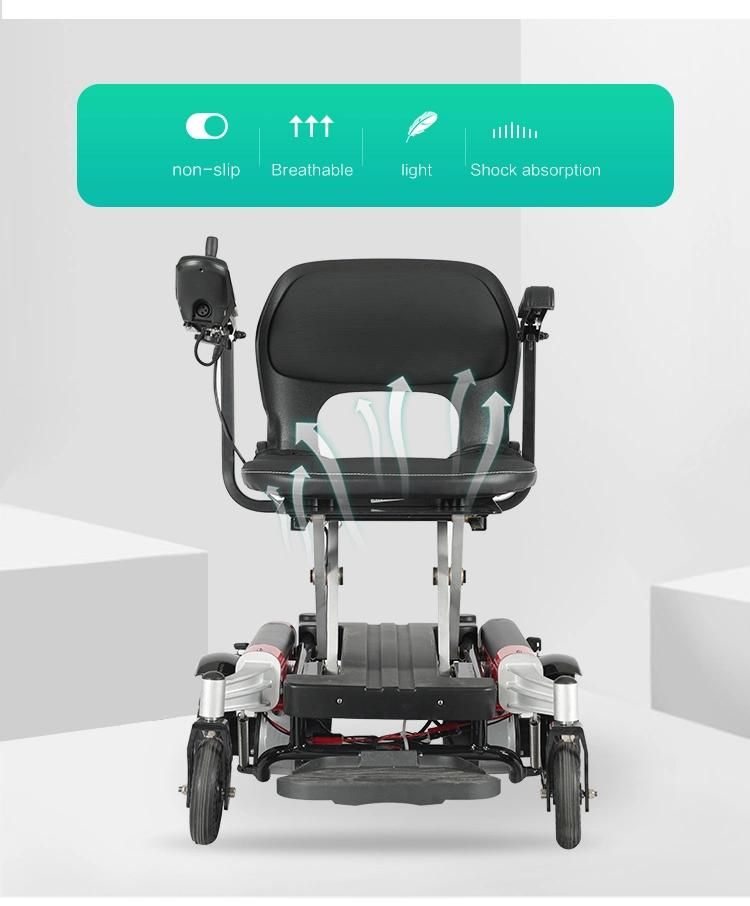

2021 Power Elevating Seat Electric Wheelchair


Why A Power Adjustable Seat Height Wheelchair Is Needed?


For the average person, you've probably never given much thought to the act of reaching over a counter to access something. Simple tasks like getting items from top cabinets and switching off lights come naturally to you. But if you use a wheelchair, you may have some difficulty reaching for such items.

Fortunately, revolutionary advances in power wheelchairs have led to the invention of elevating seats. These lift seats not only provide greater accessibility but they also enhance your independence. Read on to see how our D02 achieves your independance.

Application:


Technical Data for D02 Aluminum Alloy Power Adjustable Seat Height Wheelchair


Item Name	D02 Aluminum Alloy Power Adjustable Seat Height Wheelchair
Overall Size(L×W×H)	880*580*810  mm

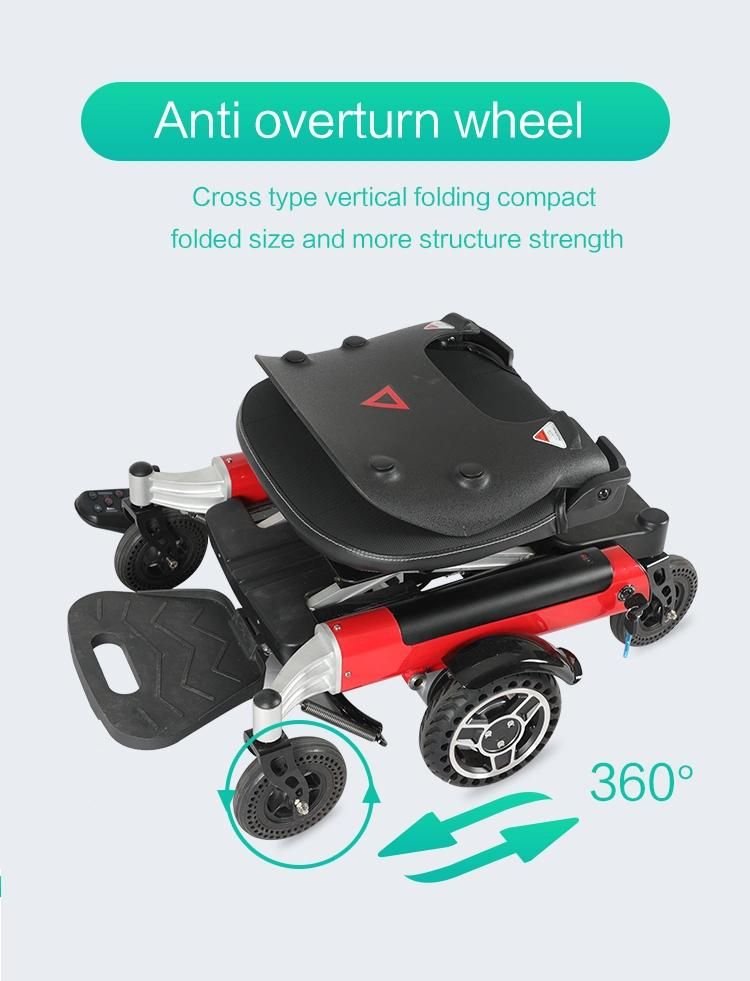

Folded Size(L×W×H)	880*580*440  mm
Seat Width	440  mm
Seat Depth	350  mm
Seat Height	500  mm
Package size	790*680*460  mm
Weight without battery	27 Kg
Weight with battery	30 Kg
Gross weight	35  Kg
Motor	24V*200W*2pcs brushless

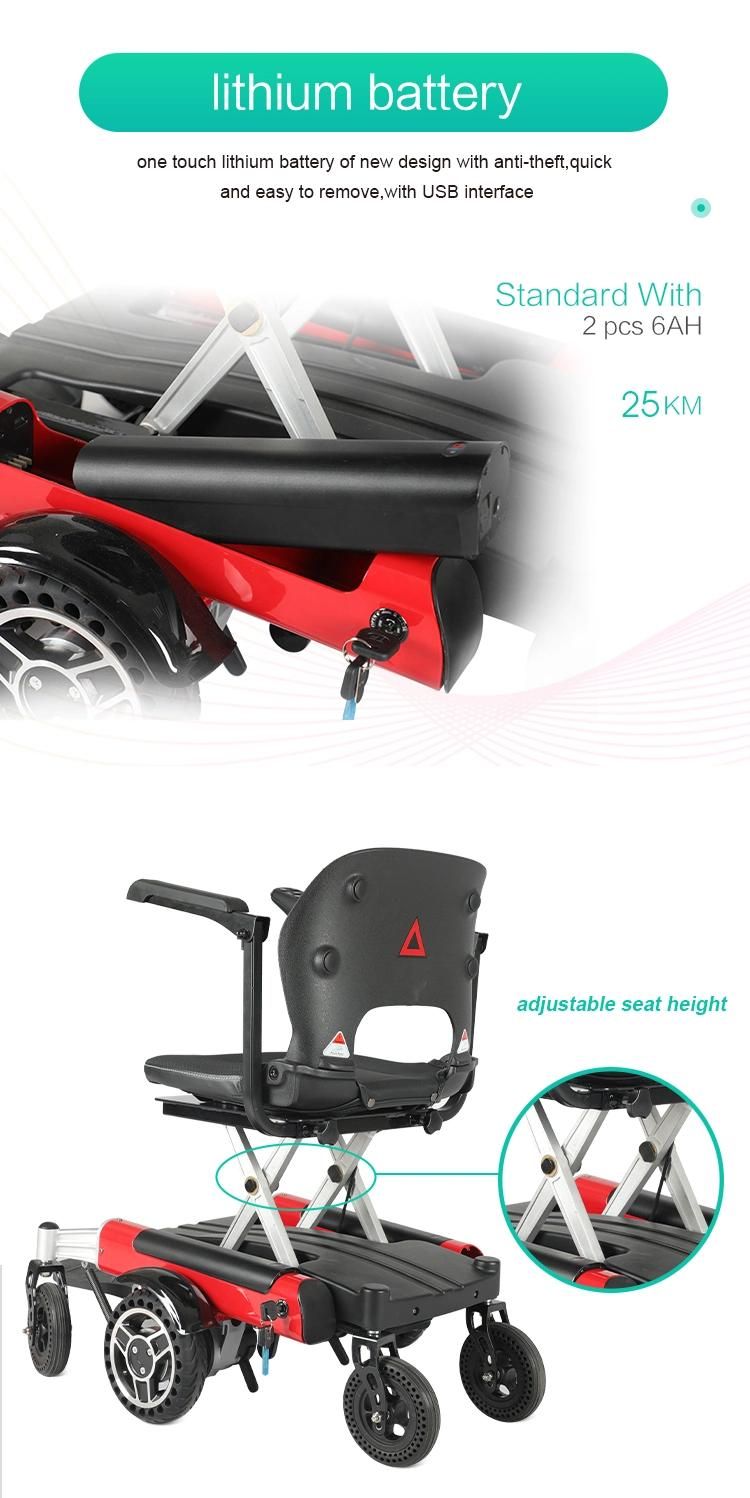

Battery	24V*6AH*2pcs lithium battery
Controller	24V brushless
Front wheel	6inch PU solid tire*2pcs
Rear wheel	8inch PU solid tire*2pcs
Max gradient	8°
Driving range	25km
Max speed	6  Km/h
Turning radius	350mm
Charging time	6h
Standard loading weight	120kg
Current available colors	Red,can be customized

About Us-JBH Medical
The Supplier of Drive Medical&Pride Mobility
With SGS Verified Laboratory
CE/FDA/EN12184 Approved

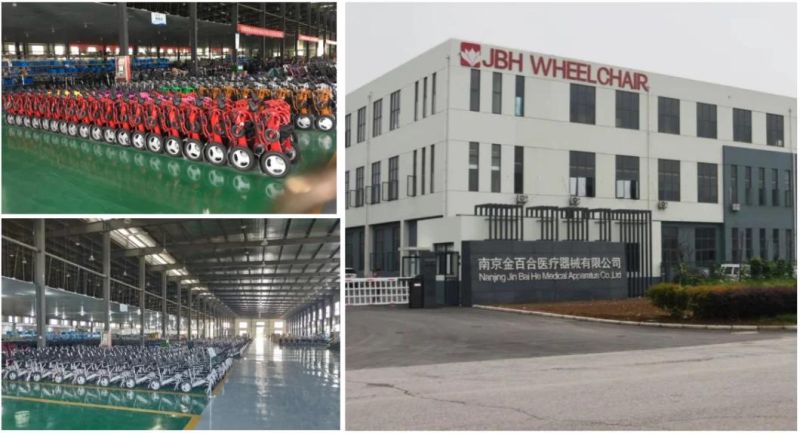

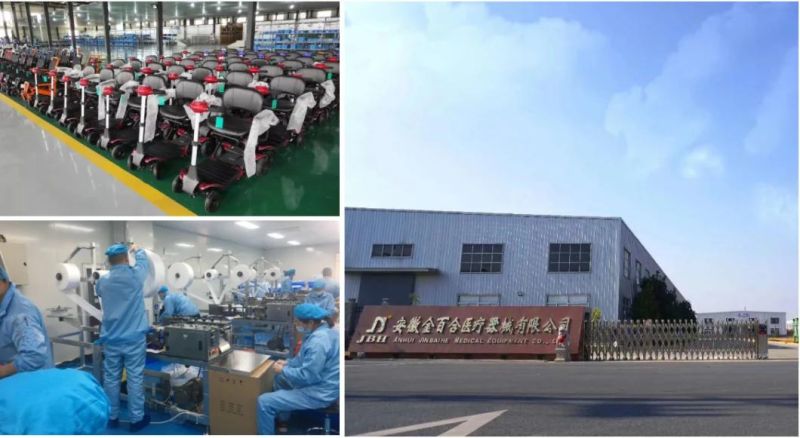

*JBH Group was founded in 2013, with 7 subsidiary companies and owns a standardized modern
production base of 160,000 square meters. A manufacturing base company with the integration
of R&D and international marketing team, which has its own designed products as well as ODM
products for serving the global market, currently has more than 600 employees with registered
capital over 20 million USD.
*Major products are foldable electric wheelchair, mobility scooter, hospital bed, patient
lift, disposable medical mask, and all other medical-related devices.

*Our products have been exported to over 100 countries in the world,covering Europe,South
America,North America,Australia,Southeast Asia,Middle East and other countries.
With the goal of bringing more convenience and better life to customers,continuously
development and innovation have strongly reinforced our R&D team and acquired numerous
national and international level patents. JBH owns 66 patent domestically and internationally,we
have built up good reputation among customers,due to our steady quality and good service. JBH
would like to contribute the healthy and hapiness from every family to cities and countries.

JBH Medical company video introduction:
https://jbhwheelchair.en.made-in-china.com



FAQ

Q: Are you a factory or trading company?
A: Factory, 160,000 square meters.

Q: What are your payment terms?
A: TT, LC, Paypal, Western Union, Credit Card,etc.

Q: Will you provide operation guidance for us?
A: Yes,operation video will be provided.

Q: How about the after-sale service of your product?
A: Our company and our distributors will provide you after-sale service directly!

Q: How long does it take to receive my products after i place the order from you?
A: 3-30 days, depends on your quantity.

Q: Do you provide OEM and ODM service?
A: Yes

Q: How is the warranty?
A: 3 years for frame;1 year for motor & controller;6 months for battery and other parts.

Q: How to assemble the wheelchair when i received it?
A: Don't need to assemble the wheelchair, just unpack and use it.

Q: What is the driving distance?
A: 20-25km.

Q: Can i have some more parts like wheels?
A: Yes,but not free.
