• Model NO.：D19
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Expand Dimension：1140*630*1020mm
• Folded Dimension：810*630*500mm
• Frame Material：Aluminum Alloy
• Battery Type：Lithium Battery 6ah*2PCS
• Colour：Blue,Silver,Black,Red
• Guarantee：One Year
• Max Load：150kg
• Wheelchair Weight：39.9kg (with Two Batteries)
• Product Name：480mm Seat Width Automatic Folding Electric Wheelc
• Motors：250W*2PCS
• Transport Package：One Set Folding Power Wheelchair,Carton
• Specification：CE, FDA, ISO13485, ISO9001
• Trademark：JBH
• Origin：Nanjing, Jiangsu, China
• HS Code：87139000
• Production Capacity：5000 Sets,Month

Basic Info.

Model NO. D19 Material Aluminium Alloy Type Electric Wheelchair Expand Dimension 1140*630*1020mm Folded Dimension 810*630*500mm Frame Material Aluminum Alloy Battery Type Lithium Battery 6ah*2PCS Colour Blue/Silver/Black/Red Guarantee One Year Max Load 150kg Wheelchair Weight 39.9kg (with Two Batteries) Product Name 480mm Seat Width Automatic Folding Electric Wheelc Motors 250W*2PCS Transport Package One Set Folding Power Wheelchair/Carton Specification CE, FDA, ISO13485, ISO9001 Trademark JBH Origin Nanjing, Jiangsu, China HS Code 87139000 Production Capacity 5000 Sets/Month

Product Description

480mm seat width Automatic folding electric wheelchair price

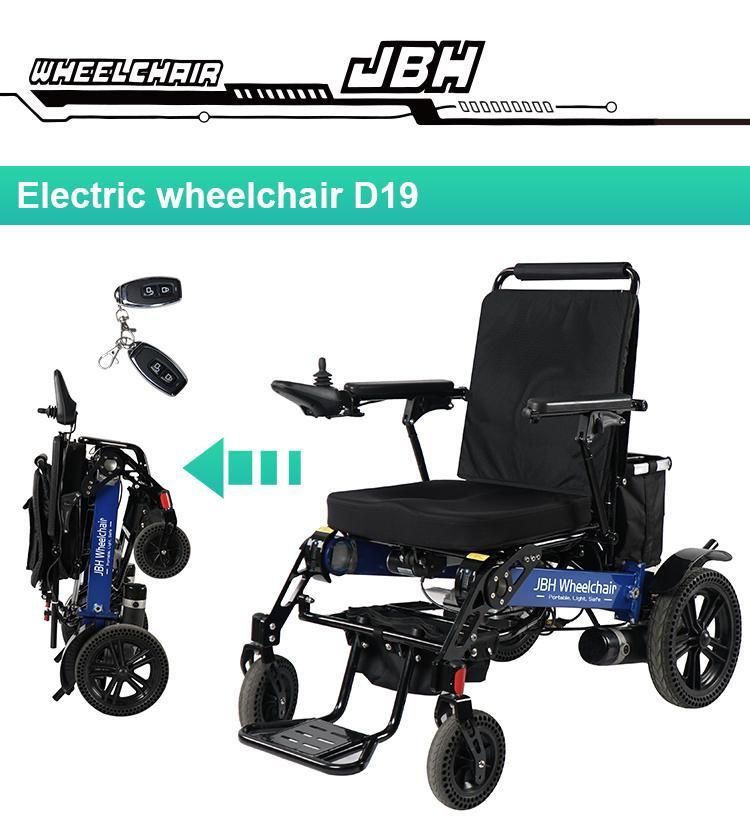

D19 Foldable Power wheelchair parameters:
Advantages:

1. Automatic Electronic folding with remote.

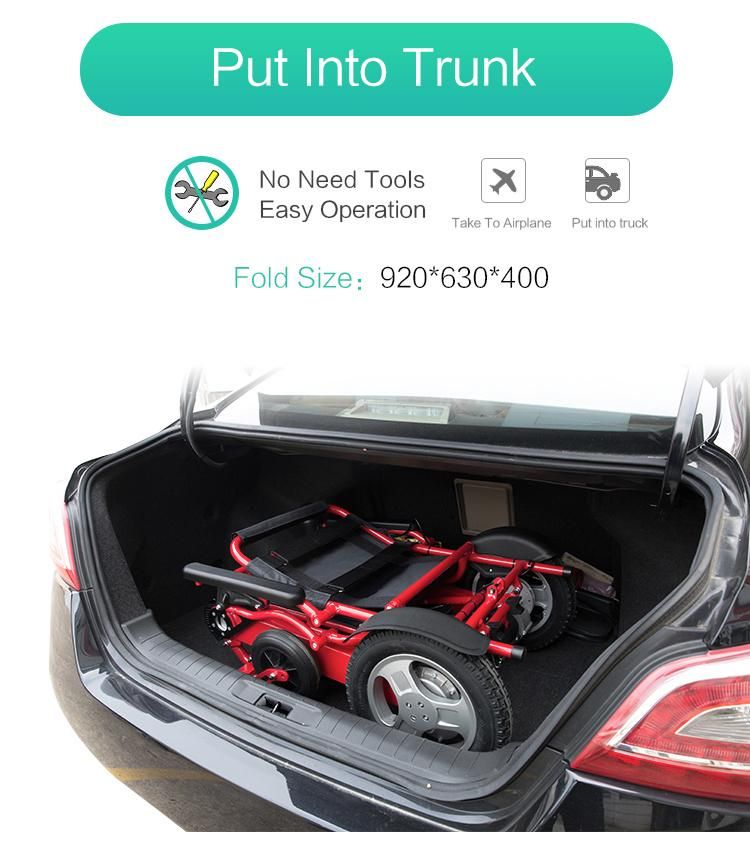

2. Motor can be quick removed from chair, can put into car junk.
3. Honeycomb holes solid PU front and back wheels, can reduce the shock.
4. Big back shopping crate.
5. Big size chair for fat user.



Model	D19
Unfold size	1140*630*1020mm
Fold size	810*630*500mm
Motor	Suoyang 24V/200W brush motor (can quick removed)
Push rod motor	24V 1000N
Controller	Dynamic controller
Seat width	480mm
Seat height	530mm
Seat depth	230mm
Distance from seat to pedal	440mm
Front tires	8" Honeycomb hole solid PU tires
Back rears	12" Honeycomb hole solid PU wheels
Max speed	6km/hour

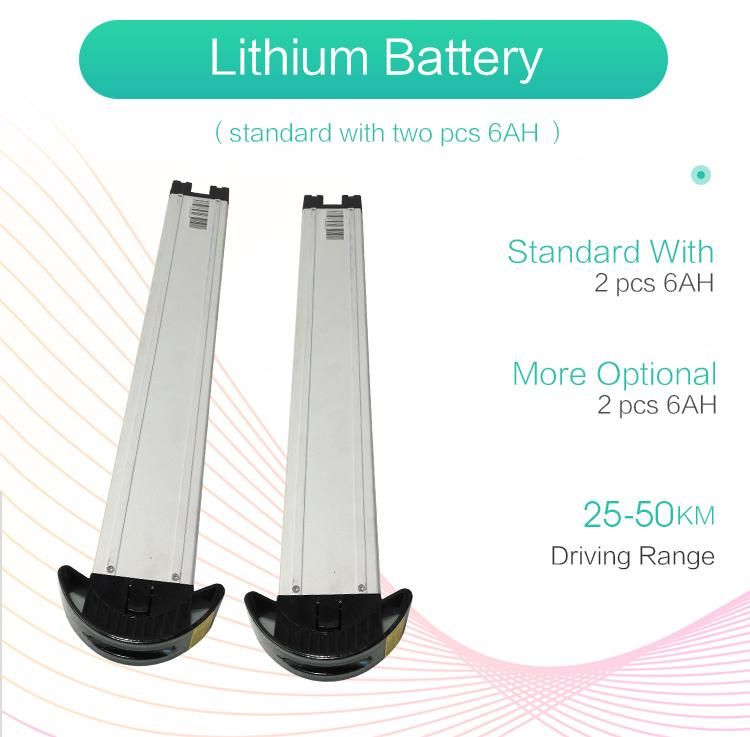

Battery	24V 6AH lithium battery *2pcs
Max load capacity	150kg
Driving range	20km
Chair weight without battery	36.9kg
Chair weight with battery	39.9kg

Folding electric power wheelchair Package information:
one set electric wheelchair / carton with protected foams.
















Company information:

JBH Wheelchair is research and development, manufacturing and sales enterprise. Specialized in Portable power wheelchair, Portable electric scooter, knee walker, and electric standing wheelchair. Products passed through ISO 13485, FDA and CE standard. We provide OEM service, great quality. "JBH" as the registered trademark renowned for "Safe, Light and Portable" on the market. Products covers 20 Provinces in China and export to USA, UK, Canada, and Australia. JBH wheelchair gained wide range recognition and trust from our customers. We will continue providing high quality products and service.
