• Model NO.：Z01
• Material：Steel
• Type：Aid Standing Wheelchair
• Expand Dimension：1120X660X1100 mm
• Frame Material：Steel Tumbles
• Colour：Black
• Battery：12V 20ah*4PCS
• Max Load：120kg
• Driving Disance：50km
• Warranty：1 Year
• Using Site：Move Inconvenience
• Controller：Pg
• Motors：Taiwan Suoyang
• Transport Package：1set Electric Standing Wheelchair , Wooden Carton
• Specification：CE, FDA, ISO13485, ISO9001
• Trademark：jbh
• Origin：Nanjing, Jiangsu, China
• HS Code：87139000
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. Z01 Material Steel Type Aid Standing Wheelchair Expand Dimension 1120X660X1100 mm Frame Material Steel Tumbles Colour Black Battery 12V 20ah*4PCS Max Load 120kg Driving Disance 50km Warranty 1 Year Using Site Move Inconvenience Controller Pg Motors Taiwan Suoyang Transport Package 1set Electric Standing Wheelchair / Wooden Carton Specification CE, FDA, ISO13485, ISO9001 Trademark jbh Origin Nanjing, Jiangsu, China HS Code 87139000 Production Capacity 500 Sets/Month

Product Description

Multi fuction stand up electric wheelchair for disabled people

Z01 electic power standing up wheelchair techniques:

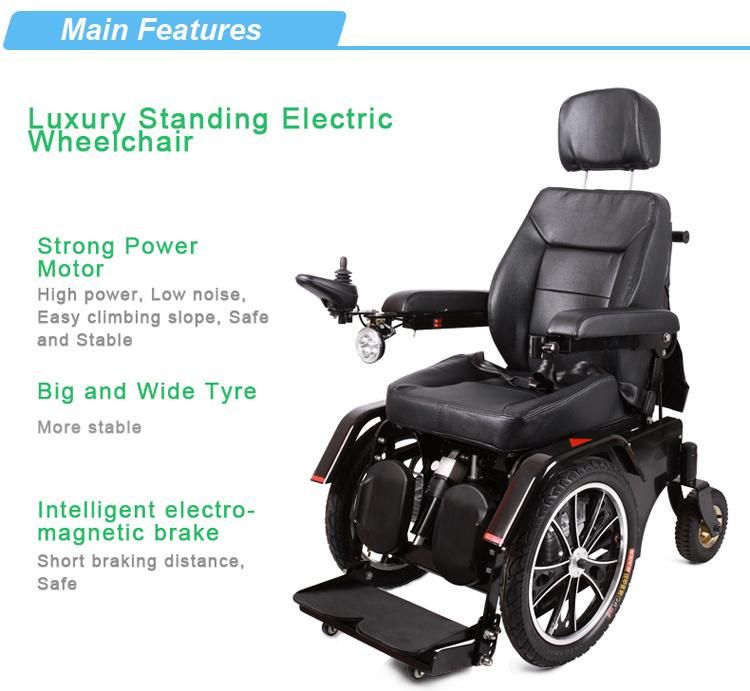

Key Features:

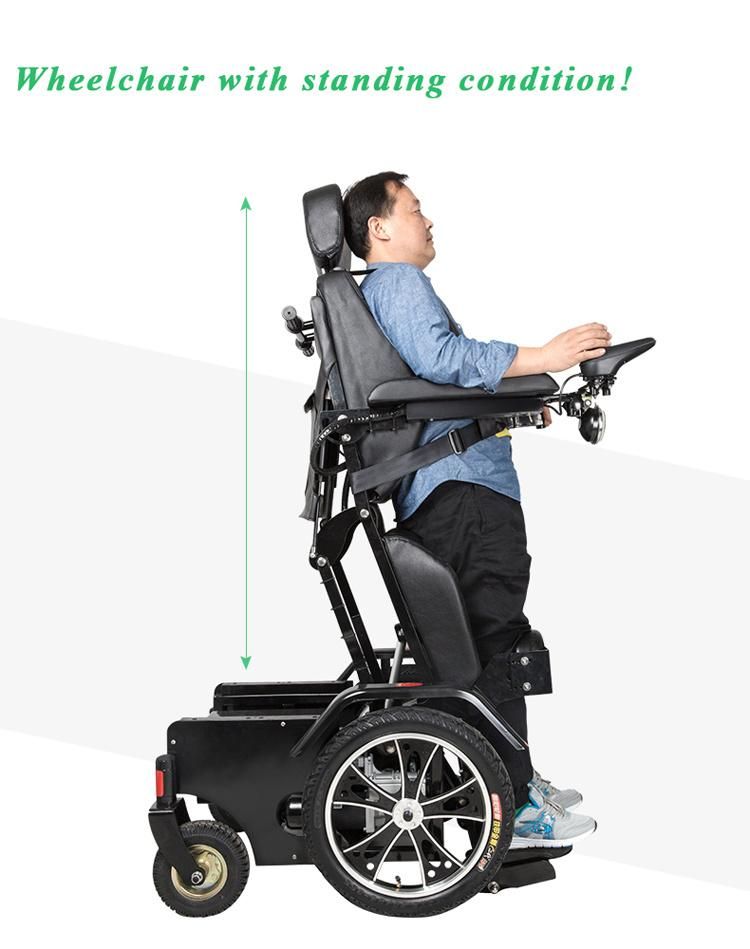

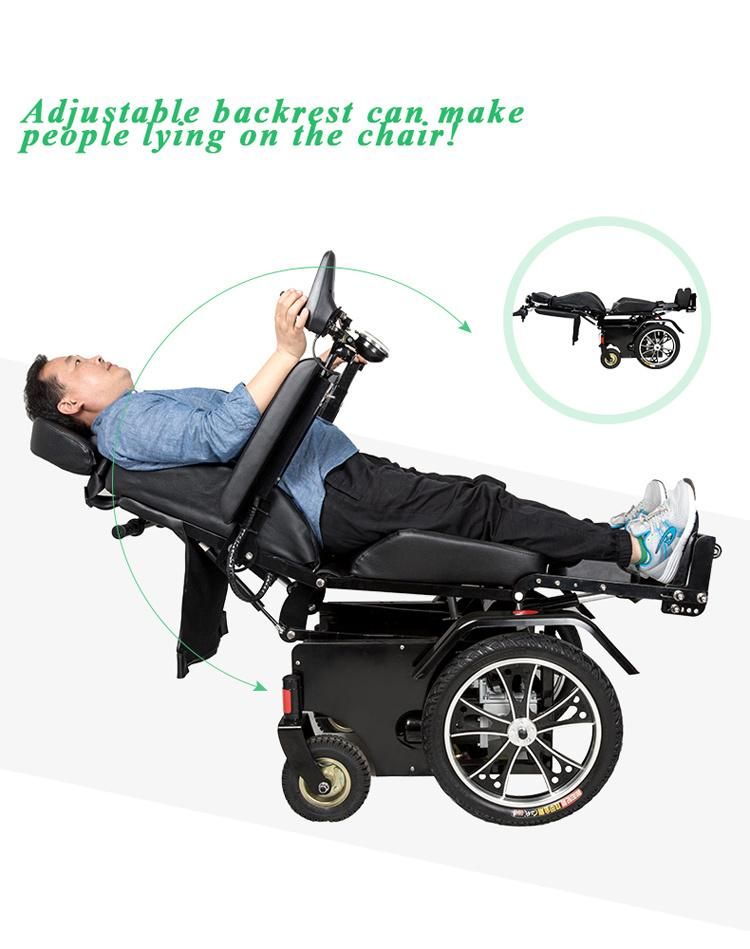

1. with this standing wheelchair, the paraplegia patients can stand up, lie down, sit, move and use the toilet by themselves.
2. Help the patient to stretch his body and joint, which strengthens cardio-pulmonary function and prevent bedsore.
3. Certificates: CE;FDA;ISO9001; ISO13485;
4.The warranty period:chair frame 3 year; motors, batteries, 1 year.


Product Name:	Multi fuction stand up electric wheelchair for disabled people
Model No.:	Z01
Type:	standing wheelchair
Dimension:	1120x660x1100mm
Braking system:	full automatic electromagnetic
Front tires:	18"x2.5/64-355
Back tires:	2.5"x4
Loading capacity :	120KG
Driving distance:	50km
Seat width:	450mm
Seat depth:	450mm
Seat height:	560mm
Backrest height:	600mm
Armrest height:	360mm
Climbing Slope:	12°
Pushrod motor:	LINIX DC 3500Nx3 DC 6000Nx1
Driving Motor:	MTM DC 320Wx2PCS
Controller:	PG VR-2 PG R-NET
Charger:	Input: 110-230V/AC; output:24V/DC
Battery"	12V 20AH x4 pcs
Net weight:	125 kgs
Carton size:	1.05m*0.78m*1.2m, 1 set/wood carton

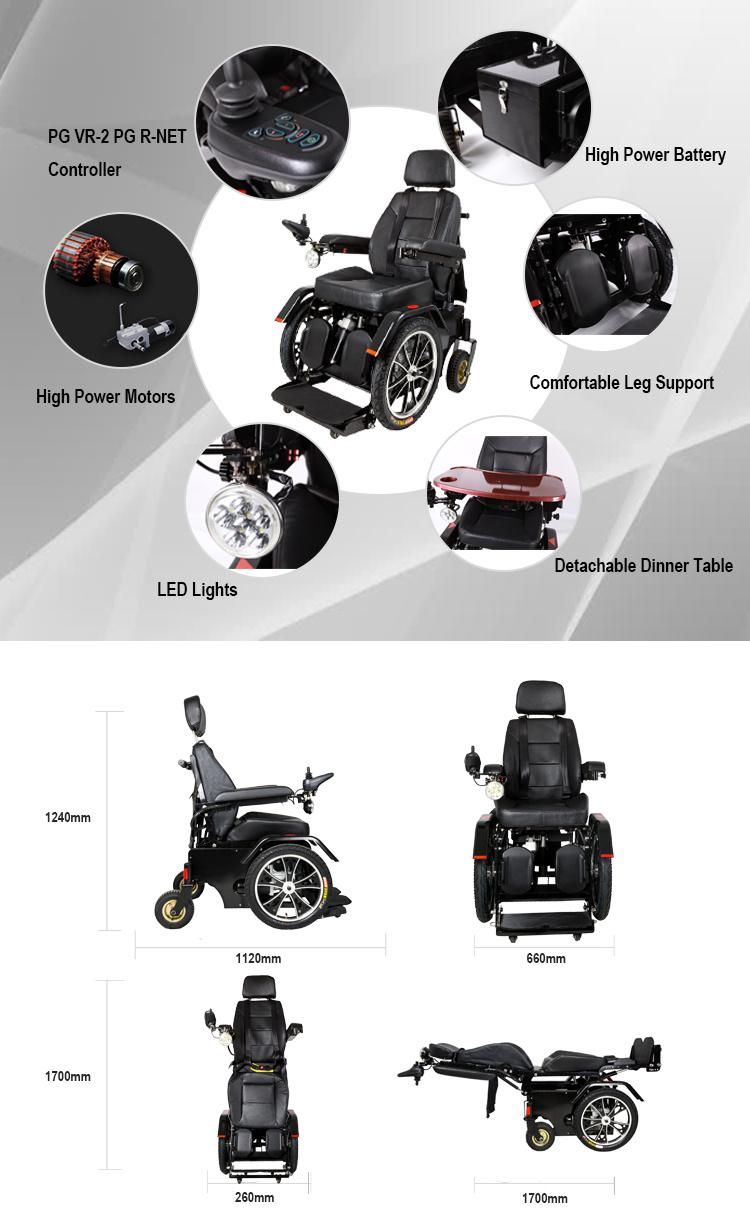

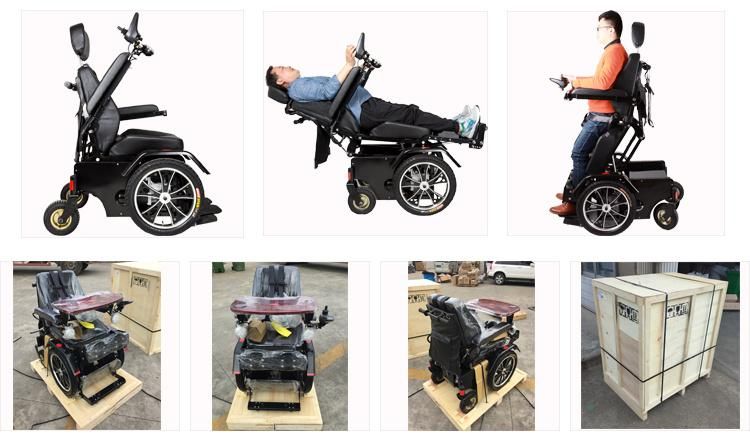

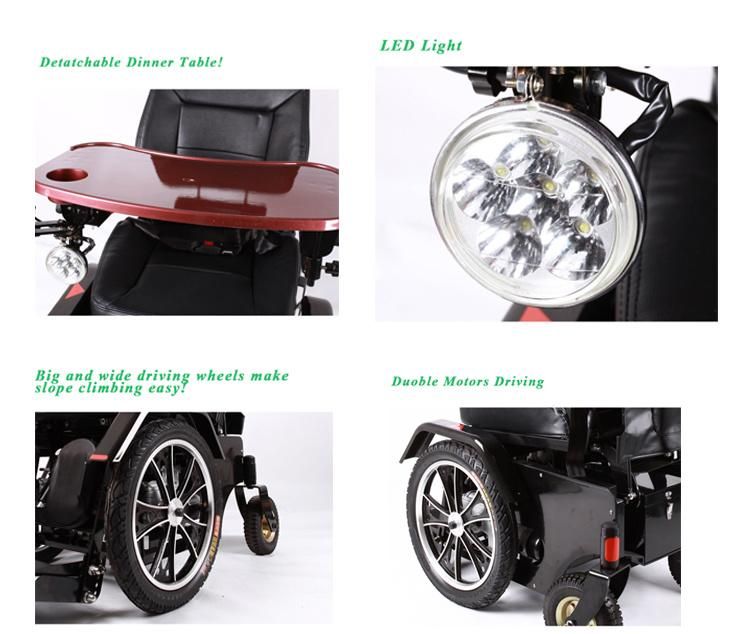

Z01 electic power standing up wheelchair detail pictures:

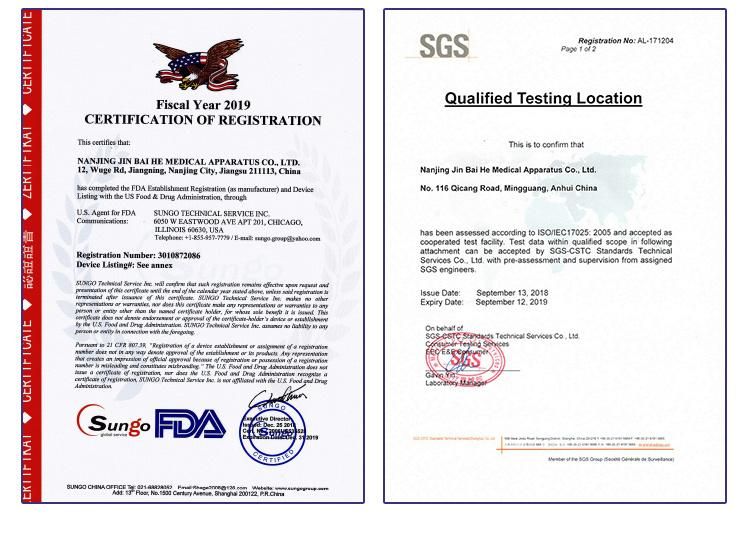

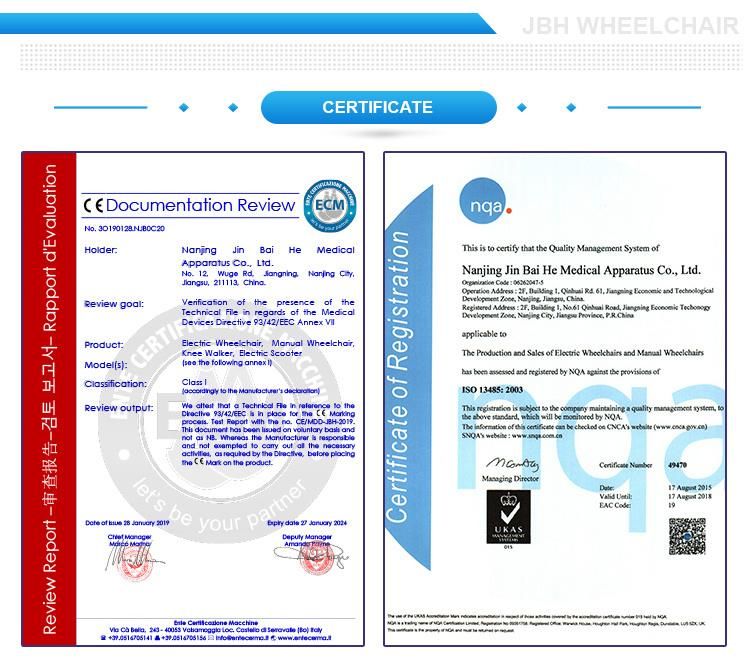

Wheelchair Certificate:
FDA, ISO13485, SGS, CE.



Warranty:
1 year for  motor,joystick controller.
3 years for wheelchair frame.
6 months for batteries.

Company Brief:

JBH Wheelchair is research and development, manufacturing and sales enterprise. Specialized in Portable power wheelchair, Portable electric scooter, knee walker, and electric standingwheelchair. Products passed through ISO 13485, FDA and CE standard. We provide OEM service, great quality. "JBH" as the registered trademark renowned for "Safe, Light and Portable" on the market. Products covers 20 Provinces in China and export to USA, UK, Canada, and Australia. JBH wheelchair gained wide range recognition and trust from our customers. We will continue providing high quality products and service.



Standing up electric power wheelchair FAQ

. Q1: Why Choose JIN BAI HE Products?
 We are one of the professional wheelchair factory here in China,
 Best production capability, Best quality control, Best Service,

 Q2: How is JIN BAI HE Products Quality?
 We only supply quality products, our manufacturing facilities have received the ISO, CE, recognition, and get FDA certificate for some products .
Every products will inspected to the standard before shipment, and every product has one year warranty period.

Q3:What is your MOQ(Minimum Order Quantity) ?
  As a factory, our MOQ is one piece, it could be mixed the different models.

Q4: Payment and shipment
 We accept: L/C, T/T,WESTERN UNION;
 Delivery time: according to order.

Q5: Is the wheelchair for indoor or outdoor use?
It was designed for both indoor and outdoor use.

Q6: Will you accept OEM orders?
Yes. We'd like to produce our customers' OEM/ODM orders.
