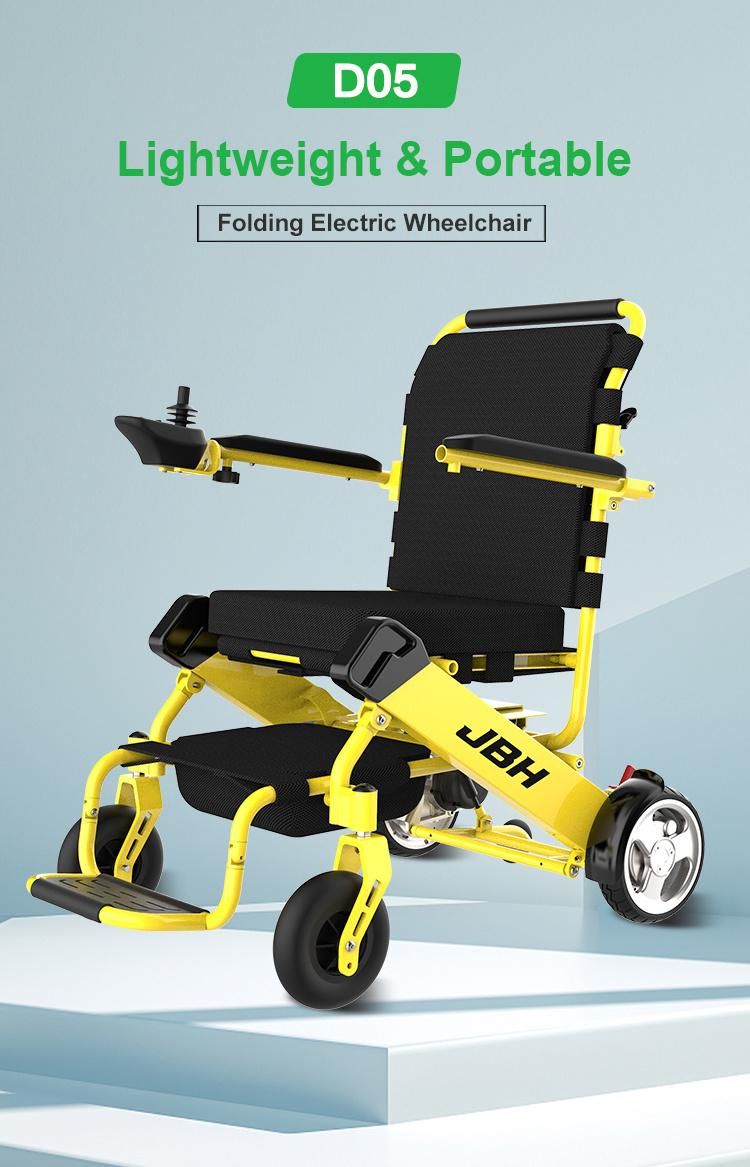

• Model NO.：D05

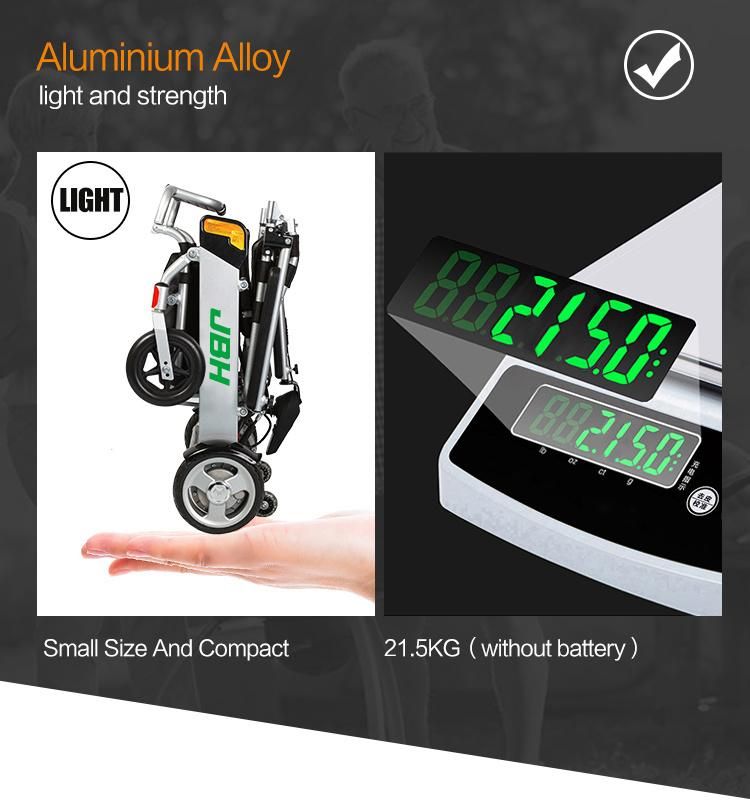

• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Max Load：150kg
• Net Weight：28kg
• Front Wheel：7′′*1.25′′
• Rear Wheel：8′′*1.95′′
• Endurance Mileage：20km
• Color：Can Be Customized
• Speed：6km,H
• Motor：Brushless Motor 250W
• Battery：Ternary Lithium Battery 6ah
• Guarantee：1 Year
• Transport Package：1 Set Folding Electric Wheelcahir,Carton
• Specification：710x400x880 mm
• Trademark：JBH
• Origin：China
• HS Code：8713900000
• Production Capacity：5000 Sets,Month

Overview SpecificationUnfolded Dim(LxWxH)38x23.6x36inch970×600×910mmFolded Dim(LxWxH)23.6x11x30inch600×290×750mmWidth of Armrests19''480mmSeat Width15.7'' 400mmSeat Depth15.7'400mmSeat Height19.7''500mm

Pedal High

From Ground

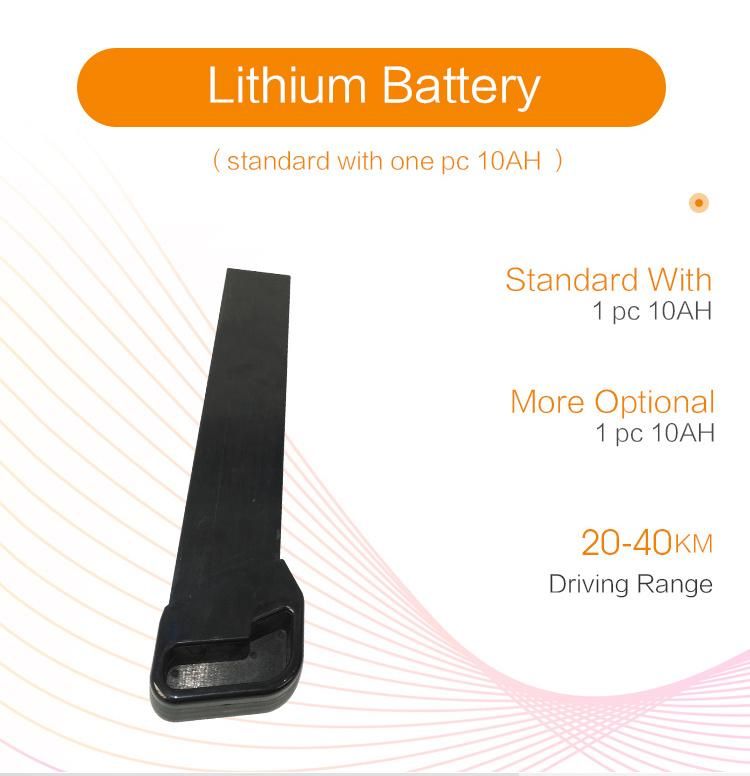

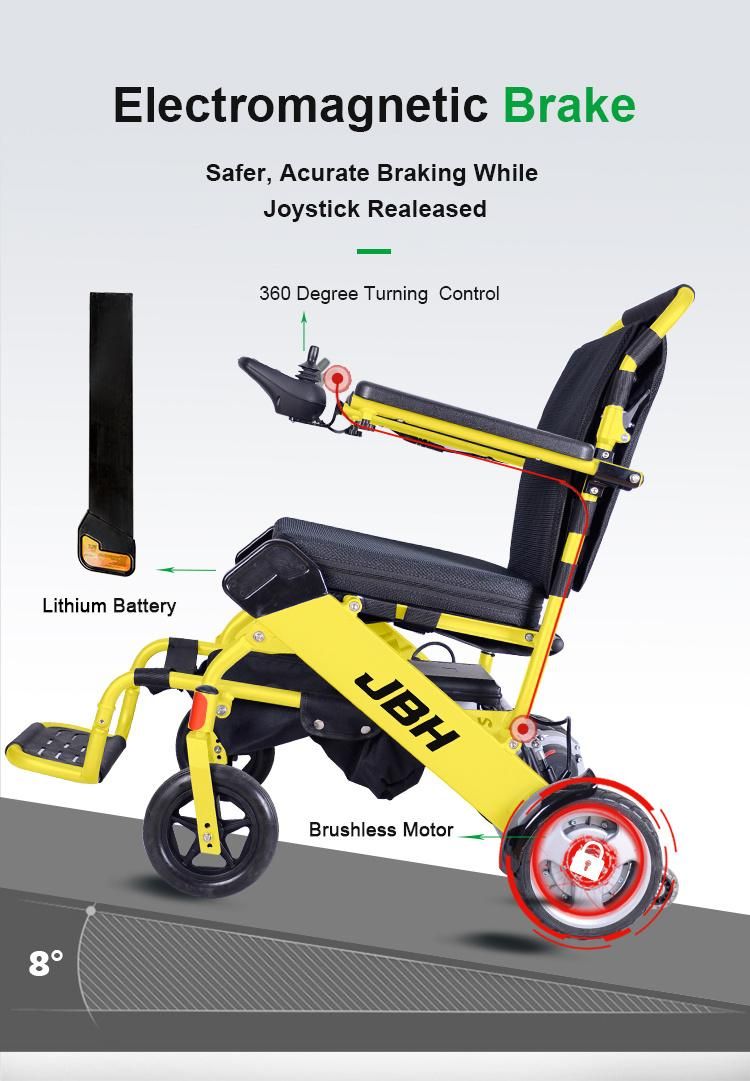

5.1''130mmPacking Carton(LxWxH)27.6x15.7x34.6inch700x400x880mmWeightN.W. (Without Battery)46.2lbs21kg N.W. (With 1 battery)50.6lbs23kgN.W. (With 2 batteries)55lbs25kgG.W. (with 1 battery)61.6lbs28kgG.W. (with 2 batteries)66lbs30kgPerformanceMax Speed3.75mph 6km/hourLoading Capacity264lbs120kgClimbing SlopeMax 12°MotorTypeDC Brushless motorMotor180W×2pc (360W)BatteryTypeLithium BatteryVoltage24VCurrent24V 10AHx1 or 2pcsPower144WHRange (1 battery)12.4miles20KMRanger (2 batteries) 24.8miles40KMWeight3.3lbs1.5kg/pc Intput Voltage100~240VAC 50/60HzChargerOutput Voltage24VCharging Time6HourTiresFront Tires7" PU solid tiresRear Tires8" PU solid tiresBrake SystemBrakeElectromagnetic BrakeOthersMaterialAluminum AlloyDrive ModeRear DriveColorSilver, Black, Blue, Yellow, Red & PinkContainerone 20FCL=98pcs, one 40HQ=250pcsWarranty

12 months for motor, battery and controller

36 months for frame

 Product Description





Company Profile



Certifications



Hot Sale Products

FAQ

Q: Are you factory?

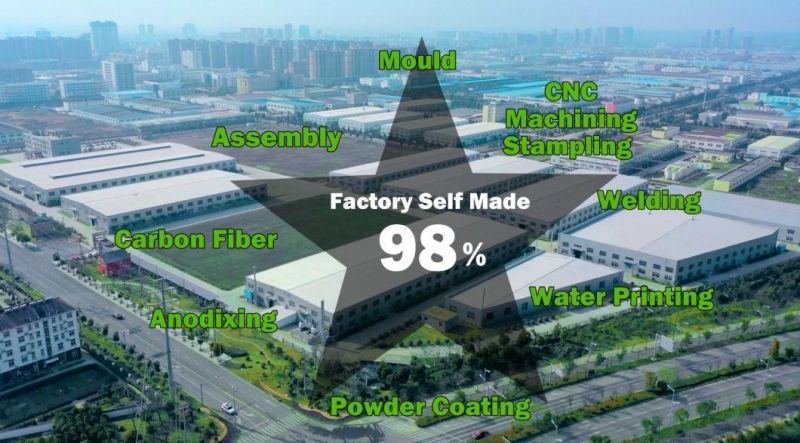

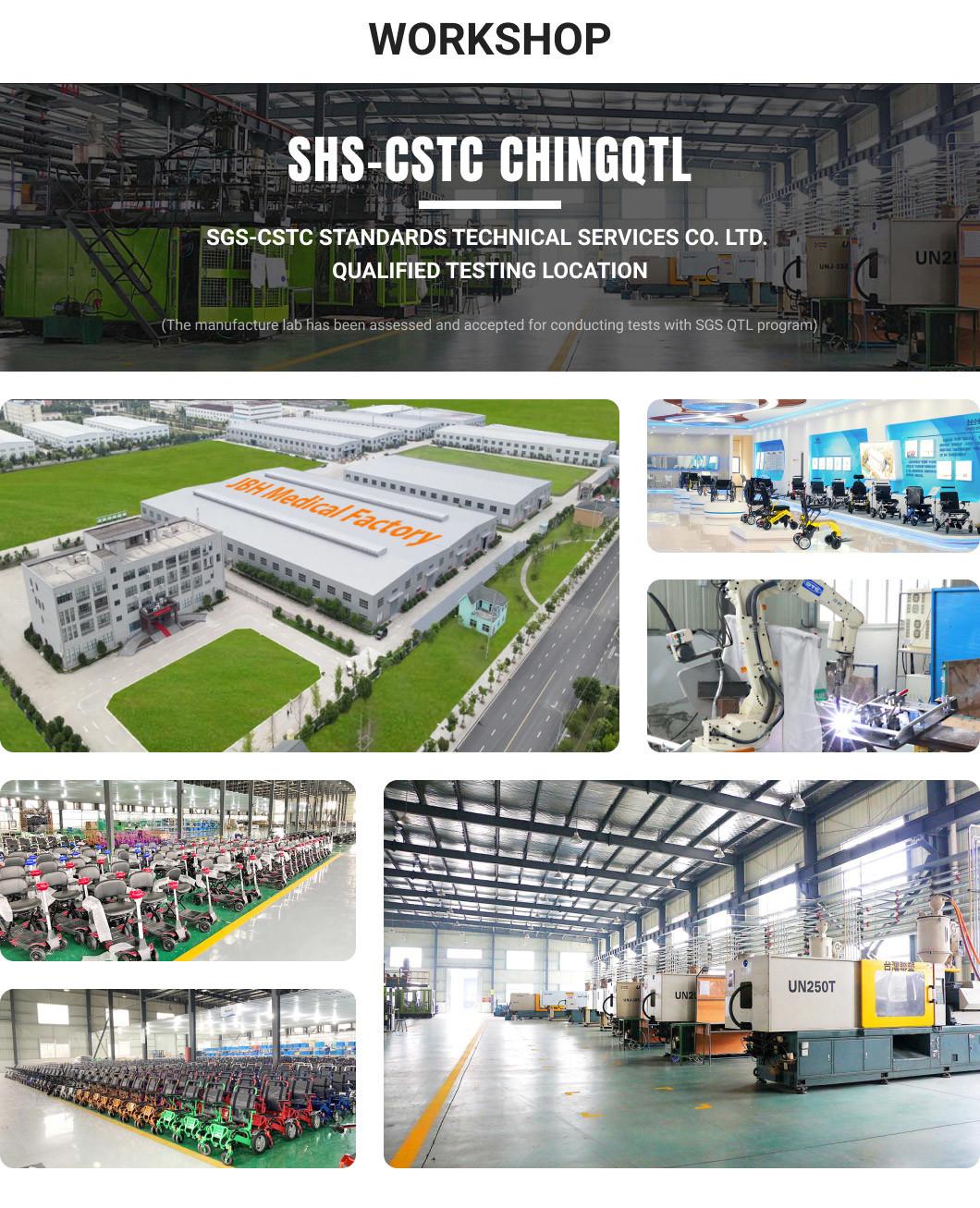

A: Yes,we are China largest factory for wheelchair & mobility scooters,our production site is 140,000 square meters,which includes Purchasing Department, Production Department, R&D, QC, Laboratory, Sales Department, Logistics Department, After-sale service centre,etc. Welcome to visit us at any time!

Q: How do you control product quality?
A: 1) Diffent from other suppliers who buy accessories from outside then install,we produce most accessories by ourselves,so we can control both good quality and low production cost.

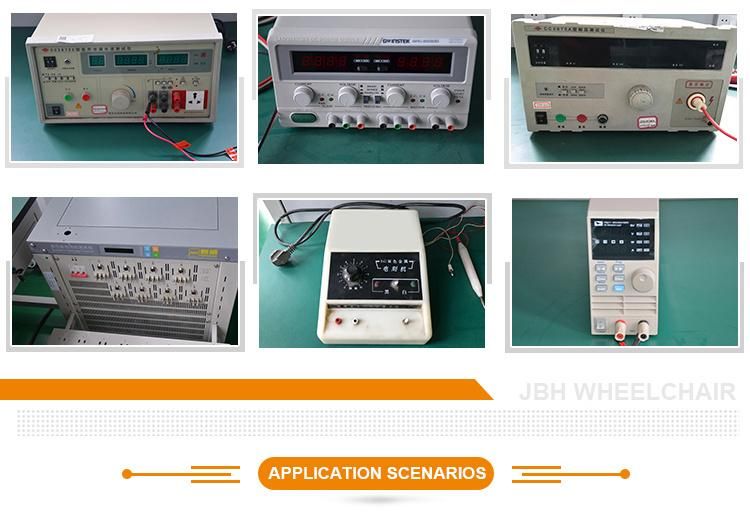

2) We have our own laboratory and testing centre,we will test our products in loading capacity, noise, speed, climbing ability,etc.
3) We have certificates: CE, FDA, ISO9001, ISO13485,etc,so please don't worry about quality.

Q: Can you do OEM,ODM?
A: Yes, absolutely ! We have provided such service for many distributors,we can help you build your own brand,we are not just cooperation,we are partners!
