• Model NO.：D19
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Expand Dimension：1230*630*1020mm
• Folded Dimension：920*630*400mm
• Frame Material：Aluminum Alloy
• Battery Type：24V 6ah*2PCS
• Max Load：120kg
• Cerificate：ISO13485, ISO9001, FDA, Ce
• Motor：Brushless Motor 200W*2PCS
• Weight：48kg (with Batteries)
• Wheelchair Driving Distance：15-20km
• Seat Width：480mm
• Seat Depth：400mm
• Charging Time：6-8 Hours
• Brake System：Intelligent Electromagnetic Brake
• Using Ambient：Outdoor
• Transport Package：1 Set Electricpower Wheelchair,CTN
• Specification：CE, FDA, ISO13485, ISO9001
• Trademark：JBH
• Origin：Nanjing, Jiangsu, China
• HS Code：87139000
• Production Capacity：4000 Sets,Month

Basic Info.

Model NO. D19 Material Aluminium Alloy Type Electric Wheelchair Expand Dimension 1230*630*1020mm Folded Dimension 920*630*400mm Frame Material Aluminum Alloy Battery Type 24V 6ah*2PCS Max Load 120kg Cerificate ISO13485, ISO9001, FDA, Ce Motor Brushless Motor 200W*2PCS Weight 48kg (with Batteries) Wheelchair Driving Distance 15-20km Seat Width 480mm Seat Depth 400mm Charging Time 6-8 Hours Brake System Intelligent Electromagnetic Brake Using Ambient Outdoor Transport Package 1 Set Electricpower Wheelchair/CTN Specification CE, FDA, ISO13485, ISO9001 Trademark JBH Origin Nanjing, Jiangsu, China HS Code 87139000 Production Capacity 4000 Sets/Month

Product Description

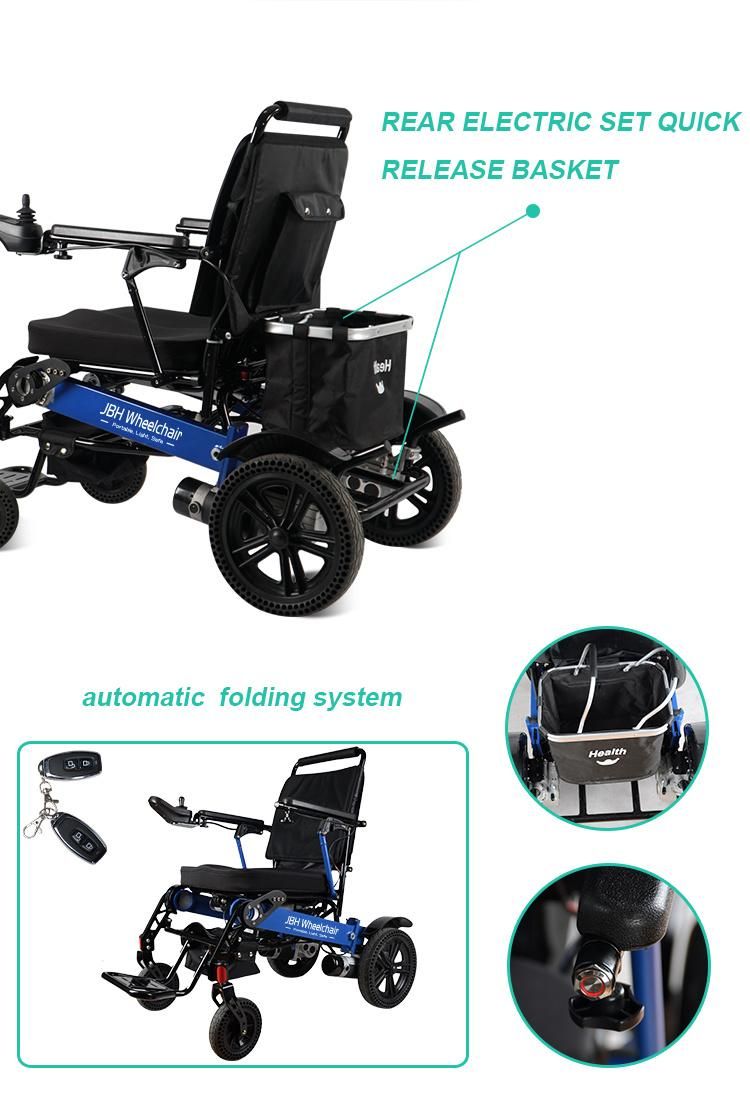

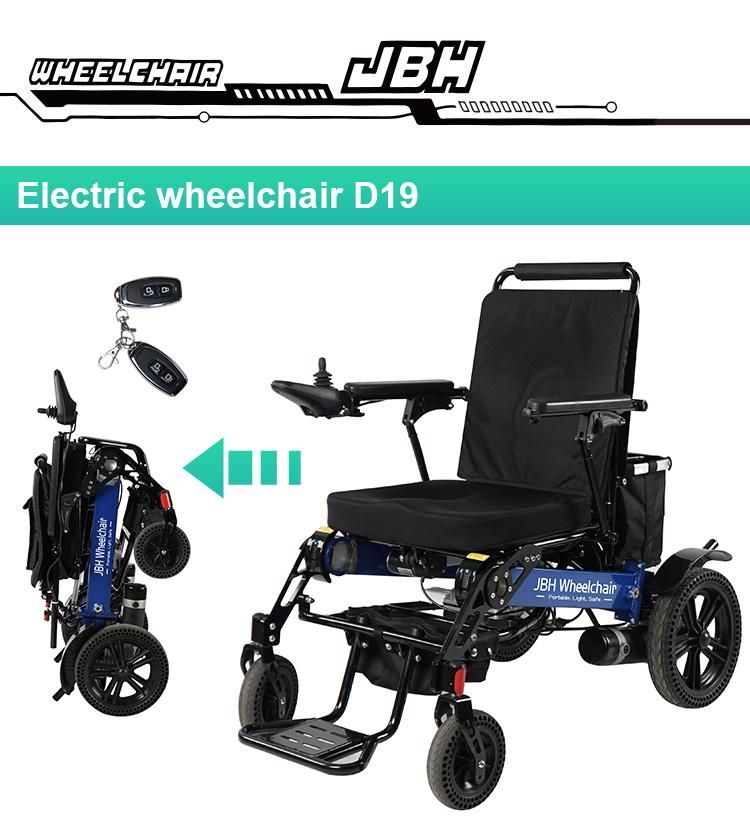

Automatic Folding Portable Electric Wheelchair with Quick Release Basket

Product name	Portable Lightweight Folding Electric Automatic Wheelchair	Model	D19A
Material	Aluminum alloy	Max load	150kgs

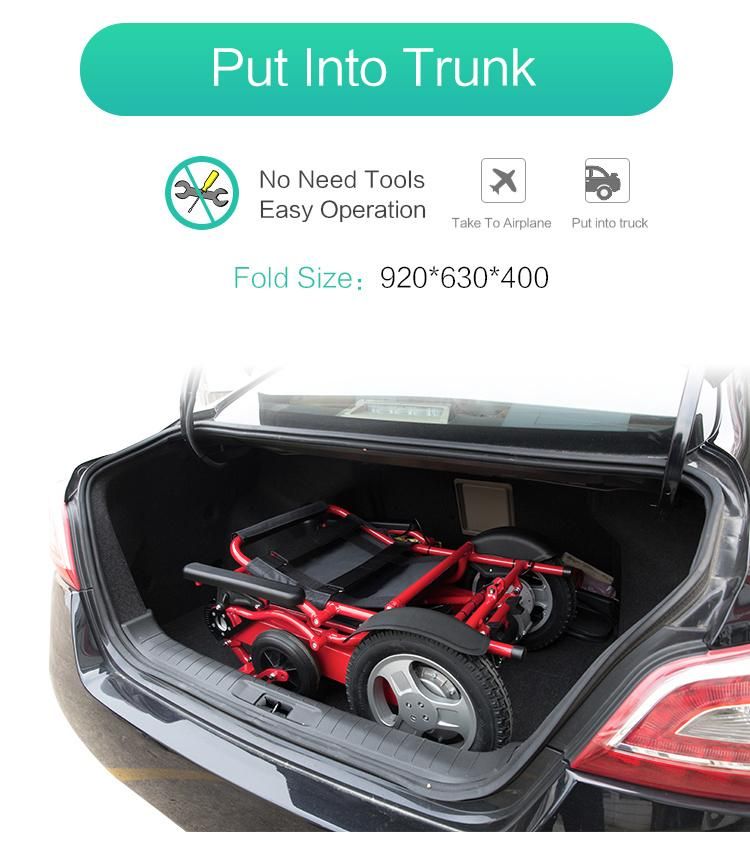

Unfold dimension	1230mm×630mm×1020mm	Fold dimension	920mm×630mm×400mm
Front wheel	8"	Rear wheel	12.5"
Speed	0-6KM/H	Driving range	20KM
Driving time	6-8H	Pedal height	8cm
Seat width	480mm	Seat height	Front 510mm/back 530mm
Seat depth	400mm	Max climbing grade	12°

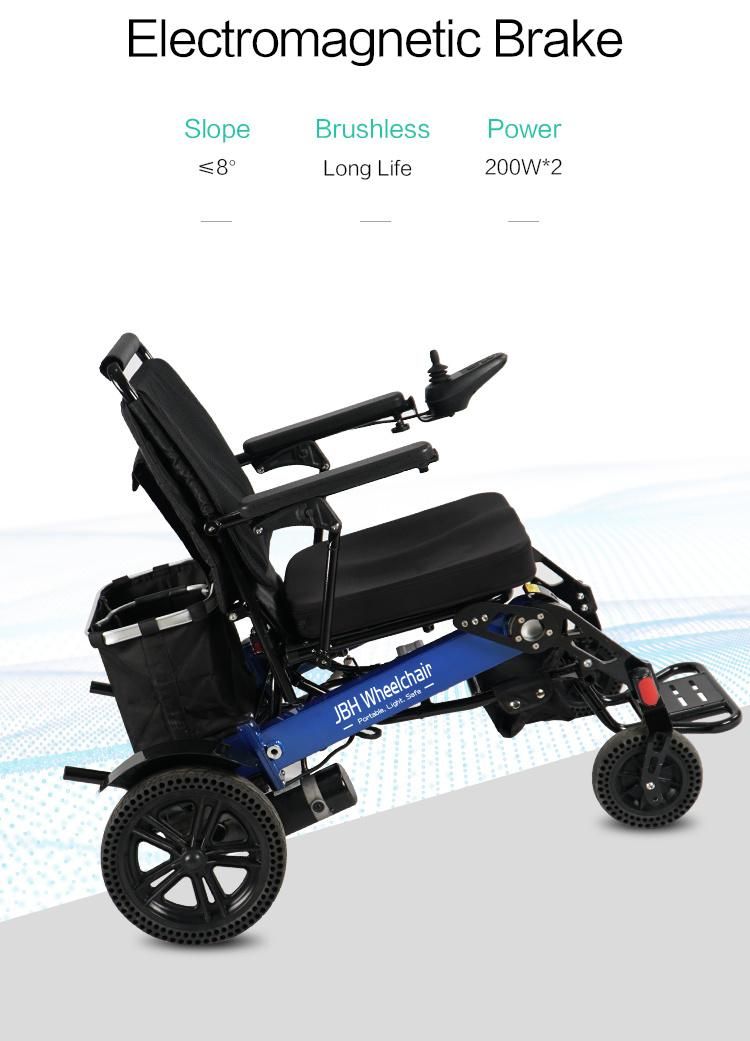

Motor	200W*2pcs	Braking System	IntelligentElectromagnetic Brake

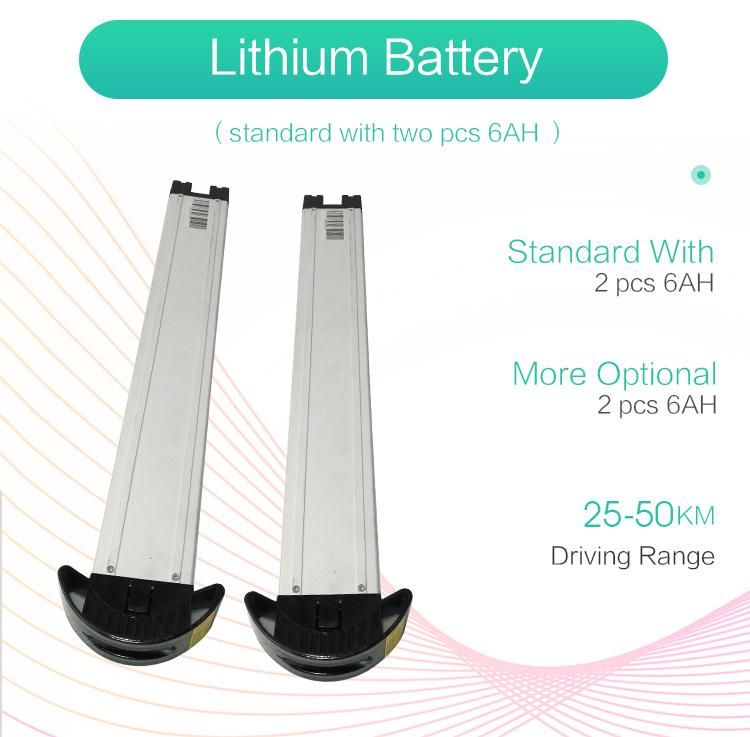

Battery	24V /6AH*2PCS  lithium battery	Carton size L×W×H	750mm×550mm×970mm

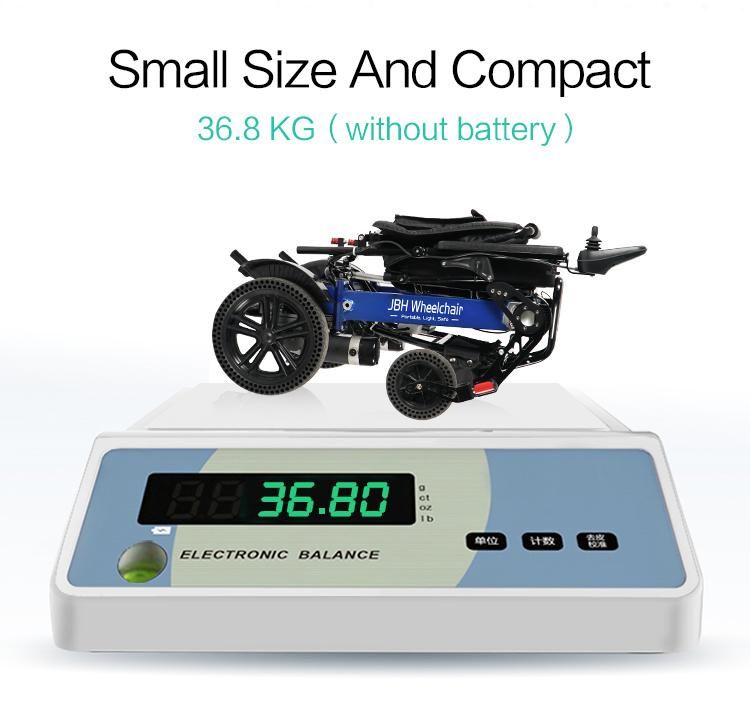

Net weight	32kg (without battery)	Net weight	35kg (with 2 batteries)

Company  Information"Nanjing Jin Bai He Medical Apparatus Co.,Ltd"
We are OEM producing manual wheelchairs,electric wheelchairs ,standing wheelchairs and scooters and so on,welcome to our factory for inspection.we believe in passion for supply you the best quality products and service.We have got CE&FDA certificate.we are waiting for you!





FAQ:

Q1.Why you choose Jin Bai He Company?
A1.We are profession wheelchair factory so we can ensure products quality and The pre-sale, after sale service.
A2.We accept your wheelchair design so we accept custom-made and customer Logo Print
A3.We are factory so our price is most competitive

Q2.What is your warranty of products?
Wheelchair Frame is 3 years,Battery is 1 years

Q3.How about your payment and shippment
Payment terms:30% in advance payment;70% before shippment
Shippment:FOB,CIF,CFR is available
Delivery Time:within 25 days after received your deposit

Q4.How to contact us?
Pls just Click "Send"now
