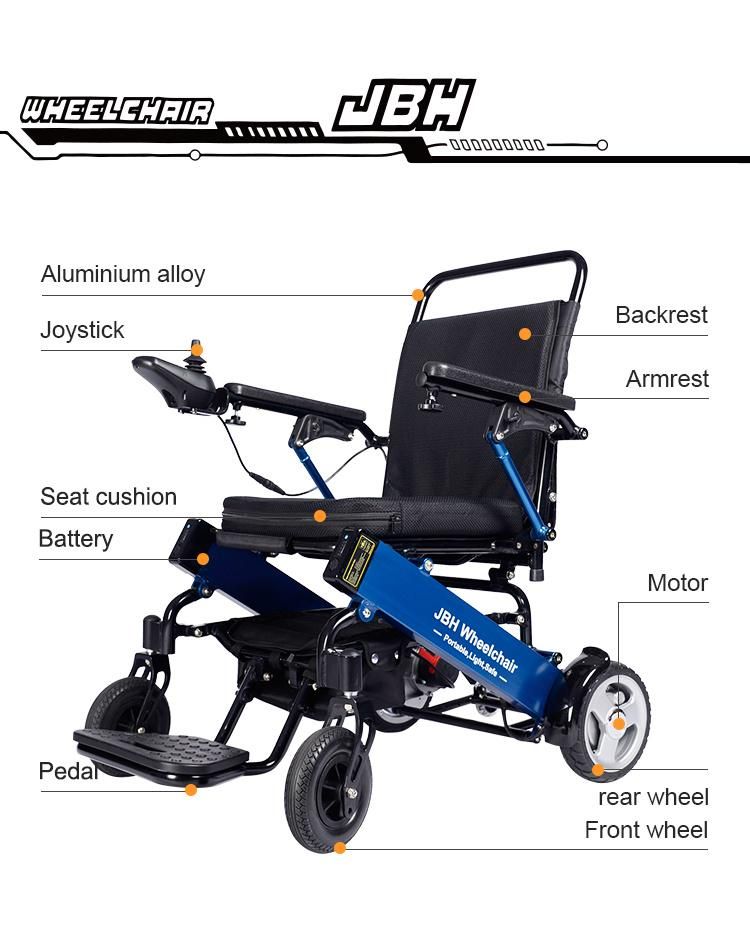

Jbh-D03 CE and FDA Approved Lightweight Power Folding Electric Wheelchair
Nanjing Jin Bai He Medical Apparatus Co., Ltd.- Customized：Customized
- Certification：ISO, RoHS, CE, FDA
- Condition：New
- Tilted：Non-Tilted

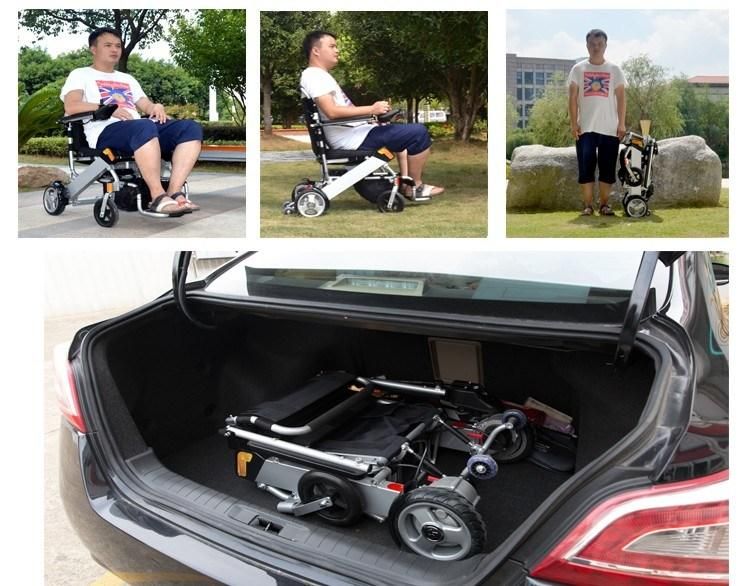

- Folded：Folding
- Leg Rest Type：Foot Pedal
Base Info
- Model NO.：D03
- Material：Aluminium Alloy
- Type：Electric Wheelchair
- Unfold Size：940X630X950 mm
- Fold Size：640X320X750 mm
- Max Load Capacity：120kg

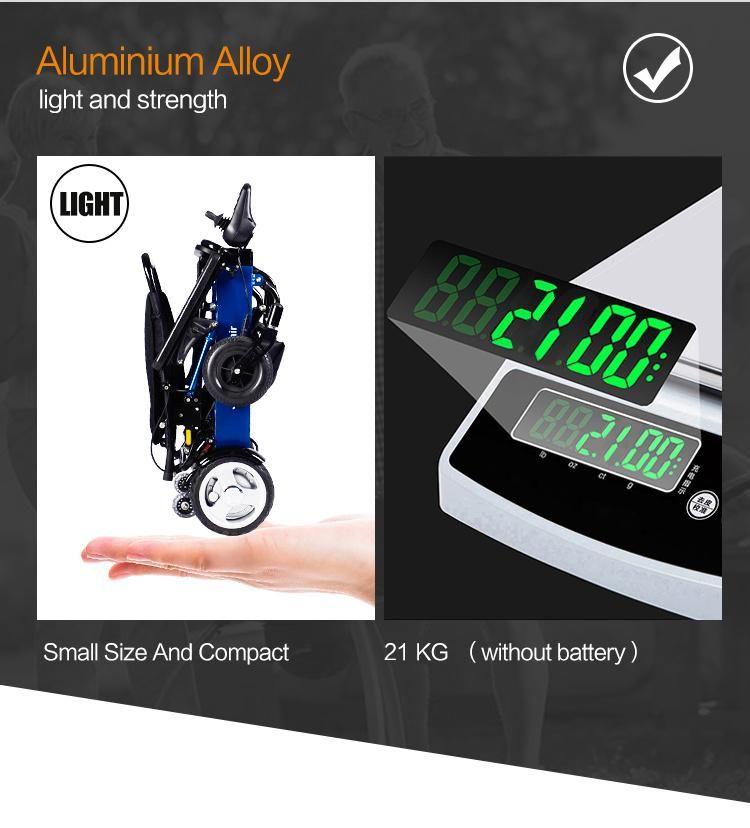

- N.W(Without Battery)：21 Kg
- N.W(with Battery)：24 Kg
- G.W(with Package)：29 Kg
- Front Wheel：7X 1.25 Solid PU Tire
- Rear Wheel：8X1.95 Solid PU Tire
- Driving Distance：25 Km
- Max Speed：6 Km,H
- Charger：24V,2A
- Battery Rated Voltage/Capacity：6 Ah
- Motor：24V,180W Brushless
- Transport Package：7-Layer Carton
- Specification：heavy duty power wheelchair
- Trademark：JBH
- Origin：Nanjing China
- HS Code：8713900000
- Production Capacity：4000PCS,Month
Description
Overview

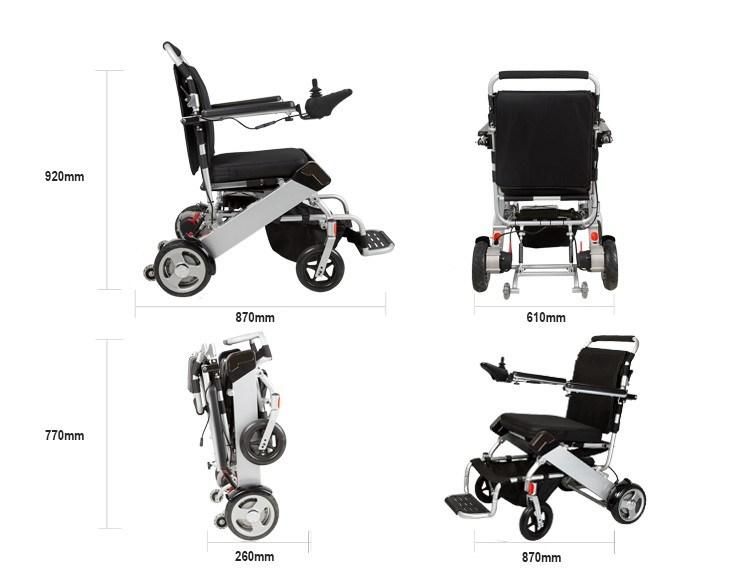

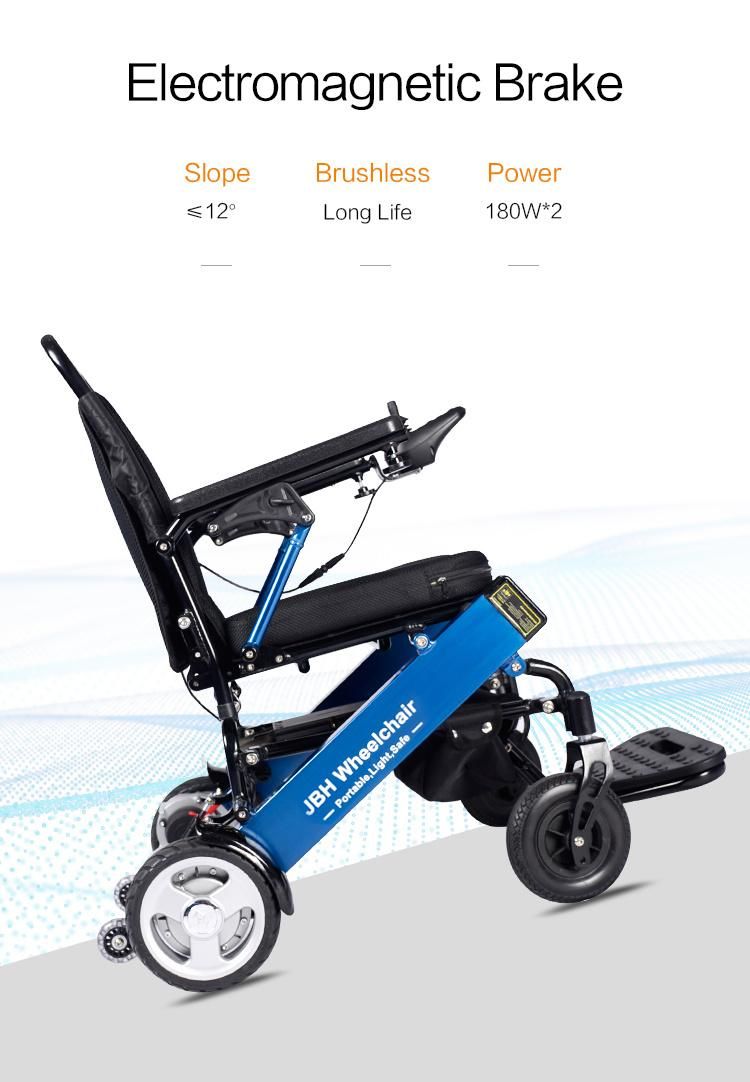

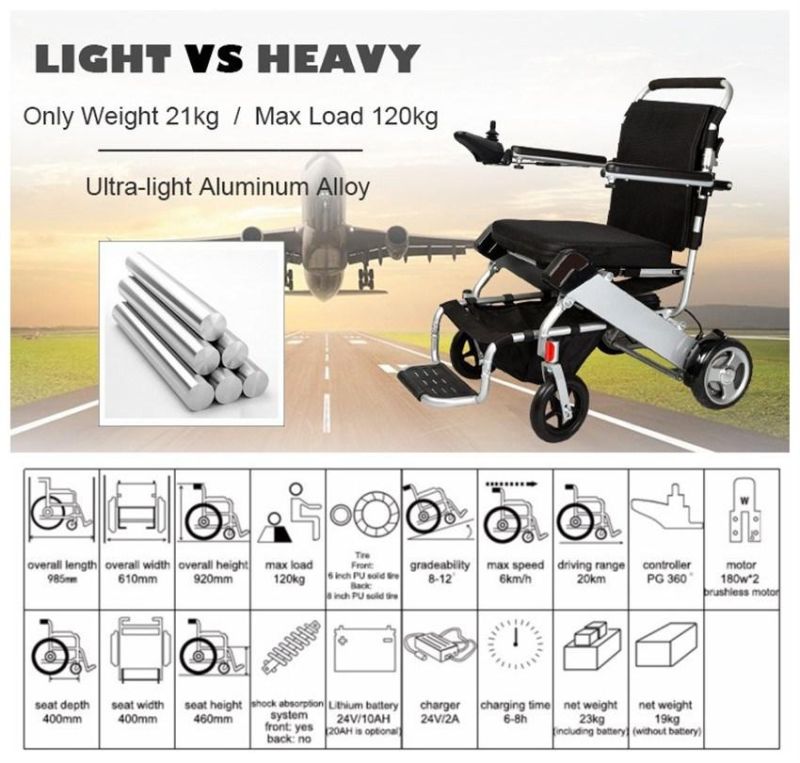

Product ParametersUnfolded Dim(LxWxH) 38x23.6x36inch 940×640×950mm Folded Dim(LxWxH) 23.6x11x30inch 640×320×750mm Width of Armrests 19'' 480mm Seat Width 15.7'' 400mm Seat Depth 15.7' 400mm Seat Height 19.7'' 500mm 5.1'' 130mm Packing Carton(LxWxH) 27.6x15.7x34.6inch 700x400x880mm Weight N.W. (Without Battery) 46.2lbs 21kg N.W. (With 1 battery) 50.6lbs 23kg N.W. (With 2 batteries) 55lbs 24kg G.W. (with 1 battery) 61.6lbs 28kg G.W. (with 2 batteries) 66lbs 31kg Performance Max Speed 3.75mph 6km/hour Loading Capacity 264lbs 120kg Climbing Slope Max 12° Motor Type DC Brushless motor Motor 180W×2pc (360W) Battery Type Lithium Battery Voltage 24V Current 24V 10AHx1 or 2pcs Power 144WH Range (1 battery) 12.4miles 20KM Ranger (2 batteries) 24.8miles 40KM Weight 3.3lbs 1.5kg/pc Intput Voltage 100~240VAC 50/60Hz Charger Output Voltage 24V Charging Time 6Hour Tires Front Tires 7" PU solid tires Rear Tires 8" PU solid tires Brake System Brake Electromagnetic Brake Others Material Aluminum Alloy Drive Mode Rear Drive Color Silver, Black, Blue, Yellow, Red & Pink Container one 20FCL=98pcs, one 40HQ=250pcs Warranty
FAQ
Q: How do you control product quality?
A: 1) Diffent from other suppliers who buy accessories from outside then install,we produce most accessories by ourselves,so we can control both good quality and low production cost.

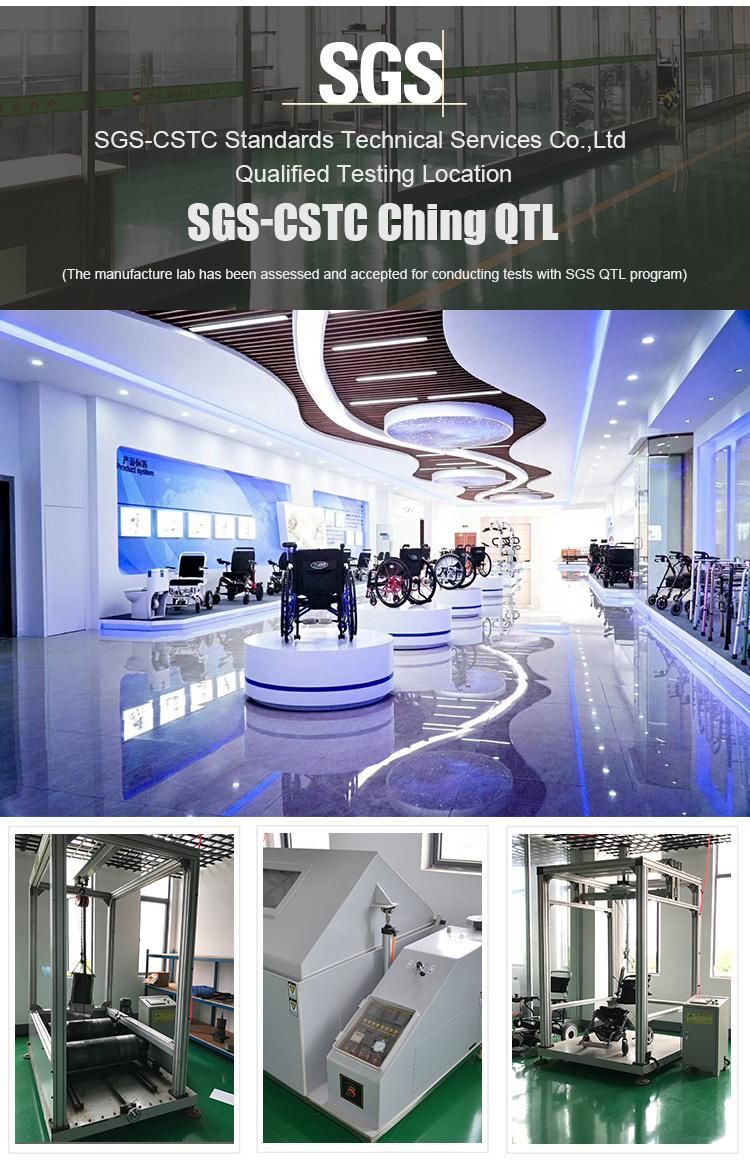

2) We have our own laboratory and testing centre,we will test our products in loading capacity, noise, speed, climbing ability,etc.
3) We have certificates: CE, FDA, ISO9001, ISO13485,etc,so please don't worry about quality.
Q: Can you do OEM,ODM?
A: Yes, absolutely ! We have provided such service for many distributors,we can help you build your own brand,we are not just cooperation,we are partners!
Specification
Pedal High
From Ground
12 months for motor, battery and controller
36 months for frame
FAQQ: Are you factory?
A: Yes,we are China largest factory for wheelchair & mobility scooters,our production site is 140,000 square meters,which includes Purchasing Department, Production Department, R&D, QC, Laboratory, Sales Department, Logistics Department, After-sale service centre,etc. Welcome to visit us at any time!Q: How do you control product quality?
A: 1) Diffent from other suppliers who buy accessories from outside then install,we produce most accessories by ourselves,so we can control both good quality and low production cost.
2) We have our own laboratory and testing centre,we will test our products in loading capacity, noise, speed, climbing ability,etc.
3) We have certificates: CE, FDA, ISO9001, ISO13485,etc,so please don't worry about quality.
Q: Can you do OEM,ODM?
A: Yes, absolutely ! We have provided such service for many distributors,we can help you build your own brand,we are not just cooperation,we are partners!
