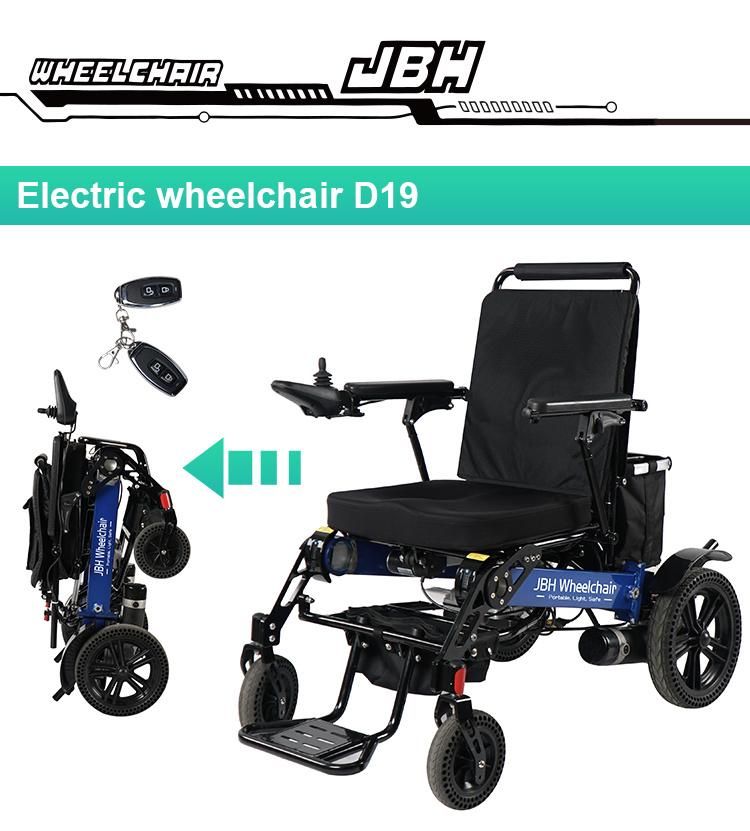

2019 Newest Model Foldable Electric Wheelchair

Nanjing Jin Bai He Medical Apparatus Co., Ltd.
  • Customized：Non-Customized
  • Certification：ISO, CE, FDA
  • Condition：New
  • Tilted：Tilted
  • Folded：Folding
  • Leg Rest Type：Across Both Sides

Base Info

  • Model NO.：D19
  • Material：Aluminium Alloy
  • Type：Electric Wheelchair
  • Battery Type：24V ,7ah*2PCS Lithium Battery
  • Fold Size：920*630*400mm
  • Unfold Size：1230*630*1020mm
  • Motor：200W*2PCS Brush Motor
  • Driving Rane：25km
  • Max Speed：6km,H
  • Driving Distance：15-20km
  • Net Weight：35kgs
  • Gross Weight：42kgs
  • Tire：PU Solid Tire
  • Weight Capacity：150kg
  • Front Tires：8" PU Solid Tires
  • Rear Tires：12.5" PU Solid Tires
  • Color：Silver,Black+Red
  • Product Name：2019 Newest Model Foldable Electric Wheelchair
  • Transport Package：1 PC,Carton Packaging
  • Specification：75*45*88CM
  • Trademark：JBH
  • Origin：Nanjing, Jiangsu
  • HS Code：87139000
  • Production Capacity：1000 PCS,Month

Description

Basic Info.

Model NO. D19 Material Aluminium Alloy Type Electric Wheelchair Battery Type 24V /7ah*2PCS Lithium Battery Fold Size 920*630*400mm Unfold Size 1230*630*1020mm Motor 200W*2PCS Brush Motor Driving Rane 25km Max Speed 6km/H Driving Distance 15-20km Net Weight 35kgs Gross Weight 42kgs Tire PU Solid Tire Weight Capacity 150kg Front Tires 8" PU Solid Tires Rear Tires 12.5" PU Solid Tires Color Silver,Black+Red Product Name 2019 Newest Model Foldable Electric Wheelchair Transport Package 1 PC/Carton Packaging Specification 75*45*88CM Trademark JBH Origin Nanjing, Jiangsu HS Code 87139000 Production Capacity 1000 PCS/Month

Product Description

2019 Newest Model Foldable Electric Wheelchair 2019 Newest Model Foldable Electric Wheelchair
Product name2019 Newest Model Foldable Electric WheelchairModelD19A
MaterialAluminum alloyMax load150kgs
Unfold dimension1230mm×630mm×1020mmFold dimension920mm×630mm×400mm
Front wheel8"Rear wheel12.5"
Speed0-6KM/HDriving range20KM
Driving time6-8HPedal height8cm
Seat width480mmSeat heightFront 530mm/back 510mm
Seat depth400mmMax climbing grade8°

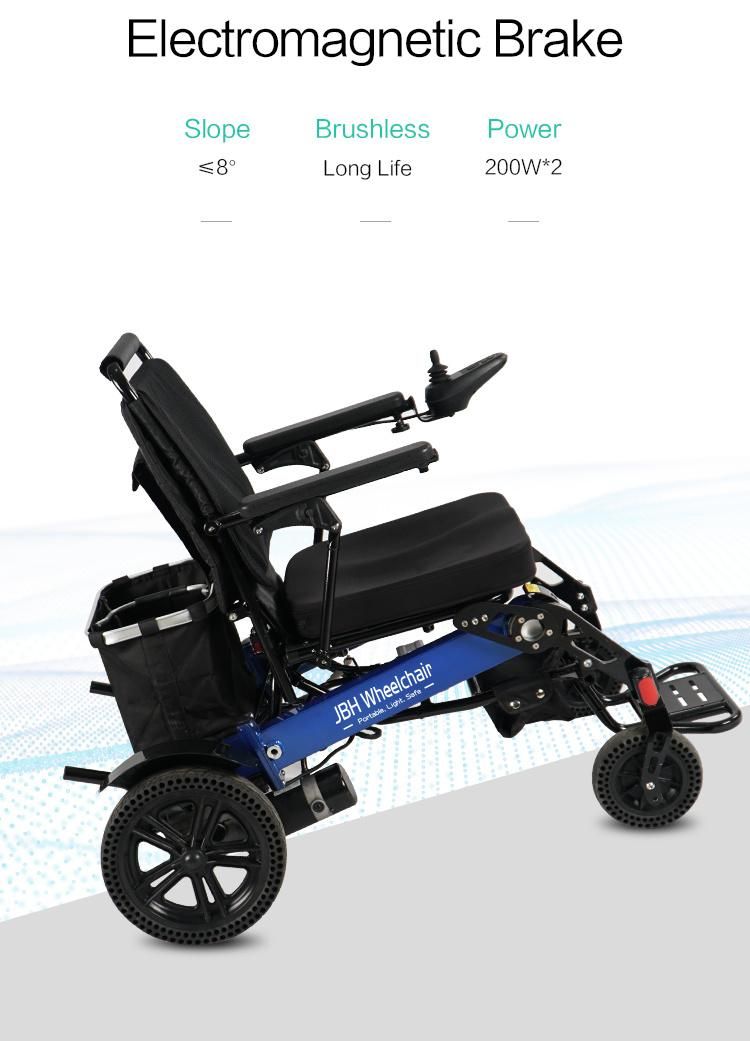

Motor200W*2pcs brush motorBraking SystemIntelligentElectromagnetic Brake

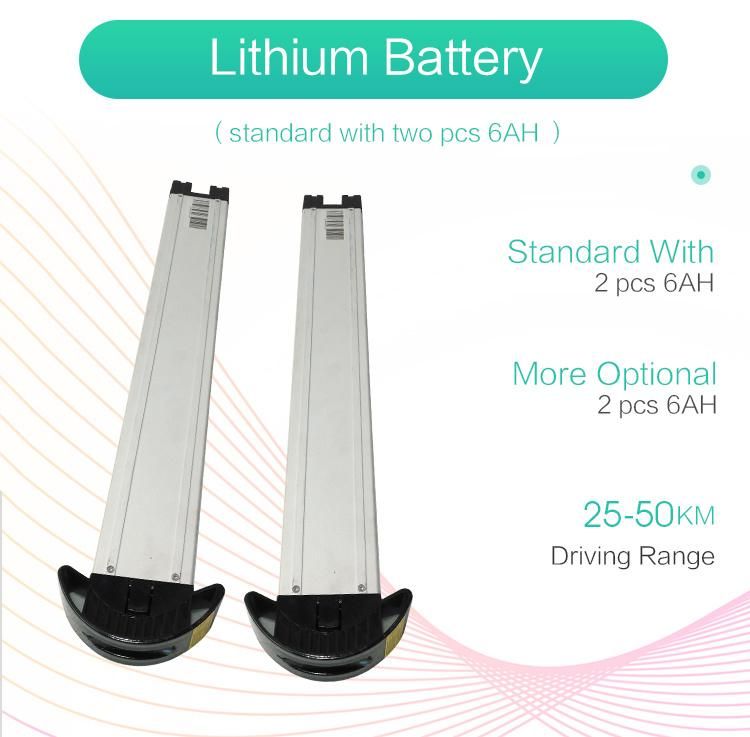

Battery24V /7AH*2PCS  lithium batteryCarton size L×W×H750mm×550mm×950mm

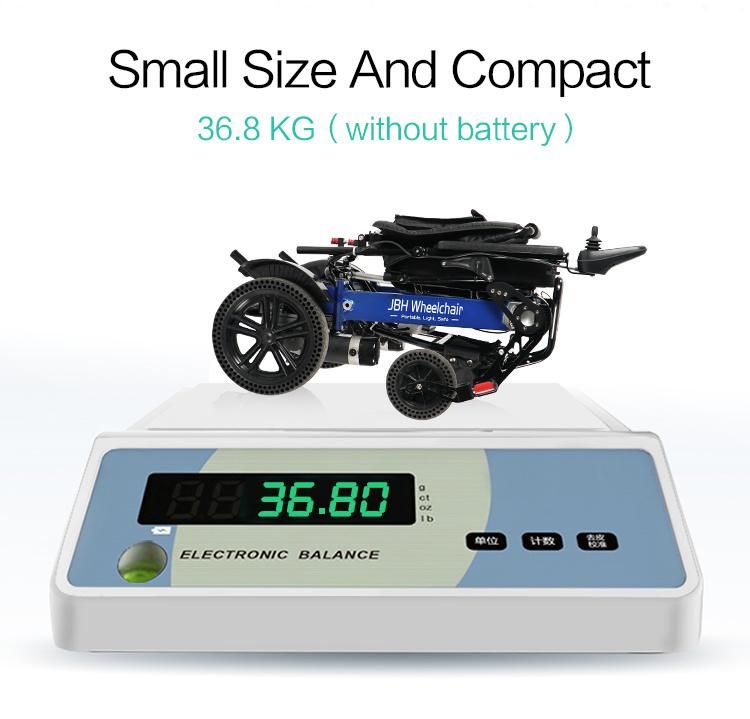

Net weight32kg (without battery)Net weight35kg (with 2 batteries)

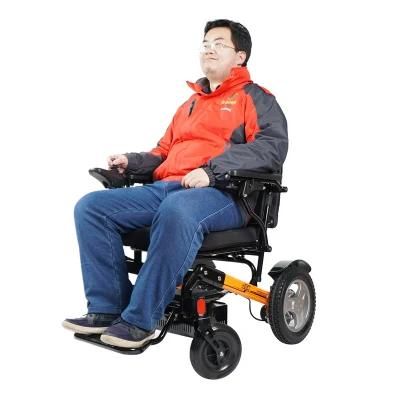

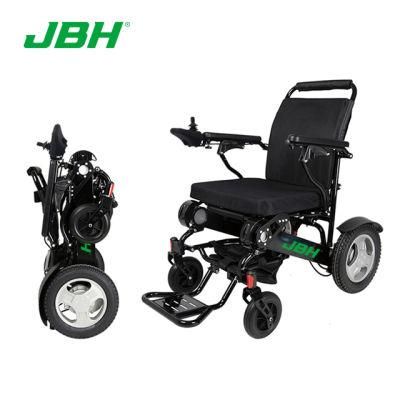

2019 Newest Model Foldable Electric Wheelchair
2019 Newest Model Foldable Electric Wheelchair
2019 Newest Model Foldable Electric Wheelchair
2019 Newest Model Foldable Electric Wheelchair
2019 Newest Model Foldable Electric Wheelchair
2019 Newest Model Foldable Electric Wheelchair
2019 Newest Model Foldable Electric Wheelchair
2019 Newest Model Foldable Electric Wheelchair

Company  Information"Nanjing Jin Bai He Medical Apparatus Co.,Ltd"
We are OEM producing manual wheelchairs,electric wheelchairs ,standing wheelchairs and scooters and so on,welcome to our factory for inspection.we believe in passion for supply you the best quality products and service.We have got CE&FDA certificate.we are waiting for you!

2019 Newest Model Foldable Electric Wheelchair
2019 Newest Model Foldable Electric Wheelchair
2019 Newest Model Foldable Electric Wheelchair

FAQ:

Q1.Why you choose Jin Bai He Company?
A1.We are profession wheelchair factory so we can ensure products quality and The pre-sale, after sale service.
A2.We accept your wheelchair design so we accept custom-made and customer Logo Print
A3.We are factory so our price is most competitive

Q2.What is your warranty of products?
Wheelchair Frame is 3 years,Battery is 1 years

Q3.How about your payment and shippment
Payment terms:30% in advance payment;70% before shippment
Shippment:FOB,CIF,CFR is available
Delivery Time:within 25 days after received your deposit

Q4.How to contact us? Pls just Click "Send"now
