18 Inch Wheels Standing up Motorized Electric Wheelchair

NANJING AISHUN GREEN TECHNOLOGY CO., LTD.
  • Customized：Non-Customized
  • Certification：ISO, CE
  • Condition：New
  • Tilted：Tilted
  • Folded：Folding
  • Leg Rest Type：Across Both Sides

Base Info

  • Model NO.：AZ01
  • Material：Aluminium Alloy
  • Type：Electric Wheelchair
  • Product Name：Light Weight Brushless Motor Folding Electric Whee
  • Electric Wheelchair Unfold Size：1120X660X1100mm
  • Driving Motor：Suoyang Mtm DC 320wx2PCS
  • Lead-Acid Battery：12V 20ah X4 PCS
  • Chair Loading：120-150kg
  • Driving Distance：50km
  • Controller：Pg Vr-2 Pg R-Net
  • Seat Width：450mm
  • Transport Package：One Chair Per Box with Protect Foams
  • Specification：250W folding electric wheelchair
  • Trademark：AISHUN
  • Origin：Nanjing, Jiangsu, China
  • HS Code：87139000
  • Production Capacity：1000 PCS,Month

Description

Basic Info.

Model NO. AZ01 Material Aluminium Alloy Type Electric Wheelchair Product Name Light Weight Brushless Motor Folding Electric Whee Electric Wheelchair Unfold Size 1120X660X1100mm Driving Motor Suoyang Mtm DC 320wx2PCS Lead-Acid Battery 12V 20ah X4 PCS Chair Loading 120-150kg Driving Distance 50km Controller Pg Vr-2 Pg R-Net Seat Width 450mm Transport Package One Chair Per Box with Protect Foams Specification 250W folding electric wheelchair Trademark AISHUN Origin Nanjing, Jiangsu, China HS Code 87139000 Production Capacity 1000 PCS/Month

Product Description

18 inch wheels standing up motorized electric wheelchair

AZ01 Electric Standing Up Power Wheelchair Key Features:
1. with this standing wheelchair, the paraplegia patients can stand up, lie down, sit, move and use the toilet by themselves.
2. Help the patient to stretch his body and joint, which strengthens cardio-pulmonary function and prevent bedsore.
3.PG controller. Suoyang motor, Chaowei acid-lead battery.
4. Certificates: CE;ISO9001; ISO13485;
5.The warranty period:1 year.

Electric Standing Up Power Wheelchair Parameters:
Model No.:AZ01
Type:standing wheelchair
Overall Dimension:1120x660x1100mm
Braking system: full automatic electromagnetic

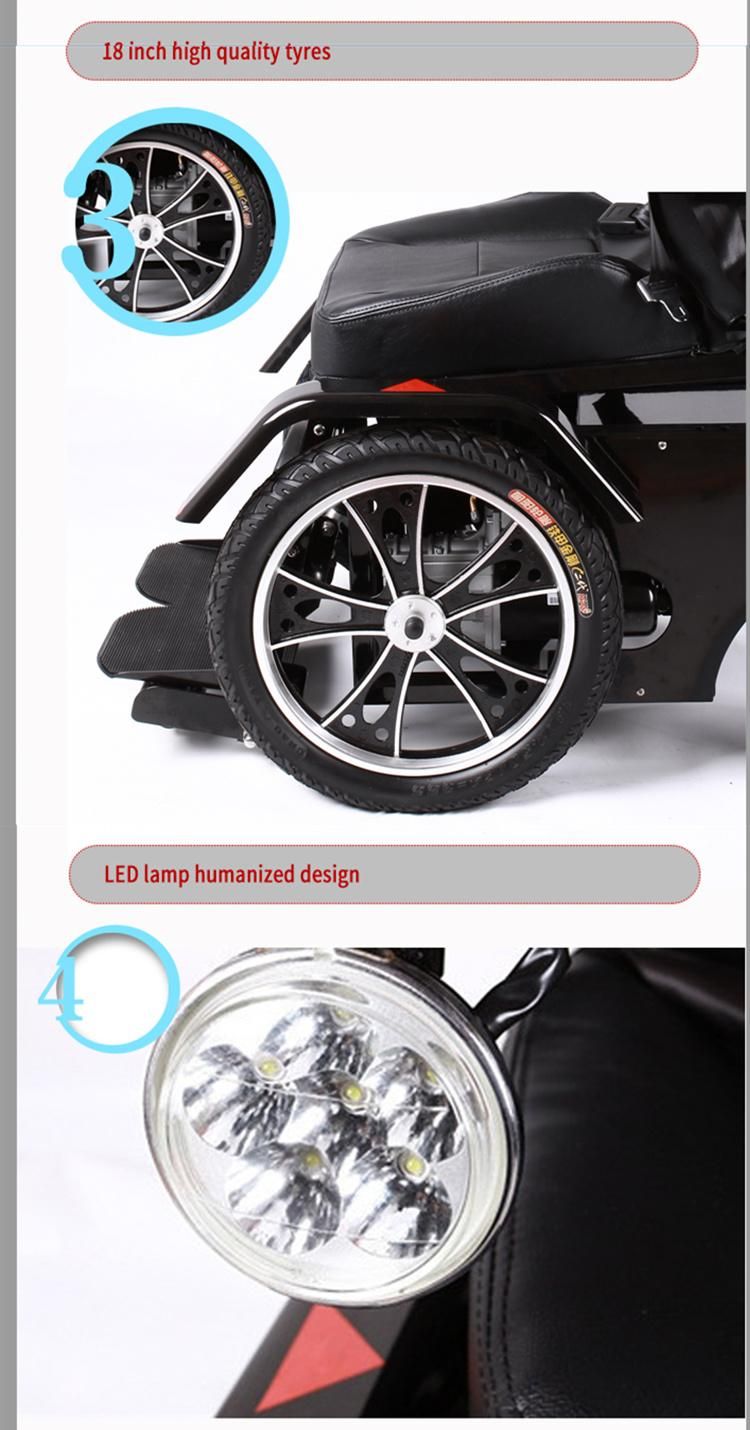

Front tires:18"x2.5/64-355 Pneumatic tire
Back tires:2.5"x4
Loading capacity :120KG (Max 150kg)
Driving distance:50km
Seat width:450mm
Seat depth:450mm
Seat height:560mm
Backrest height:600mm
Armrest height:360mm
 Climbing Slope:12°
Pushrod motor:LINIX DC 3500Nx3 DC 6000Nx1
Driving Motor:MTM DC 320Wx2PCS

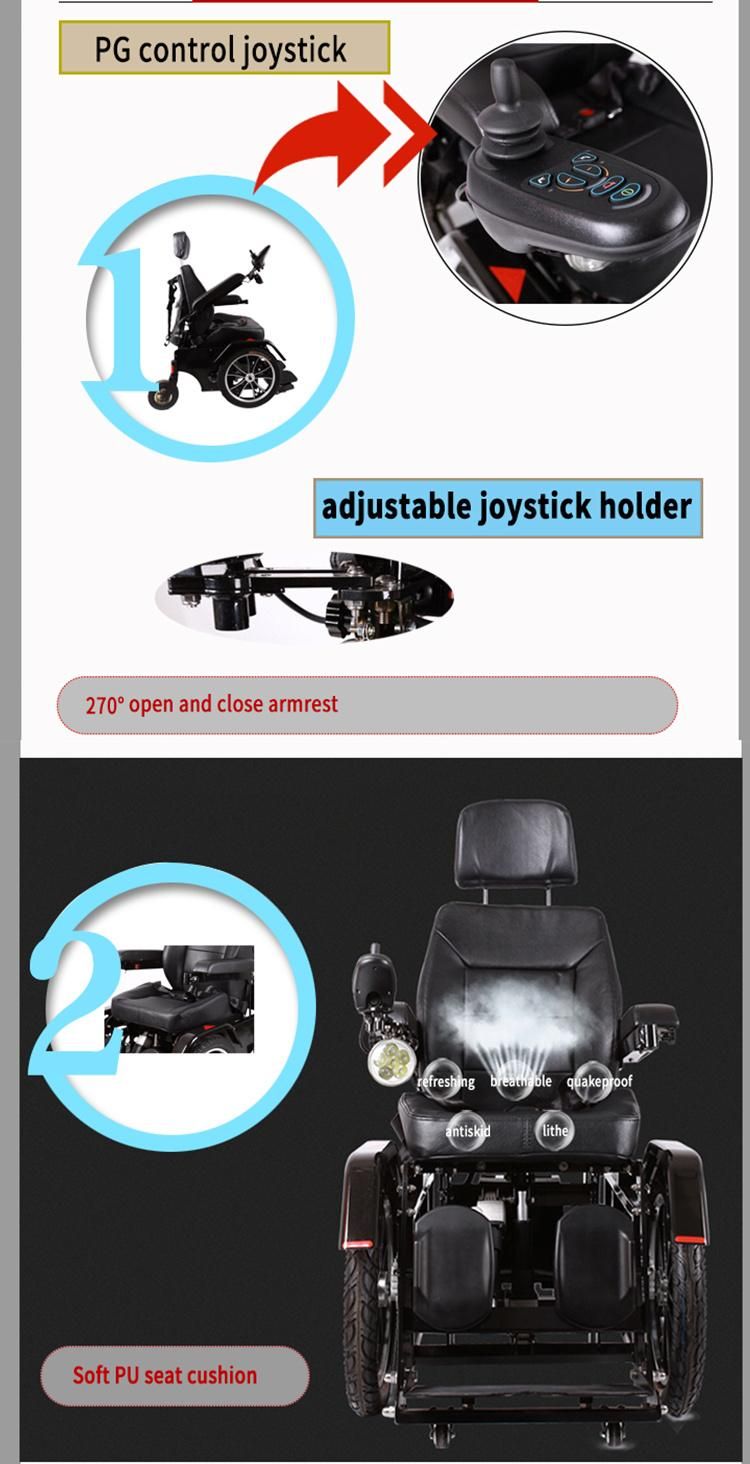

Controller:PG VR-2 PG R-NET
Charger:Input: 110-230V/AC; output:24V/DC
lead-acid battery12V 20AH x4 pcs
Net weight:125 kgs
Package size:1.05m*0.78m*1.2m, 1 set/plywood box

18 Inch Wheels Standing up Motorized Electric Wheelchair
18 Inch Wheels Standing up Motorized Electric Wheelchair
18 Inch Wheels Standing up Motorized Electric Wheelchair
18 Inch Wheels Standing up Motorized Electric Wheelchair
18 Inch Wheels Standing up Motorized Electric Wheelchair


Company Information:

Nanjing Aishun Tech. is a professional and comprehensive enterprise in Wheelchairs and Mobility scooters.
We specialized in folded power wheelchairs and scooters, to make disabled and elders go outdoor easily, live better life.
Base on high-quality technique, we own CE, FDA, ISO 13485, SGS certificates.
18 Inch Wheels Standing up Motorized Electric Wheelchair

Certificates:
CE, FDA,ISO 9001,SGS.
18 Inch Wheels Standing up Motorized Electric Wheelchair


FAQ
.Q1: Why Choose Aishun Green Tech. Products?
 A1: We are one of the professional wheelchair and scooters factory here in China,
 Best production capability ,Best quality control, Best Service,

Q2:What is your MOQ(Minimum Order Quantity )?
 A3: As a factory, our MOQ is a 20 GP container, it could be mixed the different model.

Q3: Payment and shipment
 A4: We accept: L/C, T/T, Paypal.
      Delivery time: Within 20 Work days upon the order confirmed.
