• Model NO.：D05
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Expand Dimension：870 X 610 X 920 mm
• Folded Dimension：610 X 260 X 770 mm
• Frame Material：Aerospace Titanium-Aluminum Alloy
• Battery Type：Lithium Battery 10ah*1PC
• Wheelchair Colour：Blue,Yellow,Silver,Red,Black,Pink
• Max Load：150kg
• Cerificate：ISO13485, ISO9001, FDA, Ce
• Motor：180W*2 PCS Brushless Motor
• Weight：23kg (with Batteries)
• Wheelchair Driving Distance：20km
• Seat Width：400mm
• Seat Depth：400 mm
• Charging Time：6-8 Hours
• Brake System：Intelligent Electromagnetic Brake
• Using Ambient：Outdoor
• Transport Package：1 Set Electricpower Wheelchair,CTN
• Specification：CE, FDA, ISO13485, ISO9001
• Trademark：JBH
• Origin：Nanjing, Jiangsu, China
• HS Code：87139000
• Production Capacity：4000 Sets,Month

Basic Info.

Model NO. D05 Material Aluminium Alloy Type Electric Wheelchair Expand Dimension 870 X 610 X 920 mm Folded Dimension 610 X 260 X 770 mm Frame Material Aerospace Titanium-Aluminum Alloy Battery Type Lithium Battery 10ah*1PC Wheelchair Colour Blue/Yellow/Silver/Red/Black/Pink Max Load 150kg Cerificate ISO13485, ISO9001, FDA, Ce Motor 180W*2 PCS Brushless Motor Weight 23kg (with Batteries) Wheelchair Driving Distance 20km Seat Width 400mm Seat Depth 400 mm Charging Time 6-8 Hours Brake System Intelligent Electromagnetic Brake Using Ambient Outdoor Transport Package 1 Set Electricpower Wheelchair/CTN Specification CE, FDA, ISO13485, ISO9001 Trademark JBH Origin Nanjing, Jiangsu, China HS Code 87139000 Production Capacity 4000 Sets/Month

Product Description

 Aluminum Lightweight Power WheelchairGet Latest Price
Folding electric power wheelchair Advantage:

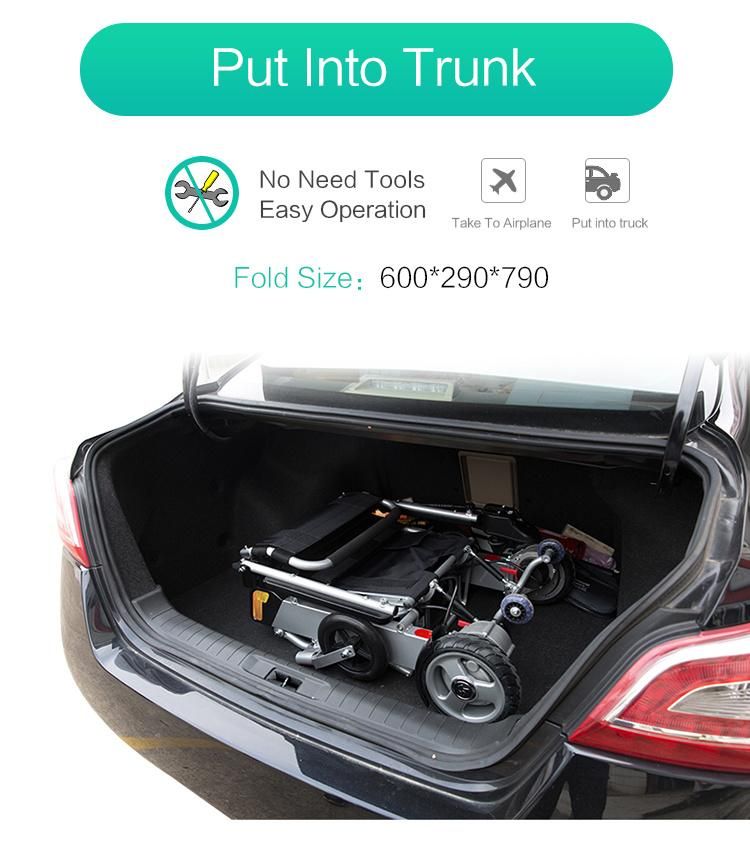

1. 5-seconds folding or unfolding,easy to carry on plane or on train.

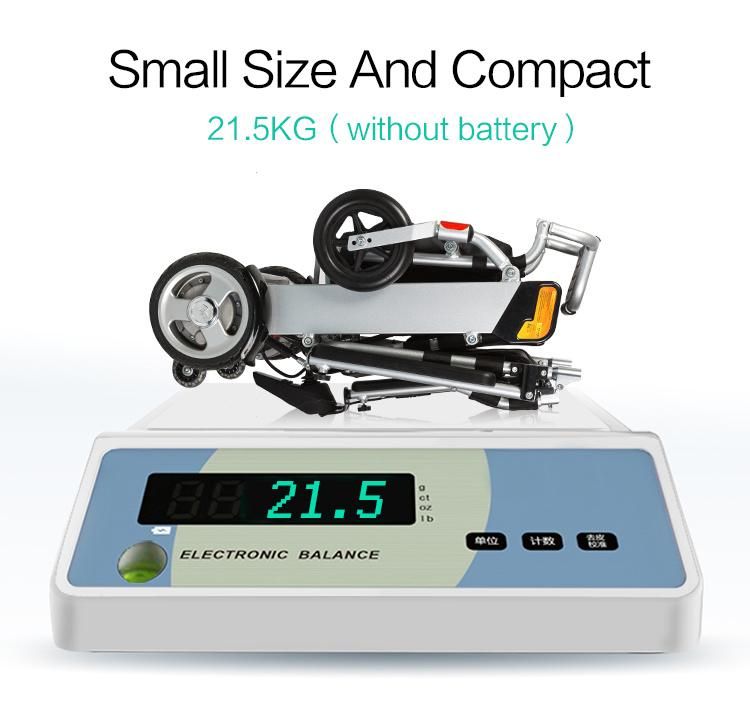

2. Very light weight (23kgs)
3. Frame material: 7003 aerospace titanium-aluminum alloy
4. Certificates: CE;FDA;ISO9001; ISO13485;
5. High efficiency brushless hub motor
6.The warranty period of frame is 4 years and other parts is 1 years

Folding electric power wheelchair Specifications:

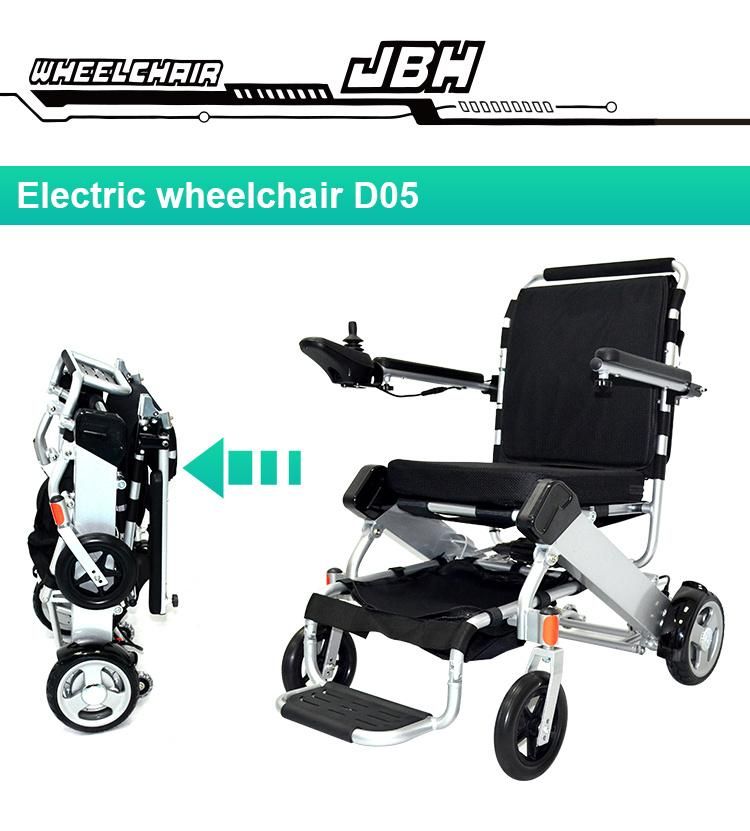

Parameters:	Smart Lightweight Aluminum Folding Electric Power Wheelchair
Item No.:	D05 Folding electric wheelchair
Unfolded dimension:	870 x 610 x 920mm
Folded dimension:	610 x 260 x 770mm
Motor:	180W X 2 brushless motor

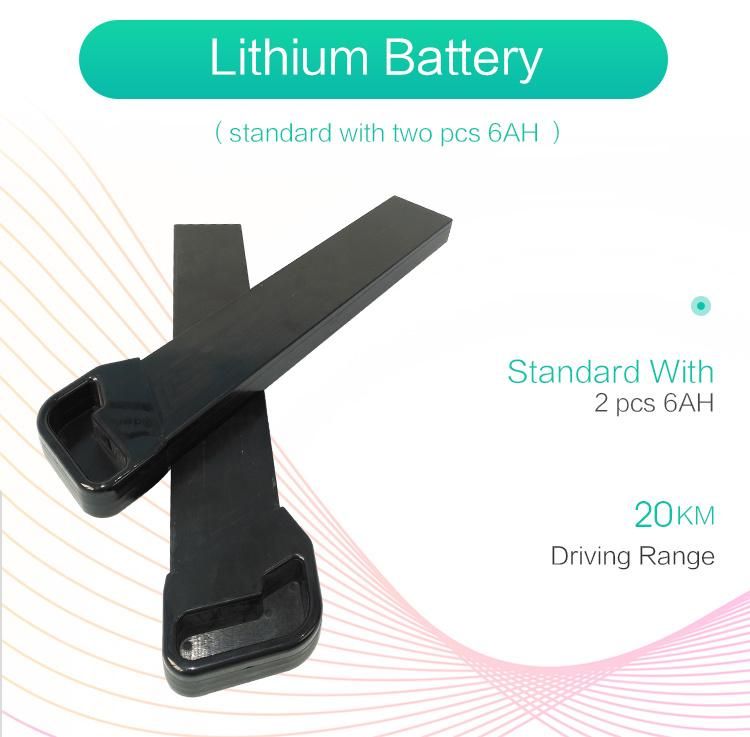

Battery:	1 pc lion battery 10AH DC 24V  (can fit additional 10AH lion battery)

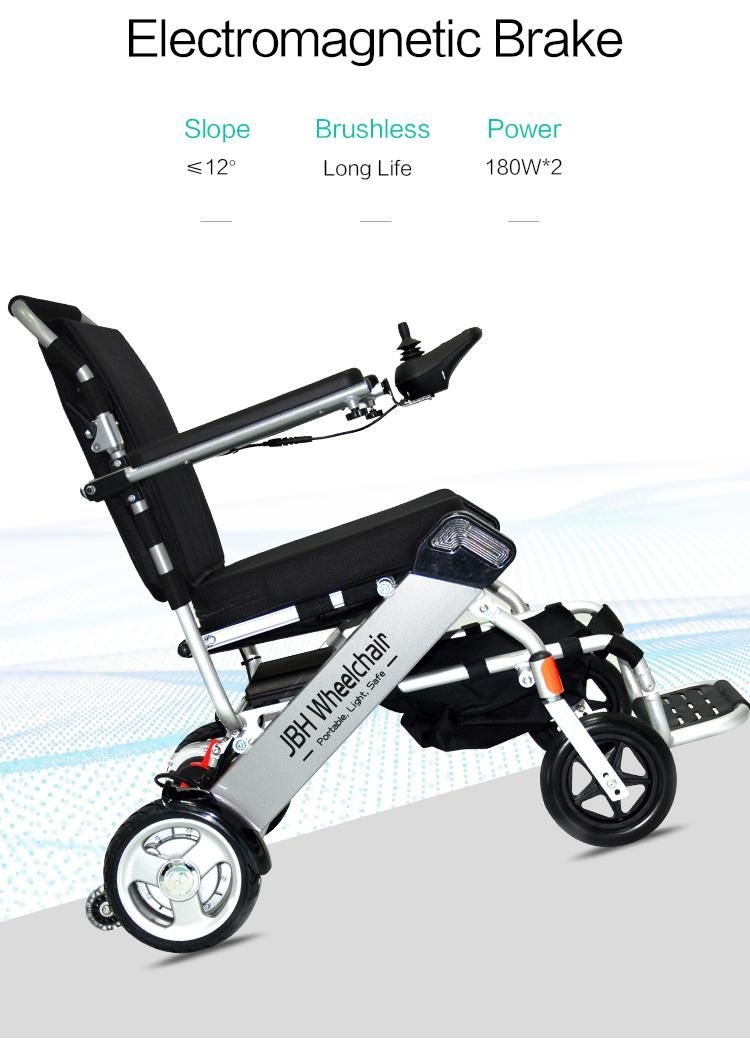

Braking system:	Intelligent type electromagnetic brake
Charging time:	5 hours
Max Speed :	6 km/h
Driving Range:	20-40km
Turning radius:	800mm
Loading capacity :	150KG
Climbing Slope:	12°
Front tires:	7.5"x2pcs
Rear tires:	8"x2pcs
Anti-turned wheels:	2.5"x2pcs
Seat depth:	400mm
Seat width:	400mm
Backrest height:	360mm
Armrest height:	220mm
N.W.:	23kg (with one battery)
Package:	1 set/carton
carton size:	725x845x400mm

Cerificates:

FDA, CE, ISO13485.



Package:
1 piece electric wheelchair/carton, with inner foam protect.

Company Brief:

JBH Wheelchair is research and development, manufacturing and sales enterprise. Specialized in Portable power wheelchair, Portable electric scooter, knee walker, and electric standingwheelchair. Products passed through ISO 13485, FDA and CE standard. We provide OEM service, great quality. "JBH" as the registered trademark renowned for "Safe, Light and Portable" on the market. Products covers 20 Provinces in China and export to USA, UK, Canada, and Australia. JBH wheelchair gained wide range recognition and trust from our customers. We will continue providing high quality products and service.




Folding electric power wheelchair FAQ

. Q1: Why Choose JIN BAI HE Products?
 We are one of the professional wheelchair factory here in China,
 Best production capability, Best quality control, Best Service,

 Q2: How is JIN BAI HE Products Quality?
 We only supply quality products, our manufacturing facilities have received the ISO, CE, recognition, and get FDA certificate for some products .
Every products will inspected to the standard before shipment, and every product has one year warranty period.

Q3:What is your MOQ(Minimum Order Quantity) ?
  As a factory, our MOQ is one piece, it could be mixed the different models.

Q4: Payment and shipment
 We accept: L/C, T/T,WESTERN UNION;
 Delivery time: according to order.

Q5: Is the wheelchair foldable and portable?Yes. Our wheelchair can be easily disassembled and placed in the trunk of a vehicle.

Q6: Is the wheelchair for indoor or outdoor use?
It was designed for both indoor and outdoor use.

Q7: Will you accept OEM orders?
Yes. We'd like to produce our customers' OEM/ODM orders.
