• Model NO.：D09
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Guarantee：One Year
• Color：Silver ,Yellow,Blue(Any Color You Want)
• Unfold Size：968X565X925mm
• Fold Size：780X565X320
• Battery Type：Lithium Battery 24V,10ah
• Motor：250W*2 PCS
• Max Load：180kg
• Power Supply：Electric-Powered
• Using Ambient：Outdoor
• Wheelchair Weight：26.5kg (with Two Batteries)
• Transport Package：One Set Folding Power Wheelchair,Carton
• Specification：7003 Aerospace Titanium-Aluminum Alloy
• Trademark：JBH
• Origin：China
• HS Code：87139000
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. D09 Material Aluminium Alloy Type Electric Wheelchair Guarantee One Year Color Silver /Yellow/Blue(Any Color You Want) Unfold Size 968X565X925mm Fold Size 780X565X320 Battery Type Lithium Battery 24V/10ah Motor 250W*2 PCS Max Load 180kg Power Supply Electric-Powered Using Ambient Outdoor Wheelchair Weight 26.5kg (with Two Batteries) Transport Package One Set Folding Power Wheelchair/Carton Specification 7003 Aerospace Titanium-Aluminum Alloy Trademark JBH Origin China HS Code 87139000 Production Capacity 100 PCS/Month

Product Description

250W motor lithium battery wheelchair electric for disabled







Model Number	D09	Type	Electric Wheelchair
Unfolded(LxWxH)	975x590x935mm	Folded	590x325x780mm
Material	Aerospace Aluminum	Load Capacity	180kg
Battery Capacity	24V6AH	Charge Time	6h-8h
Maximum Speed	6km/h	Motor Power	250X2 Brushless Motor
Front Wheels	7Inches or 8Inches	Real Wheels	12Inches
Endurance	25km	Wheel Material	PU
Brake Mode	Electromagnetic Brake	Gradeability	12
Charger Type	Lithium Battery	Drive mode	Rear-wheel Drive

Advantages:

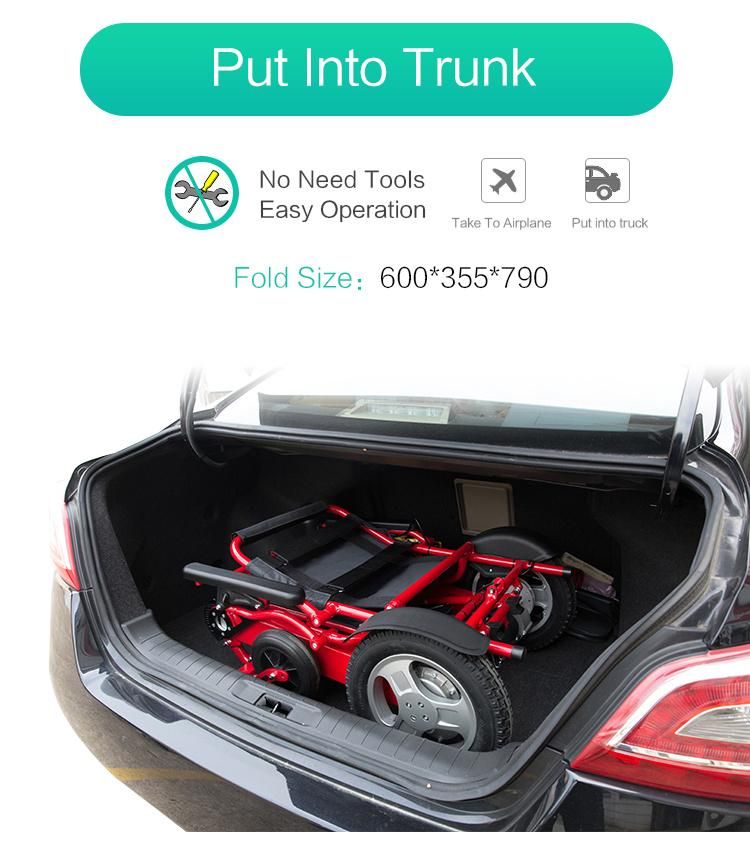

  •  It can be put into trunk easily for its foldable lightweight aluminum alloy frame.
  • The foot pedal can be flipped up.

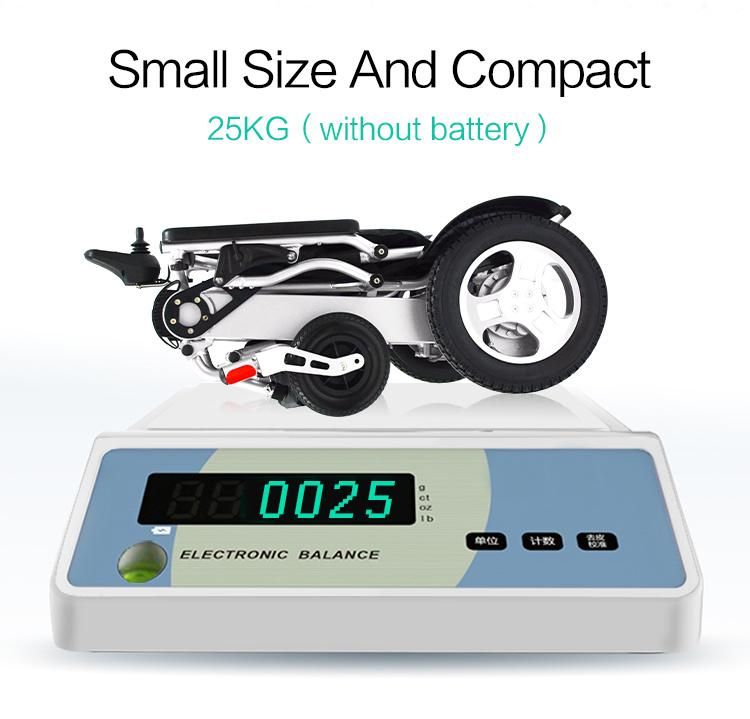

  •  Aluminum frame enables the wheelchair have a lightweight,only weighs 23.5kg.
  • Beautiful back wheel metal hub, which is stable anddurable.

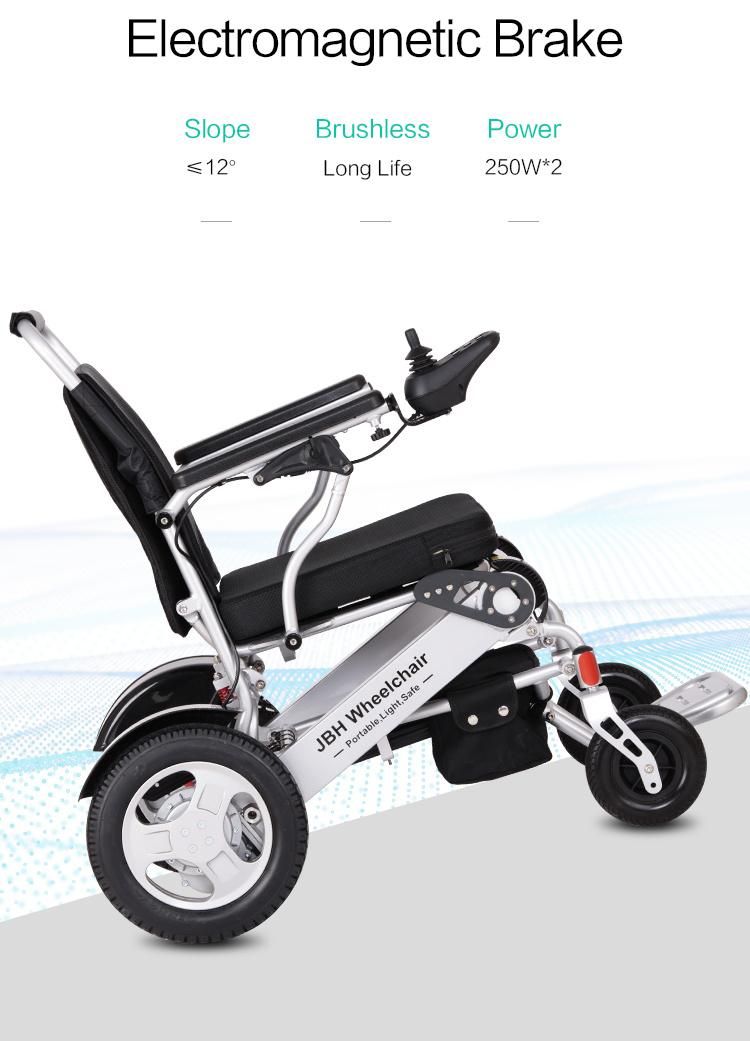

  • Intelligentel ectromagnetic brake keeps users safe.
  • 24V/10AH lithium battery (another 20AH battery isoptional)
  • Rich color: silver, black, red, pink and blue.

FAQ:
Q1: How long will be this shipped ?
3 days after your payments confirmed.

Q2: How is the warranty?
    The frame is 3 years.battery.motor,joystick and controller,other parts all is one year.

Q3: Where is the weakest part in wheelchair?
    The weakest part is wheel,but the quality could be guaranteed.

Q4:  Is the wheelchair for indoor or outdoor use?

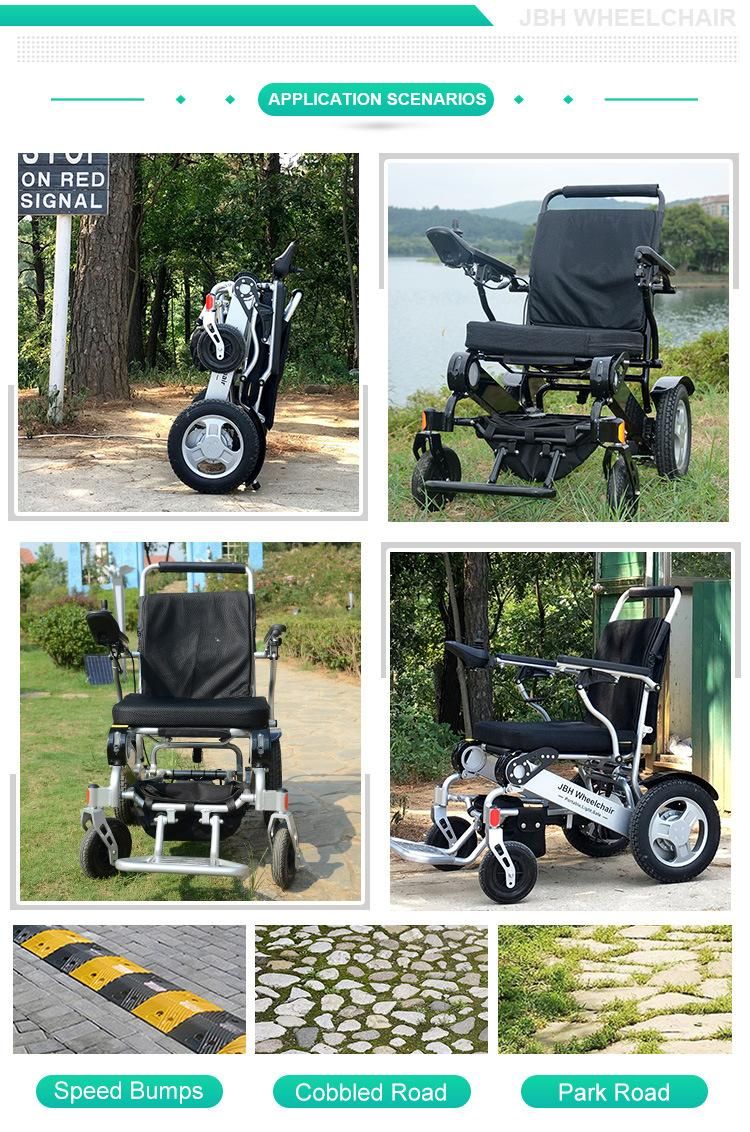

       It was designed for both indoor and outdoor use.

 Q5: How to assemble the wheelchir when i received the wheelchair?
    We have after sales team online 24 hours.

Q6: Can i have some more parts like wheels?
    Yes, but it is not free.

Q7: Will you accept OEM orders?
    Yes. We'd like to produce our customers' OEM/ODM orders.
