Hot Selling Certificated Wheelchair Folding Power Electric with Brushless Motor Lithium Battery Wheelchair

Nanjing Jin Bai He Medical Apparatus Co., Ltd.
  • Customized：Non-Customized
  • Certification：ISO, CE, FDA
  • Condition：New
  • Tilted：Tilted
  • Folded：Folding
  • Leg Rest Type：Across Both Sides

Base Info

  • Model NO.：D17
  • Material：Aluminium Alloy
  • Type：Electric Wheelchair
  • Unfolded Size：1000*640*880 mm
  • Folded Size：640*380*880 mm
  • Battery：Lithium Battery (6ah, DC 24V)
  • Motor：250W * 2 Brushless Motors
  • Load Capacity：140kg
  • Endurance：30km
  • Max Speed：6km,H
  • N.W(Without Battery)：31 Kg
  • G.W(with Package)：37kg
  • Charger：24V,2A
  • Brake：Intelligent Electromagnetic Brake
  • Climbing Slope：Max 8 Degre
  • Color：Black+White
  • Tire：PU Tire
  • Charging Time：6-8h
  • Transport Package：Standard Export Sea-Worthy Paper Carton
  • Specification：loading capacity 120kg
  • Trademark：JBH
  • Origin：Jiangsu, China
  • HS Code：8713900000
  • Production Capacity：5000 Sets,Month

Description

Overview MaterialAluminum AlloyUnfolded Dim(LxWxH)Folded Dim(LxWxH)N.W. (Without battery)27.5KGN.W. (With battery)31KGMax Speed6km/hFront Tires8" Rear Tires12" Seat Width500-620mmSeat Depth420mmPedal High From Ground110mmPacking Carton(LxWxH)730x450x950mmDriving Range30KMLoading Capacity140KGMotor250Wx2pcs blushless motorsControllerDC 24V 2A,100~220VAC,50~60HzLithiun Battery24V 6AHClimbing SlopeMax 12°Charging Time6 to 8 hrDrive ModeRear DriveBraking SystemElectromagnetic Brake

Hot Selling Certificated Wheelchair Folding Power Electric with Brushless Motor Lithium Battery WheelchairHot Selling Certificated Wheelchair Folding Power Electric with Brushless Motor Lithium Battery WheelchairHot Selling Certificated Wheelchair Folding Power Electric with Brushless Motor Lithium Battery WheelchairHot Selling Certificated Wheelchair Folding Power Electric with Brushless Motor Lithium Battery WheelchairHot Selling Certificated Wheelchair Folding Power Electric with Brushless Motor Lithium Battery Wheelchair

Company Profile



Hot Selling Certificated Wheelchair Folding Power Electric with Brushless Motor Lithium Battery Wheelchair

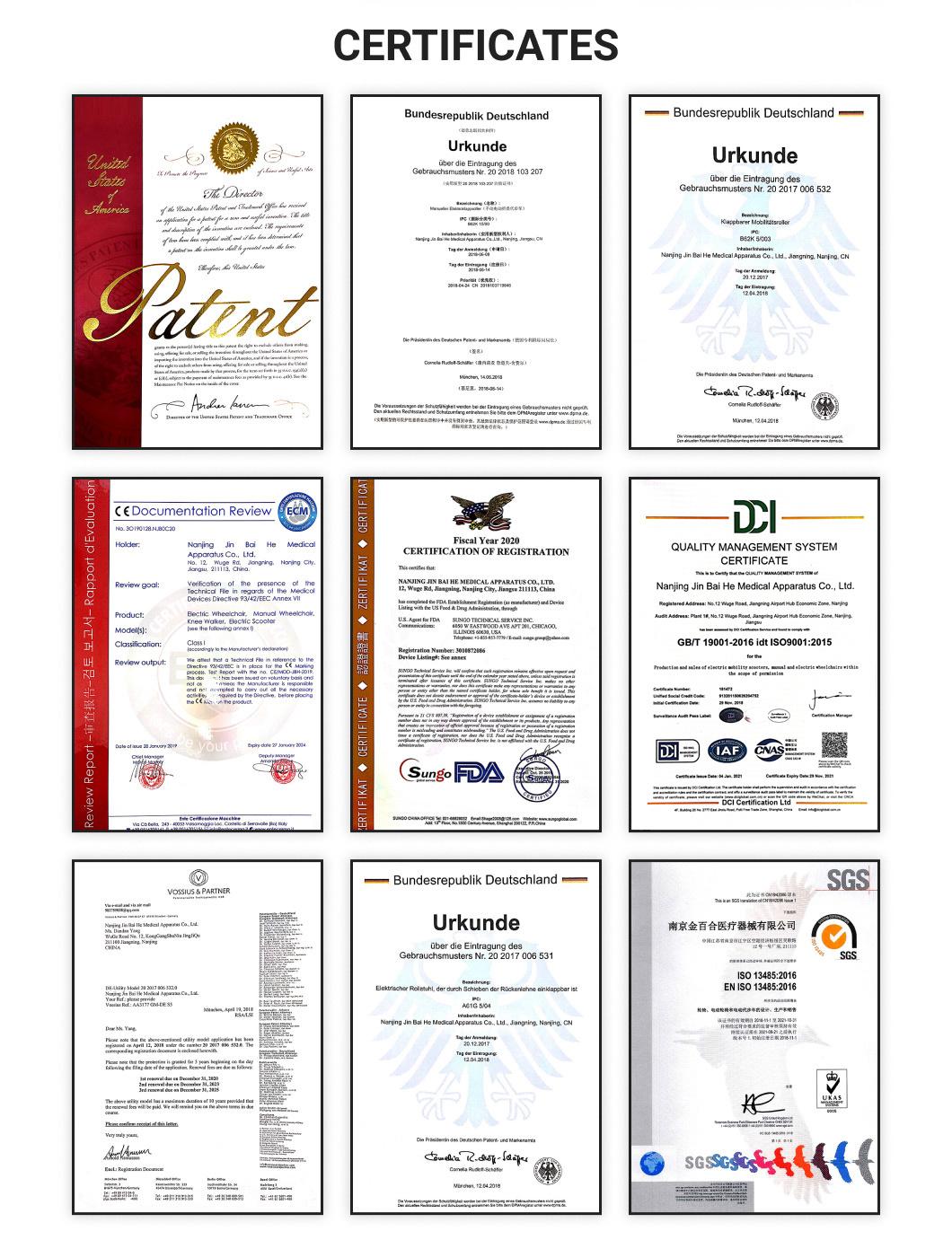

Certifications


Hot Selling Certificated Wheelchair Folding Power Electric with Brushless Motor Lithium Battery Wheelchair

Hot Selling Certificated Wheelchair Folding Power Electric with Brushless Motor Lithium Battery WheelchairFAQ

FAQ:

Q1: Can I Take The Plane? What Documentation Is Required?
        Yes, our products can be allowed to be carried on the plane, different airlines will have different regulations, you can consult the airline staff of your flight.

Q2: To Avoid Overcharging, Should I Need Protective Measures When Charging?
        No, the charger has a power-off protection function. When the battery is fully charged, the charging power supply will cut off by itself.

Q3: Can I Use It In Different Countries?
        Yes, our products have an input voltage of 100-240V, which is suitable for most countries in the world. We can provide you with the right charger according to the type of plug used in your country.

Q4: Should I Need To Assemble After Unpacking?
        After unpacking, only the controller joystick needs to be installed, the wheelchair lock is fixed, and the power can be used.

Q5: Is It Possible To Switch Manually By Electric Mode?
        Yes, you can adjust the red handle on the motor position to switch the manual electric mode.

Q6: Can The Controller Lever Switch Between Left And Right?
        Yes, the joystick can be switched left and right.

Q7: What Is The Production Process Of The Wheelchair?
        Raw material cutting - processing forming - welding - heat treatment (increasing hardness) - baking paint - inspection - assembly - finished product - the packaging.

Q8: What Are The Optional Parts & Accessories?
        Battery, motor, tire, cup holder, controller, travel bag, rear control bracket, flashlight bracket, mobile phone  holder, headrest etc.

Q9: Can Product Quality Issues Be Returned?
        At present, my products do not support return, but if there are quality problems, we will send spare parts for customers to replace them during the warranty period
       We also have a professional after-sales team to guide the installation.

Q10: Are You Directly OEM And ODM?
         OEM can, we can customize your LOGO in a wheelchair. ODM is also acceptable, but the cost of opening the mold is relatively expensive, requires the customer to  pay for it, and the cycle is longer. If the customer can accept it, our factory is no problem.

Q11: How about Warranty ?
     First ,We guarantee product quality ,Strictly tested before shipment.
     Second ,damage to accessories caused by non-human factors during the warranty period ,We will ship it for free
