• Model NO.：XFG-108FL
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Motor：24V,250W*2 Brush
• Battery：24V12ah,20ah Lead-Acid
• Controller：Joystick
• Forward Speed (Adjustable)：0-6km,H
• Reverse Speed(Adjustable)：0-6km,H
• Charging Time：6-8h
• Front Wheel：6′′pu Solid
• Rear Wheel：12′′rubber Solid
• Max Load：120kgs
• Brake：Intelligent Electromagnetic Brake
• Climbing Ability：12 Degrees or Less
• Driving Range/Charge：10-25km
• Whole Wheelchair Size：95*56*89cm
• G.W.：52kgs,58kgs
• N.W(with Battery)：50kgs
• Transport Package：Carton
• Specification：66*28*74cm
• Trademark：Flybrother or customized
• Origin：China
• HS Code：8713900000
• Production Capacity：5000PCS,Month

4x4 folding power power electric wheelchair specificationMotor24V/150W*2 BrushSize (unfolded)950*560*890mmBattery 24V12ah/20ah lead-acidSize (folded)640x260x720mmCharging time6-8hPacking size660X280X740mmSpeed0-6Km/hG.W.52kgs/58kgsClimbing ability≤12°N.W.(With 10AH battery)50kgsDriving distance10-40kmN.W.(Without battery)35kgs

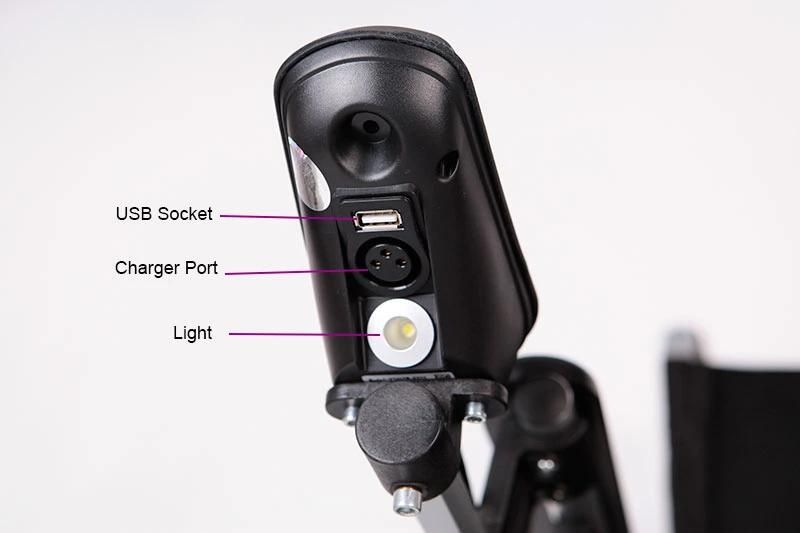

1.Controller:

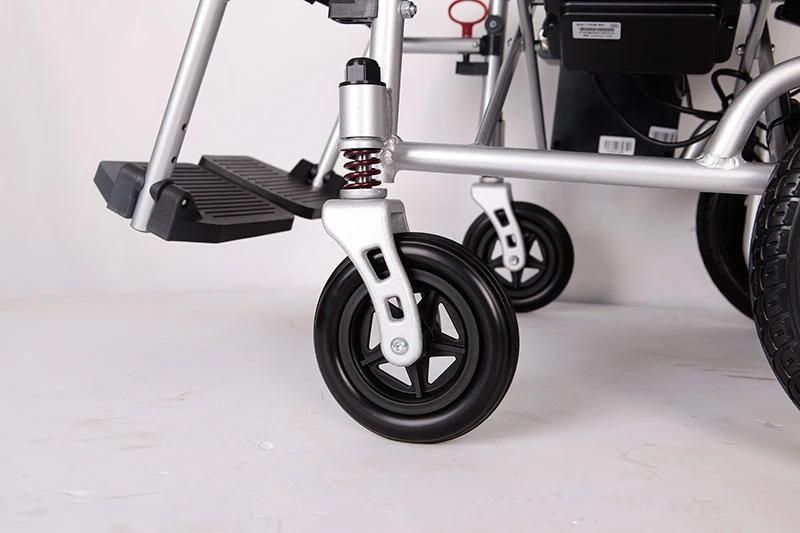

2.Spring shock:

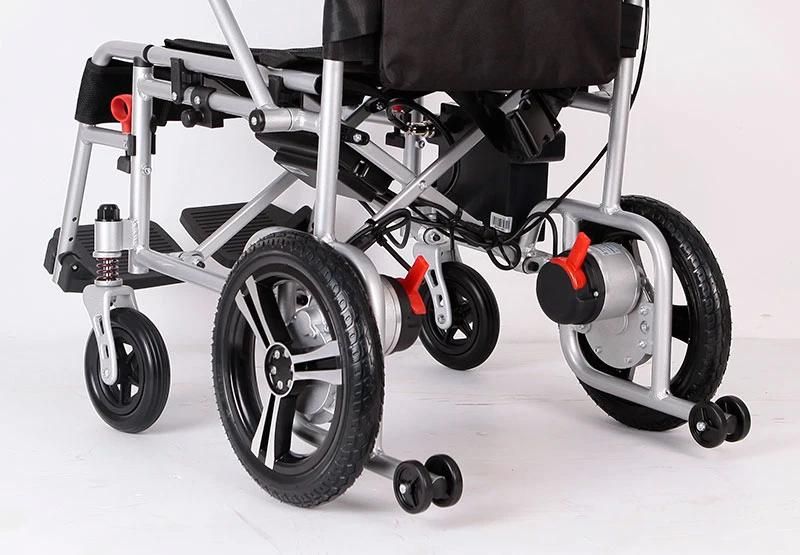

3.Motor and Anti-tip Wheel:

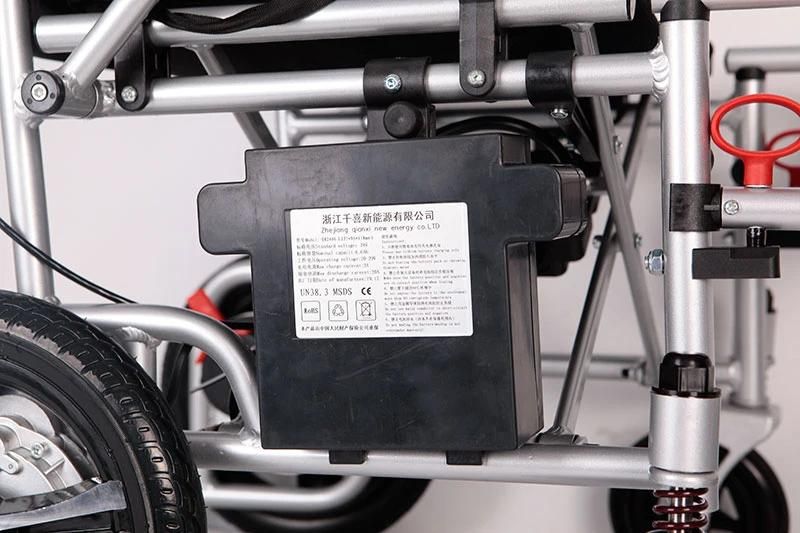

4.lead-acid Battery:

Products


About Us

Zhejiang Qianxi Vehicle Co.,Ltd. was established in 2000, specialized in producing electric scooters, electric motorcycle, electric wheelchair and electric mobility scooter.

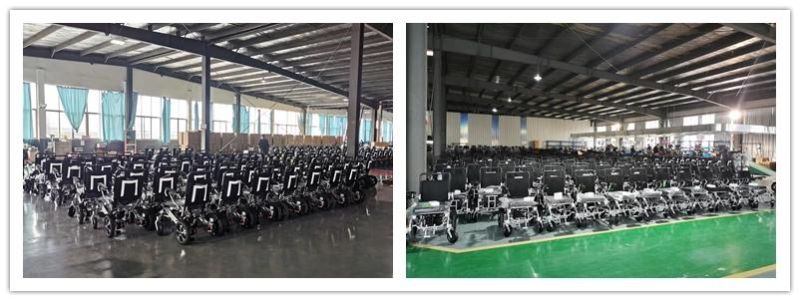

Ourfactorycovers the area of 200,000 square meters with more than 500employees,R&D 10 persons and has passed  ISO9001, CE, EEC, EN12184 certifications.
Till now, we developed more than 50 serials products with 11 National Patents.
Our products are very popular in the world , such as the USA, Korea, Spain, Germany, Czech, Turkey etc.
Welcome OEM or ODM project and cooperation, please feel free to contact us for professional service.

Exhibition



FAQ
Q: Are you a factory or a trading company ?
A: We are professional medical equipments ,lightweight wlectric wheelchair & mobility scooter manufacturer.

Q. What are your trading terms of lightweight electric wheelchair and electric mobility scooter?
A: Payment term: T/T 30% deposit after order confirmed, the balance paid before shipping or against bill of lading; D/P and L/C are also acceptable for order more than USD200,000.

Q: What's your warranty policy of folding electric wheelchair and mobility scooter?
A: We provide 1 year free warranty for electric wheelchairs & mobility scooters by non-human factor. You just need to send us pictures or videos of the damaged parts, then we send new parts or compensation to you.

Q: Can we have your sample?
A: Samples are available and be ready in 7-15 days upon receipt of payment.The sample cost will be increased USD100 for local charge.
