• Model NO.：M1105
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Product Name：Light Folding Electric Power Wheelchair
• Electric Wheelchair Unfold Size：1030*630*925mm
• Electric Wheelchair Fold Size：620*350*810mm
• Brushless Motor：250W*2PCS
• Lithium Battery：24V,7.5ah*2PC
• Chair Loading：120kg
• Driving Distance：25km
• Max Speed：6km,H
• Seat Width：46cm
• Transport Package：One Chair Per Box with Protect Foams
• Specification：250W folding electric wheelchair
• Trademark：AISHUN
• Origin：Nanjing, Jiangsu, China
• HS Code：87139000
• Production Capacity：2000 PCS,Month

Basic Info.

Model NO. M1105 Material Aluminium Alloy Type Electric Wheelchair Product Name Light Folding Electric Power Wheelchair Electric Wheelchair Unfold Size 1030*630*925mm Electric Wheelchair Fold Size 620*350*810mm Brushless Motor 250W*2PCS Lithium Battery 24V/7.5ah*2PC Chair Loading 120kg Driving Distance 25km Max Speed 6km/H Seat Width 46cm Transport Package One Chair Per Box with Protect Foams Specification 250W folding electric wheelchair Trademark AISHUN Origin Nanjing, Jiangsu, China HS Code 87139000 Production Capacity 2000 PCS/Month

Product Description

Handicapped folded light electric power wheelchair

M1105 Light Folding Power Electric Wheelchair Futures:

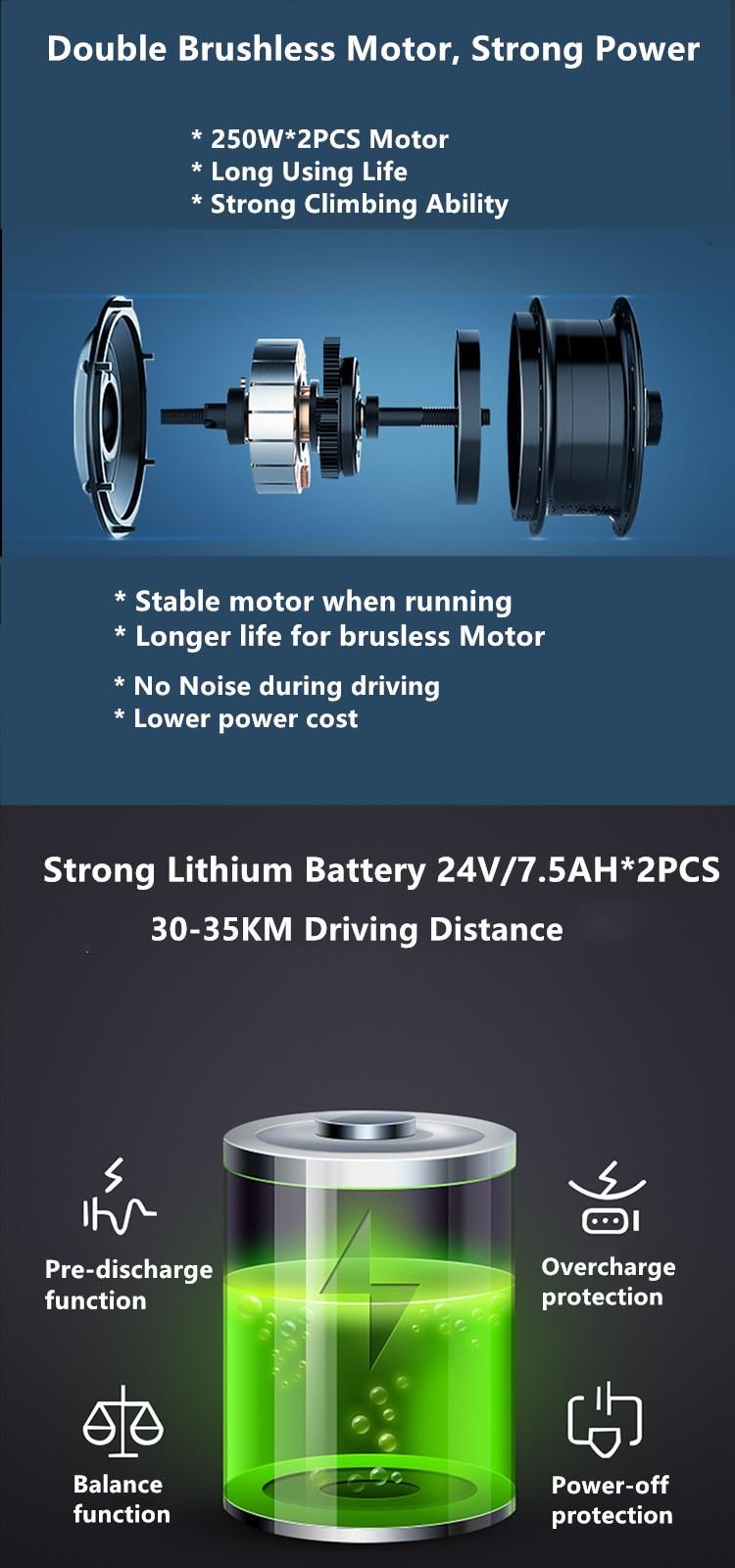

1.High efficiency brushless 250W motors, longer using life.
2. 5-seconds folding or unfolding, easy to carry as a luggage on plane or on train.
3. Very light weight, only 24kg.
4. Small volume after folding, can put in car trunk.5. Frame material: Light aluminum alloy.6. Certificates: CE, ISO9001, ISO13485.7. 10inch big rear tires, stronger grade ability.8. The warranty is 1 year.

M1105 Light Folding Power Electric Wheelchair Detail Parameters:

Product name	Handicapped folded light electric power wheelchair
Model	M1105
Frame material	Aluminium alloy

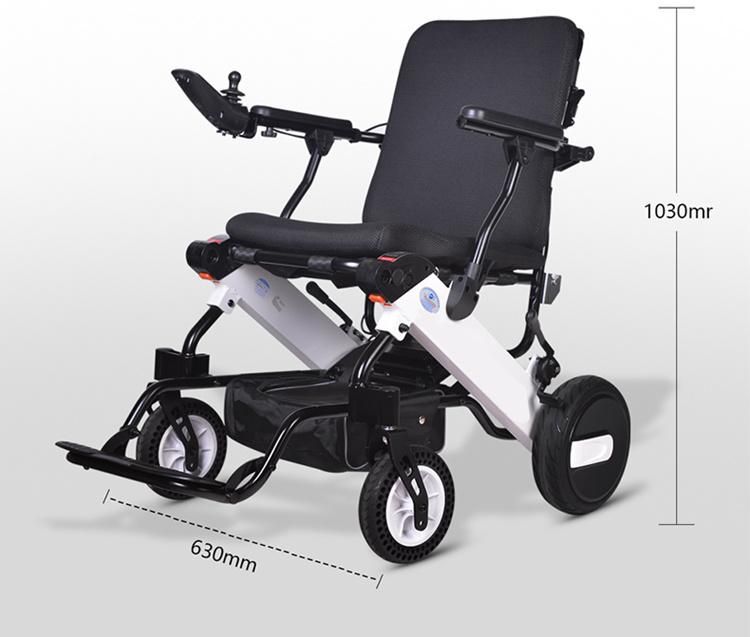

Unfold size (L*W*H)	1030*630*925mm
Fold size (L*W*H)	620*350*810mm
Max speed	6km/h
Front wheels	8" PU solid

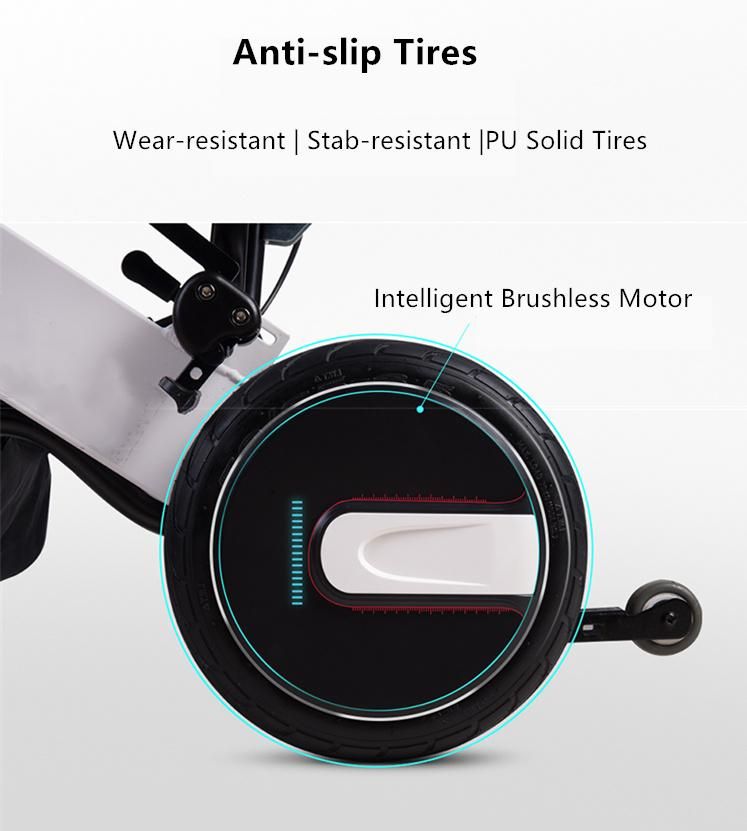

Back tires	10" PU solid
Brushless motor	250W*2PCS
Lithium battery	24V 7.5AH *2PCS (15AH)
Break system	electromagnetic brake and hand break
Driving distance	25km
Loading	120kg
Climbing slop	≤20°
Inner armrest width	460mm
Armrest pad	Width: 50mm, Length:260mm
Seat height (front) includes seat cushion	530mm
Seat height (back) includes seat cushion	500mm
Seat width	460mm
Seat depth	440mm
Backrest height	360mm
Wheelbase	495mm
Armrest height from ground	750mm
Armrest height from seat	230mm

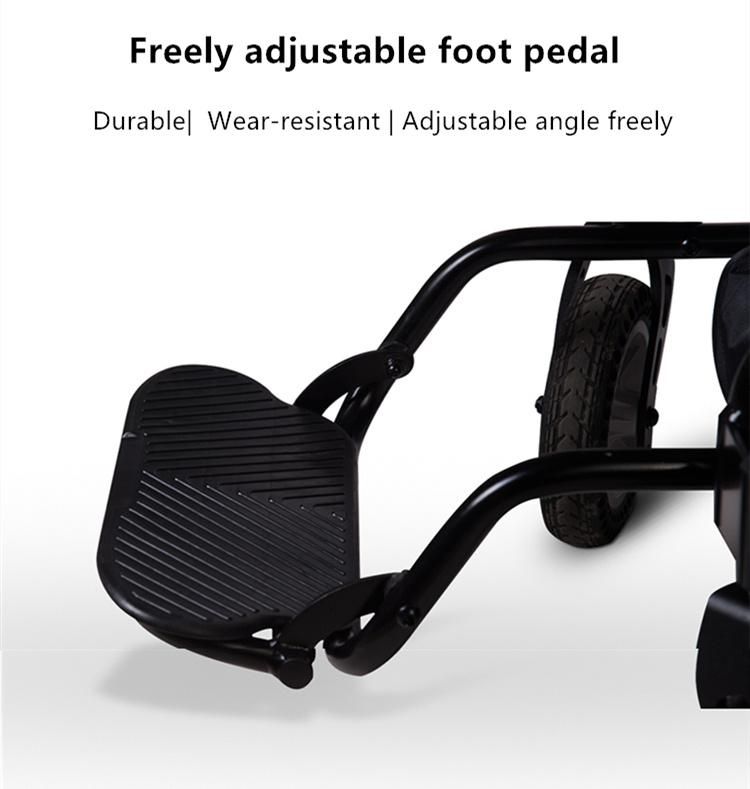

Foot Pedal height from ground	100mm
Net weight	25kg (without battery)
Net Weight	27kg (with 2 lithium batteries)
Gross weight	32kg
Package box	L660*W420*H850mm
Container quantity 20FT/40FT/40HQ	118/246/288pcs

Back Storage basket for option $15/PC

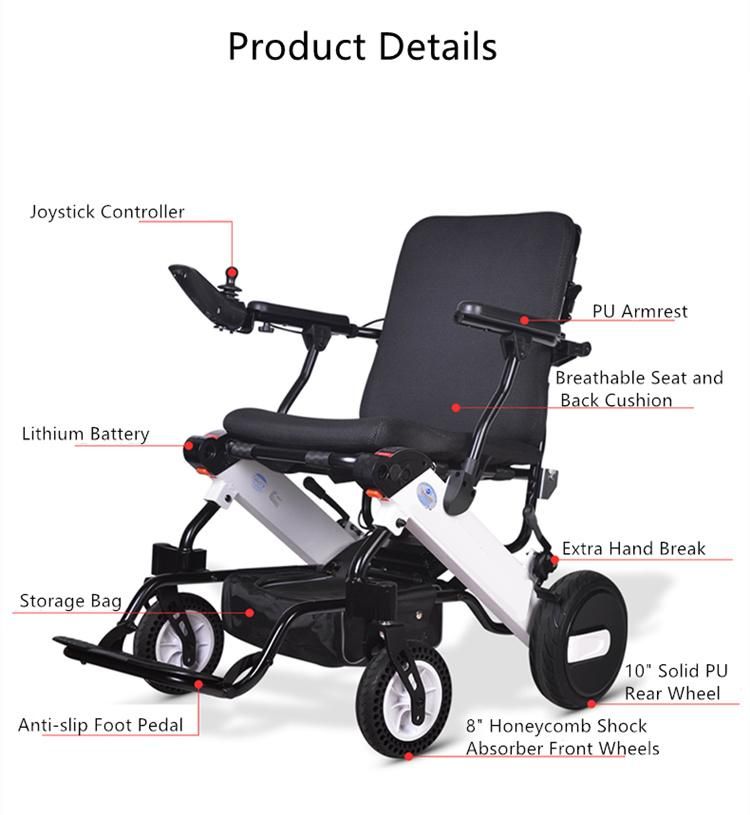

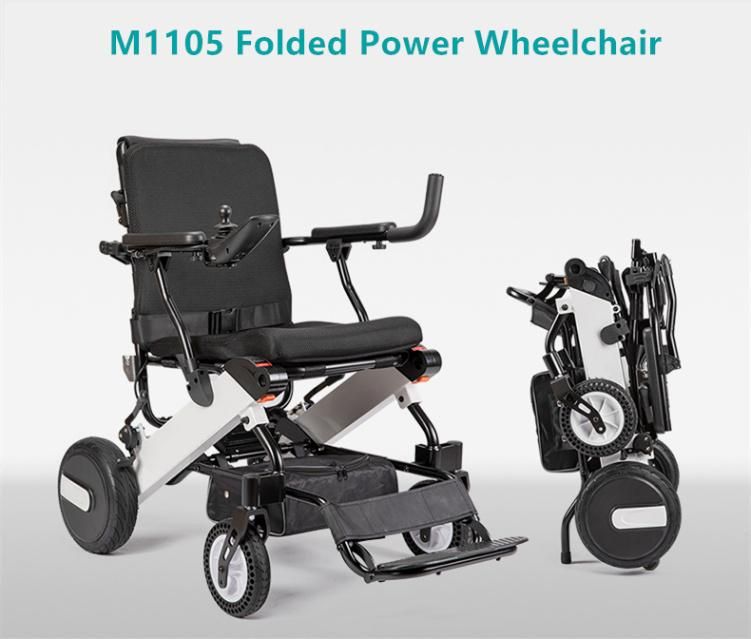

M1105 Light Folding Power Electric Wheelchair Detail Pictures:












Company Information:

Nanjing Aishun Tech. is a professional and comprehensive enterprise in Wheelchairs and Mobility scooters.
We specialized in folded power wheelchairs and scooters, to make disabled and elders go outdoor easily, live better life.
Base on high-quality technique, we own CE, FDA, ISO 13485, SGS certificates.


Certificates:
CE, FDA,ISO 9001,SGS.


FAQ
.Q1: Why Choose Aishun Green Tech. Products?
 A1: We are one of the professional wheelchair and scooters factory here in China,
 Best production capability ,Best quality control, Best Service,

Q2:What is your MOQ(Minimum Order Quantity )?
 A3: As a factory, our MOQ is a 20 GP container, it could be mixed the different model.

Q3: Payment and shipment
 A4: We accept: L/C, T/T, Paypal.
      Delivery time: Within 20 Work days upon the order confirmed.
