• Model NO.：MED-HC-S-93
• Conduction Mode：Bone Conduction Hearing Aid
• Principle：Programmable Hearing Aid
• Type：BTE
• Model No.：Diamond EQ
• .Harmonic Wave Distortion：≤5% (at 1000 Hz)
• Analog Hearing Aid：Input Noise:≤ 30dB
• Frequency Range：250Hz ~ 3800Hz
• Working Voltage：1.5V
• Hearing Aid：Working Current:≤ 4mA
• Transport Package：Standard Packing for Export
• Specification：CE, Ce, FDA, MSDS, ISO13485, SGS, EEC
• Trademark：Med Equipment
• Origin：Guangzhou, China
• Production Capacity：10000set,Year

Basic Info.

Model NO. MED-HC-S-93 Conduction Mode Bone Conduction Hearing Aid Principle Programmable Hearing Aid Type BTE Model No. Diamond EQ .Harmonic Wave Distortion ≤5% (at 1000 Hz) Analog Hearing Aid Input Noise:≤ 30dB Frequency Range 250Hz ~ 3800Hz Working Voltage 1.5V Hearing Aid Working Current:≤ 4mA Transport Package Standard Packing for Export Specification CE, Ce, FDA, MSDS, ISO13485, SGS, EEC Trademark Med Equipment Origin Guangzhou, China Production Capacity 10000set/Year

Product Description

Ear Sound Amplifier Programmable Digital BTE Hearing Aid

1.  Product Description:

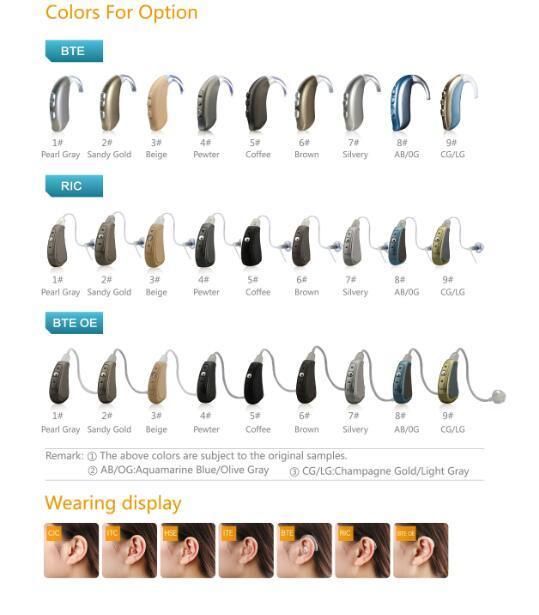

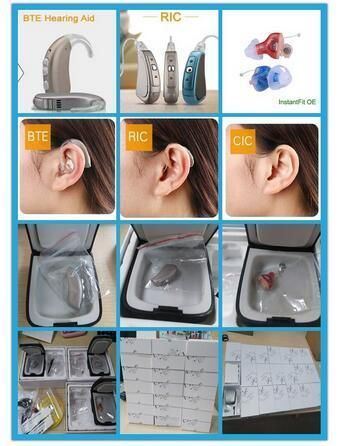

We offer BTE,RIC,CIC,BTE-OE types Programmable Digital  (Digital Computer Fitting) Hearing Aids and non-programmable hearing aids.And they are ISO,CE,&FDA Approved.
Channels from 4 to 32 channels.




At the same time, we can provide a series of related products below:

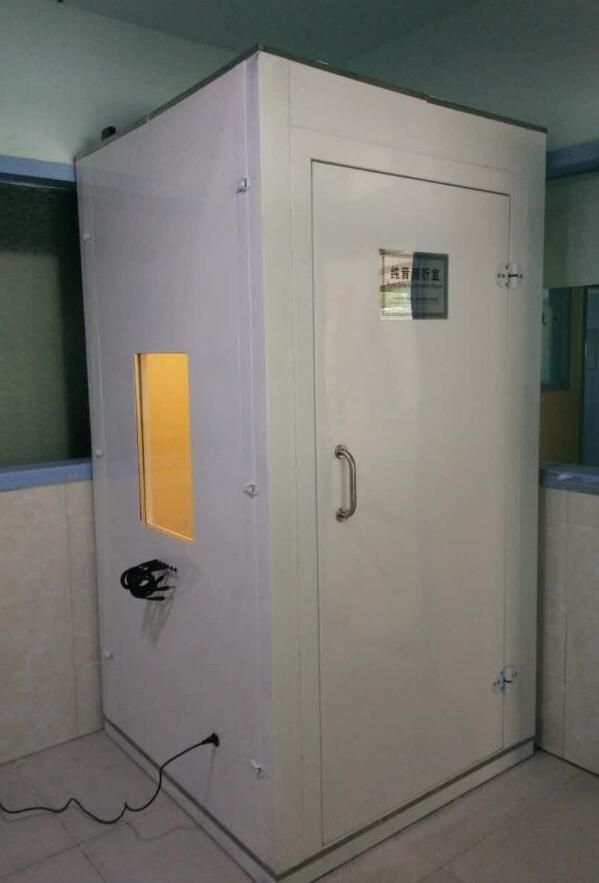

 Movable Audiometric Room

1. (1) Internal structure: ATWL-F, wall and top surface use porous aluminum-plastic plate or decorative cotton, ground use carpet, stable structure, fine sound insulation effect, detachable, removable. (2) External structure: steel plate shield, visual glass observation window, professional soundproof door. 2. (1)Size: 1.2m X 1.2m X 2.3m(The window is 380*600mm) 1.6m X 1.6m X 2.3m 2.0m X 2.0mX 2.3m (The above three is the reference dimension, the size Can be customize d on the basic of customer's requirements.) (2)Professional soundproof door. (3) Visual glass observation window. Can be customized on the basic of customer needs. (4)Independent exhaust system: an indoor air outlet, a silencer, an exhaust fan. (5) A adapter(12 holes), several tielines. (6)A power socket. (7) A exhaust system switch. (8) A lighting switch. (9) A lighting fixture. (10) A set of equipment hook. When the noise of the room ≤ 55dB, noise in the audiometric room ≤ 26dB

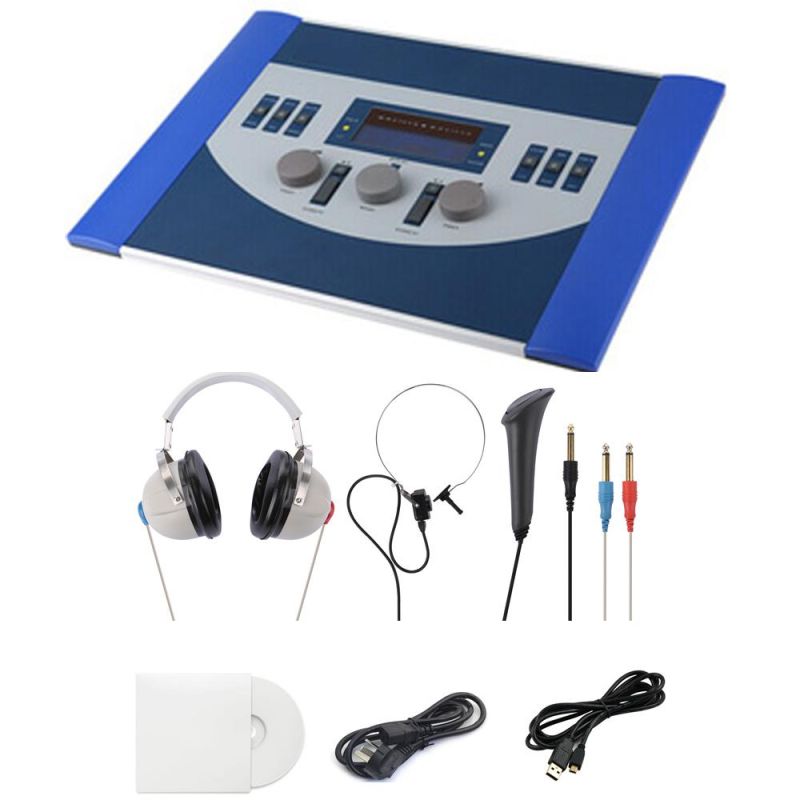

 Audiometer



Frequency and maximum output intensity
Frequency     AC dB HL          BC dB HL
Hz              TDH39           B71
250             100              45
500             120              60
750             120              60
1000            120              70
1500            120              70
2000            120              70
3000            120              70
4000            120              60
6000            110              50
8000            100

Extended range function: If haven't select, AC output restrictions smaller than maximum output 20 dB
Input : pure tone, warble tone ±5%, 5Hz Sine wave frequency modulation.
Masking : Both air conduction and bone conduction can do masking
Computer Interface: USB data transfer interface, can transfer data to computer, and also can set up personalized print reports.
Output : Air conduction earphone(L/R), Bone conduction earphone(L/R), Insert earphone, Insert masking.
Transducer : TDH 39 earphone (standard configuration)
Ear~Tone 5A Insert earphone (Optional)
B71 bone conduction earphone (standard configuration)

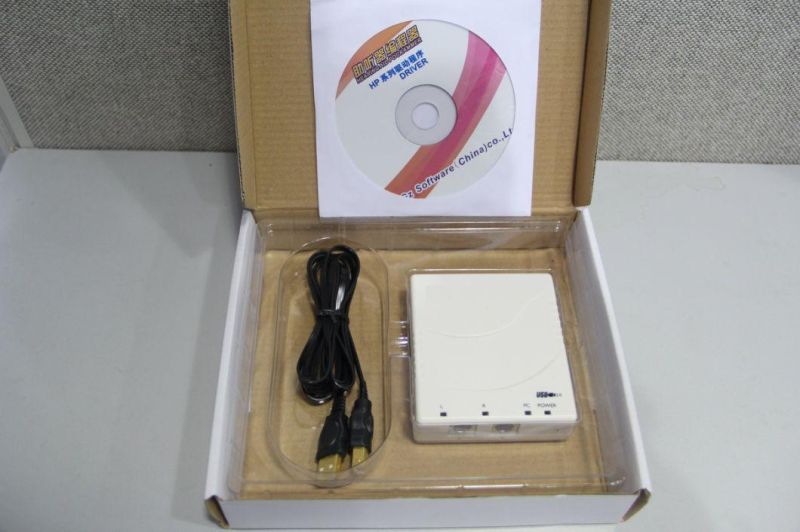

Programming tools for hearing aids




2. Process of Purchase:

(1). If you are a final user,contact me please and send me your audiogram,so I can advise you a suitable one according to your audiogram.

Q: What is audiogram?
A: we suggest that you can go to your local hospital to find a ENT doctor
    to hearing aid test for you and then you can have a hearing loss test
    report to indicate your hearing loss degree, we call the hearing loss
    report as audiogram.

(2). If you are a reseller,contact me and tell me what types you like,I will send you our catalogue and price list.




If you have any question,welcome to inquiry! We will reply you the first time.
