• Model NO.：FDB05
• Material：Aluminium Alloy
• Type：Electric Scooter
• Expand Dimension：860*460*820mm
• Folded Dimension：630*460*390mm
• Battery Type：24V 6ah*1PC Lithium Battery
• Colour：Silver, Yellow
• Guarantee：One Year
• Max Load：120kg
• Motor：Brushless Motor 120W*2PCS
• Net Weight：18kgs
• Certificates：ISO9001, ISO13485, Ce, FDA
• Product Name：Folding Electric Portable Wheelchair
• Speed：0-6 Km ,H
• Real Wheel：6.5"
• Front Wheel：7.5"
• Gradient：0-8 Degree
• Transport Package：1 Set Folding Electric Wheelcahir,Carton
• Specification：CE, FDA, ISO13485, ISO9001
• Trademark：JBH
• Origin：Nanjing, Jiangsu, China
• HS Code：87139000
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. FDB05 Material Aluminium Alloy Type Electric Scooter Expand Dimension 860*460*820mm Folded Dimension 630*460*390mm Battery Type 24V 6ah*1PC Lithium Battery Colour Silver, Yellow Guarantee One Year Max Load 120kg Motor Brushless Motor 120W*2PCS Net Weight 18kgs Certificates ISO9001, ISO13485, Ce, FDA Product Name Folding Electric Portable Wheelchair Speed 0-6 Km /H Real Wheel 6.5" Front Wheel 7.5" Gradient 0-8 Degree Transport Package 1 Set Folding Electric Wheelcahir/Carton Specification CE, FDA, ISO13485, ISO9001 Trademark JBH Origin Nanjing, Jiangsu, China HS Code 87139000 Production Capacity 1000 Sets/Month

Product Description

FDA and CE approved premium lightweight power electric wheelchair

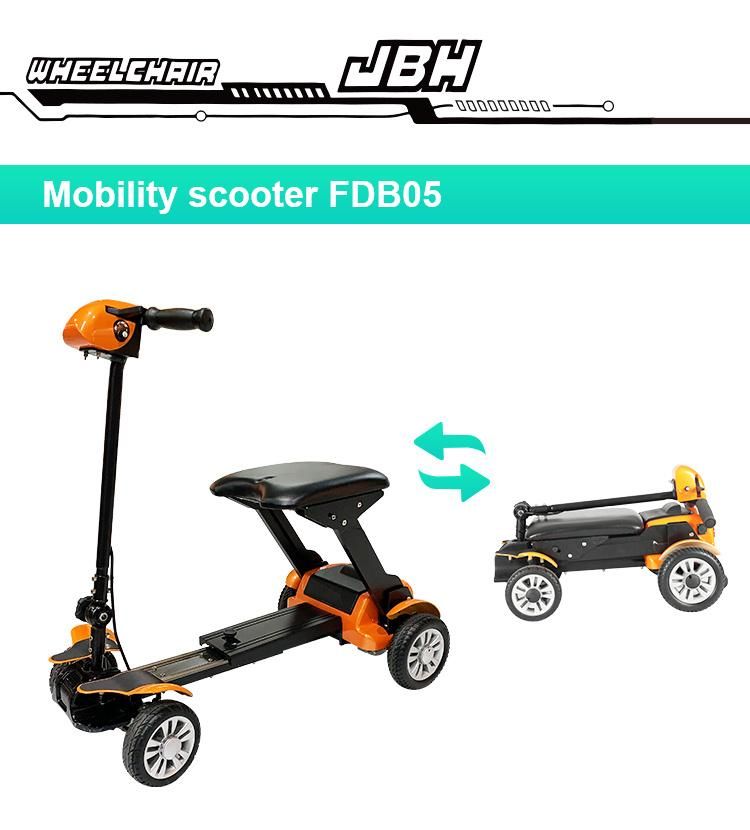

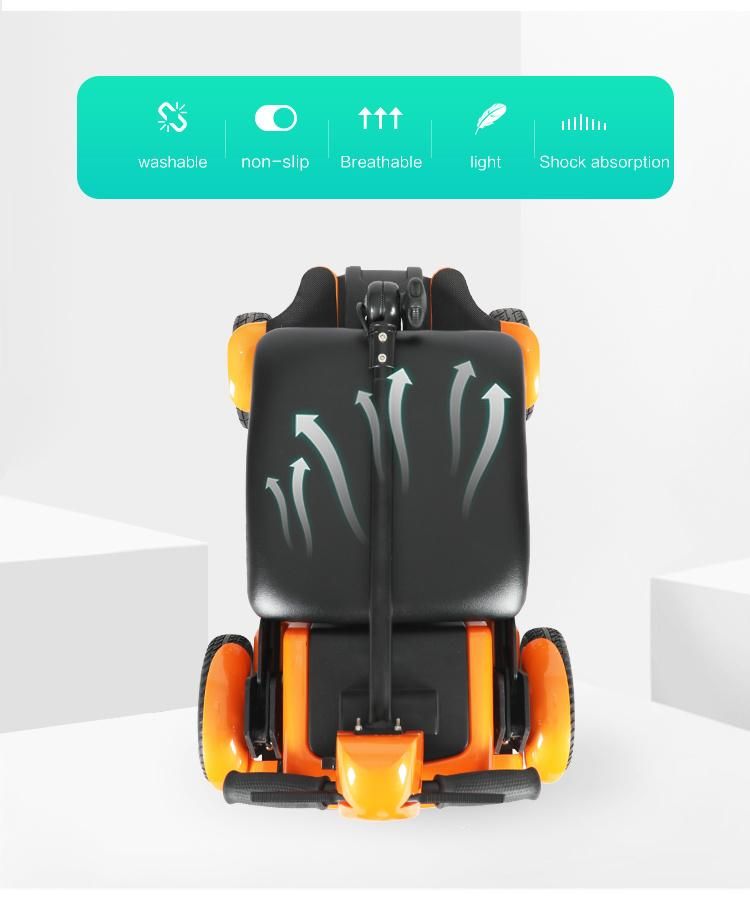

FDB05 folding power electric scooter Key Features:

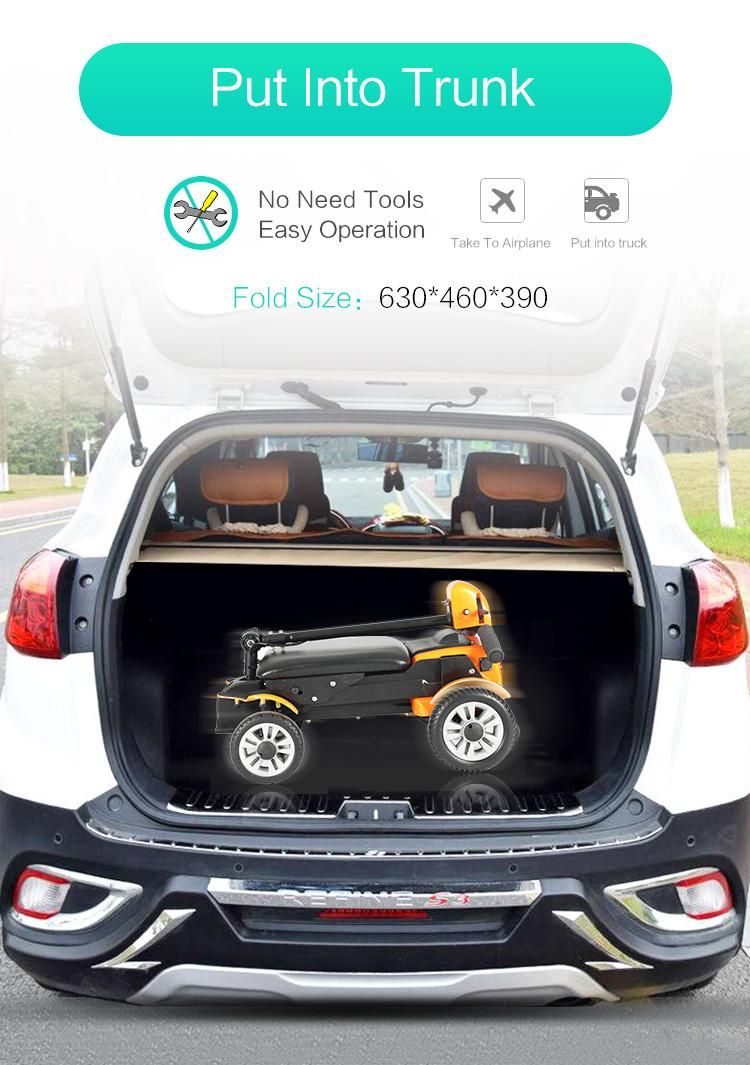

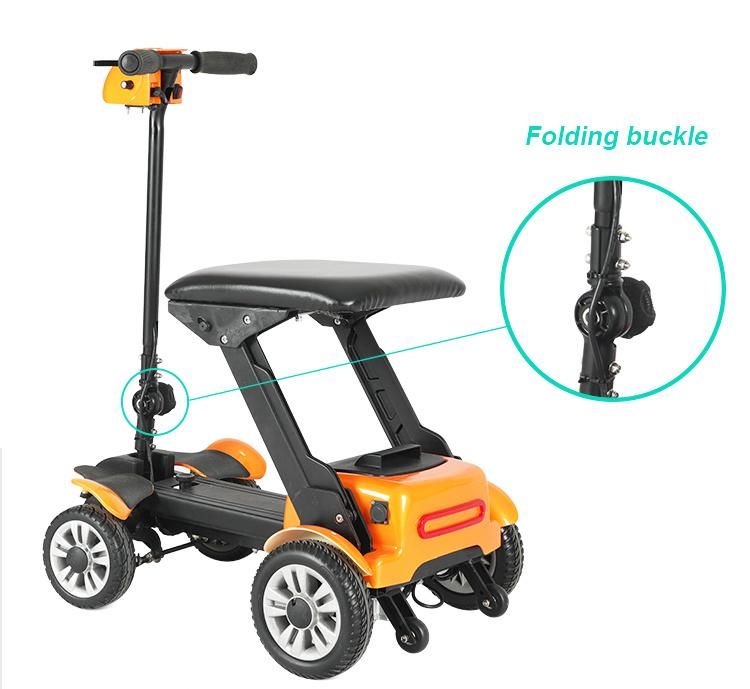

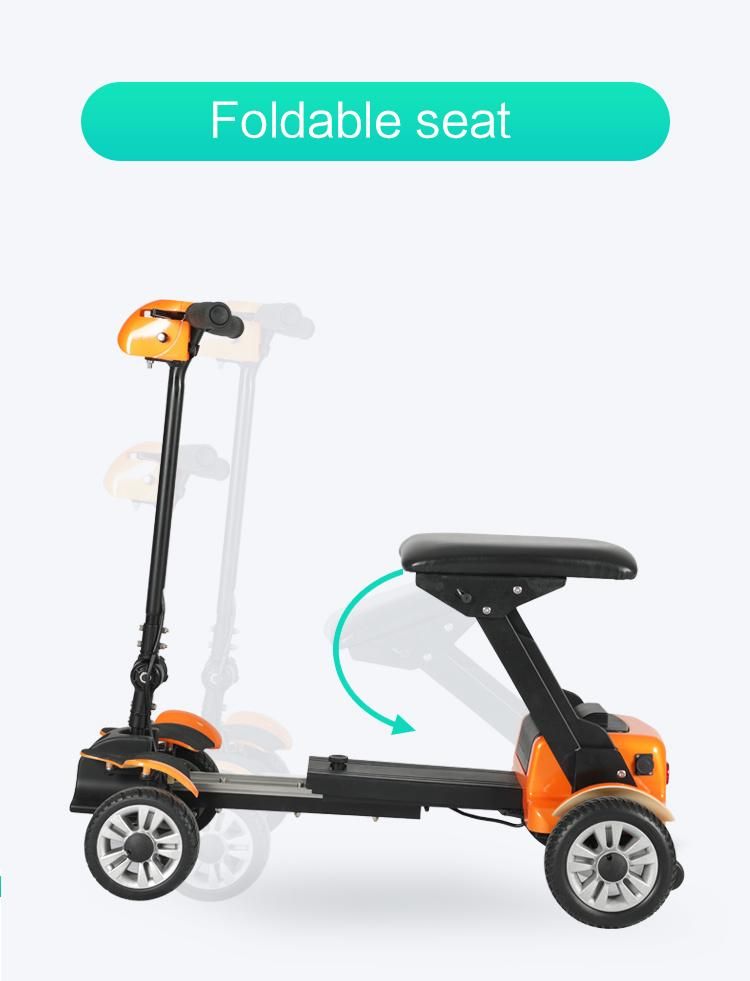

1. 5-seconds folding or unfolding, easy to carry as a luggage on plane or on train.

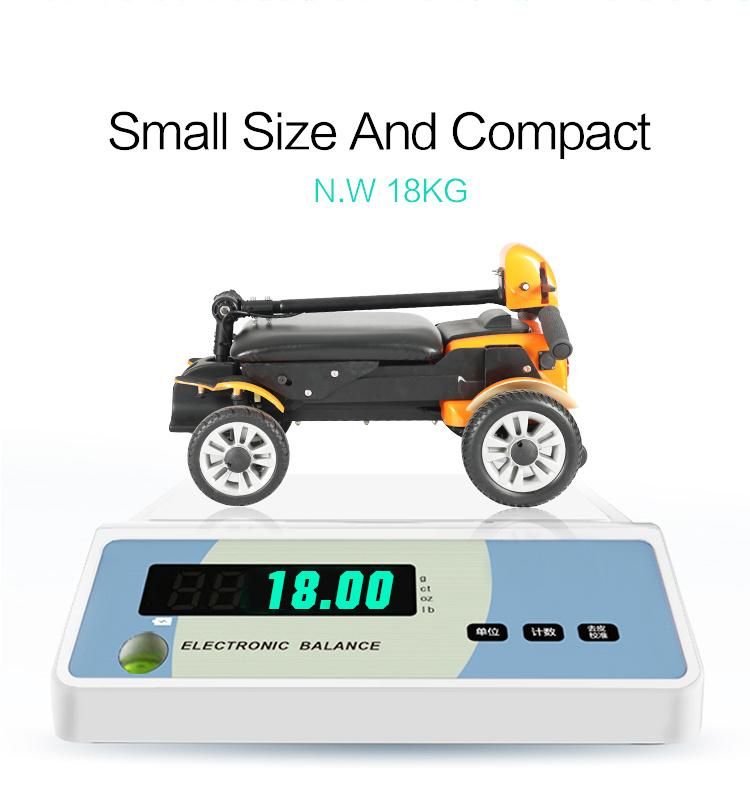

2. Very light weight, only 18kg.
3.Small volume after folding.
4. Frame material: magnesium alloy.
5. Certificates: CE;FDA;ISO9001; ISO13485.
6. High efficiency brushless hub motor

7.The warranty period of frame is 3 years; Motors, controller, Battery are 1 years.

FDB05 lightweight folding electric power Scooter parameters:

Description:	Portable folding premium electric scooter
Model	FDB05
Material	Aluminum alloy
unfold size	860*460*820mm
fold size	630*460*390mm
loading capacity	120kgs
Motor	250W*2pcs brushless motors

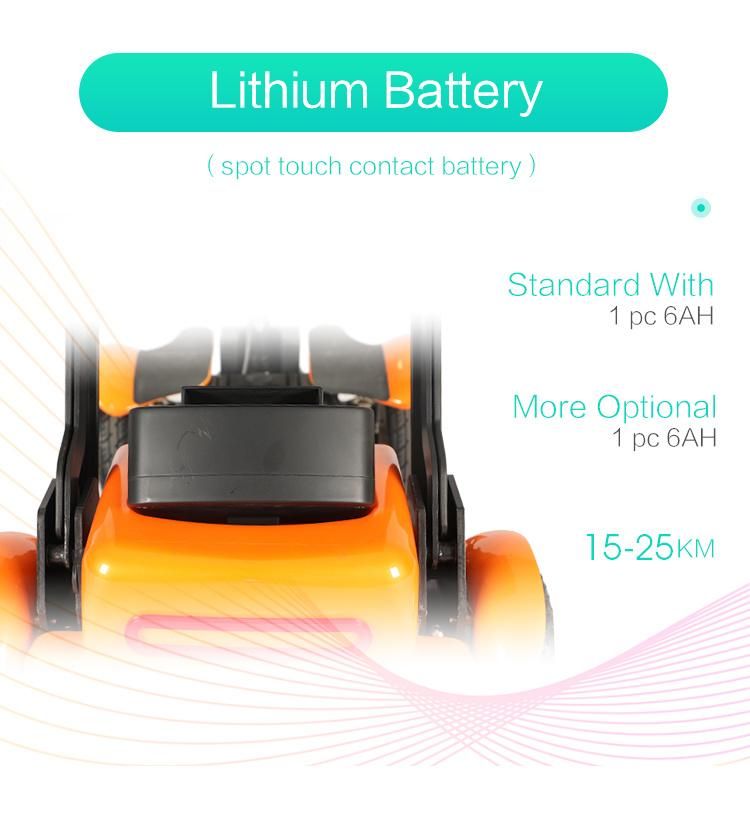

Battery	24V 6AH*1 pcs lithium battery
max speed	6km/hour
Driving range	20KM
front tires	6.5"*2pcs PU solid tires
rear tires	7.5"*2pcs PU solid tires
climbing slope	max 8°
charging time	5 hours
width of armrest	510mm
seat width	320mm
seat depth	340mm
seat height	front 550mm/ back 480mm
turning radius	850mm
net weight without battery	18kg
net weight with one batteries	20kg
Drive model	rear drive
braking system	electromanetic brake
Factory Colour	silver+black,orange+black
Package carton size	540*430*800mm

Package: one set FDB05 folding electric power scooters / carton with protected foams.

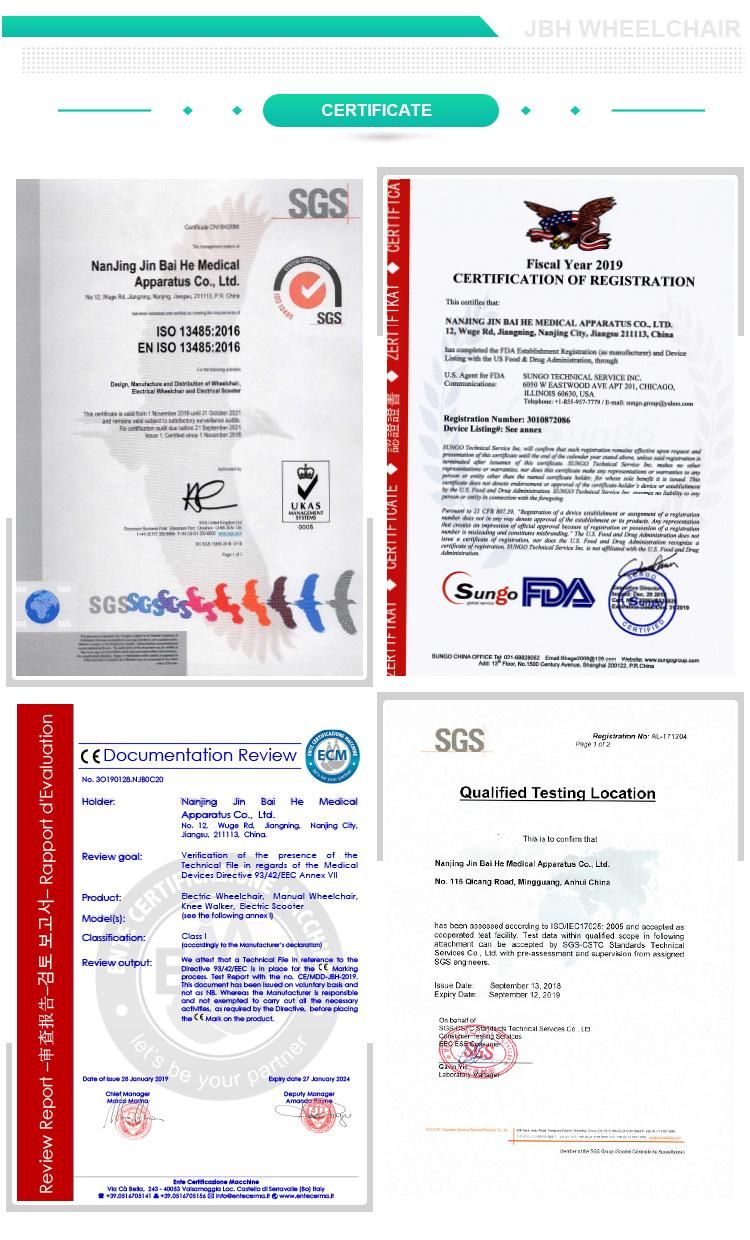

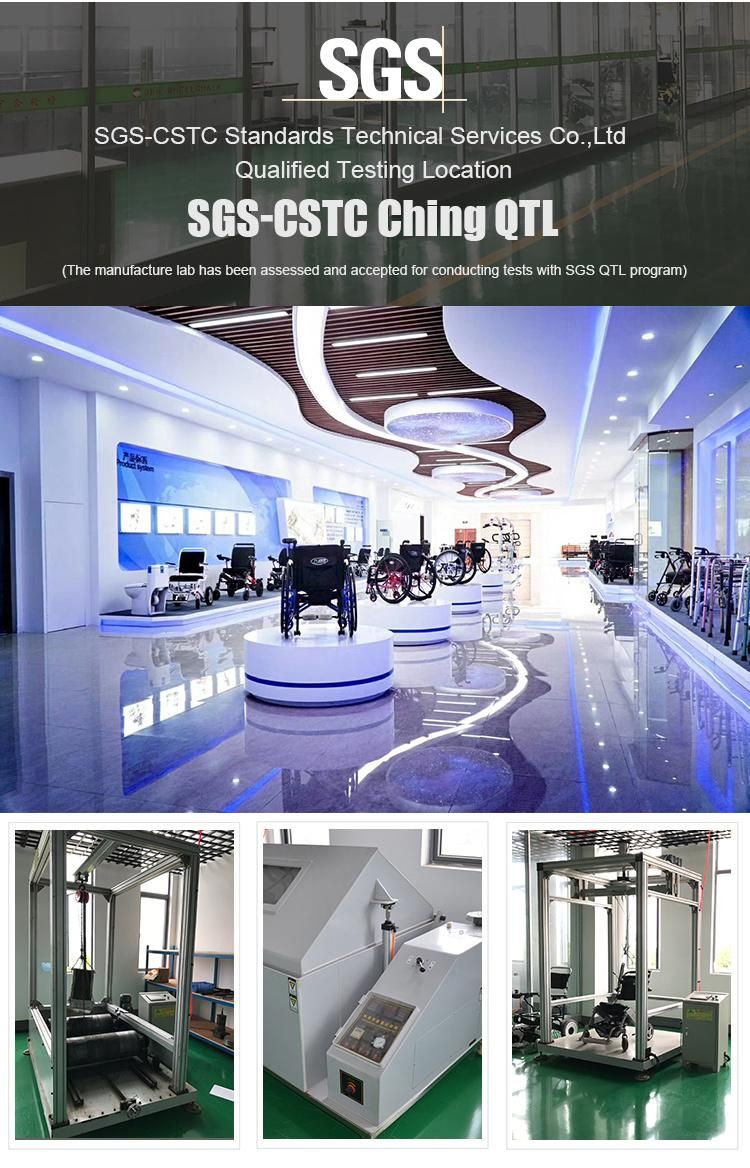

Certificates:SGS, CE, FDA, ISO13485.


Company information:
JBH Wheelchair/Scooters is researching and development, manufacturing and sales enterprise. Specialized in Portable power wheelchair, Portable electric scooter, knee walker, and electric standing wheelchair. Products passed through ISO 13485, FDA and CE standard. We provide OEM service, great quality. "JBH" as the registered trademark renowned for "Safe, Light and Portable" on the market. Products covers 20 Provinces in China and export to USA, UK, Canada, and Australia. JBH wheelchair gained wide range recognition and trust from our customers. We will continue providing high quality products and service.





Folding electric power wheelchair FAQ

Q1: Why Choose JIN BAI HE Products?
 We are one of the professional wheelchair factory here in China,
 Best production capability, Best quality control, Best Service,

 Q2: How is JIN BAI HE Products Quality?
 We only supply quality products, our manufacturing facilities have received the ISO, CE, recognition, and get FDA certificate for some products .
Every products will inspected to the standard before shipment, and every product has one year warranty period.

Q3:What is your MOQ(Minimum Order Quantity ?
  As a factory, our MOQ is one piece, it could be mixed the different models.

Q4: Payment and shipment
 We accept: T/T,Paypal, West Union.
 Delivery time: According the order.

Q5: Is the wheelchair foldable and portable?
Yes. Our wheelchair can be easily disassembled and placed in the trunk of a vehicle.

Q6: Is the wheelchair for indoor or outdoor use?
It was designed for both indoor and outdoor use.

Q7: Will you accept OEM orders?
Yes. We'd like to produce our customers' OEM/ODM orders.

Q8:Are you trading company or manufacturer?
We are professional manufacturer and have several years of wheelchairs experience in global market.

Q9,:What is the warranty period of the wheelchair?
The warranty period of frame is 3 years. Motors, controller is 1 year. Battery is 6 months.
